2011 Subaru Forester unofficial research page by Joe Spitz, Internet sales, Seattle, Wa Learn all about the 2011 Forester looking for...  2012 Forester,  2010 Forester  - - New for 2011- Touring model, new silver roof rack rails, new turn signals in the outside mirrors, new front grill, new 10 spoke alloy wheels, new 2.5L engine FB25.  New for 2011 Sky Blue color -- ON THIS PAGE - Photos  I  Updates  I  Whats new for 2011 I fuel economy comparison I  model overview  I  Dimensions, Measurements, Cargo space  I Model Option Trim Packages  I Prices  I Safety features  I  Maintenance & Warranty  I  Specifications, Mechanical details (PZEV, VDC) I Standard features: X, SE; Premium and Limited; Touring; XT turbo   I  Option Packages, Individual  I  accessories I  Colors, Interiors  I  order a car?I Magazine articles, speed tests  I Fine print 2011 Forester photo pages: Exterior photos page #1,  Interior photos page #2 Related pages:  full 2011 maintenance schedule and service intervals --- Buying in Seattle, Washington, Oregon, Montana, Idaho,  Alaska, or the Northwest? Shipping available to Alaska, Hawaii or ..? Joe Spitz, internet sales in Seattle, Wa. Selling Subarus in the Seattle area since 1996. Contact. - always subject to change, correction.  comments, corrections, welcomed  All photographs, text, formatting © joe spitz :: unauthorized reproduction prohibited  thanks for visiting. please tell  friends about the site. you are here http://www.cars101.com/subaru/forester/forester2011.html  v  4.20.15 - Please read- this unofficial independent Subaru research site by Joe Spitz is designed to help you learn about Subarus and is not sponsored, authorized, supported or approved by Subaru or any dealer, and is not connected to, affiliated with or approved by any dealer. Always contact your local dealer.  -

new for 2011 close-up of the new silver roof rails, on Touring models only.  New Marine Blue shown	new for 2011 Touring model- note the silver roof rails, turn signal mirrors.  Silver shown
Marine Blue Pearl with optional body side moldings, HD round crossbars (hard to see),  and side window rain drip moldings (dealer installed only)	close-up of optional side window rain drip moldings (dealer installed only), and HD round cross bars. click for a page of exterior photos
Camillia Red, Premium model shown (click for a full page of exterior photos)	new for 2011- new top of the line Touring models have new silver roof rails.  XT Touring has a new redesigned rear spoiler only on the XT.
new color for 2011 Forester- Sky Blue. Premium shown	silver Limited

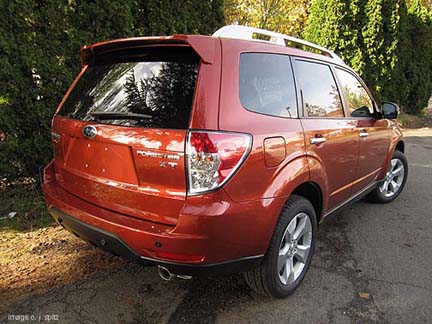

XT Touring shown with new redesigned for 2011 rear spoiler on XTs only and not the same spoiler optional on X models, new silver roof rails, with optional back-up sensors visible on the rear bumper	2011 Forester XT Touring, paprika red pearl, with optional back-up sensors visible on the rear bumper. Notice the new XT spoiler (only on XT)

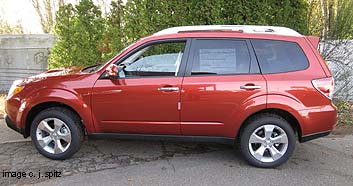

2011 XT Touring, Paprika Red Pearl shown	Paprika Red Pearl Touring model, XT (click for a full page of exterior photos)
There's great visibility out of the back of all 2011 Foresters. With properly  adjusted outside mirrors there are no blind spots at all! Note the new larger for 2011 rear headrests (more photos below)	XT turbo has an engine cover
only the Touring model has the new silver roof rack rails. Yes it was raining. Cross bars are optional on all models- either areo (150lb capacity) or HD round	black roof rack rails on X alloy wheel value package, Premium, and Limited Cross bars are optional on all models- either areo (150lb capacity) or HD round
only the Touring models have integrated turn signals in the outside mirrors.  Not available on any other model.	the outside mirrors are a good size.  They're hinged, and defrost with the All Weather Pkg
All models have dual exhaust. Standard exhaust tip on X, Premium	Limited, Touring models have exhaust tips (1 shown) that look a lot better than the plain standard one. The exhaust tips are optional on other models
close-up on optional rear spoiler on 2011 Forester X models	Premium (or Limited)  shown with options-  X model rear spoiler, wheel arch moldings, rear bumper cover.  Taken at Seattle auto show
Windshield- X model with no dark tinted upper band, or wiper deicers	Windshield- Premium, Limited and Touring have a dark tinted upper band. Shown with All Weather Pkg heated wiper deicer on Limited, Touring, optional on Premium
redesigned 2011 grill	2010 Forester front grill
optional sport grill	optional 2011 boost gauge, avail 6/11. Fits 08-11 WRX/STI, 09-11 Forester XT
optional wheel arch moldings help minimize door dings and rock chips and look like they belong on the car. rear wheel shown with optional splash guard.	optional wheel arch molding, front shown
2011 Forester X model roof antenna pivots.	2011 Forester Premium, Limited, Touring model fixed position antenna is wired for satellite radio. It does work with a rooftop cargo carrier. See an example on the exterior photos page

X	Premium	new Premium with optional portable Tom-Tom Navigation CD/DVD. Its a fun unit but the buttons are small and controls confusing.
Limited and Touring model.  Touring shown with dual zone climate control and rear view back-up camera. The camera is optional on Limited, and Premium with TomTom Navigation	Touring, with optional Navigation touch screen CD/DVD and  dual zone climate control. includes back-up camera	click for full pages of exterior photos and interior photos

Forester X 16" steel wheel, shown without wheel cover	X model 16" steel wheel with full wheel cover	X with Alloy Wheel Value Package, also includes black roof rack rails
redesigned for 2011, 17" 10 spoke alloy wheel on Premium, Limited and X Touring models	17" 5 spoke alloy on the GT Touring	blank

ALL NEW Touring model has an all new electroluminescent instrument panel, red back-lit.  Includes fuel economy gauge, and an engine coolant temp gauge (so no blue cold engine light like all the other models).

all models except Touring use the same instrument panel as previous years

Touring model has a new electroluminescent instrument panel. Navigation model shown with handsfree Bluetooth touch-screen, so no steering wheel controls	optional STI leather and aluminum shift knob
2011 Forester has new taller rear headrests and still has great rear visibility with no blind spots	the new taller rear headrests (thats a 10 on the left), new for 2011
split rear seats recline on all models except X. You can see in this picture that the driver side seat is leaning back more than the passenger side. Black Leather shown	push this button when you're sitting in the rear seat to recline it back- left or right side.  All models except X.  Black leather shown
rear seat flip-out cupholders, with blue LEDs, on all models except X, gray interior	front passenger door, cloth armrest and door material,  Touring model shown
trip computer: outside temperature, average MPG, clock, passenger airbag indicator	close-up of the trip computer on upper dashboard- outside temperature, average economy for the 2 resettable trip odometers, clock, and airbag on/off light.
new heated seat buttons- 2 settings high-low. Previous models had 4 settings	high-off-low front heated seat buttons- part of the All Weather pkg
overhead console, map lights, sunglass or garage door opener holder,  X model without moonroof	overhead console, map lights, sunglass or garage door opener holder, ambient light. with power moonroof button
manual heater controls on the 2011 Forester 2.5 X	manual heater controls on Premium models. 4 speed fan
Limited model has single zone Climate Control, 7 speed fan	ALL NEW single/dual front zone Climate Control, Touring model only.
ALL NEW Single/Dual front zone Climate Control,  Touring model only.  Set the temp from 65-85*. 7 speed fan	factory navigation CD/DVD, same as previous years. This isn't the new optional TomTom available on the Premium model

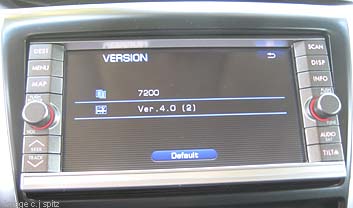

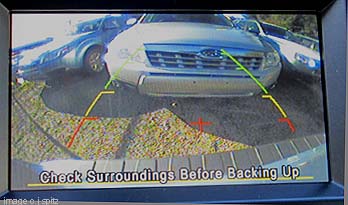

new for 2011 factory Navigation has a back-up camera and the Forester even has 2 available back up cameras!  Touring shown with Navigation.	new for 2011 back up camera. The camera is above the upper left corner of the rear license plate. Standard on all Touring models, and Limited with Navigation. Optional on Limited with the standard stereo and Premium with Tomtom. No camera? theres a small cover where it could be installed on Limited, Premium with TomTom. It left of rear license plate lights
new for 2011 Touring model- 4.3" stereo includes a back-up camera,  optional on Limited.	new for 2011, close-up of back-up display in the 4.3" stereo. Standard on Touring, optional on Limited. The green lines are about 9ft back, this car is about 4-5ft back
X model stereo	new stereo for 2011 Premium stereo, digital display am/fm cd, USB, aux, wireless audio
new stereo for 2011 Limited and Touring 4.3" LCD stereo has HD radio. Sounds great! Touring has standard back-up camera, optional on Limited	optional TomTom Navigation AM/FM CD/DVD. Forester Premium only. Shown set to blue lit dials. Many features- its a portable GPS, you can have blue or red lit dials, its iPod ready (GPS must be attached) with an included Apple connection in console, also USB and aux. Its the TomTom Go 720 model. Confusing controls.
Tomtom set to red lit dials-  the multi-function radio buttons are small.	new 2011 Forester Premium option TomTom GPS, tilts to insert a CD or DVD.
2011 Subaru Forester with optional TomTom- take it with you	Tom Tom includes a USB/mini USB wire, vinyl carry case, hard cover for the dashboard when the TomTom is being carried, a little protective cover for the wire connections on the back of the TomTom when its being carried, and a CD
stereo subwoofer fits under driver seat, standard on Touring models without Navigation. Optional on all other models starting early March 2011.	2011 Forester X steering wheel, vinyl wrapped, with cruise control, gray shown
Premium, Limited, Touring model steering wheel has Audio, new for 2011 Bluetooth, and Cruise controls. Premium vinyl wrapped, Platinum color shown	Premium with vinyl steering wheel. With optional TomTom navigation, Bluetooth is part of the navigation touch screen so there are no steering wheel controls. Platinum
close-up of the new for 2011 Audio and new for 2011 Bluetooth steering wheel controls on Premium, Limited, Touring. Except Navigation. Gray leather shown	Limited and Touring model with Navigation have a leather wrapped steering wheel.  Bluetooth is on the Navigation touch screen so there are no steering wheel controls. Note the Touring model electroluminescent instrument.  Gray shown
Left side cargo area, Touring model only-  12v power outlet, pop-out hook, and new for 2011 1 touch electric fold flat rear seat button for the left rear seat	Left side of the cargo area except Touring model- 12v power outlet, pop-out hook
Right side Touring model cargo area:  pop-out hook and new for 2011 Touring models electric one touch fold flat rear seat button which folds the Right rear seat	Right side of the cargo area on all except Touring- pop-out hook
standard 2011 Subaru Forester X auxiliary input. (Media hub USB optional on X).	Media hub USB connection, aux plug, 12v outlet-  in center console  (USB optional on X). Premium without TomTom, Limited, Touring

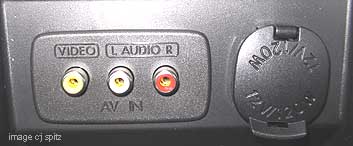

audio video jacks in the center console with optional Navigation on Limited, Touring	center console storage bin- inputs, 12v outlet. Navigation audio audio jacks shown
Forester Premium with USB, aux jack, 12v socket, and only the Premium with TomTom has an iPod connector.  Req the Tomtom unit to be in the car.	NEW 12/2010 optional power outlet - forget those car chargers! This one does it all.  new 110v 100 w 2 prong outlet is optional on the back on the console.  Just like at home Click the image for some ideas.
right vent on all except Touring model	new for 2011 right vent on Touring model is slightly different than on other models
plastic sunvisor with mirror (not lit)	standard front door courtesy lights, all models. Puddle lights are still a good option

Forester front doors have an easy place to hold for support getting in and out.	high seats, and tall wide-opening doors with a place to hold on to.
doors open very wide for comfortable access- Camillia red shown	lots of easy storage-  shown with optional rear bumper cover.  see measurements below

Car top tent on 2010 Forester Premium. Please contact your local camping store. Thanks to good customers Kevin and Amanda for the photos.

top

UPDATES
news and updates

6/9/2011 turbo boost gauge is now available for 2009-2011 Forester, and WRX/STI 2008-2011. Red lit. Factory installed MSRP on a new car $335. Part price $230. Part #H501SFG500

4/11 Factory orders end for 2011s-
Factory orders are no longer accepted for any 2011 vehicle. This is normal as 2011 model production winds down and starts the shift to 2012,  and also to better manage limited parts and resources after the March 11 earthquake. In late March, some lower volume Outback and Legacy models had been already removed from the order list- manual transmissions, 3.6Rs, uncommon Option Packages.

3/4/2011 NEW Subwoofer/ampoptional starting March 2010 on all models. Fits under driver seat. Has been standard on all Touring models. Was previously available.

12/2810  New option. Engine block heater, 2.5L X models (engine FB25). Dealer installed only, not available factory or port installed. Part #A091SSC000, MSRP $132.95
A block heater has always been available on the XT models (dealer installed only).

12/24 2.5L (not turbo) oil pan drain plug, hand measured: 14m head, 61.8" 17 mm thread 1.50 ptich

12/12/10  page correction- fog lights are optional (not standard) on the XT Premium

new 12/2010 110v, 100w 2 prong power outlet. #NBE, F; $334. On the back of the center console. Charge your cell, latop with a normal household 2 prong plug. Photos

11/27/10  spark plug replacement interval   on all 2011 Outback, Legacy, Forester, Impreza 4 cylinder non-turbo, turbo, and 6cylinder, the spark plug replacement interval is now 52,500 miles, 52.5 months, or 84000km. This replaces the 60,000 mile, 5 year interval  This is new, and in maintenance books printed Sept, 2010

11/20/10 Share the Love v. 3.  Buy a Subaru, choose a charity, and Subaru donates $250. Its the 3rd Share the Love Event, and it runs 11/2010 - 1/3/11 . 2010 charities Ocean Conservancy, Big Brothers Big Sisters, ASPCA, Habitat for Humanity, Meals On Wheels. No, its not tax deductible, you didn't pay.  Click for photos of the advertising to publicize the 2010 Share the Love Event

updated 11/9/10 11/5/10 Forester and Impreza Sky Blue Metallic and Paprika Red Pearl colors have limited availability, effective November, 2010. This might be temporary or permanent but If you want one, now is the time....

11/4/10  new Option Package - Protection Group 3 includes rear view back-up camera ($199) and rear bumper cover ($80). Available on Premium with TomTom Navigation and Limited models.  List $279 - $30 pkg discount $249. The pkg discount is subject to change. Option Packages

10/31/10  New optional side window rain deflectors. They look good and work well. Dealer installed only.  Suggested part list price $99.95 (plus installation)

10/25/10 brochure error- on the 'Trim Level' page at the back of the brochure, is says the X Touring has 6 speaker. It has 7 speakwers including the subwoofer speaker under the driver seat just like the XT Touring. It is correct on the 'Equipment' page under Audio Systems

10/8/10 brochures arriving ar dealers.

9/22/10 Prices and specs announced.
Small price increases considering the upgraded features. X $200, Premium $400, Limited $500.

 top

2011 Forester

The Subaru Forester is an all-wheel-drive car-based SUV introduced in 1998. Made by Fuji Heavy Industries in Ota Gumma, Japan.
Redesigned in 2009.

For 2011,  the EJ25  engine has been redesigned and named the FB25. Its still a 2.5L but it even looks different - it's a DOHC (double overhead cam) with a chain, a single serpetine belt, and the oil filter is on top of  the engine. It has 170hp but at slightly lower RPM, and sligthtly more torque than previous 2.5Ls.  Its a bit peppier and even seems smoother.  The Touring and Limited models have a new ugraded 4.3" LCD display AM/FM/HD stereo that sounds great, and the Touring has a standard back-up camera (optional on Limited).
All nice upgrades.

IN BRIEF

the 2011 MODEL LINE-UP

When? 2011s expected to start arriving mid- October

New top of the line Touring models

2.5L models are X, X Premium, X Limited, new X Touring
2.5L XT Turbo models are XT Premium, new XT Touring

> 2.5L X, Premium, Limited and new top of the line Touring.

New  upgraded engine on 2.5 non-turbo models
FB25 2.5L 4 cylinder boxer engine, now 2498 cc engine (was 2457cc),  new chain-drive DOHC double overhead cam (replacing belt drive SOHC), new coolant system for block and head, slighly longer piston stroke, lighter components. Fuel economy 21/27 for both manual and automatic non-turbo 2.5L models.
his new and refined 2.5L is going to be used in the future in other cars, with new technologies as Subaru moves to further mprove economy, power, emissions.

> XT Premium and new top of the turbo line XT Touring.
XT Limited is dropped, replaced by XT Touring. XT Premium gets the 10way power seat, and both get a redesigned rear spoiler.

> STEREOS

new fixed position roof antenna wired for satellite radio, on all except X model. See photos above

X Premium,  XT Premium: get a new single cd/am/fm with 4 speakers, handsfree Bluetooth with steering wheel controls, audio streaming, iPod control, USB and auxiliary jack. Sirius radio capable.
X Premium only: AM/FM single CD/DVD, speakers. Optional Portable TomTom 4.3" touchscreen, handsfree Bluetooth, audio streaming, iPod control, USB and aux input. Only $1095 including the $500 All Weather Pkg. Back-up camera, and traffic updates (from Tom-Tom), are optional.
X Limited: all new stereo with a 4.3" audio screen. Single CD AM/FM, HD radio (click or scroll down for details),  with 6 speakers, handsfree Bluetooth, USB and aux input, audio streaming, iPod control and new for Subaru, HD radio (click or scroll down for details).. Optional back-up camera.
X Touring and XT Touring:  all new stereo with a 4.3" audio screen and new Back-up camera. Single CD AM/FM,  newHD radio (click or scroll down for details),  7
speakers including subwoofer under the driver seat, handsfree Bluetooth, USB and aux input, audio streaming, iPod control, Sirius radio, new back-up camera.
X Premium: optional Tom-Tom removable Navigation GPS unit.
X Limited, all Touring models: optional Navigation touch screen

> Other Changes for 2011
2.5L X, Premium, Limited and new top of the line Touring.
Premium gets redesigned alloy wheels.
Touring model adds HID low beams, dual front zone climate control, silver roof rails, electroluminescent red backlit guages, outside mirrors with integrated turn signals, upgraded stereo
XT turbo Premium and new top of the line Touring.
XT Limited is dropped, replaced by Touring. Both models get a new rear spoiler thats only on the XT
Premium gets the 10way power seat.

top

IN BRIEF- new features
scroll down for much more

New  engine-  2.5L 4 cylinder boxer engine, now 2498 cc engine (was 2457cc),  new chain-drive DOHC double overhead cam (replacing belt drive SOHC), new coolant system for block and head, slighly longer piston stroke, lighter components. Fuel economy 21/27 for both manual and automatic non-turbo 2.5L models.
This new and refined 2.5L is going to be used in the future in other cars, with new technologies as Subaru moves to further improve economy, power, emissions.

New Models Top of the line X Touring and XT Touring models.
Gone XT Limited model dropped, replaced by the XT Touring model.

New front grill
New larger rear seat headrests, see photos
New upgraded stereos on all models except X
New Driver's window one push up/down except on X
New Telescoping plus tilt steering wheel on all except X
New Back-up cameras available on Premium and Limited, standard on Touring
New Bluetooth. All models except base X have hands-free Bluetooth, most with steering wheel controls except Navigation models.

New All models require synthetic oil. 2.5L uses 0W-20. Turbo XT models require synthetic 5W-30 oil.

Colors and Materials
Gone Newport Blue
New Marine Blue Pearl
New Sky Blue Metallic

New cloth on X, X Premium - Black and Platinum cloth
New cloth on XT Premium - Black and Platinum Moray cloth

Request a free Subaru 'Badge of Ownership'  Here's my webpage with photos of the badges and links.

scroll down for much more


FUEL ECONOMY COMPARISON
small crossover fuel economy MPG ratings.

Thinking about a small Crossover?
Here are some 2011 all wheel drive crossovers that are generally in the same size range as the Subaru Forester.

These sorted by their Highway fuel economy ratings, and all have automatic transmissions.

The model is whatever was rated at the best MPG city/highway. Price was not considered.

Mitsubishi Outlander Sport- 24/29
Hyundai Tucson- 21/28
Kia Sportage- 21/28
Ford Escape Hybrid- 30/27
Subaru Forester 21/27
Honda CRV-  21/27
Toyota Rav- 21/27
Nissan Rogue- 22/26
Jeep Liberty- 21/26
Jeep Compass- 21/26
Jeep Patriot- 21/26
Ford Escape- 20/26
VW Tiquan- 19/25
Honda Element- 19/24
Volvo XC60- 18/24
Acura RDX- 17/22
Dodge Nitro- 15/21

top

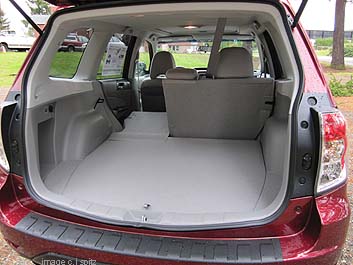

- 2011 Forester cargo area measurements, hand measured same as 2010 and 2009. subject to change and correction
there's lot of room, and its only  27" high so very easy lift things in.	golf clubs and strollers fit easily. And who's that looking at me... ?
	Hand measured cargo area dimensions A: Cargo door width at bottom of door opening 39"  B: Cargo floor length to back of rear seat 35.5" C: Cargo floor length to back of center console 70" (updated 3/15/08) D: Cargo door height in middle of door 34.5" E: Cargo floor width between wheel wells 42.2" F: Cargo floor maximum length from rear to front console (stereo) 102" G: Rear seat maximum width, seats folded flat from door to door 55.5" 60/40 split rear seat width: Rear Passenger width 24", Rear driver width 15.5" H: Cargo door width at middle of door 44"  I: Cargo height, floor to roof, with sunroof: 32" J: Cargo door width at top of door 39"  Maximum width of cargo floor from inside of the side storage bins 62" Ground to cargo floor -  27" ground to cargo floor. Its easy to lift things in. Ground to top of rear bumper- 25.5" Seat and Leg room measurements  see photos below Leg room, Front seat to brake pedal: 15"- 23.5" Leg room, rear seat to back of front seat 8.5"-18" depending on front seat position. Driver door opening height is 59" from ground to top weather strip,  Driver seat height range is app 24-26" high. All hand measured. see photos below Sunroof measures 28" W, 31.5" L all hand measured and subject to change, correction
2011-2009 Forester Under-Floor storge bin. The spare tire is below. The optional cargo cover will stow away on top of the bin.  Hand Measurements  storage bin length 26.5", compartment depth app 4"	2011-2009 Forester temporary spare tire and jack with tools is under the cargo floor. Notice the silver jack crank on the left side fits in a recessed slot.
with optional cargo tray and cargo cover	Seat measurements Driver seat height range is app 24-26" high. Driver door opening heightis 59" from ground to top weather strip
- Seat measurements hand measured and subject to change and correction <---> Front Seat-to-brake pedal distance 15"- 23.5". X model with manual seat shown
Rear seat to back of front seat leg room distance: 8.5"-18" depending on front seat position

2011 FORESTER CRASH TESTS subject to change, correction First year for the stricter rating system  Starting with 2011 models, NHTSA has introduced tougher tests and rigorous new 5-Star Safety Ratings that provide more information about vehicle safety and crash avoidance technologies. Because of the more stringent tests, ratings for 2011 and newer vehicles should not be compared to ratings for 1990-2010 models.
Overall Rating 4 STARS	Overall Frontal crash	Overall Side crash	Combined Side Barrier and Pole front seat	Combined Side Barrier and Pole rear seat	Rollover, 17.4%
--
Individual test results	Frontal crash driver, male	Frontal crash,  passenger, female	Side Barrrier crash driver, male	Side Barrier crash,  rear passenger, female	Side Pole crash,  driver, female

end safety

top
start warranty and maintenance

- 2011 WARRANTIES Bumper to bumper: 3 year/36,000 miles.  Wear Item warranty 3 year/36,000 miles, covers premature wear: brakes, clutch linings, remote batteries, wiper blades (one time replacement) etc. Roadside assistance 3yr/36000 miles by the Cross Country Motor Club at 800 261-2155, break-down, lock-out, flat repair etc Powertrain: 5 year/ 60,000 miles Corrosion, rust perforation: 5 year/100,000 miles Emission: warranties vary by emission system and state. Minimum 3yr/36,000 with extended major emission component defect warranty 8yr/80,000 Note Warranties do not cover wear or damage due to abuse, lack of maintenance or competitive driving. Exclusions may apply, wear replacement may be one time. subject to change, correction

-- 2011 MAINTENANCE full 2011 maintenance schedule and service intervals new July 2010- synthetic oil is required in all 2011 Foresters 2.5L models- 0w-20 synthetic oil  Turbo models- 5w-30 synthetic oil With ever changing technology and new government rules for cleaner burning engines and increased fuel economy, old fashioned, conventional oil doesn't provide the lubrication and protection needed. Car companies are looking at all ways to meet these new standards and synthetic oil is one way. 2.5 X models Synthetic 0w-20 oil only. 1st oil change required at 3 months or 3,000 miles.  2nd oil change required at 7500 miles or 7.5 months Subsequent oil changes- every 7500 miles or 7.5 months. Note: this is the minimum oil change interval required. It is generally recommended by many in the automotive industry to change the oil every 3750 miles or 3.75 mos. 2.5L XT turbo modelsSynthetic 5w-30 oil only. Turbo maintenance> > Early warranty books: the Subaru maintenance schedule note #1  reads "When the vehicle is used under severe driving conditions, the engine oil and filter should be changed every 3,750 miles or 3 3/4 months. All turbo-charges vehicles are considered to be operated under severe driving conditions" > Later warranty books: the statement no longer includes  All turbo-charges vehicles are considered to be operated under severe driving conditions. Suggested: do the first oil change by 3mos or 3000 miles and then at least a minimum of every 7500 miles or 7.5 months afterwards. That is as long as you should go and it is strongly recommended to replace it much more frequently. Tire rotations: every 6-10,00 miles. Equal tread required at all corners. Tires, wheels FAQ 15,000 mile inspection, tire rotation (rotation best every 6-10,000 miles), cabin air and engine air filters as needed based on conditions, driving Spark plug replacement interval   on all 2011 Outback, Legacy, Forester, turbo, and 6 cylinder, the spark plug replacement interval is 60,000 miles.  Note- early maintenance books printed Sept, 2010 incorrectly have 52,500 miles, 52.5 months, or 84000k have for the spark plug change but its really 60mo/60,000 miles.. 30,000 mile repeat 15,000 mile service plus brake fluid, filters. Inspect all fluids, hoses, belts, replace as needed 60,000 mile - repeat 30,000 service, spark plug change. Inspect all fluids, hoses, belts, replace as needed 90,000 mile service 30,000 service with complete fluid, filters change if not done before, start replacing hoses, belts X models have a Timing chain - no replacement needed XT models have aTiming belt- replace at 105,000 miles Super Coolant Radiator Fluid is blue in color and has an extended life. The 1st replacement is 11 years, 137,500 miles, or 220,000Km. The 2nd replacement is 6yrs, 75,000 miles (120,000km). subject to change, correction

top
end safety, warranty, maintenance schedules
start specs


- 2011 Forester Engine, Specifications, Weights etc subject to change, correction. tips welcomed
FEATURE	2.5 X	2.5 X Premium	2.5 X Limited	2.5 X Touring	XT Premium, XT Touring turbo
Engine	engine new for 2011 'FB25' 2.5L 4 cylinder Boxer engine 2498 cc (was 2457cc) DOHC double overhead camshaft (was SOHC) Bore/stoke 3.70x 3.54 in Timing chain (was timing belt) 16 valve, Active Valve Control System (variable valve lift) Fuel system: multi-spray fuel injection,  Direct ignition Compression: 10.0:1 Distributorless ingnition Tachometer redline 6400 Subaru Super Coolant, 10 years before replacement is required and cannot be mixed with other kinds. new Synthetic oil required 0w-20. 1st oil change required by 3000 miles/3mos. Oil pan drain plug, hand measured: 14m head, 61.8" 17 mm thread 1.50 ptich  note: this new and refined 2.5L is going to be used in the future in other cars, with new technologies, as Subaru moves to further improve economy, power, emissions...				engine 'EJ25' 2.5L 4 cylinder Boxer engine 2457cc DOHC double overhead camshaft Bore/stoke 3.92x 3.11 in Timing belt Turbocharged and Intercooled 16 valve, Active Valve Control System AVCS Fuel system: multi-port sequential fuel injection, distributorless ignition Compression 8.4:1 Distributorless ignition Engine oil cooler Subaru super coolant new Synthetic oil required 5w-30. 1st oil change required by 7500 miles or 7.5 mos
All Wheel Drive with Electronic Stability Control and traction control called VDC- Vehicle Dynamics Control standard on all models	Manual transmission 'Continuous all wheel drive'  viscous center differential detect wheel spin and directs power to the front or rear axle as needed. Normally a 50/50 front/rear power split Automatic transmission 'Active all wheel drive'  /electronically controlled variable transfer clutch that detects wheel spin and directs power to the front or rear axle as needed. Normally 80/20 (or 90/10 depending on source) front rear power split. VDC (vehicle dynamics control), electronic stability control with TCS traction control with 'off' button VDC vehicle dynamics control, is a stability skid control system that measures and monitors steering wheel input, braking, vehicle angle etc and then applies individual brakes and/or reduces engine power to counteract skids or slides to help keep maintain driver control. TCS Traction Control System. TCS senses spinning wheels and applies the brakes to maintain traction.
Horsepower, Torque	new for 2011 170hp@ 5800 rpm (was 170@ 6000 rpm) new for 2011 174ft lbs torque @ 4100 rpm (was 170@4400 rpm)				224hp@5200rpm 226 torque@2800rpm
Transmission, manual 5spd Manual with Incline Start Assist to minimize roll back when stopped pointing up a hill. Uses VDC system.	S		no manual transmission available
Transmission, automatic 4 speed Electronic Direct-Control with SportShift	0		S
model reminder	2.5 X	X Premium	X Limited	X Touring	XT Premium, XT Touring
Gear ratios* manual transmission, 5 speed	X, X Premium 2.5L manual transmission models only. Not available on X Limited, Touring, or XT turbos Gears:  1st: 3.454, 2- 2.062, 3- 1.448, 4- 1.088, 5- .780, rev 3.333. final 4.111
Gear ratios* Automatic transmission, 4 speed with SportShift manual mode	X, Premium, Limited, Touring 1st 2.785, 2nd 1.545. 3rd 1.0, 4th 0.694, reverse 2.272. Final 4.444				XT Premium, Touring turbo 1st 2.785, 2nd 1.545. 3rd 1.0, 4th 0.694, reverse 2.272.  Final 4.111
Suspension	4 wheel independent, heavy duty Front: Macpherson strut, coil springs. Liquid filler lower L arm bushings.  Rear: double wishbone, raised components for great ground clearance Front and Rear stabilizer bars
Tune-up information* check with your mechanic and parts  supplier for confirmation or changes.  Not responsible for errors etc	2.5L  plugs: SILZKAR7B11 Firing order 1-3-2-4 Ignition timing/idle (btdc) manual 16*,  650 rpm,  automatic  16*, 675 rpm Idle speed/rpm: Manual trans 650, Automatic trans 675 Generator/Battery 12V-90A, manual 48AH, Automatic 52AH Compression 10:1 Oil and oil filter capacity 5.5 USqt, 4.4 Imp qt new for 2011 synthetic  oil required, 0w-20 Coolant- manual 7.5 USqt, automatic 7.4 USqt				2.5L turbo  Plugs: iridium NGK SILFR6A Firing order 1-3-2-4 Ignition timing/idle btdc 17*, 700rpm, Idle speed/rpm 700 +/-100 Generator/Battery 12V-90A Auto 52AH Compression 8.4:1 Oil and oil filter capacity 4.4 USqt Coolant 8.5 USqt new for 2011 synthetic oil required 5w-30
Fuel economy Capacity: 16.9 US gals, 14.1 Imperial gals	Regular Unleaded, EPA economy rating: Manual trans - 21/27 (was 20/27) Automatic trans - 21/27 (was 20/26)				Premium unleaded 91 octane EPA economy rating Automatic trans: 19/24
PZEV a brief simple summary PZEV is NOT available on XT models	(a brief, simple summary) The EPA says PZEV is the cleanest running gas car on today's market based on emissions testing for carbon-containing compounds, oxides of nitrogen, particulate matter, and other tailpipe nastiness. What it does 1. A charcoal cannister catches unburned gas left in the engine when it's turned off so it doesn't just evaporate.  2. Fuel injectors close tighter when they're not in use. 3. It has a finer mesh in the catalytic converter, as well as optimized placement of precious metal. 4. The engine's electronic brain is set to run hotter at start up so the catalytic converter heats up and works faster.
Brakes  4 disc brakes 4 wheel 4 channel Anti-lock with Brake Assist new, Touring model only  front brake pad return spring to reduce brake drag	Ventilated Front disc:  11.7" Solid Rear disc:  11.3" new, Touring model only  front brake pad return spring to reduce brake drag
2011 model (top) all information subject to change and correction	2.5 X	2.5 X Premium	2.5 X Limited	2.5 X Touring	XT Premium, XT Touring turbo
Steering	Variable ratio, Engine-speed sensing, Power assisted Rack and Pinion Steering Wheel Turns lock-to-lock 3.2, curb to curb 34.8ft; wall to walll 37.4''
Wheels, Tires Chains: tire chains cannot be used due to clearance. If you do lots of winter driving, consider a set of snow or ice tires.	X: 16x6.5" steel wheel, full wheel cover, 6.5jj, Offset 48 (1.89), PCD 100mm (3.94). Tire: 215/65R16 96H all season season X All Wheel Package: 16x6.5" alloy wheel- 6.5jj, Offset 48 (1.89), PCD 100mm (3.94), Tire: 215/65R16 96H all season Premium, Limited, Touring: 17x7" alloy. Offset 48 (1.89), PCD 100mm (3.94). Tire: 225/55R17 all season XT Premium,. XT Limited: Wheel: 17x7" 5 spoke turbo-style alloy. Offset 48 (1.89), PCD 100mm (3.94) Tire: 225/55R17 all season
Tire Pressure Monitoring (TPMS) with front/rear tire suggested PSI. Driving conditions can affect pressure.	S front/rear 30/29 psi	S front/rear 32/30 psi
Incline Start Assist, manual trans only. Replaces Hill Holder. Uses VDC and brakes to minimize roll back when stopped going up a hill,  for maybe 1-2 seconds	S	S	no manual trans available
Curb Weight (pounds): manual trans GVWR- gross vehicle weight rating, 4480 pounds	3,250	3,250	--	--	--
Curb Weight (pounds): automatic trans GVWR- gross vehicle weight rating, 4480 pounds	3,300	3,340	3,360	TBA	XT Premium: 3,440; XT Touring TBA
Towing	Towing a trailer with trailer brakes: 2,400 pounds without trailer brakes or when pulling up long grades in hot weather: 1,000 pounds Use common sense and don't overload the car. Do not tow with a new car for the first 1000 miles. A transmission cooler is always a good idea if towing a lot (not available from the factory). The factory hitch is 1.25" with a 4 pin connector Towing the car- a flatbed is always recommended when towing your Subaru.  A manual transmission can be towed with all wheels on the ground behind a tow truck or motorhome for example, but never with just 2 wheels on the ground. An automatic can be towed with all 4 wheels on the ground in an emergency for a short distance (under 31 miles) and at very slow speed (under 20mph) but a flatbed is strongly preferred.
2011 model  subject to change and correction	2.5 X	2.5 X Premium	2.5 X Limited	2.5 X Touring	XT Premium, XT Touring

end specs

top
start X model standard features

- 2011 X standard features  subject to change, updating. corrections welcomed option packages and individual options are below PZEV (partial zero emission vehicles) is required on these non turbo models sold in CA, CT, MA, ME, NJ, NY, OR, PA, RI, VT, WA

- 2011 X models include model codes manual trans BFA, automatic trans BFB Standard on all models New  engine upgrade. 1st major upgrade since 1999.  2.5L 4 cylinder 16 valve newDOHC with timing chain, and direct ignition multi-spray fuel injector, ACVS active valve control system.  Replaces 16 valve SOHC with Timing belt.  New Fuel economy improved, now 21/27 for both auto and manual trans. New Horsepower now 170@5800rpm (was 170hp@6000 rpm) New Torque, now 174lbft @4100 rpm, (was 170@4000rpm) New Requires 0w-20 synthetic oil (turbo 5w-30 synthetic) New front grill New larger rear seat headrests (see photos) New brake pad return spring to reduce brake drag New upgraded soft touch dashboard announced (but I can't quite figure out what this or how its different from the 2010s if it make it to production) Manual 5 speed transmission is standard Automatic 4 speed SportShift transmission optional Emissions: all Subarus meet EPA Tier 2 Bin 5  and California LEV II standards. Available PZEV emissions, req CA, CT, NJ, NY, MA, ME, RI, VT, PA, OR, WA 8.7" ground clearance  All Wheel Drive, full time VDC (Vehicle Dynamic Control) electronic stability control with off switch TCS Traction Control system, full time, with off switch  Electronic Throttle Control (ETC) Airbags: dual stage front airbags Passenger airbag- automatically on with occupant or weight detection Airbags: front side (seat mounted for correct positioning) Airbags: front and rear side curtain with Roll Over Sensor (helps pre-deploy them) Daytime running lights 4 wheel disc Anti-Lock brakes, 4 wheel, 4 channel Brake Assist (helps in emergency braking) EBD electronic brake force distribution Safety Pedal system (for foot safety in an accident) Tire Pressure Monitoring System (TPMS) Incline Assist clutch, manual trans only (minimizes rollback when stopped on a hill) 16" steel wheel with full wheel cover All Season tires, 16" 16.9 US gallon fuel tank (low fuel warning light at  app 2.5-3.5 gals left) Automatic off headlights with ignition key removal (turn off-on for parking lights) Air filtration system cabin air filter. Replace filter every 1-2 yrs, it's behind the glovebox Power Windows with illuminated switch Power door locks Power outside mirrors Cruise control Air conditioning Tinted glass- light tint with darker upper windshield band Black door handles Black outside mirrors Driver seat height adjustment- manual  Keys: laser cut keys with Immobilizer System. 3 keys are supplied when new. Remote entry, lock/unlock, car finder and panic modes. 2 remotes supplied new. Immobilizer anti-theft system: a chipped and programmed key is required to start the engine. Complies w/ Pt 15 of FCC Rules, and RSS-210 Industry Canada.

X standard features, continued Alarm, ignition disabling alarm with flashing red light on instrument panel (impact sensor optional) Illuminated ignition key ring.  Passenger front seatback map pocket  Air filtration system cabin air filter. Replace filter every 1-2 yrs, it's behind the glovebox Variable speed intermittent front wipers Rear defroster Rear wiper- 2 speed with fixed intermittent, wiper blade de-icer Height adjustable drivers seat, manual 5 shoulder seatbelts, 2 front and 3 rear 3 rear headrests Center console with sliding armrest, cupholders with removeable divider, and removeable storage bin that can hang door pocket, light inside dash storage, 2 power sockets, auxiliary input plug etc (see photos) Rear seat center fold down armrest Power Outlets, 12V- dashboard, center console, rear cargo area.  No cigarette lighter outlet (and no ashtray) Cupholders, 6: 2 on center console, 1 in each door: Leather shift boot (manual only) Interior dome light (delayed off) Rear cargo light 2 overhead Map lights with new for 10 'Door Open' switch (fades off) Door light, light in each door Double wishbone rear suspension Twin tailpipes (optional chromed exhaust tips) Cargo area- under floor storage bin Cargo area- 4 tie-down hooks on floor Cargo area- 4 pop-out hooks by gate Spare tire, temporary, under cargo floor Instrumentation- blue lit, dashboard tachometer, low fuel light. Trip computer- Clock, Outside Temperature, avg economy for trip odomenters Overhead console with maplights and sunglass/garage door opener compartment Headlights- Automatic off with ignition key removal (turn off-on for parking lights) Headlights- Halogen multi reflector headlights Floor mats, carpeted Split folding rear seats Plastic headlight lens, chip resistant lexan Engine Coolant, extended life. replace 11 yrs.137,500 miles or 220,000Km Engine temperature warning light is blue when the cold engine is first started and comes back on red when the engine is overheating, app ~235°F it Blinks red, at app 248°F is steadily on red. On all models except Touring models which have a real engine temperature guage STEREO: 80 watt am/fm with single disc CD, auxiliary input, 4 speakers, pty/cat (program type/category radio station search function).  Adjustable roof top antenna Optional USB media hub, and media hub with audio streaming. Bluetooth - optional BlueConnect.  Option Packages available-  Alloy Wheel Package. Upgrades to alloy wheels (16") and includes black roof rails. List Price $400. Request a free Subaru 'Badge of Ownership'  Here's my webpage with photos of the badges and links.

end
top
start Premium and Limited standard features

- 2011 X Premium and Limited Standard Features PZEV (partial zero emission vehicles) is required on these non turbo models sold in CA, CT, MA, ME, NJ, NY, OR, PA, RI, VT, WA subject to change, updating. corrections welcomed
- X PREMIUM adds  over X model  everything the X has, plus... model code-  manual trans BFE,  automatic trans- BFF New Alloy wheels redesigned,  silver finish, 17"  New Fixed position roof antenna (wired for satellite). New Tilt and Telescoping steering wheel replaces tilt only New Bluetooth standard,  includes steering wheel controls New Drivers window now auto up/down, replaces down only New Steering wheel buttons darkened for improved contrast with lettering New Heated seats (part of the All Weather Pkg) now Hi/Lo. Replaces 4 settings.  New Stereo, now includes Bluetooth with hands-free steering wheel controls, audio streaming, AM/FM/CD single disc, 4 upgraded speakers, USB and aux jack, iPod capable,  roof anetnna, MP3. Optional Sirius satellite. 17x7" alloy wheels redesigned for 2011 Reclining rear seatbacks Body colored outside mirrors Chrome Inside door handles Chrome Outside door handles Tilt and Telescoping steering wheel Roof rails, raised (cross bars are optional) Dark Privacy tinted glass with upper windshield band 10 way power drivers seat with power lumbar support Rear seat center flip-out tray with 2 cupholders, LED lights Power glass sunroof with sunshade, 28"x31.5" interior (hand measured) Steering wheel audio controls and new bluetooth controls, in additon to cruise controls, new darker buttons for better visual contrast Stereo New for 2011 includes Bluetooth with hands-free steering wheel controls, wireless audio streaming,  AM/FM/CD (single disc), 4 upgraded speakers, pty/cat (program type/category radio station search function), USB, auxilliary jack, 12v outlet, iPod capable, roof antenna, MP3, Fixed position roof antenna. optional Sirius satellite Option Packages All Weather Package, option package #02-  Includes dual setting heated front seats, defrosting ouside mirrors,  front wiper deicers. MSRP list $500 new All Weather Pkg and Tom-Tom Navigation.  option pkg #33. AM/FM single CD/DVD, 4 speakers, Bluetooth with hands free steering wheel controls, USB and auxilliary plug, new 4.3" Tom-Tom removable portable Navigation GPS with customizable background. MSRP List $1,095 Optional  back-up camera (List $199), and from Tom-Tom, traffic updates. Not available with satellite radio.	- X LIMITED adds over X Premium  everything the Premium has plus... model code, auto trans BFI New stereo - on X Limited, and X and XT Touring models.  4.3" LCD display. AM/FM HD radio, single disc CD player, 6 speakers, pty/cat (program type/category radio station search function). Bluetooth with hands-free steering wheel controls, Audio streaming, USB and auxiliiary inputs. New Fixed position roof antenna (pre-wired for satellite).  Includes back-up camera.  iPod capable.  Optional Sirius satellite radio. HD radio is new for Subaru. More about HD radio below Automatic SportShift 4 speed transmission w/ Electronic Direct Control. No manual available Cargo tray Fog Lights Leather wrapped steering wheel Tail pipe exhaust bright tips, dual Automatic Single Zone Climate Control with 7 speed fan Driver's seat back map pocket plus passenger side Leather wrapped automatic shift knob Leather wrapped steering wheel with audio controls New Fixed position roof antenna (wired for satellite). Leather interior- perforated leather seating surfaces with vinyl trim All Weather Package includes heated front seats (2 settings), and One Touch defrosting outside mirrors and front wiper de-icer (heats lower front windshield). Upgraded Stereo: New  on X Limited.  4.3" LCD display AM/FM HD radio, single disc CD player, 6 speakers, cell phone Bluetooth with steering wheel controls, wireless Audio streaming, USB and auxiliiary inputs. 12v outlet, iPod capable.  Optional back-up camera, and Sirius radio.  Note- same stereo on Touring models includes Back-up camera, subwoofer, and Sirius radio HD radio is new for Subaru. More about HD radio below Option Packages Navigation  System - Option Package #10.  New includes back-up camera.  7" Kenwood touch screen GPS Navigation system, back-up camera, Bluetooth, 140 watt, 6 speakers, AM/FM single CD/DVD. Optional Sirius satellite radio.  MSRP list price $1800
top 2011 X TOURING Standard Features new top of the line model for 2011 PZEV (partial zero emission vehicles) is required on these non turbo models sold in CA, CT, MA, ME, NJ, NY, OR, PA, RI, VT, WA subject to change, updates. corrections welcomed.
New model for 2011  top-of-the line model, code BFJ Touring adds over Limited New for the Forester Roof rails- silver colored New for the Forester ECO fuel economy guage New Outside mirrors with integrated turn signals New Fixed position roof antenna (wired for satellite) New front brake pad return spring to reduce brake drag New for the Forester Dual Zone climate control, 7 speed fan New One touch folding rear seat backs (was on a few late 2010 Limiteds with Convenience Pkg) New Stereo 4.3" LCD display includes Back-up camera and Sirius radio (both optional on Limited) New Electroluminescent instrument panel, red colored, with engine Coolant temperature guage so no blue cold engine light like all other models New for the Forester HID low beam headlights, with Automatic HID height adjustment control for heavy cargo loads so they're not aimed high at oncoming drivers Upgraded Stereo: New  -  X Touring and XT Touring models.  4.3" LCD display with back-up camera. AM/FM HD radio, single disc CD player, 7 speakers including subwoofer under the driver seat, pty/cat (program type/category radio station search function), cell phone Bluetooth, wireless audio streaming, USB and auxiliiary inputs. Includes back-up camera and Sirius satellite radio. iPod capable HD radio is new for Subaru. More about HD radio below Option Packages Navigation  System - Option Package #10.  New includes back-up camera.  7" Kenwood touch screen GPS Navigation system, back-up camera, Bluetooth, 140 watt, 6 speakers, AM/FM single CD/DVD. Optional Sirius satellite radio.  MSRP list price $1600
2011 XT turbo  Standard Features option packages and individual options are below subject to change, updates
- 2011 XT turbo adds over X Premium (not X Limited) model code BFM Note: the turbo is the same engine as 2010, not the new DOHC version. 2.5L 4 cylinder turbo intercooled engine with Active Valve Control System (variable valve timing), 224 horsepower, 226 torque,  DOHC, timing belt, Premium 92 octane fuel required Automatic SportShift 4 speed trans w/ Electronic Direct Control (no manual avail) New Outside mirrors with integrated turn signals New Fixed position roof antenna (pre-wired for satellite) New Redesigned body colored rear spoiler, only on XT models New Rear spoiler, body colored, with brake light, only on XT model New  now includes the 10 way power seat with power lumbar support New synthetic oil required of all 2011 Foresters (5w-30 on turbo) No optional All Weather Package Engine cover 8.9" ground clearance  Tail pipe exhaust tips, dual Liquid filled engine mounts Tilt plus Telescoping steering wheel Aluminum gas and brake pedal covers Rear spoiler, body colored, with brake light Stereo (same as X Premium)  New for 2011 includes Bluetooth with steering wheel controls and USB port. AM/FM/CD (single disc), 4 upgraded speakers, pty/cat (program type/category radio station search function), USB, auxilliary jack, roof antenna, MP3, optional Sirius satellite radio	- 2011 XT  Touring  turbo adds over XT Premium New model  XT Touring model code BFN, replaces 2010 XT Limited New stereo -  X Touring and XT Touring models.  4.3" LCD display with back-up camera. AM/FM  HD radio, single disc CD player, 6 speakers, Bluetooth with hands-free steering wheel controls, Audio streaming, USB and auxiliiary inputs. Includes back-up camera.  iPod control capable. Optional Sirius satellite radio. HD radio is new for Subaru. More about HD radio below New for the Forester Roof rails- silver colored New for the Forester ECO fuel economy guage New Outside mirrors with integrated turn signals New Fixed position roof antenna (wired for satellite). New for the Forester HID low beam headlights, with Automatic height adjustment control for heavy cargo loads so they're not aimed high at on-coming drivers New front brake pad return spring to reduce brake pad drag New for the Forester Dual Zone climate control, 7 speed fan New Outside mirrors, body colored, with integrated turn signals New One touch folding rear seat backs (was on a few late 2010 Limiteds with Convenience Pkg) New Redesigned body colored rear spoiler, this spoiler is only on XT models New Electroluminescent instrument panel, red colored, with engine Coolant temperature guage so no blue cold engine light like all other models New Synthetic oil required on all 2011 Foresters (5w-30 on turbos) Driver's seat back map pocket Leather wrapped automatic shift knob Leather wrapped steering wheel with Audio Controls Power driver seat, 10 way with power lumbar support Leather interior- perforated leather seating surfaces with vinyl trim All Weather Package includes heated front seats (4 settings), and One Touch defrosting outside mirrors and front wiper de-icer (heats lower front windshield).  Stereo: New on X Touring and XT Touring models.  4.3" LCD display with back-up camera. AM/FM HD radio, single disc CD player, 7 speakers including subwoofer under the driver seat, pty/cat (program type/category radio station search function), cell phone Bluetooth with steering wheel controls, wireless  audio streaming, USB and auxiliiary inputs, 12v outlet.  Includes back-up camera and Sirius Satellite radio.  iPod control capable. HD radio is new for Subaru. More about HD radio below Options Navigation  System - Option Package #10.  New includes back-up camera.  7" Kenwood touch screen GPS Navigation system, back-up camera, cell phone Bluetooth, 140 watt, 6 speakers, AM/FM single CD/DVD. Optional Sirius satellite radio.  MSRP list price $1600

HD Radio - Subaru is the first Japanese car company to offer HD radio
Digital radio broadcast signal for improved clarity

HD radio is new for Subaru and only offered in the 2011 Forester Limited and Touring models, and Subaru is the first Japanese car company to offer it.
Other automakers offering HD Digital Radio receivers include Audi, BMW, Ford, Hyundai, Land Rover, Lincoln and Mercedes.

The ‘HD’ in ‘HD Radio’ is part of iBiquity Digital’s brand name for its digital AM and FM radio technology.
It does not mean either hybrid digital or high definition, it is simply the branding language for this new technology.
HD Radio broadcasting is free, there are no subscription fees.
You can get digital AM and FM stations, including HD2 and HD3 multicast channels.
HD Radio broadcasting is your favorite local AM and FM stations broadcasting digitally, producing radically improved sound.
Very clear. AM radio sounds like FM, and FM radio sounds like a CD.
Unwanted pops, hisses and dropouts are a thing of the past with an HD Radio receiver."
HD2 multicasting means more FM channels and new programming available from local FM stations, which you can only hear on your new HD Radio receiver.
Across the country, local FM stations are offering a wide variety of new formats on their HD2 channels: reggae, blues, classic jazz, future country, new alternative, deep tracks, bluegrass and local artists.
The service includes iTunes Tagging. iTunes Tagging lets you capture information about a song on the radio and store it on your iPod by pushing the "Tag" button on the HD Radio receiver. When your iPod is connected to iTunes, a list of tagged songs will appear which can be previewed, purchased, and downloaded.

HD radio FAQ I Check station availability here

top

start std feature summary chart


- 2011 FORESTER  STANDARD FEATURE SUMMARY CHART S = standard, 0 = available option, -- not available always subject to change, updates. corrections welcomed
standard features summary chart	2.5 X, Alloy Wheel Pkg	2.5 X Premium	2.5 X Limited	2.5 X Touring new model	XT Premium	XT Touring new, replaced Limited
model codes	BFA (manual), BFB (auto).	BFE (manual), BFF (auto)	BFI (auto)	BFJ (auto)	BFM (auto)	BFN (auto)
All wheel drive	S	S	S	S	S	S
6 airbags, dual front, front side and front and rear side curtain	S	S	S	S	S	S
Auto-Off headlights, ignition key removal	S	S	S	S	S	S
Daytime running lights	S	S	S	S	S	S
new for 2011 HID high intensity discharge Low beams, auto adjusting to offset heavy cargo loads so the HIDs aren't aimed at oncoming drivers. Halogen high beams	-	-	-	S	-	S
new for 2011 Back-up rear view camera	-	0 req Opt Pkg 33	0	S	-	S
Instrument Guage back lighting	blue	blue	blue	new for 2011 electroluminescent, red	blue	new for 2011 electroluminescent,  red
Power windows Power door locks Power outside mirrors Power steering Power brakes	S	S	S	S	S	S
Power Driver Window auto Down one push function.	S	--	--	--	--	--
Power Driver Window auto Up/Down one push function.	-	S	S	S	S	S
Power Outside Mirrors,  fold-in	black	body colored, optional heated with All Weather Pkg	body colored,  heated	body colored,  heated,  integrated Turn Signals	body colored	body colored,  heated,  integrated Turn Signals
Air Conditioning	manual control	manual control	Single zone auto climate control	Dual zone auto  climate control	manual control	Dual zone auto  climate control
Cabin air filter, replace every 1-2 yrs. Behind glovebox	S	S	S	S	S	S
Tinted glass.  Privacy tint is dark tinted rear and side glass, and dark upper windshield band note: no privacy tint on front windows or windshield.	S- light tint	S- privacy tint	S- privacy tint	S- privacy tint	S- privacy tint	S- privacy tint
All Weather Package includes heated front seats 2 settings, Defrosting outside mirrors, Front wiper de-icer.	--	0- Option Pkg  #02 or #33	S	S	--	S
Engine Immobilizer Key System with ignition disabling alarm	S	S	S	S	S	S
Laser cut key, with	S	S	S	S	S	S
Remote keyless entry with ignition disabling alarm	S	S	S	S	S	S
Illuminated ignition key ring	S	S	S	S	S	S
Carpeted floor mats (rubber all weather mats optional)	S	S	S	S	S	S
Cargo tray (so things don't slide around)	0	0	S	S	0	0
Rear cargo cover, retractable	0	0	0	S	0	0
Rear bumper cover step pad	0	0	0	0	0	0
Fog Lights (excellent on dark or wet roads)	0	0	S	S	0	S
model reminder (top)	X	X Premium	X Limited	X Touring	XT Premium	XT Limited
Door light, small courtesy light in each door	S	S	S	S	S	S
Map lights in overhead console, with switch for the lights to turn on when door is opened (fade off).	S	S	S	S	S	S
Tllt steering wheel	S	S	S	S	S	S
Telescoping steering wheel new on all X models except X. Was on XTs.	--	S	S	S	S	S
Cupholders	6: 2 front console,  1 in each door	8: 2 front console, 2 in rear seat center flip-out tray w/ blue LEDs, 1 in each door.
Center console with sliding armrest, 2 cupholders with removeable divider, removeable storage bin that hangs on door pocket for purse storage, power socket, auxiliary input plug etc  see Photos	S	S	S	S	S	S
Power Outlets- 3,  dashboard, center console, rear cargo area.  No cigarette lighter outlet	S	S	S	S	S	S
Armrest, front. Sliding armrest is part of the center console	S	S	S	S	S	S
Armrest, rear center	S	S	S	S	S	S
2011 model reminder	X	X Premium	X Limited	X Touring	XT Premium	XT Touring
Sunroof, power glass (dark tinted), with sunshade	--	S	S	S	--	S
Wipers, front: variable speed interval	S	S - optional front wiper de-icer with All Weather Pkg	S - includes frront wiper de-icer with All Weather Pkg	S - includes front wiper de-icer with All Weather Pkg	S	S - includes front wiper de-icer with All Weather Pkg
Wiper, Rear 2 speeds including interval. Rear defroster	S	S	S	S	S	S
Height adjustable front seat, manual	S, manual	--	--	--	S	--
Power front driver seat, 10 Way, power lumbar	--	S	S	S	--	S
Interior material	cloth	cloth	leather, perforated	leather perforated	cloth	leather, perforated
Rear spoiler, body colored,  with brake light	0	0	0	0	0 redesigned for 2011	S  redesigned for 2011
Roof  Rack Cross Bar Kit- optional fixed position cross bar carrier base kit. Attaches directly to fixed mounting points. Fixed 28" spread. Only on the base X model- all others have raised roof rails	0 na with Alloy Wheel Pkg	--	--	--	--	--
Roof Rack Rails - raised rails to attach optional Aero cross bars to	S- Alloy Wheel Pkg na- X	S- black	S- black	S- new silver	S- black	S- new silver
Roof Rack Cross Bars: optional adjustable 'Aero' cross bars attach to the raised roof rails on all models except the base X (non SE pkg). 150 pound weight on cross bars	na- X 0- X Alloy Wheel Pkg	0	0	0	0	0
model reminder	X	Premium	Limited	Touring	XT Premium	XT Touring
Subwoofer/amp. $315. NEW optional starting March 2010 on all models. Fits under driver seat. Standard on all Touring models	A	A	A	S	A	S
new for 2011 Back-up rear view camera	--	0, req TomTom Navigation	0	S	--	S
Stereo 80 watt am/fm with single disc CD, auxiliary input,  4 speakers (tweeters are optional)	S	--	--	--	--	--
Stereo new for 2011 includes Bluetooth with hands-free steering wheel controls, audio streaming,  AM/FM/CD (single disc), 4 upgraded speakers, pty/cat (program type/category radio station search function), USB and aux input, new fixed position roof antenna, MP3, iPod capable. Optional Sirius satellite. Bluetooth works well, easy to use, plays through stereo speakers.	--	S	--	--	S	--
Stereo new for 2011  4.3" LCD display, AM/FM HD radio, single disc CD player, 6 spkrs, pty/cat (program type/category radio station search function), Bluetooth with hands-free steering wheel controls, Audio streaming, USB and auxiliiary inputs. Pod capable, new fixed position roof antenna.. (back-up camera is optional)	--	--	S	--	--	--
Stereo new for 2011  4.3" LCD display with Back-up camera. AM/FM HD radio, Sirius satellite radio,  single disc CD player, pty/cat (program type/category radio station search function),  7 spkrs including subwoofer, Bluetooth with hands-free steering wheel controls, Audio streaming, USB and auxiliiary inputs. new fixed position roof antenna. iPod capable..	--	--	--	S	--	S
Bluetooth  'BlueConnect'	0	--	--	--	--	--
Bluetooth with steering wheel controls, Works well, very easy to use, plays through stereo speakers.	--	S	S	S	S	S
Optional Navigation  System-  Option Package #10 new for 2011 includes back-up camera.  7" Kenwood touch screen GPS Navigation system, Bluetooth, 140 watt, AM/FM single CD with 6 speakers, audio/video inputs. Navigation does not include Hawaii, Alaska	--	--	0	0	--	0
new Optional Tom-Tom portable removable 4.3" Navigation System and All Weather Pkg, Option Package #33.  Factory installed only. AM/FM/single CD DVD, 6 upgraded speakers, Bluetooth, USB, iPod, and aux plug, iPod capable. 4.3" Tom-Tom removable portable Navigation GPS system with customizable background.  Optional back-up camera, and traffic updates. Not available with satellite radio Note: in my opinion the multi-function radio buttons are too small and controls are confusing	--	0	--	--	--	--
2011 std features summary chart subject to change. corrections welcomed	2.5 X	2.5 X Premium	2.5 X Limited	X Touring	XT Premium	XT Touring
