2012 Subaru Forester unofficial research page by Joe Spitz, Internet sales, Seattle, Wa Learn all about the 2012 Forester looking for the 2013 Forester or the 2011 Forester?  sitemap - ON THIS PAGE.. - Photos  I Updates  I  Whats new for 2012 I fuel economy comparison I  brief model overview  I  Dimensions, Measurements, Cargo space  I  Safety features  I  Maintenance & Warranty  I Model Option Trim Packages  I Prices  I Specifications, Mechanical details I Standard features: X, X Alloy wheel Pkg -- Premium & Limited  --  Touring  --  XT turbo   I Option Packages  I Individual Options  I accessories I  Colors, Interiors  I  order a car? I Magazine articles, speed tests  I Fine print 2012 Forester photo pages:- exterior photos,  interior photos, options and upgrade photos, Monroney window stickers NEW FOR 2012 - manual height adjustable front passenger seat. on all models - ---Always subject to change, correction.  Comments, corrections, welcomed . All photographs, text, formatting © joe spitz :: unauthorized reproduction prohibited  Thanks for visiting. If you like the site please tell friends about it. You are here http://www.cars101.com/subaru/forester/forester2012.html  v  4.3.13 - Please read- this unofficial independent Subaru research site by Joe Spitz is designed to help you learn about Subarus and is not sponsored, authorized, supported or approved by Subaru or any dealer, and is not connected to, affiliated with or approved by any dealer. Always contact your local dealer.  - Buying in Seattle, Washington, Oregon, Montana, Idaho,  Alaska, or the Northwest? Shipping available to Alaska or ..? Joe Spitz, internet sales in Seattle, Wa. Selling Subarus in the Seattle area since 1996. Contact. -

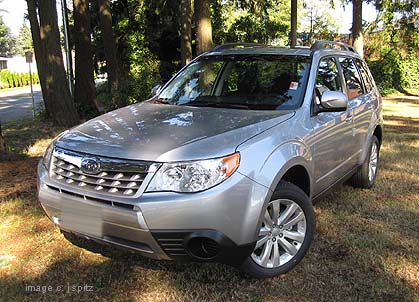

new color for 2012- ice silver metallic, Premium shown	new color for 2012- ice silver metallic, it comes with dark gray interior
XT Touring- for more photos check out the exterior photos page	XT Touring- notice the front hood scoop, and only the Touring has silver roof rails
new color for 2012- ice silver metallic, with hatch open	new for 2012  the platinum interior now has dark carpeting in the cargo area. This replaces platinum cargo area carpeting. camellia red pearl shown. There is lots of very usable cargo space. see measurements below.

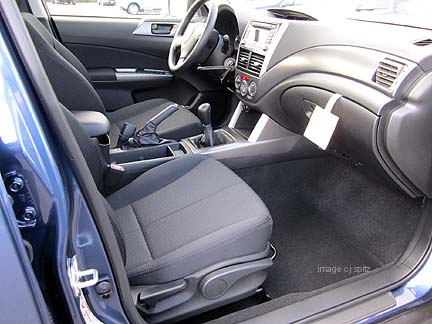

height adjustable front passenger seat pumps up or down.  It goes from 22.50"-24.25" high, hand measur	only Touring models have turn signals in the outside mirrors. Dark Gray shown
Forester front doors have an easy place to hold for support getting in and out.	high seats, and tall wide-opening doors with a place to hold on to make this an ideal easy in-out car
doors open very wide for comfortable access- Camillia red shown	Media hub USB connection, aux plug, 12v outlet-  in center console  (USB is optional on X and not on Premium with tom-tom).

Forester X 16" steel wheel, shown without wheel cover	X model 16" steel wheel with full wheel cover	X with optional Alloy Wheel Value Package, also includes black roof rack rails
17" 10 spoke alloy wheel on Premium, Limited and X Touring models	17" 5 spoke alloy on the XT Touring	blank

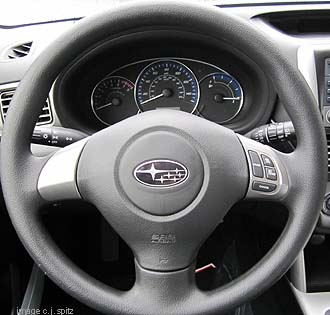

Forester X steering wheel, vinyl wrapped, with cruise control.  Notice no stereo controls on the left.  gray shown	Premium, Limited, Touring model steering wheel has Audio and Bluetooth controls on the left, and Cruise controls. Premium vinyl wrapped, Platinum color shown
close-up of the Audio and Bluetooth steering wheel controls on Premium, Limited, Touring. Gray leather shown	Premium with vinyl steering wheel. With optional TomTom navigation, Bluetooth is part of the navigation touch screen so there are no steering wheel bluetooth controls.
all new 6.1" Navigation GPS optional on Limited and Touring. Its a touchscreen, AM, FM, XM, HD radio, backup camera, 3D map view, voice activation, easy to use handsfree cell phone with contact download function. Touring shown with dual front zone climate control	front windshield wiper de-icers are part of the All Weather Package which also includes heated front seats and defrosting outside mirrors. Optional on X Premium, standard on Limited and Touring models.
Right side Touring model cargo area:  pop-out hook on Limited and Touring models. Touring models have an electric one-touch fold flat rear seat button which folds the rear seat down	standard front door courtesy lights, all models. Puddle lights are still a good option

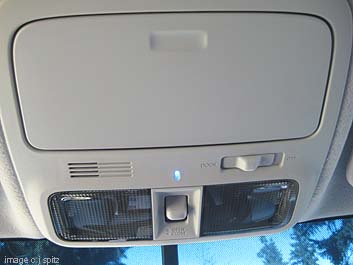

overhead console, map lights, sunglass or garage door opener holder, ambient light. with power moonroof button	push this button when you're sitting in the rear seat to recline it back- left or right side.  All models except X.  Black leather shown

UPDATES
news and updates

4/3 Navigation map upgrade available. You can download the latest Q3 2012 data from Nokia/Navteq
If you have factory navigation (excluding Forester with Tom-Tom) on
2012-2013 Forester, Impreza, and WRX/STI,
2013 Legacy, Outback, BRZ, and Crosstrek, and
2014 Forester,
you can purchase the latest mapset  Q3 2012 from Navteq for 149.99 + tax.
You need the original SD card that came with the navigation, and a windows computer with a SD-HC card reader. Be sure to remove the SD card from the navigation only after the pushing and confirming the Remove SD button in the Info screen.
You will need a registered account with the download website, where you'll also get all the details and info, at https://subaru-na.naviextras.com/shop/portal
The windows computer will need a copy of the toolbox. Its at https://subaru-na.naviextras.com/shop/portal/downloads
Questions, support, SD card questions https://subaru-na.naviextras.com/shop/portal/support or call Navteq at 888-628-6277

1/5/13 recall Optional puddle lights (small outside lights under each door that illuminate the ground) may short circuit when exposed to saltwater, which could lead to overheating and possible fire. Models involved have the optional puddle lights and are the 2010 and 2011 Legacy and Outback, 2009-2012 Foresters sold before January 2012, and 2006-2012 Tribecas sold before January 2012. Reportedly around 54000 car in the US could be involved. According to online reports, the problem has been known for years with various fixes failing to solve it. The latest repair will be new wiring with a fuse. Recall #WQE-41

10/23/12 Navigation system updating information released
"Please note: updates to 2012 model year Impreza and Forester vehicle navigation systems are now available from Nokia via the following link: www.navigation.com/subaru-na
Although ’12 systems are the first to go live on this new update system, additional carlines and newer model years will soon be available for updates as well. Customers interested in updating their navigation systems can do so through the following process:
1. With vehicle on, eject SD Card (see pg. 18 in Navigation System Owner’s Manual for SD card ejection procedure)
2. Insert SD card into computer SD card reader
3. Open web link: www.navigation.com/subaru-na
4. Click “ Buy Updates or Extras”
5. Register a user ID and password
6. Select head unit (currently only 12MY Impreza and Forester head unit available)
7. Select update for purchase
8. Download Naviextras Toolbox to computer
9. Use Naviextras Toolbox to download update to SD card
10. Replace SD card in vehicle navigation head unit with vehicle off
11. Turn on vehicle to confirm update
For additional questions about the update process and the Naviextras Toolbox software, please visit the FAQ on the Subaru Navigation Update page: https://subaru-na.naviextras.com/shop/portal/howto-guide?guide=Toolbox (May require user registration or logging in as Guest to access FAQ.)

6/20/12 orders now accepted for the 2013
6/13/12 prices announced. No orders accepted yet
4/20/12- 2013 Foresters now available for order. no prices or new/changed features yet

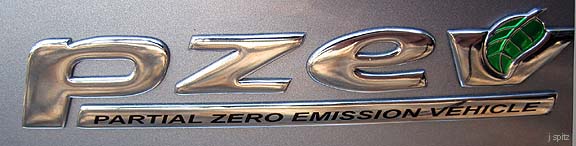

4/3/12- PZEV goes national and all 2012 Forester allocated after 4/1/12 will have PZEV emissions.

3/30 final day for 2012 factory orders for all Outback, Legacy, Forester, and Tribeca models. 2012 orders for Forester, Tribeca, Outback and Legacy end at 3pm today 3/30. This is early for Foresters, perhaps the 2013 model will get some updates (CVT?)  in advance of the 2014 make-over. Outback and Legacy manual transmission and 3.6L models had already stopped on 3/6. Dealers will continue to receive 2012s but in diminishing numbers. Low production models will sell out quickly. Subaru already announced 2013 Outback and Legacy details yesterday.

IN BRIEF

the 2012  Forester model line-up
subject to change, correction, updating

The Subaru Forester is an all-wheel-drive car-based SUV introduced in 1998. Made by Fuji Heavy Industries in Ota Gumma, Japan.
Redesigned in 2009, this is the 4th year for the current model.


When? 2012s expected to start arriving late October

The 2012 get very a few changes, basically they are the same as 2011.
Sorry, the engine and transmission is the same 2.5L and 4 speed Sportshift used in the 2011s.
There is no CVT and no diesel (I don't think there will ever be a US diesel).

Whats new-

New the 1st oil/filter change is by 7500 miles or 7.5  months. This is new. the 2011 model 1st oil/filter change was by 3mos/3000 miles.

New The front passenger seat is now manually height adjustable which is really good because the seat was a bit low. This is a first for any Subaru.
New The cargo area carpet been changed to black, regardless of interior color the rear cargo area carpet is back.
New A new touch screen Navigation/GPS with HD radio and single CD is optional on Limited and Touring models.
Gone: Satellite radio no longer standard on Touring models


Colors and Interior
New - Ice Silver Metallic with off-black interior replaces the two silvers (so confusing) that were available in 2009-2011.
Gone - Steel Silver, Spark Silver, Paprika Red Pearl

Request a free Subaru 'Badge of Ownership'  Here's my webpage with photos of the badges and links.

Maybe Next Year- Top things it would be nice to see for 2013 models

Keep the rubber rear bumper cover- don't switch to the new clear mylar/vinyl one like on other models
Tires pressure monitors that self-register so a technician isn't required each time one swaps wheels/tires.
Better fuel economy with a CVT transmission or diesel engine, or both.
memory driver's seat on top of the line models
XT turbo with upgraded suspension, brakes, wheels/tires to handle the power
Rain sensing front wipers
A foul weather, camping, skier version with vinyl floor and cargo area, real mudflaps, etc
One piece key/remote to replace old fashioned separate pieces
when they redesign it, I hope the keep the excellent rear visibility
All Weather Package should include the all weather floor mats and rear cargo tray

scroll down for much more

top

- 2012 Forester cargo area measurements, hand measured same as 2011, 2010 and 2009. subject to change and correction
there's lot of room, and its only  27" high so very easy lift things in.	golf clubs and strollers fit easily. And who's that looking back at the camera?
2011, 10, 09 Forester Under-Floor storge bin. The spare tire is below. The optional cargo cover will stow away on top of the bin.  Hand Measurements  storage bin length 26.5", compartment depth app 4"	2011, 10, 09 Forester temporary spare tire and jack and tools is under the cargo floor. Notice the silver jack crank on the left side fits in a recessed slot.

Hand measured cargo area dimensions hand measured and subject to change and correction A: Cargo door width at bottom of door opening 39"  B: Cargo floor length to back of rear seat 35.5" C: Cargo floor length to back of center console 70" (updated 3/15/08) D: Cargo door height in middle of door 34.5" E: Cargo floor width between wheel wells 42.2" F: Cargo floor maximum length from rear to front console (stereo) 102" G: Rear seat maximum width, seats folded flat from door to door 55.5" 60/40 split rear seat width: Rear Passenger width 24", Rear driver width 15.5" H: Cargo door width at middle of door 44"  I: Cargo height, floor to roof, with sunroof: 32" J: Cargo door width at top of door 39"  Maximum width of cargo floor from inside of the side storage bins 62" Ground to cargo floor -  27" ground to cargo floor. Its easy to lift things in. Ground to top of rear bumper- 25.5"

SEAT AND LEGROOM DIMENSIONS hand measured and subject to correction - new for 2012 on all models, the front passenger seat has a manual up and down height adjustment. Pump the handle up or down.  The seat goes from 22.50"-24.25" high, hand measured at back of seat cushion
Front Seat-to-brake pedal distance 15"- 23.5".	X model with manual seat shown	Seat and Leg room measurements hand measured and subject to change and correction Leg room, Front seat to brake pedal: 15"- 23.5" Leg room, rear seat to back of front seat 8.5"-18" depending on front seat position. Driver door opening height is 59" from ground to top weather strip,  Driver seat height range is app 24-26" high.  All hand measured. Sunroof measures 28" W, 31.5" L
Rear seat to back of front seat leg room distance	8.5"-18" depending on front seat position	blank

top
start safety

overall	frontal crash	side crash	rollover

-2012 models SAFETY FEATURES subject to change, correction

- all 2012 Forester models have... VDC, stability control is standard on all models  Airbags: dual front, dual front side, and front and rear side curtain with roll-over sensor Disc brakes, rear disc brakes now on all models Tire Pressure Monitoring on all models. re-sync whenever tires or wheels are replaced. Brake Assist for maximum braking  Tire Pressure Monitoring on all models Electronic Brake Distribution Collapsable foot pedals to help minimize injury Crumple zones front and rear Side impact door beams Child seat anchors (latch system) Child seat tethers (latch system) Tinted safety glass. Daytime running lights Child safety rear door locks Taller rear seat headrests Anti-lock disc brakes, 4 wheel discs Front brake return springs, Touring models only. Helps front brake pads release faster Airbags dual front, dual front side, and front and rear side curtain Front Driver Airbag: Dual stage driver airbag deploys according to the driver’s distance to the steering wheel, measured by a sensor on the seat track. Front Passenger Airbag: Dual stage passenger airbag deploys according to occupant etc. A light by the upper cosole indicates on or off (see photo). A sensor device detects and measures weight, position on the seat, position of the seat to determine if it’s occupied and if so by a child or adult to control air bag deployment. Back-up camera- standard on Touring models, optional on X Premium and Limited Reverse assist sensors (back-up beeper) is optional on all models

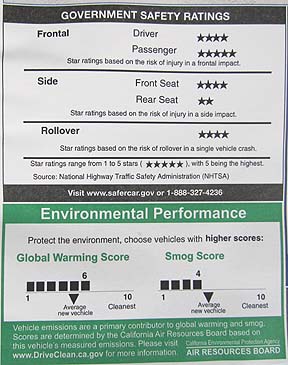

safety ratings on the 2012 Forester window sticker ***  always drive safely and watch the road ahead ***  NHTSA 2009 Forester crash test photo shows the front  crumple zones protecting the occupants.

- 2012 WARRANTIES - the roadside assistance phone number is on drivers window, also on 2 wallet cards included with the owners manual. Call 800 261.2155. good for 36months, 36000 miles. (Impreza shown) Bumper to bumper: 3 year/36,000 miles.  Wear Item warranty 3 year/36,000 miles, covers premature wear: brakes, clutch linings, remote batteries, wiper blades (one time replacement) etc. Roadside assistance 3yr/36000 miles by the Cross Country Motor Club at 800 261-2155, break-down, lock-out, flat repair etc Powertrain: 5 year/ 60,000 miles Corrosion, rust perforation: 5 year/100,000 miles Emission: warranties vary by emission system and state. Minimum 3yr/36,000 with extended major emission component defect warranty 8yr/80,000 Note Warranties do not cover wear or damage due to abuse, lack of maintenance or competitive driving. Exclusions may apply, wear replacement may be one time. subject to change, correction

--

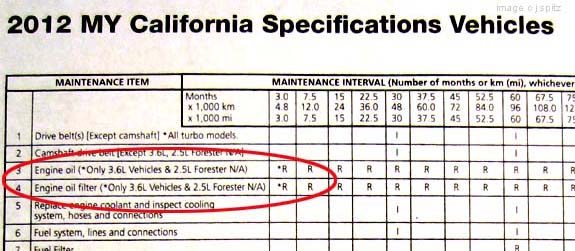

2012 MAINTENANCE full 2012 maintenance schedule and service intervals in this early maintenance schedule, the 2.5L Forester N/A (North America) 1st oil/filter change at 3mo/3000 miles. In later booklets, its 7500 miles or 7.5 months.

-- the full maintenance schedule 2.5L models- 0w-20 synthetic oil  Turbo models- 5w-30 synthetic oil 2.5 X models Synthetic 0w-20 oil only. 1st oil and all subsequent oil change required at or by  7500 miles or 7.5 months. This is new. 2011 models required it by 3mos/3000 miles. Note: early owner manual maintenance schedules printed 8/11 had the 1st oil/filter change required  3 months or 3,000 miles like the 2011 models, but that changed in the schedule printed October 2011.  2.5L XT turbo models   Synthetic 5w-30 oil only. 1st oil change required at or by 7500 miles or 7.5 months.  2nd and Subsequent oil changes: required every 7500 miles or 7.5 months. Note: this is the minimum oil change interval required. It is generally recommended by many in the automotive industry to change the oil every 3750 miles or 3.75 mos, and under race or other severe driving, even more frequently. Tire rotations: every 6-10,000 miles. Equal tread required at all corners. Tires, wheels FAQ 15,000 mile inspection, tire rotation, cabin air filter,  30,000 mile replace both engine and cabin air filters, brake fluid, transmission and gear fluid as needed  60,000 mile repeat 30,000 service, replace spark plugs 90,000 mile service with complete fluid, filter change. Inspect all hoses, belts 105,000 mile timing belt replacement XT  turbo models only. X models have a Timing chain - no replacement needed 120,000 mile repeat 30,000 service, replace spark plugs 137,500 miles replace Super Coolant Radiator Fluid. The 1st replacement is 11 years, 137,500 miles, or 220,000Km. The 2nd replacement is 6yrs, 75,000 miles subject to change, correction

start option packages
top


top
Prices

top
start X model standard features

- 2012 X STANDARD FEATURES all information and details subject to change, updating. corrections welcomed option packages and individual options are below PZEV (partial zero emission vehicles) is required on these non turbo models sold in CA, CT, MA, ME, NJ, NY, OR, PA, RI, VT, WA

- 2012 X models include model codes manual trans CFA, automatic trans CFB 3.1.12 UPDATE- all Foresters to have PZEV emission starting with April 2012 production. Standard on all models New height adjustable front passenger seat New  cargo area carpeting is dark regardless of whether interior is platinum or black 2.5L 4 cylinder 16 valve DOHC with timing chain, and direct ignition multi-spray fuel injector, ACVS active valve control system.  Fuel economy 21/27 for both auto and manual trans. Horsepower 170@5800rpm Torque, now 174lbft @4100 rpm Requires 0w-20 synthetic oil (turbo requires 5w-30 synthetic) Manual 5 speed transmission is standard Automatic 4 speed SportShift transmission optional Emissions: all Subarus meet EPA Tier 2 Bin 5  and California LEV II standards. Available PZEV emissions, req CA, CT, NJ, NY, MA, ME, RI, VT, PA, OR, WA 8.7" ground clearance  All Wheel Drive, full time VDC (Vehicle Dynamic Control) electronic stability control with off switch TCS Traction Control system, full time, with off switch  Electronic Throttle Control (ETC) Airbags: dual stage front airbags Passenger airbag- automatically on with occupant or weight detection Airbags: front side (seat mounted for correct positioning) Airbags: front and rear side curtain with Roll Over Sensor (helps pre-deploy them) Daytime running lights 4 wheel disc Anti-Lock brakes, 4 wheel, 4 channel Brake Assist (helps in emergency braking) brake pad return spring to reduce brake drag EBD electronic brake force distribution Safety Pedal system (for foot safety in an accident) Tire Pressure Monitoring System (TPMS) Incline Assist clutch, manual trans only (minimizes rollback when stopped on a hill) 16" steel wheel with full wheel cover All Season tires, 16" 16.9 US gallon fuel tank (low fuel warning light at  app 2.5-3.5 gals left) Automatic off headlights with ignition key removal (turn off-on for parking lights) Air filtration system cabin air filter. Replace filter every 1-2 yrs, it's behind the glovebox Power Windows with illuminated switch Power door locks Power outside mirrors Cruise control Air conditioning Tinted glass- light tint with darker upper windshield band Black door handles Black outside mirrors Driver seat height adjustment- manual  Keys: laser cut keys with Immobilizer System. 3 keys are supplied when new. Remote entry, lock/unlock, car finder and panic modes. 2 remotes supplied new. Immobilizer anti-theft system: a chipped and programmed key is required to start the engine. Complies w/ Pt 15 of FCC Rules, and RSS-210 Industry Canada.

X standard features, continued Alarm, ignition disabling alarm with flashing red light on instrument panel (impact sensor optional) Illuminated ignition key ring.  Passenger front seatback map pocket  Air filtration system cabin air filter. Replace filter every 1-2 yrs, it's behind the glovebox Variable speed intermittent front wipers Rear defroster Rear wiper- 2 speed with fixed intermittent, wiper blade de-icer Height adjustable drivers seat, manual 5 shoulder seatbelts, 2 front and 3 rear 3 rear headrests- large size Center console with sliding armrest, cupholders with removeable divider, and removeable storage bin that can hang door pocket, light inside dash storage, 2 power sockets, auxiliary input plug etc (see photos) Rear seat center fold down armrest Power Outlets, 12V- dashboard, center console, rear cargo area.  No cigarette lighter outlet (and no ashtray) Cupholders, 6: 2 on center console, 1 in each door: Leather shift boot (manual only) Interior dome light (delayed off) Rear cargo light 2 overhead Map lights with new for 10 'Door Open' switch (fades off) Door light, light in each door Double wishbone rear suspension Twin tailpipes (optional chromed exhaust tips) Cargo area- under floor storage bin Cargo area- 4 tie-down hooks on floor Cargo area- 4 pop-out hooks by gate Spare tire, temporary, under cargo floor Instrumentation- blue lit, dashboard tachometer, low fuel light. Trip computer- Clock, Outside Temperature, avg economy for trip odomenters Overhead console with maplights and sunglass/garage door opener compartment Headlights- Automatic off with ignition key removal (turn off-on for parking lights) Headlights- Halogen multi reflector headlights Floor mats, carpeted Split folding rear seats Plastic headlight lens, chip resistant lexan Engine Coolant, extended life. replace 11 yrs.137,500 miles or 220,000Km Engine temperature warning light is blue when the cold engine is first started and comes back on red when the engine is overheating, app ~235°F it Blinks red, at app 248°F is steadily on red. On all models except Touring models which have a real engine temperature guage STEREO: 80 watt am/fm with single disc CD, MP3/WMA, auxiliary input, 4 speakers, pty/cat (program type/category radio station search function).  Adjustable roof top antenna Optional USB media hub, and media hub with audio streaming. Bluetooth - optional BlueConnect.  Option Packages available-  Alloy Wheel Package. Upgrades to alloy wheels (16") and includes black roof rails. List Price $400. Request a free Subaru 'Badge of Ownership'  Here's my webpage with photos of the badges and links.

end

top

start Premium and Limited standard features

- 2012 X Premium and Limited STANDARD FEATURES PZEV (partial zero emission vehicles) is required on these non turbo models sold in CA, CT, MA, ME, NJ, NY, OR, PA, RI, VT, WA subject to change, updating. corrections welcomed
- X PREMIUM adds  over X model  everything the X has, plus... model code-  manual trans CFE,  automatic trans- CFF Alloy wheels redesigned,  silver finish, 17"  Fixed position roof antenna (wired for satellite). 17x7" alloy wheels Reclining rear seatbacks Body colored outside mirrors Chrome Inside door handles Chrome Outside door handles Tilt and Telescoping steering wheel Roof rails, raised (cross bars are optional) Dark Privacy tinted glass with upper windshield band Drivers window now auto up/down, replaces down only 10 way power drivers seat with power lumbar support Rear seat center flip-out tray with 2 cupholders, LED lights Power glass sunroof with sunshade, 28"x31.5" interior (hand measured) Steering wheel audio controls and bluetooth controls, in additon to cruise controls, dark buttons with light lettering for better visual contrast Stereo includes Bluetooth with hands-free steering wheel controls, wireless audio streaming,  AM/FM/CD (single disc) MP3/WMA,, 4 upgraded speakers, pty/cat (program type/category radio station search function), USB, auxilliary jack, 12v outlet, iPod capable, roof antenna, MP3, Fixed position roof antenna.optional Sirius satellite Option Packages All Weather Package, option package #02-  Includes dual setting heated front seats, defrosting ouside mirrors,  front wiper deicers. MSRP list $500 All Weather Pkg and Tom-Tom Navigation.  option pkg #33. MSRP List $1,095 Optional  back-up camera, traffic updates. RequiresTom-Tom,  Not available with satellite radio.	- X LIMITED adds over X Premium  everything the Premium has plus... model code, auto trans CFI Automatic SportShift 4 speed transmission w/ Electronic Direct Control. No manual available Cargo tray Fog Lights Leather wrapped steering wheel Tail pipe exhaust bright tips, dual Automatic Single Zone Climate Control with 7 speed fan Driver's seat back map pocket plus passenger side Leather wrapped automatic shift knob Leather wrapped steering wheel with audio controls New Fixed position roof antenna (wired for satellite). Leather interior- perforated leather seating surfaces with vinyl trim All Weather Package includes heated front seats (2 settings), and One Touch defrosting outside mirrors and front wiper de-icer (heats lower front windshield). Upgraded Stereo  4.3" LCD display AM/FM HD radio, single disc CD player, MP3/WMA, 6 speakers, cell phone Bluetooth with steering wheel controls, wireless Audio streaming, USB and auxiliiary inputs. 12v outlet, iPod capable.  Optional back-up camera, and Sirius radio.  Note- same stereo on Touring models includes Back-up camera, and underseat subwoofer  More about HD radio below Option Packages Navigation  System package #10- MSRP list price $1200
top 2012 X TOURING Standard Features PZEV (partial zero emission vehicles) is required on these non turbo models sold in CA, CT, MA, ME, NJ, NY, OR, PA, RI, VT, WA subject to change, updates. corrections welcomed.
2nd year for the top-of-the line Touring model.  Code CFJ Touring adds over Limited Gone: Satellite radio no longer standard on Touring models Roof rails- silver colored ECO fuel economy guage Dual Zone climate control, 7 speed fan Outside mirrors with integrated turn signals Fixed position roof antenna (wired for satellite) Front brake pad return spring to reduce brake drag One touch folding rear seat backs (was on a few late 2010 Limiteds with Convenience Pkg) Stereo 4.3" LCD display includes Back-up camera and Sirius radio (both optional on Limited) Electroluminescent instrument panel, red colored, with engine Coolant temperature guage so no blue cold engine light like all other models HID low beam headlights, with Automatic HID height adjustment control for heavy cargo loads so they're not aimed high at oncoming drivers Upgraded Stereo: on X Touring and XT Touring models.  4.3" LCD display with back-up camera. AM/FM HD radio, single disc CD player, MP3/WMA, 7 speakers including subwoofer under the driver seat (exc with Navigation), pty/cat (program type/category radio station search function), cell phone Bluetooth, wireless audio streaming, USB and auxiliiary inputs. Includes back-up camera and Sirius satellite radio. iPod capable HD radio is new for Subaru. More about HD radio below Option Packages Navigation  System - Option Package #19.  MSRP list price $1000
2012 XT turbo  Standard Features option packages and individual options are below subject to change, updates
- 2012 XT turbo adds over X Premium (not X Limited) model code CFM 2.5L 4 cylinder turbo intercooled engine with Active Valve Control System (variable valve timing), 224 horsepower, 226 torque,  DOHC, timing belt, Premium 92 octane fuel required Automatic SportShift 4 speed trans w/ Electronic Direct Control (no manual avail) No optional All Weather Package Engine cover 8.9" ground clearance  Tail pipe exhaust tips, dual Liquid filled engine mounts Tilt plus Telescoping steering wheel Aluminum gas and brake pedal covers Rear spoiler, body colored, with brake light Outside mirrors with integrated turn signals Fixed position roof antenna (pre-wired for satellite) Rear spoiler, body colored, with brake light, only on XT model 5w-30 Synthetic oil required in all 2012 Forester turbos   Stereo (same as X Premium)  includes Bluetooth with steering wheel controls and USB port. AM/FM/CD (single disc), MP3/WMA, 4 upgraded speakers, pty/cat (program type/category radio station search function), USB, auxilliary jack, roof antenna, MP3, optional Sirius satellite radio   Option Packages none	- 2012 XT  Touring  turbo adds over XT Premium 2nd year for the XT Touring model Code CFN Gone: Satellite radio no longer standard on Touring models Roof rails- silver colored Driver's seat back map pocket One touch folding rear seat backs  Leather wrapped automatic shift knob Dual Zone climate control, 7 speed fan Fixed position roof antenna (wired for satellite). Leather wrapped steering wheel with Audio Controls Power driver seat, 10 way with power lumbar support Front brake pad return spring to reduce brake pad drag Outside mirrors, body colored, with integrated turn signals XT body colored rear spoiler, this spoiler is only on XT models Leather interior- perforated leather seating surfaces with vinyl trim Electroluminescent instrument panel, red colored, with engine Coolant temperature guage so no blue cold engine light like all other models HID low beam headlights, with Automatic height adjustment control for heavy cargo loads so they're not aimed high at on-coming drivers All Weather Package includes heated front seats (4 settings), and One Touch defrosting outside mirrors and front wiper de-icer (heats lower front windshield).  5w-30 Syntheticc oil required on all 2012 Forester Turbos Stereo: on X Touring and XT Touring models.  4.3" LCD display with back-up camera. AM/FM HD radio, single disc CD player, MP3/WMA, 7 speakers including subwoofer under the driver seat (exc with Nav), pty/cat (program type/category radio station search function), cell phone Bluetooth with steering wheel controls, wireless  audio streaming, USB and auxiliiary inputs, 12v outlet.  Includes back-up camera and Sirius Satellite radio.  iPod control capable. HD radio is new for Subaru. More about HD radio below Option Packages Navigation  System - Option Package #19  MSRP list price $1000

HD Radio - Starting in the 2011 Forester, Subaru was the first Japanese car company to offer HD radio
Digital radio broadcast signal for improved clarity

The ‘HD’ in ‘HD Radio’ is part of iBiquity Digital’s brand name for its digital AM and FM radio technology.
It does not mean either hybrid digital or high definition, it is simply the branding language for this new technology.
HD Radio broadcasting is free, there are no subscription fees.
You can get digital AM and FM stations, including HD2 and HD3 multicast channels.
HD Radio broadcasting is your favorite local AM and FM stations broadcasting digitally, producing radically improved sound.
Very clear. AM radio sounds like FM, and FM radio sounds like a CD.
Unwanted pops, hisses and dropouts are a thing of the past with an HD Radio receiver."
HD2 multicasting means more FM channels and new programming available from local FM stations, which you can only hear on your new HD Radio receiver.
Across the country, local FM stations are offering a wide variety of new formats on their HD2 channels: reggae, blues, classic jazz, future country, new alternative, deep tracks, bluegrass and local artists.
The service includes iTunes Tagging. iTunes Tagging lets you capture information about a song on the radio and store it on your iPod by pushing the "Tag" button on the HD Radio receiver. When your iPod is connected to iTunes, a list of tagged songs will appear which can be previewed, purchased, and downloaded.

HD radio FAQ I Check station availability here


top
start std feature summary chart

- 2012 FORESTER  STANDARD FEATURE SUMMARY CHART S = standard, 0 = available option, -- not available always subject to change, updates. corrections welcomed
standard features summary chart	2.5 X,  Alloy Whl Pkg	2.5 X Premium	2.5 X Limited	2.5 X Touring	XT Premium	XT Touring
model codes	CFA manual, CFB auto	CFE manual,  CFF auto	CFI auto	CFJ auto	CFM auto	CFN auto
All wheel drive	S	S	S	S	S	S
6 airbags, dual front, front side, and front and rear side curtain	S	S	S	S	S	S
Auto-Off headlights, ignition key removal	S	S	S	S	S	S
Daytime running lights	S	S	S	S	S	S
HID high intensity discharge Low beams, auto adjusting to offset heavy cargo loads so the HIDs aren't aimed at oncoming drivers. with Halogen high beams	-	-	-	S	-	S
Back-up rear view camera,  displays in stereo screen	-	0 req Opt Pkg 33	0	S	-	S
Instrument Gauge back lighting	blue	blue	blue	electroluminescent, red	blue	electroluminescent,  red
Power windows Power door locks Power outside mirrors Power steering Power brakes	S	S	S	S	S	S
Power Driver Window auto Down one push function.	S	--	--	--	--	--
Power Driver Window auto Up/Down one push function.	-	S	S	S	S	S

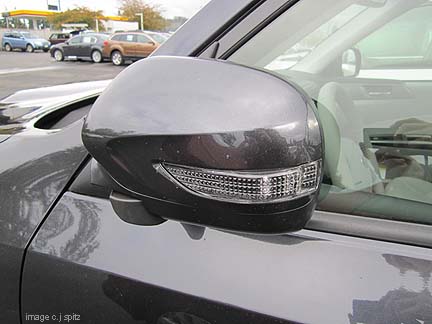

Power Outside Mirrors,  fold-in	black	body colored, optional heated with All Weather Pkg	body colored,  heated	body colored,  heated,  integrated Turn Signals	body colored	body colored,  heated,  integrated Turn Signals
model reminder	X	X Premium	X Limited	X Touring	XT Premium	XT Touring
Air Conditioning	manual control	manual control	Single zone auto climate control	Dual zone auto  climate control	manual control	Dual zone auto  climate control
Cabin air filter, replace every 1-2 yrs. Behind glovebox	S	S	S	S	S	S
Tinted glass.  Privacy tint is dark tinted rear and side glass, and dark upper windshield band note: no privacy tint on front windows or windshield.	S- light tint	S- privacy tint	S- privacy tint	S- privacy tint	S- privacy tint	S- privacy tint
All Weather Package includes heated front seats 2 settings, Defrosting outside mirrors, Front wiper de-icer.	--	0- Option Pkg  #02 or #33	S	S	--	S
Engine Immobilizer Key System with ignition disabling alarm	S	S	S	S	S	S
Laser cut key, with	S	S	S	S	S	S
Remote keyless entry with ignition disabling alarm	S	S	S	S	S	S
Illuminated ignition key ring	S	S	S	S	S	S
Carpeted floor mats (rubber all weather mats optional)	S	S	S	S	S	S
Cargo tray (so things don't slide around)	0	0	S	S	0	0
Rear cargo cover, retractable	0	0	0	S	0	0
Rear bumper cover step pad	0	0	0	0	0	0
Fog Lights (excellent on dark or wet roads)	0	0	S	S	0	S
model reminder (top)	X	X Premium	X Limited	X Touring	XT Premium	XT Limited
Door light, small courtesy light in each door	S	S	S	S	S	S
Map lights in overhead console, with switch for the lights to turn on when door is opened (fade off).	S	S	S	S	S	S
Tilt steering wheel	S	S	S	S	S	S
Telescoping steering wheel on all models except base X	--	S	S	S	S	S
Cupholders	6 cupholders: 2 front console,  1 in each door	8 cupholders: 2 front console, 2 in rear seat center flip-out tray, blue LED lights, 1 bottle holder in each door.
Center console with sliding armrest, 2 cupholders with removeable divider, removeable storage bin that hangs on door pocket for purse storage, power socket, auxiliary input plug etc  see Photos	S	S	S	S	S	S
Power Outlets- 3,  dashboard, center console, rear cargo area.  No cigarette lighter outlet	S	S	S	S	S	S
Armrest, front. Sliding armrest is part of the center console	S	S	S	S	S	S
Armrest, rear center	S	S	S	S	S	S
2012 model reminder	X	X Premium	X Limited	X Touring	XT Premium	XT Touring
Sunroof, power glass (dark tinted), with sunshade	--	S	S	S	--	S
Wipers, front: variable speed interval	S	S - optional front wiper de-icer with All Weather Pkg	S - includes front wiper de-icer with All Weather Pkg	S - includes front wiper de-icer with All Weather Pkg	S	S - includes front wiper de-icer with All Weather Pkg
Wiper, Rear 2 speeds including interval. Rear defroster	S	S	S	S	S	S
Height adjustable front seat, manual	S, manual	--	--	--	S	--
Power front driver seat, 10 Way, power lumbar	--	S	S	S	--	S
Interior material	cloth	cloth	leather, perforated	leather perforated	cloth	leather, perforated
Rear spoiler, body colored,  with brake light	0	0	0	0	S	S
Roof  Rack Cross Bar Kit- optional fixed position cross bar carrier base kit. Attaches directly to fixed mounting points. Fixed 28" spread. Only on the base X model- all others have raised roof rails	0 na with Alloy Wheel Pkg	--	--	--	--	--
Roof Rack Rails - raised rails to attach optional Aero cross bars to	S- Alloy Wheel Pkg na- X	S- black	S- black	S- new silver	S- black	S- new silver
Roof Rack Cross Bars: optional adjustable 'Aero' cross bars attach to the raised roof rails on all models except the base X (non SE pkg). 150 pound weight on cross bars	na- X 0- X Alloy Wheel Pkg	0	0	0	0	0
model reminder	X	Premium	Limited	Touring	XT Premium	XT Touring
-  STEREOS - STEREOS - STEREOS - STEREOS X-  80 watt am/fm with single disc CD, auxiliary input,  4 speakers (tweeters are optional). Optional bluetooth. X Premium- AM/FM/ single disc CD, 4 upgraded speakers, pty/cat station search function, USB and aux inputs, fixed position roof antenna, MP3, iPod capable. Easy to use Bluetooth, plays through stereo with hands-free steering wheel controls, includes wireless audio streaming. Optional Sirius satellite.  X Limited- 4.3" LCD display, AM/FM HD radio, single disc CD player, 6 spkrs, pty/cat radio search function, Easy to use Bluetooth, plays through stereo with hands-free steering wheel controls, includes wireless audio streaming USB, auxiliary inputs. iPod capable, fixed position roof antenna. Back-up camera is optional. X Touring- 4.3" LCD display with Back-up camera. AM/FM HD radio, Sirius satellite radio, single disc CD, pty/cat  radio station search function,  7 spkrs including underseat subwoofer (exc with Nav), Easy to use bluetooth with hands-free steering wheel controls, plays through stereo, wireless audio streaming, USB and auxiliary inputs. Fixed position roof antenna. iPod capable.. XT Premium AM/FM single disc CD, 4 upgraded speakers, pty/cat radio station search, USB and aux inputs, fixed position roof antenna, MP3, iPod capable. Easy to use Bluetooth, plays through stereo with hands-free steering wheel controls, includes wireless audio streaming. Optional Sirius satellite XT Touring- 4.3" LCD display with Back-up camera. AM/FM HD radio, Sirius satellite radio, single disc CD, pty/cat  radio station search function,  7 spkrs including underseat subwoofer (exc with Nav), Easy to use bluetooth with hands-free steering wheel controls, plays through stereo, wireless audio streaming, USB and auxiliary inputs. Fixed position roof antenna. iPod capable.. .
Subwoofer/amp. Fits under driver seat. Standard on all Touring models, except with Nav	A	A	A	S	A	S
Back-up rear view camera	--	0, req TomTom Navigation	0	S	--	S
Bluetooth  'BlueConnect'	0	--	--	--	--	--
Bluetooth with steering wheel controls, easy to use, plays through stereo	--	S	S	S	S	S
Navigation system- varies by model	-	-	0	0	-	0
2012 std features summary chart subject to change. corrections welcomed	2.5 X	2.5 X Premium	2.5 X Limited	X Touring	XT Premium	XT Touring


top
end standard features
start option packages

- 2012 Forester Option Package Chart  see individual options below S = standard, A = available option, - not available This section is for Option Packages and Individual Options, and not the Major Model Option Package Upgrades above. Prices are factory installed MSRP List price. Your purchase price may vary, dealer installed prices may be higher due to labor and parts. Contact your local dealer. subject to change, updates. corrections welcomed
2012 Option Packages subject to change, correction	2.5 X, and X Alloy whl pkg	2.5X Premium	2.5X Limited	2.5X Touring	XT  Premium	XT Touring
model code	CFA, CFB	CFE, CFF	CFI	CFJ	CFM	CFN
Popular Package 1 (FYC). Auto dimming rear view mirror with compass, Splash guards, Rear bumper cover, cargo tray $475	A	A	-	-	A	A
Popular Package 2 (FYD). Auto dimming rear view mirror with compass and Homelink garge door opener, Splash guards, Rear bumper cover, cargo tray $568	A	A	-	-	A	A
Popular Package 3 (FYK). Rear bumper cover, Cargo tray, Luggage cargo cover, Splash guards, all weather rubber floor mats. $525	A	A	-	-	A	A
Rugged Package 1(FYE). Aero cross bars (requires roof rails), Rear bumper cover, Luggage cargo cover, Splash guards $576	A req Opt Pkg #22	A	A	A	A	A
Rugged Package 2 (FYF). Roof carrier base kit- fixed position, Rear bumper cover, Cargo tray, Splash guards $557	A	-	-	-	-	-
Illumination Package 1 (FYG, FYH). Puddle lights, Interior Illumination kit (red or blue footwell lights), Fog lights. $659	A	A	-	-	A	-
Audio Media Package 1 (FYI). Subwoofer/amp (underseat), tweeters (2) $424	-	A	-	-	A	-
Audio Media Package 2 (FYJ). Media hub USB, tweeters (2). $467	A	-	-	-	-	-
2012 model, end option packages all information subject to change and correction	X  CFA/CFB	X Premium CFE, CFF	X Limited CFI	X Touring CFJ	XT Premium CFM	XT Limited CFN

top
end option packages
start individual options

. 2012 Individual Options List Exterior and Interior Options packages are above S = standard, A = available option, -- not available check out photos of these options on the  options and upgrade photo page This section is for Individual Options, and not the Major Model Option Package Upgrades above. Prices are factory installed MSRP  List prices. Your purchase price may vary, dealer installed prices may be higher due to labor and parts. Contact your local dealer. subject to change, updates. correction welcomed
2012 EXTERIOR OPTIONS factory installed list retail price	2.5X, and X Alloy whl pkg	2.5X Premium	2.5X Limited	2.5X  Touring	XT Premium	XT Touring
model code	CFA, CFB	CFE, CFF	CFI	CFJ	CFM	CFN
optional side window rain deflectors. They look good and work well. Dealer installed only, not available factory or port installed. See your local parts dealer. Suggested part price $99.95 (does not include installation)	A	A	A	A	A	A
Power outlet, 2 prong power plug, 110v 100w . #NBE, F; $334. Goes on the back of the center console. Inverter charges your cell, latop with a normal household 2 prong plug. (three 12v outlets are standard)	A	A	A	A	A	A
Rear bumper cover, #P9J, $80	A	A	A	A	A	A
Rear bumper underguard, #P9E, $260 na with reverse assist sensors	A	A	A	A	A	A
Front bumper underguard, #P9C, $329  na with front underspoiler	A	A	A	A	A	A
Front hood protector, #P9F $94 - (installed at dealer, may be slight charge)	A	A	A	A	--	--
Wheel arch molding kit, #Q9L, $453, na with front underspoiler	A	A	A	A	A	A
Moonroof air deflector, #Q9V, $108. requires moonroof	--	A	A	A	A	A
Body side moldings, body colored, $240	A	A	A	A	A	A
Rear Spoiler XT type body colored	--	--	--	--	S	S
Rear Spoiler body colored, $368. Note- this is not the spoiler used on the XTs	A	A	A	A	--	--
Puddle lights (4), Q9A 1 small outside light under each door, $197  nice to have on dark nights	A	A	A	A	A	A
Fog Lights, #Q9B, $374 good for dark roads	A	A	S	S	A	S
Reverse Assist Sensors - back up beeper with 2 loudness settings plus off. #P9M. $363  NA with rear bumper underguard.	A	A	A	A	A	A
Alloy wheels,# H9A, 16" alloy wheels. Includes 16" alloy wheels, TPMS valves, wheel cap. $767.  Note: alloys are standard on all except base X	X model-A S-X model pkg #22	S (17")	S (17")	A (17")	S (17")	S (17")
Splash Guards, #P9A, black, $135	A	A	A	A	A	A
Exhaust tip- dual tailpipe tips, bright metal, #Y8M, $100, worth it if looks are important and easy to install.	A	A	S	S	S	S
Sports grill, body colored with metal mesh insert, $314	A	A	A	A	A	A
Wheel Locks, #MSV or 8HB, $51	A	A	A	A	A	A
Trailer hitch, wiring harness, 4 pin cconnector, 1.25" receiver,  #Q9W, $468	A	A	A	A	A	A
Roof Rack carrier base kit, fixed position cross bars, 28" spread front/back, #U9A, $267	A- X NA -Alloy whl pkg	--	--	--	--	--
Roof Rack Aero cross bars, adjustable on roof rails, $195	NA- X A- Alloy whl pkg	A	A	A	A	A
Engine block heater for 2.5L X models (engine FB25). Dealer installed only, not factory or port installed.	Part #A091SSC000. dealer installed only. call your local dealer
2012 INTERIOR OPTIONS Factory installed List retail  prices, dealer installed may be higher, see your local dealer. information always subject to change, correction	2.5 X,  X-Alloy-whl-pkg	2.5 X Premium	2.5 X Limited	2.5 X Touring	XT Premium	XT Touring
model codes	CFA, CFB	CFE, CFF	CFI	CFJ	CFM	CFN
Navigation pkg #10, #19 - includes back up camera. handsfree Bluetooth uses the touchscreen (no steering wheel controls)	--	--	A pkg #10, $1200	A pkg #19 $1000	--	A #19, $1600
All Weather Package and Tom-Tom Option Package #33.  CD/DVD, 4 speakers, 4.3" Tom-Tom removable Navigation system, Bluetooth, aux/USB, $1095 (optional back up camera $199)	--	A- Pkg #33	--	--	--	--
All Weather Package- heated front seats, defrosting outside mirrors, front wiper deicer. factory installed only. Pkg #02 $500	--	Option Package #02, #33	S	S	--	S
Back-up camera, $197 Premium- optional with TomTom Nav. pkg #33; Limited- optional using the stereo display, or standard with optional Navigation pkg #10,  Touring- standard on all Touring models.	--	A, req Tom-Tom pkg #33	Optional- displays in stereo screen. Standard with  Navigation.	S	--	S
Auto-dimming rear view mirror, compass, #K9B, $185	A	A	A	A	A	A
Auto-dimming rearview mirror with compass and Homelink, #K9D, $278	A	A	A	A	A	A
Security System Shock Sensor alarm upgrade #R8D, $112	A	A	A	A	A	A
Immobilizer chipped key, ignition disabling alarm, included	S	S	S	S	S	S
Interior Illumination light- soft Blue (#N9A) or Red (#N9B) interior footwell lights, $88	A	A	A	A	A	A
Cargo tray, #M9E (black) $75	A	A	S	S	A	A
Rubber all weather floor mats, #B8A, $69	A	A	A	A	A	A
Luggage compartment cargo cover, #O9A, $166	A	A	A	A	A	A
Cargo net vertical, by rear gate, #MOH, $48	A	A	A	A	A	A
Cargo net sides, (2) both sides, #MOI, $80	A	A	A	A	A	A
Cargo net seatback #M0J- back of rear seat, $48	A	A	A	A	A	A
Remote engine start, auto trans only, $443	A	A	A	A	A	A
2012 STEREO OPTIONS Factory installed prices. Dealer installed may be higher, see your local dealer. information always subject to change, correction	X,  X Alloy whl pkg	X Premium	2.5 X Limited	2.5 X Touring	XT Premium	XT Touring
model codes	CFA, CFB	CFE, CFF	CFI	CFJ	CFM	CFN
Navigation systems see above	--	A, pkg #33	A, pkg #10	A, pkg #19	--	A, pkg #19
Subwoofer/amp (#DBC). fits under driver seat $315 . na with Navigation	--	A	A	S	A	S
Console tray, small tray fits in upper center console. A place for your cell phone, pens, parking passes etc   $9	A	A	A	A	A	A
Bluetooth- hands free cell phone BlueConnect $483.  (note Bluetooth with steering wheel controls is std on all except X)	A	--	--	--	--	--
USB Media Hub  $358 Play, control, charge your device through the factory stereo	A	S	S	S	S	S
USB Media Hub with Audio Streaming $401  Media hub plus send music wirelessly to the stereo	A	S	S	S	S	S
Sirius Satellite radio, $432. 3 months free, then by subscription. To activate, get your ID by tuning to Sat station 000, then call  888-539-7474. na with iPod interface	A	A na with TomTom	A	A	A	A
XM Satellite radio #D9D, $429. 3 months free, then by subscription. To activate, get your ID by tuning to Sat station 000, then call 888-539-7474. na with iPod interface	A	--	--	--	--	--
Tweeters (2 speakers), #D9A, $109	A	A	S	S	A	S
2012 PERFORMANCE OPTIONS Factory installed list tretail prices. Dealer installed may be higher, see your local dealer. information always subject to change, correction	X X Alloy whl pkg	X Premium	2.5 X Limited	2.5 X Touring	XT Premium	XT Touring
Turbo boost gauge XT only. Red lit. $335.	--	--	--	--	A	A
Short Throw Shifter, manual trans only, #C9A, $345	A	A	--	--	--	--
SPT turbo heat shield, #C9D $114	A manual trans req	A manual trans req	--	--	A	A
STI metal pedals Manual transmission #T8E, $187 Auto transmission, #T8F, $163	A	A	A	A	A	A
Shift knob, STI, aluminum and leather, manual trans #J9A, $180 automatic trans #J9B, $191	A	A	A	A	A	A
Shift knob, STI, Black Duracon, manual trans $91	A	A	--	--	--	--
2012 Forester options Factory installed list retail prices. Dealer installed may be higher, see your local dealer. information always subject to change, correction	X X Alloy whl pkg	X Premium	2.5 X Limited	2.5 X Touring	XT Premium	XT Touring
