2015 Subaru XV Crosstrek research webpage- Premium, Special Edition, Limited, Hybrid, Hybrid Touring

*************************************************************************************************************
-
2015 XV Crosstrek logo on the rear gate left side. Tangerine orange color shown.

2015 2.0 XV Crosstrek logo on the rear gate left side. Tangerine orange color shown.
-
hybrid logo on subaru xv crosstrek hybrd gas engine

Subaru Crosstrek Hybrid model engine cover. This is the second year for Subaru's first hybrid assisted vehicle
-

2015 Subaru Crosstrek with a green kayak, using tow hooks to secure it
-

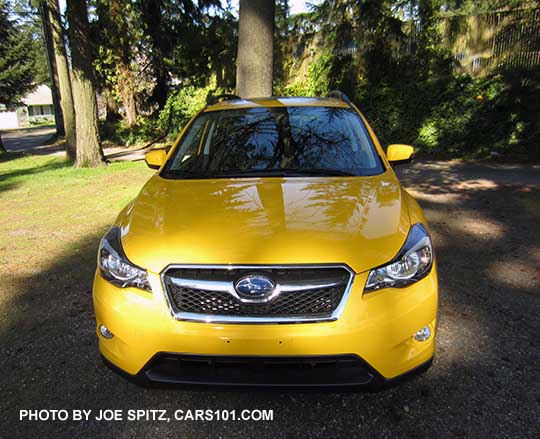

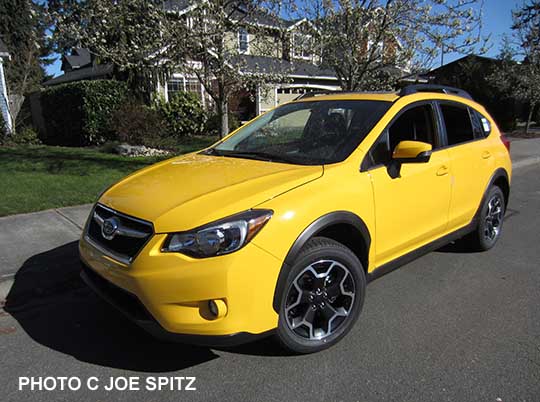

2015 Subaru Sunrise Yellow Crosstrek Premium Special Edition

2015 Sunrise Yellow Crosstrek Premium Special Edition. Only 1000 made, available March 2015. All Special Editions are Sunrise Yellow with black cloth,
power moonroof, pushbutton start/keyless access, 7" audio upgrade, black CVT shift surround, leather wrapped steering wheel and shift knob
-

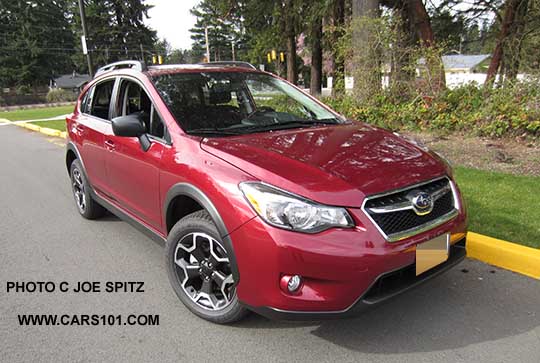

2015 Crosstrek, venetian red shown

Venetian Red 2015 Crosstrek Premium- notice the body colored outside mirrors without turn signals
-

rear view 2015 Crosstrek Hybrid with new black edge rear spoiler

rear view 2015 Crosstrek Hybrid with new for 2015 black trailing edge rear spoiler. Plasma Green color shown, with optional rear bumper cover
-
heated front windsshield wiper de-icers, part of the All Weather Package. Forester shown

heated front windsshield wiper de-icers, part of the All Weather Package. Forester shown

the heated front windshield wiper de-icers, warm and defrost the lower windshield
-
subaru crosstrek hybrid engine compartment with engine removed

subaru crosstrek hybrid engine compartment with engine removed

Hybrid engine with engine cover removed. Note there are two batteries. The driver (left) side battery is the normal battery. The right (passenger) side battery is the auto stop-start battery.
-
many more 2015 Crosstrek photos Exterior Photo Page :: Premium Special Edition Photo Page
:: Hybrid Exterior photo page :: Interior Photo Page :: Options and Upgrades Photo Page

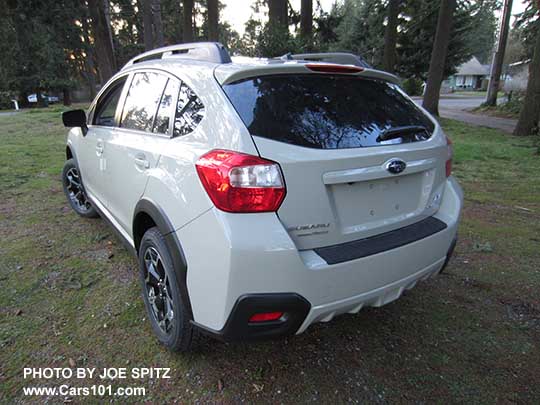

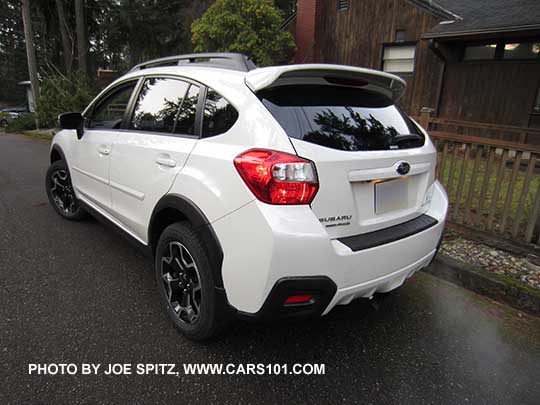

2015 crystal white Subaru Crosstrek with optional side moldings and rear spoiler	15 Crosstrek- optional rear spoiler, rear bumper cover, side moldings. Crystal white

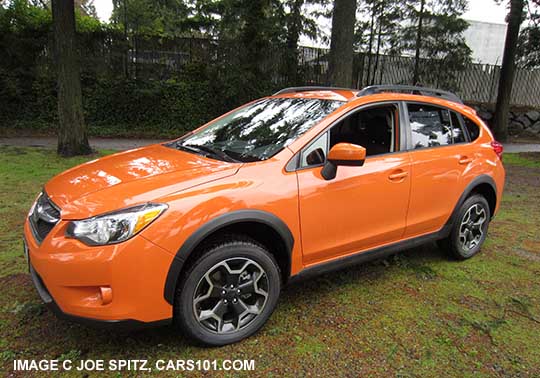

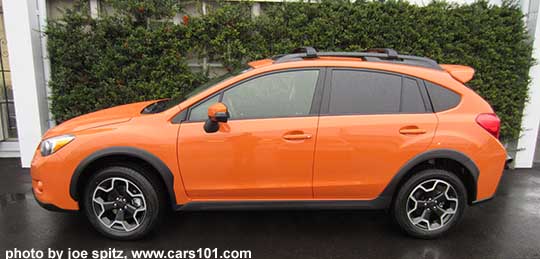

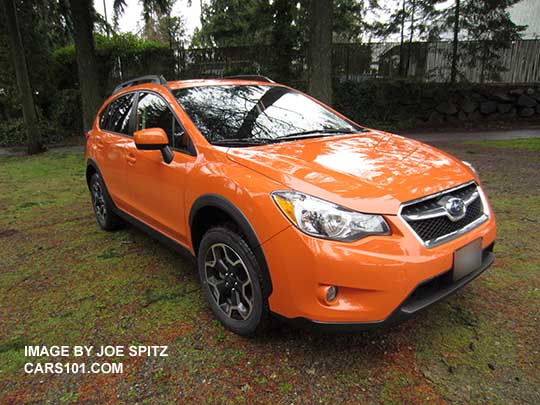

Tangerine Orange 2015 Crosstrek Premium with body colored outside mirrors	Tangerine Orange Crosstrek Premium with body colored mirrors

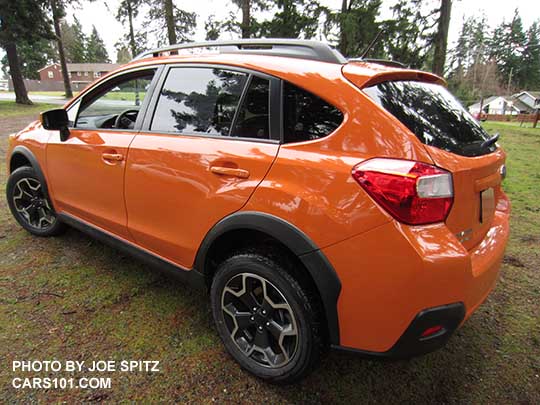

Tangerine Orange Crosstrek with standard rear spoiler and without the optional rear bumper cover	Tangerine orange 2015 Crosstrek with optional rear spoiler MANY MORE PHOTOS Exterior Photo Page :: Premium Special Edition Exterior Photo Page :: Hybrid Exterior photo page :: Interior Photo Page :: Options and Upgrades Photo Page

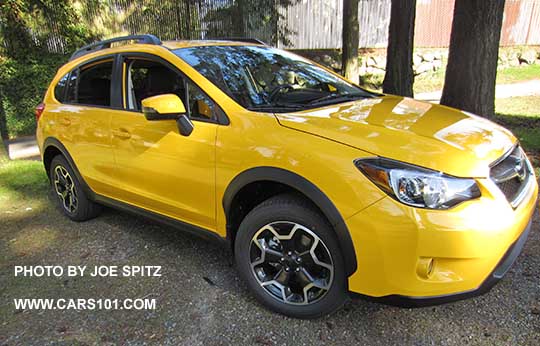

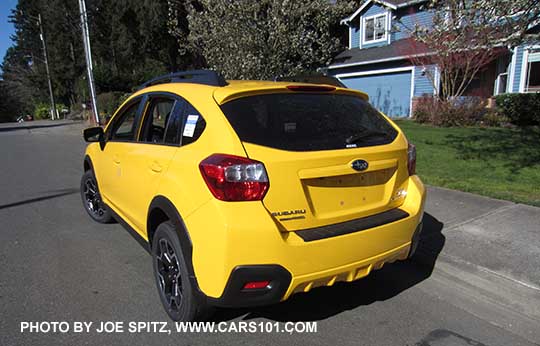

2015 Sunrise Yellow Crosstrek Premium Special Edition. All are Sunrise Yellow with black cloth. Only 1000 will be made. Available March 2015. Standard with Keyless access/pushbutton start, moonroof, upgraded 7" audio, black shift surround, leather wrapped steering wheel and shift leather	2015 Subaru Crosstrek Premium Special Edition. All are Sunrise Yellow with black cloth. Only 1000 will be made. Available March 2015. Standard with Keyless access/pushbutton start, moonroof, upgraded 7" audio, black shift surround, leather wrapped steering wheel and shift leather
2015 Sunrise Yellow Crosstrek Premium Special Edition. All are Sunrise Yellow with black cloth. Only 1000 will be made. Available March 2015. Standard with Keyless access/pushbutton start, moonroof, upgraded 7" audio, black shift surround, leather wrapped steering wheel and shift leather	2015 Sunrise Yellow Crosstrek Premium Special Edition. Standard with Keyless access/pushbutton start, moonroof, upgraded 7" audio, black shift surround, leather wrapped steering wheel and shift leather

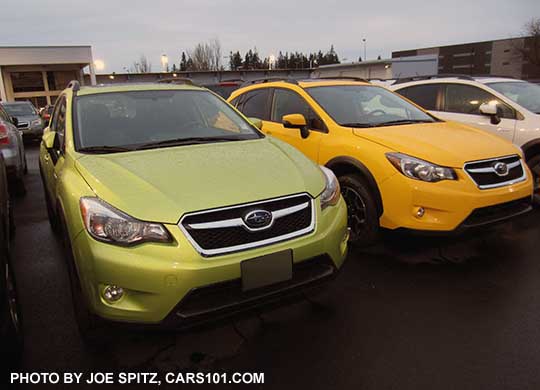

2015 Crosstrek side-by-side colors: Sunrise Yellow Premium and Plasma Green Hybrid click for the Premium Special Edition Exterior Photo Page	2015 Crosstrek photo pages Exterior Photo Page Premium Special Edition Photo Page Hybrid Exterior photo page Interior Photo Page Options and Upgrades Photo Page

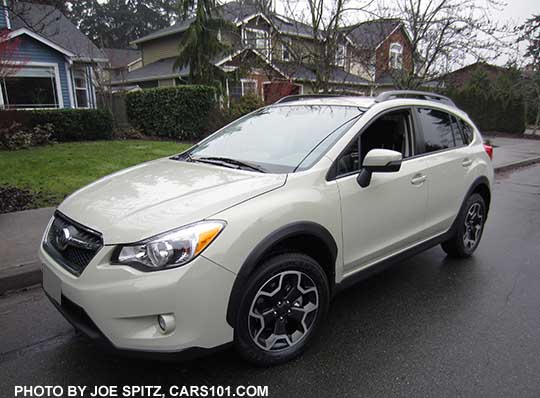

desert khaki color 2015 Crosstrek Limited with body colored mirros with integrated turn signals	new model for 2015 2015 Crosstrek 2.0i base model.Desert Khaki shown

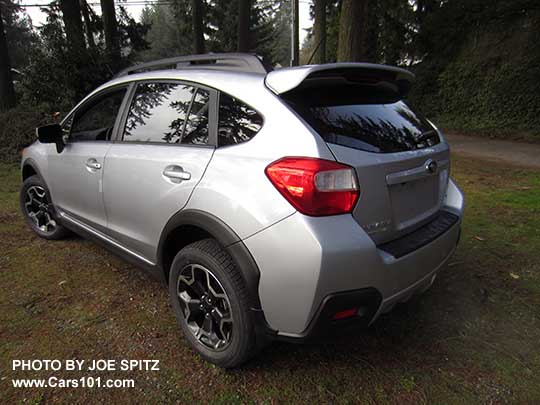

rear view 2015 ice silver Subaru Crosstrek, with optional rear spoiler, rear bumper cover	front view, ice silver 2015 Crosstrek Premium, body colored mirrros

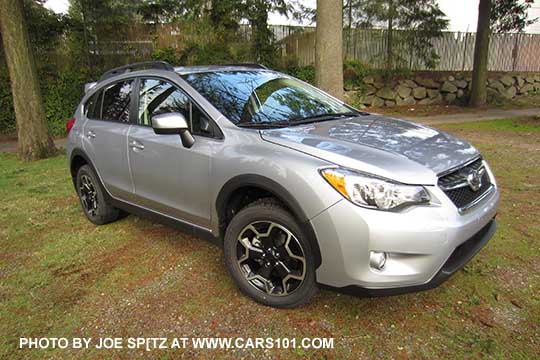

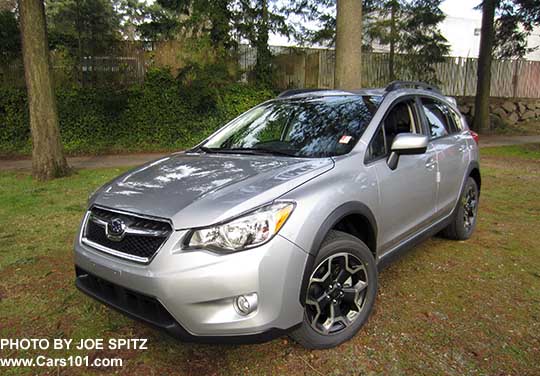

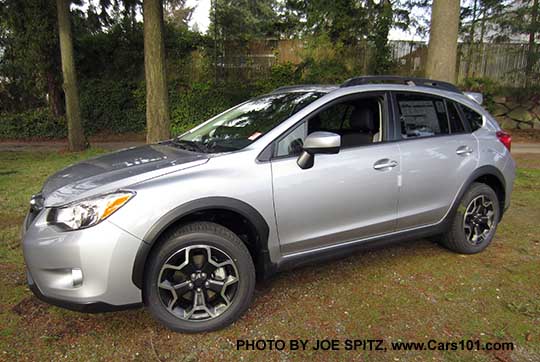

2015 Subaru Crosstrek, ice silver shown	2015 Subaru Crosstrek Premium ice silver, optional rear spoiler

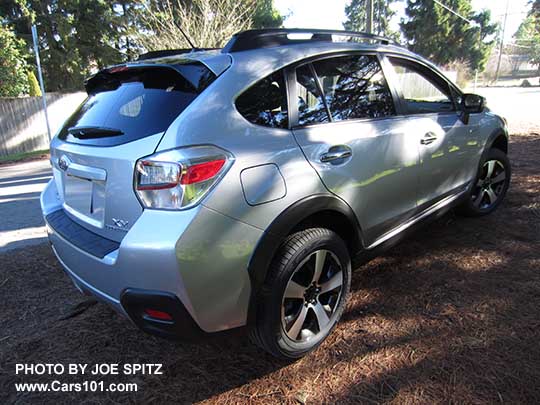

Ice silver Crosstrek Hybrid with new for 2015 rear spoiler	2015 Subaru Crosstrek Hybrid. Ice Silver shown. Notice the Hybrid alloy wheels and turn signal mirrors

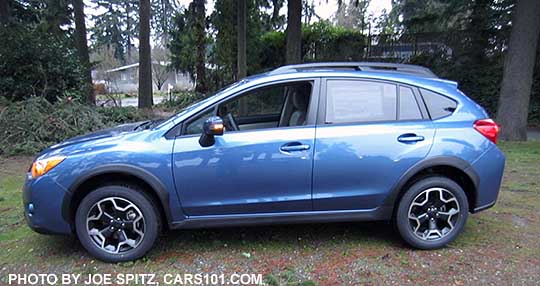

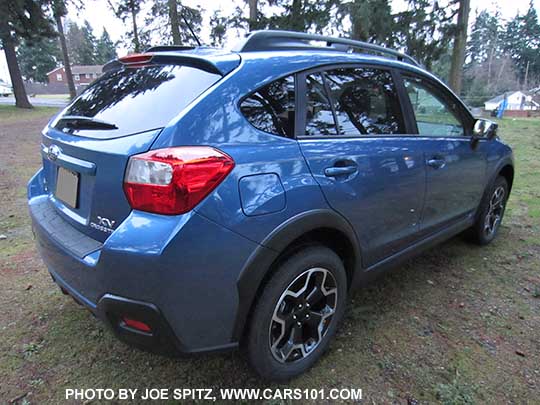

2015 Crosstrek, quartz blue color	2015 Subaru Crosstrek, Quartz Blue color. Limited shown with turn signal outside mirrors

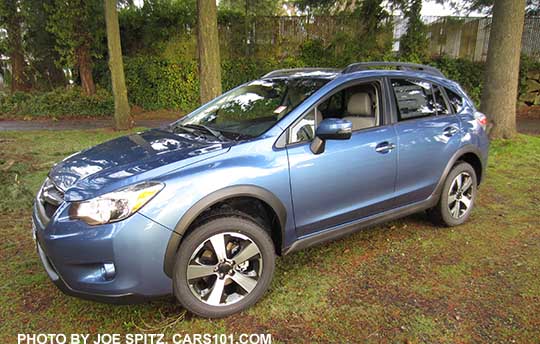

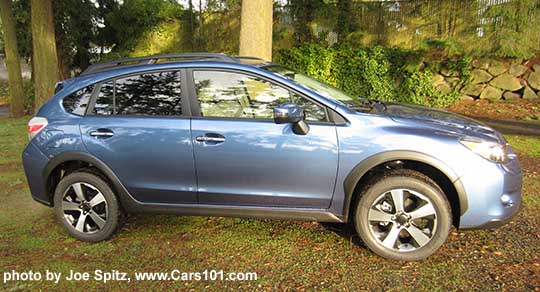

2015 Subaru Crosstrek Hybrid, Quartz Blue color	quartz blue 2015 Hybrid

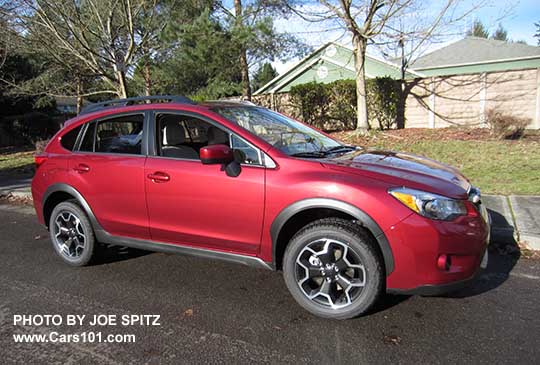

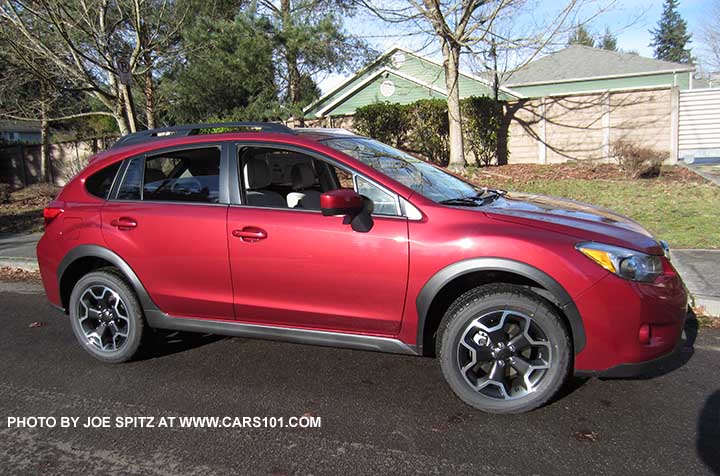

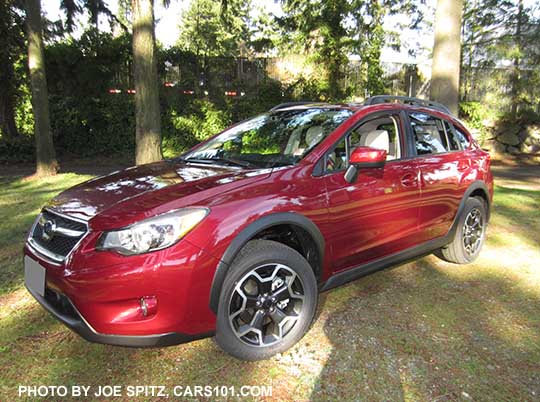

venetian red 2015 Subaru Crosstrek Premium with body color outside mirrors	2015 Crosstrek 2.0i base model, manual trans only. venetian red. Notice the unpainted black outside mirror

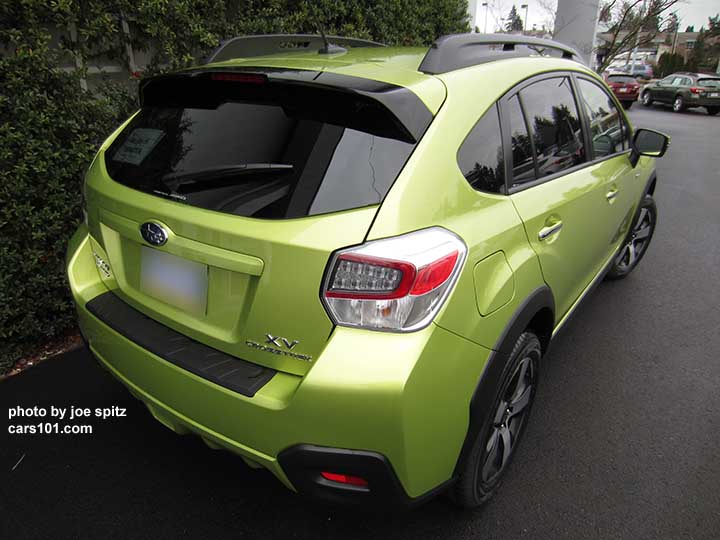

Plasma Green 2015 Crosstrek Hybrid. All Hybrids have the 5 spoke aero design alloy wheel	new for 2015 rear rear spoiler for 2015 Hybrid with black trailing edge

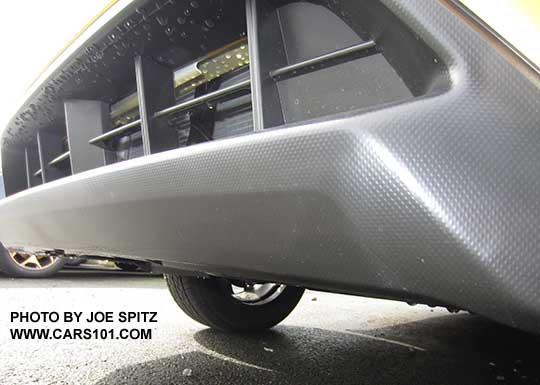

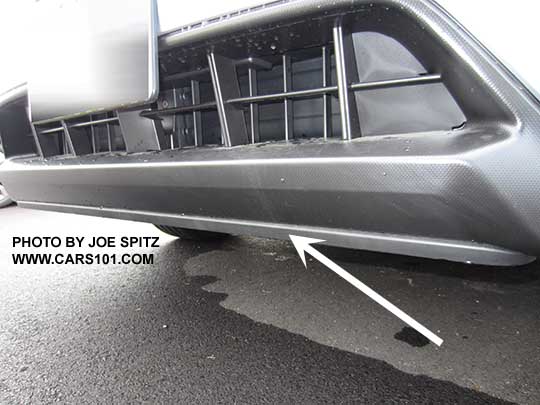

new for 2015 Crosstrek Hybrid small front under-spoiler- see white arrow.	2015 Crosstrek 2.0 models do not have the small front underspoiler thats standard on the Hybrids

-
many more 2015 Crosstrek photos Exterior Photo Page :: Premium Special Edition Photo Page
:: Hybrid Exterior photo page :: Interior Photo Page :: Options and Upgrades Photo Page
-

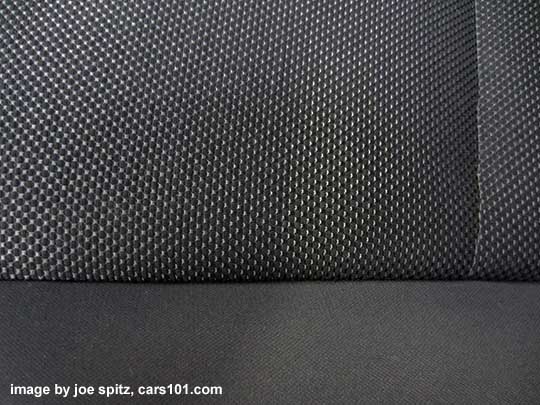

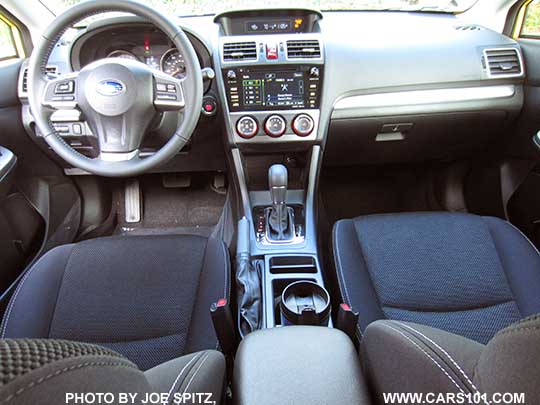

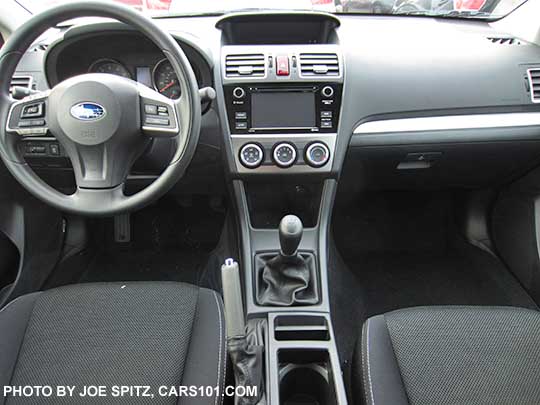

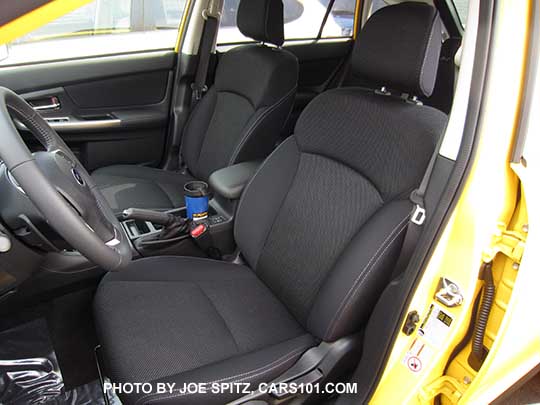

2015 Crosstrek Premium manual transmission, black cloth	2015 Crosstrek Premium black cloth interior. Premium CVT models have a silver shift surround except for the Special Edition. Limiteds and Premium Special Edition have a black shift surround

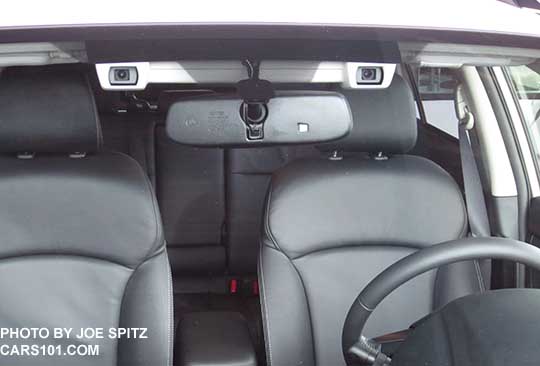

2015 Crosstrek Premium with optional eyesight. Notice the Premium silver shift surround. warm ivory cloth	2015 Crosstrek Special Edition has black cloth, pushbutton start/keyless access, gloss black CVT shift surround, leather wrapped steering wheel and shift knob, upgraded 7" audio, power moonroof,

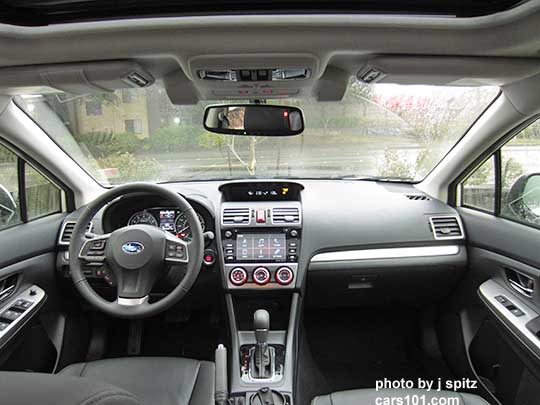

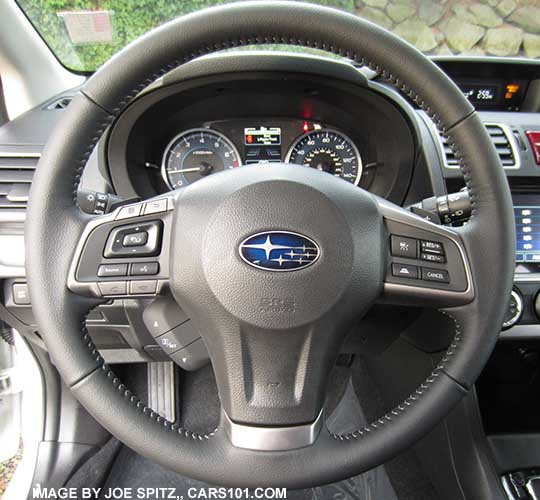

15 Subaru Crosstrek 2.0 Limited black leather interior with optional Eyesight (by rear view mirror)

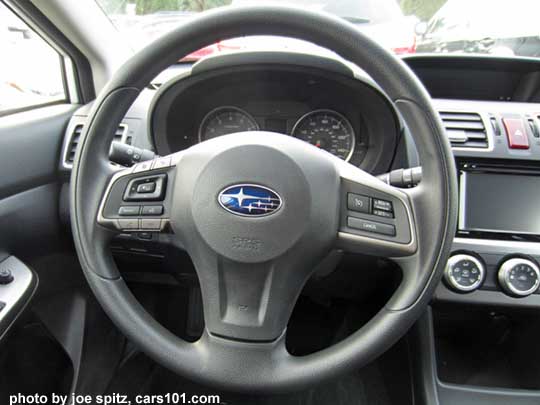

2015 Crosstrek 2.0i and Premium model standard vinyl wrapped steering wheel. Shown in a Premium- notice the audio LCD gloss black surround	2015 Subaru Crosstrek Limited leather wrapped steering wheel with optional Eyesight cruise control buttons

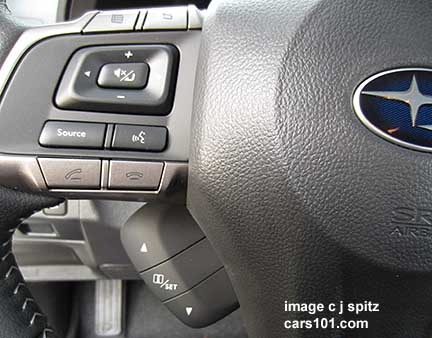

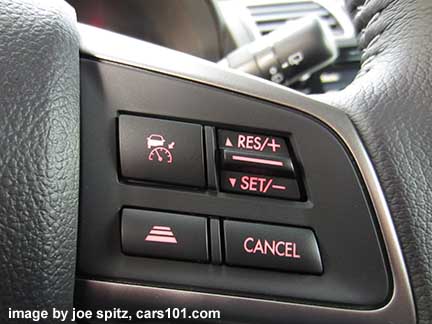

2015 Subaru Crosstrek steering wheel audio and bluetooth phone buttons. Shown here are the 3 lower buttons that control the instrument panel center LCD display settings on Premium with optional eyesight, and all Limited and Hybrid models	2015 Subaru Crosstrek steering wheel cruise control buttons with optional Eyesight

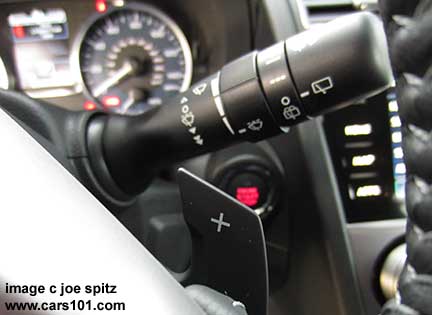

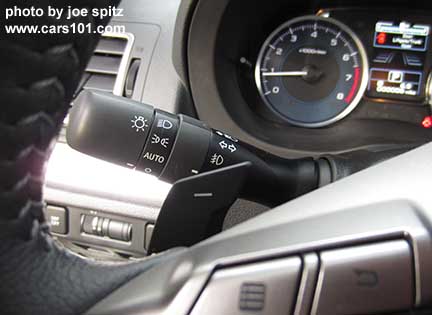

2015 Subaru Crosstrek CVT steering wheel mounted paddle shifter, left (-) side, down shift side. All CVT models have paddle shifters which are essential for driver control in bad weather or snow, and also for performance whether that's accelerating onto the highway, passing on two lane roads, or towing. Limited shown with the headlight stalk with auto dusk-to-dawn function.	2015 Subaru Crosstrek CVT steering wheel mounted paddle shifter, right (+) side, which is the upshift side. Paddle shifters are extremely important on an all wheel drive for driver control in snow, as well as any time the driver might want to control the transmission to speed up or slow down. Shown with the wiper stalk with one time swipe, intermittent (4 speeds), low and high steady speeds, and 2 rear wiper speeds. Notice the front red optional pushbutton start button in the background

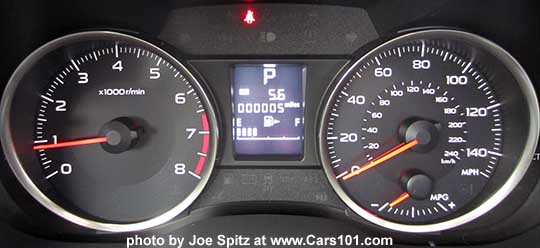

15 Crosstrek 2.0i and Premium dash instrument panel gauges, off white number, red needles, with analog tach, analog speedometer, dual resettable trip odometers, eco gauge, fuel gauge	15 Crosstrek Limited dash instrument panel gauges with off white number and needles- analog tach, analog speedometer, dual resettable trip odometers, eco gauge, fuel gauge, and a center LCD screen with digital speedometer shown here at 0 mph

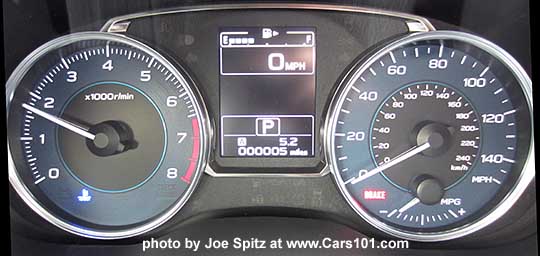

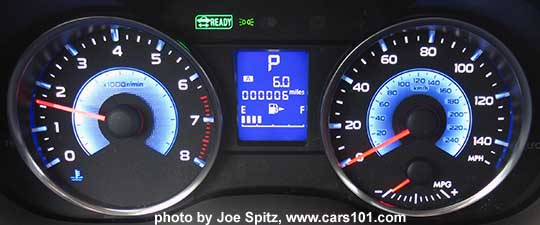

15 Crosstrek Hybrid and Hybrid Touring dash instrument panel cool blue electrolumescent gauges with off white numbers and red needles- analog tach, analog speedometer, dual resettable trip odometers, eco gauge, fuel gauge	blank

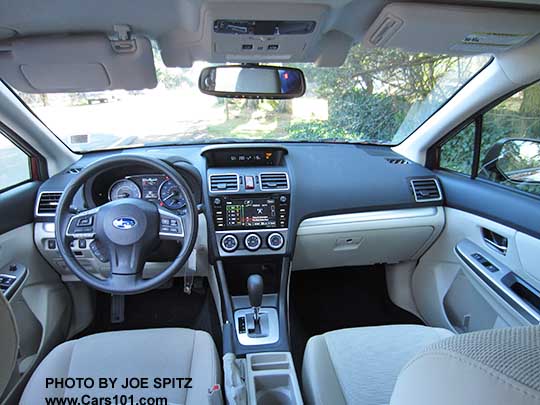

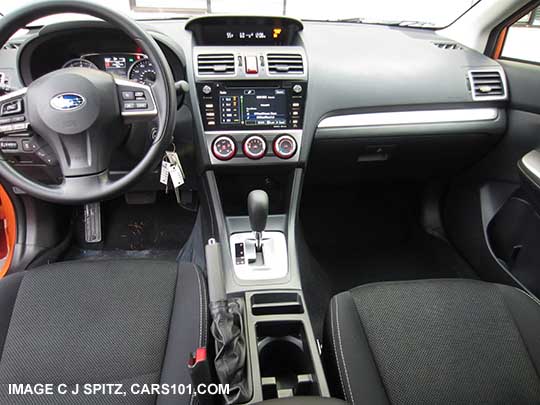

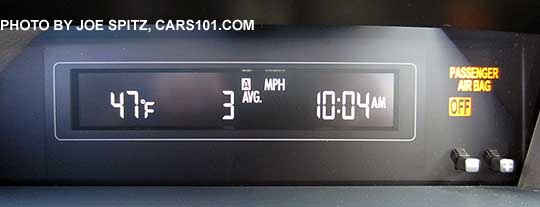

2015 Crosstrek 2.0i, Premium, and Limited center console- audio, heater/ac control, upper trip computer. Premium shown with 6.2" audio screen with gloss black surround, 4 speed fan	close-up of the 2015 Crosstrek 2.0i, Premium, Limited upper console trip computer with outside temperature and clock, and avg MPG. It also cycles through instant MPG, distance to empty, and elapsed time

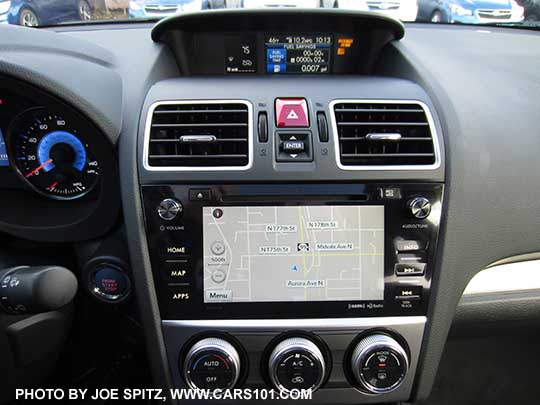

2015 Crosstrek Hybrid Touring console audio nav/gps, climate control, upper LCD screen with Hybrid info, trip computer	2015 Crosstrek Hybrid console upper LCD screen with Hybrid info, trip computer. Black arrow points to the 'enter' button to cycle through all the other LCD screen functions

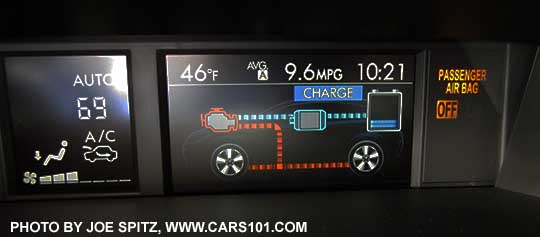

closeup of the 2015 Subaru Crosstrek Hybrid info LCD screen battery charging status, with climate control setting on the left. There are many of info screens.	blank
2015 Subaru Crosstrek 3 ignition keys, all immobilizer system chipped, 2 with integrated remote lock/unlock	2015 Subaru Crosstrek with optional keyless access pushbutton start comes with two key fobs. Shown with emergency key removed

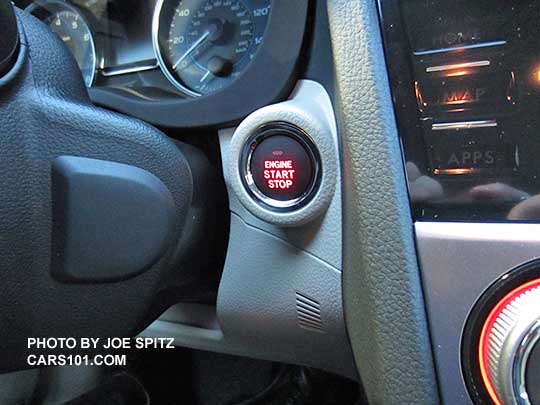

2015 Subaru Crosstrek optional ignition pushbutton start button, shown illuminated. Instructions: To start the car, tap the start button once when pressing the brake pedal. For radio or accessory power only, tap with your foot off the brake, 1 tap for radio, 2nd tap for all power, tap a 3rd time to turn off.
2015 Crosstrek photo pages Exterior Photo Page :: Premium Special Edition Photo Page :: Hybrid Exterior photo page :: Interior Photo Page :: Options and Upgrades Photo Page

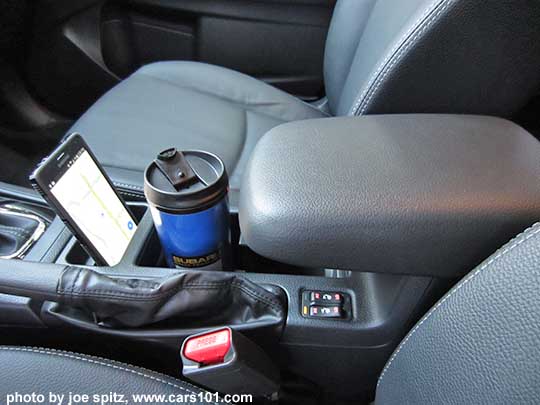

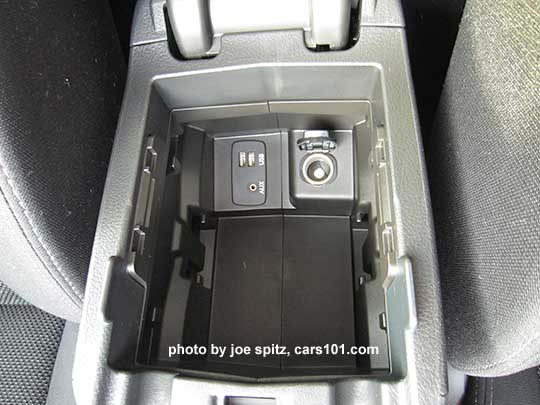

2015 Crosstrek center console sliding armrest, shown slid forward. The sliding armrest is standard on Premium, Limited, and Hybrid models, Optional on base 2.0i model	2015 Crosstrek Limited center console storage with dual USB, aux jack. and 12v power outlet. The base 2.0i and Premium models have a single USB, though dual USBs are part of option packages on the Premium

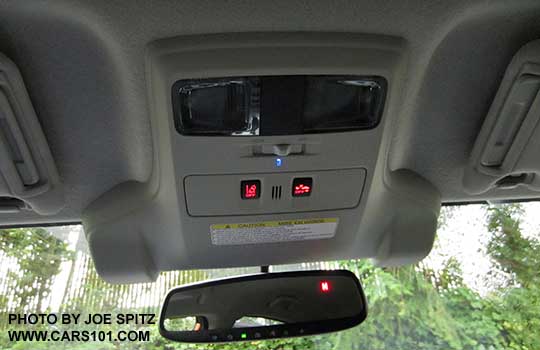

2015 Crosstrek overhead console with 2 map lights, bluetooth microphone, and the two optional forward facing Eyesight cameras and on/off buttons	outside view of the 2015 XV Crosstrek optional eyesight forward facing cameras, Limited shown

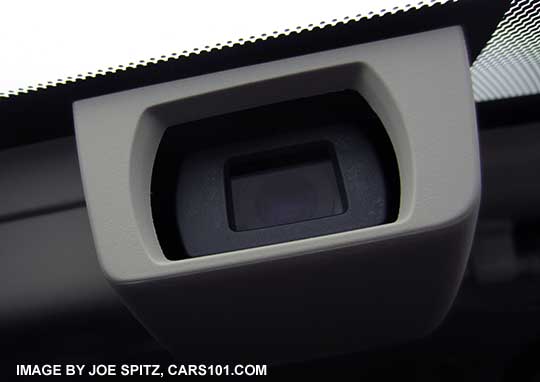

close-up of the Crosstrek eyesight camera lens. Note- don't touch the lens. Have the dealer clean them if needed	Crosstrek Eyesight don't touch the camera lens warning label. There's no Eyesight maintenance, and be careful not to get anything on the lens- fingerprints, glass cleaner over-spray when cleaning the inside windshield etc

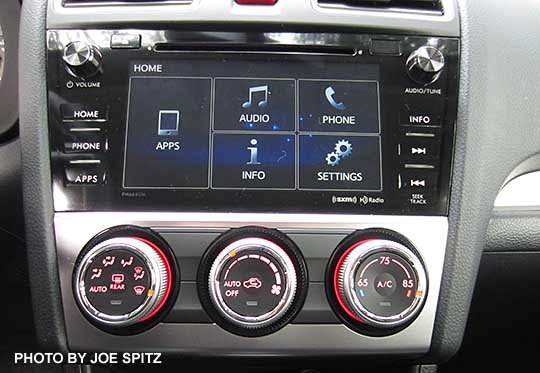

2015 Crosstrek 2.0i base model audio- 6.2" LCD, matte gray surround, physical buttons. The rear view backup camera displays in this screen. Heater/ac silver knobs, red lit	All 2015 Crosstreks have an excellent backup camera that displays in the audio LCD screen. Shown here- 2015 Crosstrek Premium with new upgraded for 15 rear view camera display - you can tell its a Premium because of the 4 speed fan and the glossy black LCD surround

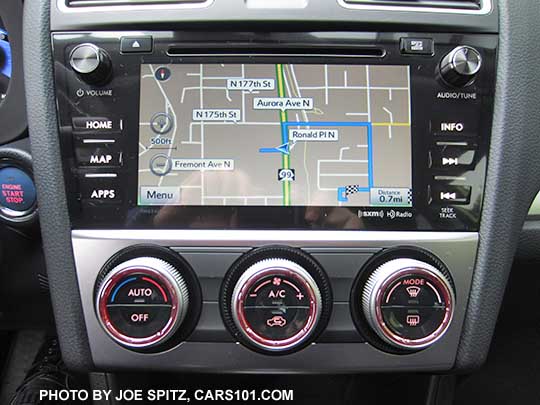

2015 Crosstrek Limited 7" touchscreen LCD audio with touchscreen buttons, gloss black surround. Shown with Limited model automatic climate control system with 7 speed fan. Navigation/GPS is optional and not on this car. Notice the climate control knobs are different than the Hybrid's (right)	2015 Crosstrek Hybrid Touring 7" LCD audio. Shown with standard navigation/gps, and climate control system knobs with 7 speed fan. Notice the climate control is different from the Limited's (left)
free Subaru Starlink app for iPhone and Android	blank for now

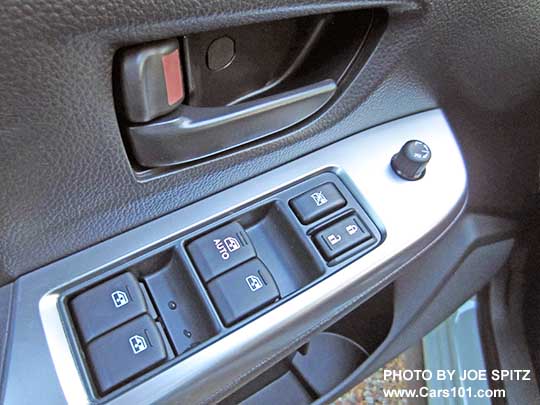

close-up of the 2015 Crosstrek 2.0i base model driver's door interior panel, showing the gray interior door handle and the power window and door lock buttons without the little chrome trim	All Crosstreks have power windows, locks, and mirrors. 2015 Crosstrek Limited front door with chrome inner door handle and chrome tipped power window buttons

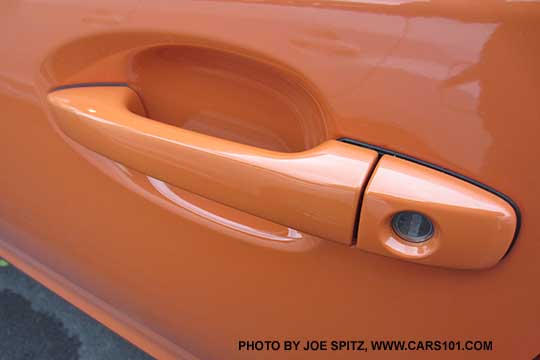

2015 Crosstrek standard drivers door handle is body colored, tangerine orange shown	2015 Crosstrek with optional keyless acess/pushbutton start- the driver's door handle has the 2 keyless access lock hotspot strips plus a lock cylinder. quartz blue shown

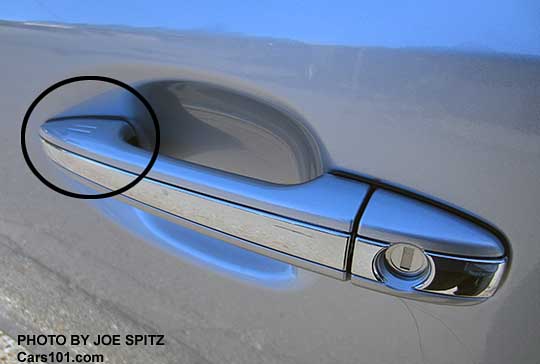

Hybrid models have a chrome strip in the door handle, with the keyless access hotspot circled. Hybrids, and Impreza 2.0 Limited with option package #23, all have the keyless access lock hotspot plus a standard key lock

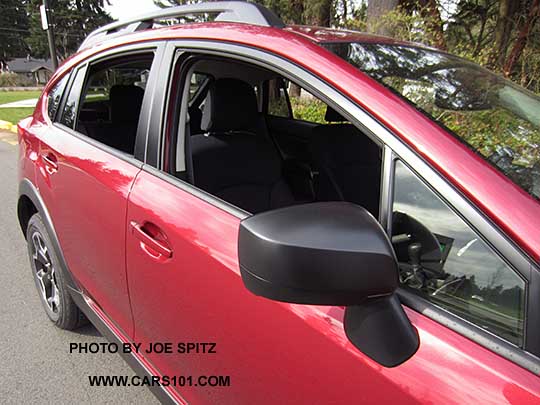

2015 Crosstrek 2.0i base model black unpainted outside mirror, venetian red car shown	2015 Crosstrek Premium painted outside mirror. Tangerine orange color shown

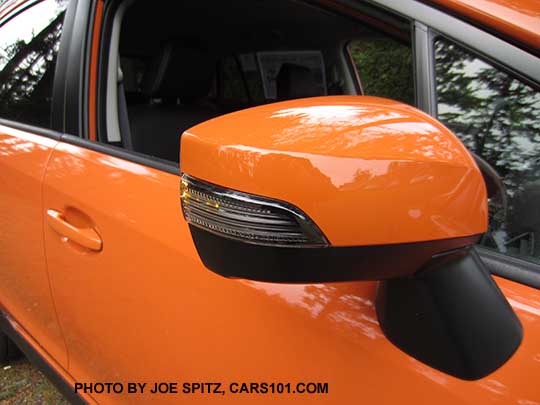

2015 Crosstrek Limited outside mirror with integrated turn signal, on Limited models, Hybrid models, and Premium with optional Eyesight system or Special Edition Package. Tangerine orange shown	2015 Crosstrek outside mirror with integrated turn signal, on Limited models, Hybrid models, and Premium with optional Eyesight system. Quartz Blue Hybrid shown

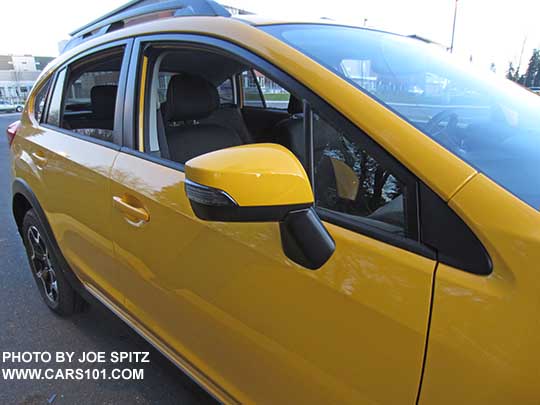

2015 Subaru Sunrise Yellow Crosstrek Premium Special Edition outside mirror with integrated turn signal

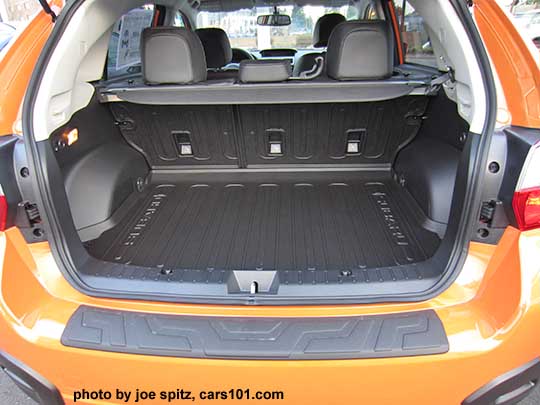

2015 Crosstrek cargo area with optional rear bumper cover and rear seatback protector	optional roof rack aero crossbars, 150pound capacity. Tangerine orange 2015 Crosstrek

many more 2015 Crosstrek photos Exterior Photo Page :: Premium Special Edition Photo Page
:: Hybrid Exterior photo page :: Interior Photo Page :: Options and Upgrades Photo Page

top

NEWS, UPDATES AND WHAT'S NEW FOR THE 2015 SUBARU CROSSTREK

8/25/15 2015 Crosstrek and Impreza factory orders end Thursday 8/27/15 12 noon EST
If you want a 2015 model, order it now!

No 2016 model changes/upgrades or prices have been announced yet.
2016 orders will be available mid September with delivery in November
Prices and specs will be released in the next week or so, prior to orders being available
Model lineup and Option Packages for both Crosstrek and Impreza seem to remain the same but details haven't been announced yet

2016 Crosstrek models
2.0i manual transmission, model code GRA Package #01
2.0i Premium manual transmission, model code GRB, Package #11
2.0i Premium CVT, model code GRC Package #12
2.0i Premium CVT with Moonroof, model code GRC Package #13
2.0i Premium CVT with EyeSight, Starlink 7.0" Multimedia Plus, model code GRC Package #14
2.0i Limited CVT, model code GRD Package #21
2.0i Limited CVT with Moonroof, Navigation System , Keyless Access with Push-Button Start, model code GRD Package #22
2.0i Limited CVT with Moonroof + Navigation System + Keyless Access with Push-Button Start, EyeSight, model code GRD Package #23
Hybrid CVT, model code GRH Package #01
Hybrid Touring CVT, model code GRI Package #31
2016 Crosstrek colors
Theres no Sunrise yellow.
2.0 models: Hyper Blue replaces Tangerine Orange. Other colors are Crystal Black, Dark Gray, Khaki, Ice Silver, Quartz Blu, Ventian red, and Crystal white remain
Crosstrek Hybrid models: Jasmine green replaces Plasma green, and Venetian red is dropped for the Hybrid. Other colors are: Venetian red, Crystal Black, Quartz Blue, Ice silver

2016 Impreza models
2.0i 4 door sedan manual transmission, model code GJA, Package #01
2.0i 4 door sedan CVT, model code GJB, Package #01
2.0i 4 door sedan Premium CVT, model code GJF, Package #11
2.0i 4 door sedan Premium CVT, model code GJF, Package #12 with Moonroof, and 17" Alloy Wheel Package including fog lights, leather wrapped steering wheel and shift knob
2.0i 4 door sedan Limited CVT, model code GJG, Package #21
2.0i 4 door sedan Limited CVT, model code GJG, Package #22 with Moonroof, Keyless Access Push-Button Start
2.0i 4 door sedan Limited CVT, model code GJG, Package #23 with Moonroof, Keyless Access Push-Button Start, Navigation Eyesight
2.0i 5 door hatchback, manual transmission, model code GLA, Package #01
2.0i 5 door hatchback, CVT, model code GLB, Package #01
2.0i 5 door hatchback Premium - CVT, model code GLF, Package #11
2.0i 5 door hatchback Limited - CVT, model code GLG, Package #21
2.0i 5 door hatchback Sport Premium manual transmission, model code GLH, Package #11
2.0i 5 door hatchback Sport Premium CVT, model code GLI, Package #11
2.0i 5 door hatchback Sport Premium CVT , model code GLI, Package #14 with Moonroof
2.0i 5 door hatchback Sport Premium CVT, model code GLI-, Package #6 with Moonroof, EyeSight, Starlink 7.0" Multimedia Plus Audio
2.0i 5 door hatchback Sport Limited CVT, model code GLJ, Package #21
2.0i 5 door hatchback Sport Limited CVT, model code GLJ, Package #22 with Moonroof, Keyless Access Push-Button Start
2.0i 5 door hatchback Sport Limited CVT, model code GLJ, Package #23 with Moonroof, Keyless Access Push-Button Start, Navigation, Eyesight
2016 Impreza colors are
Dark blue metallic replaces Deep sea blue
Other colors are Crystal Black Silica, Dark Gray Metallic, Ice Silver Metallic, Jasmine Green Metallic, Quartz Blue Pearl, Venetian Red Pearl, Crystal White Pearl

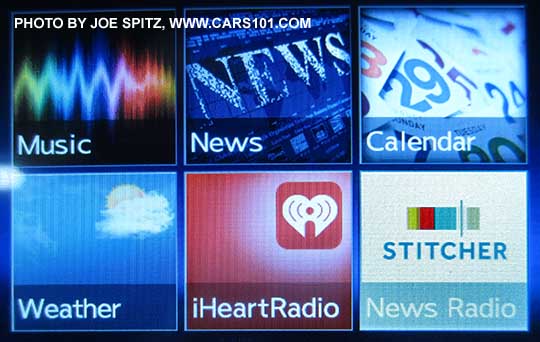

5/15 Subaru Starlink app now includes Stitcher.
Starlink is a free smartphone Subaru app for Android and iPhone on all 2015, and some 2013 and 2014 models with navigation
Subaru Starlink now includes Stitcher with news, podcasts and articles on current events, science, technology, sports, culture, music etc.
Starlink will automatically update onto your Starlink app if its on your phone already, or when you next use the app in your car.
To use Stitcher and select the programs you want to listen to, you need to go the stitcher.com website and log in with your facebook or google account or create an email account, and then choose your programs.

3/7/15 2015 Crosstrek Premium Special Editions arriving on lots.
Only 1000 will be made, all Sunrise Yellow, with black cloth, CVT transmission, pushbutton start, upgraded 7" audio system,
black inner headlight surround, outside mirrors with integrated turn signals, power moonroof with sunshade, leather wrapped steering and shift handle

2/24/15 2015 Crosstrek Special Editions are scheduled for delivery starting mid March.
Only 1000 will be made, all are Sunrise Yellow with black cloth, CVT, with the upgraded 7" audio system, moonroof, body colored exterior mirrors with turn signals, keyless access with pushbutton start, black headlight inner surrounds, and leather wrapped steering wheel and shift knob.
MSRP is $26,140 including destination. Add for a normal variety of individual accessories such as the auto dimming rear view mirror, rubber floor mats, rear seatback protector, rear bumper cover, splash guards etc that could be on the cars.
If interested in one in the Seattle area, please contact me

1/22/15 2015 Crosstrek brochures now available
20 pages, full color. Doesn't include the Crosstrek Premium Package #15, sunrise yellow Special Edition though

1/7/15 Premium CVT Special Edition model (package #15) announced.
Only 1000 will be made. All Sunrise Yellow with black cloth. Available starting March 2015, orders probably starting February
Includes keyless access/pushbutton start, moonroof, 7" LCD audio upgrade, leather steering whl and shift handle, turn signal mirrors. Package #15 $1995 MSRP

12/15/14 2015 Crosstreks arriving at dealers.

11/19/14 2015 Crosstrek prices, specs, features announced.
Cars expected starting late December

Destination increased $25 to $850 ($1000 to Ak).
Prices including destination
2.0i $22,445 (new model for 2015)
Premium, manual trans $23,145 (2014 was $22,820)
Premium CVT $24,145 (2014 was $23,820)
Limited $25,645 (2014 was $25,320)
Hybrid $26,845 (2014 was $26,820)
Hybrid Touring $30,145 (2014 was $30,120)

Subaru listens and improves the Crosstrek experience
making the ride smoother and quieter,
new quick ratio steering makes the handling more responsive,
new upgraded larger audio ('infotainment') HD LCD 6.2" or 7" screens make the back-up camera much more effective than the previous small grainy screens
new upgraded audio ('infotainment') systems with significantly improved cell phone pairing and contact download functions. Smartphone text message capable. Smartphone apps include Subaru Starlink, Aha, Pandora, iHeart radio.

2015 Crosstrek Models
new model for 2015 2.0i. Manual transmission. This is a new lower priced base model without the All Weather Package.
new model for 2015 Premium CVT Special Edition, package #15. Sunrise Yellow/black cloth only. Note no price, model details, features or release dates announced
Premium, manual or CVT
Limited CVT
Hybrid CVT
Hybrid Touring CVT

All models
new Quick ratio electric power steering for more responsive turning
new smoother and quieter ride with NVH (noise, vibration, harshness) improvements

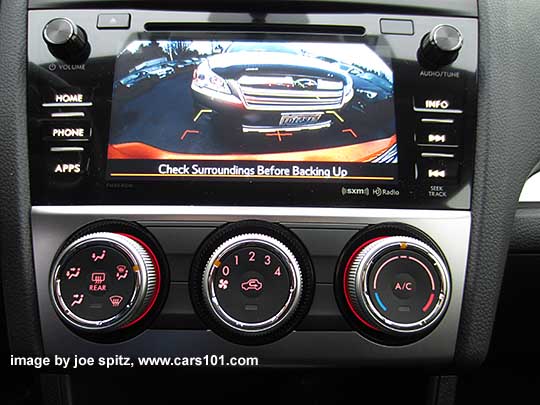

new Rear view back-up camera, now standard on all models. It displays in the new larger audio screens

new Eyesight Safety System is now available!
Its optional on the 2.0i Premium, 2.0i Limited, and Hybrid Touring, and includes steering responsive fog lights.

new Limited gets turn signals in the outside mirrors
new Limited, Hybrid, and Hybrid Touring get standard Welcome Lighting
new Limited models get new sound insulation windshield
new Limited models get optional pushbutton start (standard on Hybrids).
new Limiteds get turns signals in the outside mirrors (standard on Hybrids)
new Hybrids get small front under-spoiler
new Hybrids get body colored rear spoiler with black trailing edge

new Upgraded audio systems
2.0i, 2.0i Premium, Hybrid- 6.2" high resolution touch-screen, AM/FM/HD radio, single CD, iphone/android apps include Subaru Starlink, Aha, Pandora, iHeart radio. This is the back-up camera display
2.0i: 4 speakers
Premium: 6 speakers
Premium with optional eyesight, Limited, and Hybrid Touring. 7" high resolution multi touch-screen, 6 speakers, AM/FM/HD/XM, CD, two USBs, 6 speakers, iphone/android apps include Subaru Starlink, Aha, Pandora, iHeart radio..

Colors
new Crystal Black now available with either black or ivory interior. Previously was ivory only.
new Crystal White Pearl with either black or ivory interior replaces Satin White Pearl
new Black is now available on the Hybrids. It wasn't available on the 2014 Hybrid

10/24 2015 Crosstrek info announced
This is early teaser info without prices, specs, or a complete list of features, but all that is expected soon, before orders are accepted starting on November 17th
The cars are expected late December.
2014 orders close 10/27, though only a few models are still available to order

There's no mention of the new front grill, headlights or sound deadening windshield like the 2015 Impreza is getting

10/17/14 2014 Crosstrek orders close 10/27
until then, orders will still be accepted for
Premium manual transmission in gray,
Premium CVT models, all colors with standard package #01 or Moonroof package #04
and Limited package, all models and colors


top Recommended Maintenance on the 2015 Crosstrek Replace the hvac cabin air filter behind the glovebox every year or so. Here's a dirty 12 month old filter next to a new clean one . subject to change, correction. corrections welcomed.
Break-in period for the first 1000 miles Don't race the engine, keep RPMs under 4,000 for the most part and vary the speeds with normal city and highway driving. The first oil change is required at 6000 miles or 6 months. Its recommended to check it every few months Always.... Always let a cold engine briefly idle as the oil circulates. Avoid hard acceleration on a cold engine. Check the oil between changes Oil- 0w-20 synthetic oil is required (5.3 qts) Spark plug- NGK SILZKAR7B11 Note new on all 2015 models 1st oil and all subsequent oil change required at or by every 6,000 miles or 6 months. Its a good idea to check the oil between changes. 6 months or 6000 miles is the minimum oil change interval required. Under severe, hard, very cold or very hot weather driving, change it more frequently. (The 2014 oil change interval was 7,500 miles or 7 mos) Oil and filter change: every 6 months or 6,000 miles Cabin air filter every 12mos/12,000 miles Tire rotations: every 6-10,000 miles. Equal tread required at all corners. Tires, wheels FAQ Timing chain all Outbacks have a timing chain - no replacement needed 6,000 miles/6 mos oil and filter change, rotate tires 12,000 miles/12 mos inspection, tire rotation, cabin air filter, 18,000 miles/18 mos oil and filter change, rotate tires 24,000 miles/24 mos inspection, oil and filter change, rotate tires, cabin air filter 30,000 mile replace engine air filters, brake fluid, and gear fluid as needed, oil and filter change, rotate tires 36,000 miles/36 mos oil and filter change, rotate tires, cabin air filter 42,000 miles/42 mos oil and filter change, rotate tires, cabin air filter 48,000 miles/48 mos oil and filter change, rotate tires, cabin air filter 60,000 miles/60 mos repeat 30,000 service, replace spark plugs/wires 90,000 miles/90 mos service with complete fluid, filter change. Inspect all hoses, belts 120,000 miles/120 mos repeat 30,000 service, replace spark plugs 137,500 miles replace Super Coolant Radiator Fluid. The 1st replacement is 11 years, 137,500 miles, or 220,000Km. The 2nd replacement is 6yrs, 75,000 miles CVT Transmission: Life Time CVT oil should not need to be replaced unless driven under hard conditions, towing etc-change every 24,855 miles. Note- there is no CVT oil dipstick. Radiator fluid is Super Coolant, with 11 year, 137,500 mile replacement schedule. click for the full 2015 maintenance schedule -
. WARRANTY .
Bumper-to-bumper: 3 years/36,000 miles Roadside assistance: 3 years/36,000 miles - call Cross Country Motor Club, 800-261-2155 Service adjustment (may be performed one time), 3year/36,000 Wear Item Warranty, 3year/36,000 mile, brake pads, clutch disc lining, wiper blades, remote battery. Powertrain: 5 years/ 60,000 miles Corrosion: 5 years/100,000 miles. 70% of the body is double sided galvanized steel Wear and adjustment: 12 months/12,000 miles The warranty does not cover wear or damage due to abusive driving 800-261-2155 the roadside assistance phone number is on drivers window, also on 2 wallet cards included with the owners manual. Call 800 261.2155. Good for 36months, 36000 miles.

top 2015 Crosstrek Safety Features -
Ratings
- Crosstreks have standard equipment includes... hybrid only: Pedestrian alert system. a sound alerts pedestrians a car is coming when the hybrid is running on quiet battery power under 15mph (no gas engine running) AWD all wheel drive, full time, all wheel, all speed VDC vehicle dynamics control, electronic stability control TCS traction control system, all wheel all speed Rollover Sensors Airbags: Driver's knee airbag Airbags: Front airbags Airbags: Side airbags front Airbags: Side Curtain Airbags, front and rear Front passenger airbag- All 2013 Crosstreks, BRZs, and 2013/2012 Imprezas models use a front passenger seat Occupant Detection System called Electrostatic Capacitance Sensor ODS. When anyone is seated or when anything is placed on the front passenger seat, there is a change to that capacitance value. This change in capacitance value is what the Electrostatic Capacitance Sensor ODS uses to determine whether the front passenger seat airbag (SRS) will be ON or OFF. When water or anything with high moisture content is spilled on the front passenger seat cushion, the airbag is designed to remain OFF until the seat cushion is dry. This will also be the case if the passenger has moisture on their clothing, such as rain-soaked pants or rain gear. In each of these situations, the airbag status may remain OFF even if a passenger is seated. Everything that is placed on the seat will affect a change in capacitance value. Plastic, metals and other substances, even if at a heavy weight, will not change the OFF status of an airbag. A false electrical charge, for example, those caused by laptops that are processing data, cellphones that are on or even an electric device connected to a car charger can cause the airbag status to switch to ON EDR, Event Data Recorder information. In the event of an impact, the EDR will freeze data including how various systems were operating, for example if seatbelts were buckled, if the gas or brake pedals were pressed, and vehicle speed. No personal data is stored. To read data, special equipment is required. In addition to the vehicle manufacturer (Subaru), other parties such as law enforcement that have the equipment can read the information if they have access to the vehicle or EDR. Existing laws generally provide that information in an EDR is confidential and is the property of the owner of the motor vehicle. Information is accessed through the airbag system using a Subaru service computer.	all Crosstreks have, con't > Whiplash protection front seats > Tire Pressure Monitoring System (TPMS) on all models > Headrests- front headrests are both tilt and height adjustable > Steering wheel tilt and telescoping function to get a comfortable position > Headlights are Auto-off with ignition key removal, warning chime with lights back on. > Collapsible foot pedals to reduce risk to feet in accidents > Brake assist increases the brake power when the driver initiates hard emergency pressure on the pedal. Brake assist generates the brake power according to the speed at which the driver depresses the brake pedal. Brakes: anti-lock 4 wheel disc brakes with EBD electronic brake force distribution, Brake assists for maximum brake pressure, and brake pad release return springs to prolong pad life. Brakes: Brake Override System, if gas and brake pedals are pressed at the same time, the brakes stop the car Brakes: brake return springs, helps eliminate some brake wear Brakes: EBD, electronic brake force distribution varies front/rear brake power Brakes: low-wear indicators on disc brakes (rear drums on 2.5i) 3 point lap and shoulder belts with Height Adjustable outboard shoulder harness for all (5) occupants. Internal Trunk Release, sedan, emergency inside-trunk release LATCH Child seat Tethers and Uniform Mounting Clips Childproof rear door locks and windows. Daytime running lights Crumple zones: front and rear Drop-down motor mounts Reinforced door beams: Dual front, single rear A Pillar reinforcing beam Oversize outside mirrors to minimize blindspots Links for more safety information: IIHS.org, SaferCar.gov Subaru's Mobile-It-Ease program helps modify vehicles for special needs drivers. More info here
Eyesight new for 2015 Crosstrek Optional on Premium with Option Package #14 and Limited with Option Package #23
Eyesight is new for the 2015 Crosstrek This is the first time it has been available on an Impreza or Crosstrek. Its the 3rd generation Eyesight (note- 1st gen Eyesight was never offered in the US) It includes Active cruise control, Lane departure warning, Pre-collision warning and Pre-collision braking. Steering responsive fog lights > Steering responsive fog lights uses steering wheel position to briefly turn on the left or right fog light to illuminate a corner when the vehicle is turned. Headlights in "auto' setting and fog lights off for the system to work. > Active Cruise Control combines the benefits of cruise control with active monitoring of the road ahead. It issues warnings and activates automatic braking when needed. Adaptive Cruise Control can regulate vehicle speed in order to keep a safe following distance from the vehicle ahead. It does not replace conventional cruise control, which can still be used when desired. > Pre-Collision Braking can recognize an impending collision, alert the driver and automatically apply the brakes to help avoid a collision or minimize the impact when a collision is inevitable. > Pre-Collision Brake Assist- If Eyesight recognizes an impending collision and the driver is applying the brakes but not with enough force, Pre-Collision Brake Assist automatically applies up to full braking pressure in order to try to shorten braking distances. > Pre-Collision Throttle Management is designed to help prevent drivers from accelerating into a stopped vehicle or other obstacle in front of them. It warns the driver and reduces engine power until he or she applies the brakes to avoid an impact. > Lead Vehicle Start Alert is a helpful EyeSight feature that alerts the driver when his or her vehicle remains stopped after a vehicle in front has started to move away. > Lane Departure Warning alerts drivers when they unintentionally move out of their travel lane. It takes no corrective vehicle action other than issuing visual and audible warnings. Works over app 30mph > Lane Sway Warning acts in a similar way, detecting unusual back and forth vehicle movement within the lane of travel. Lane Departure Warning works at all speeds, while Lane Sway Warning only operates at speeds over 38 mph. Eyesight cars have three windshield washer squirters, with the middle one to clean in front of the cameras. The camera’s field of view is about 35 degrees horizontally from the center of the windshield. The camera’s field of vision extends up to about 360 feet in front of the vehicle, but objects very close to the vehicle may not be detected EyeSight works to recognize obstacles up to about a 30-mph (or less) speed differential. Essentially, EyeSight needs time to recognize an object or potential obstacle. If the speed difference between the EyeSight vehicle and the object is greater than up to 30 mph, the object will likely not be detected. Note- do not touch or try to clean the EyeSight camera lenses. It is imperative that extra precaution be used when cleaning the inside of the windshield, because over-spray from cleaners may impair or even damage the cameras’ lenses, which is not a warranty issue Optional on Limited model package #22 and #23

. top DIMENSIONS 2015 CROSSTREK AND CROSSTREK HYBRID same as 2014, 2013 models subject to change, correction. corrections and tips welcomed.
Dimension	2015 Crosstrek	2015 Crosstrek Hybrid
Length	175.2	175.2
Wheelbase	103.7	103.7
Width	70.1", 78.8" with mirrors folded out	70.1"
Height	63.6" including roof rails	63.6 including roof rails
Ground clearance	8.7"	8.7"
angle to approach	18*	16.9*
angle of departure	28*	27.7*
ramp breakover	20.2*	20.2*
Track front/rear	60"/60"	60"/60"
Interior volume	97.5cf, (94.0 with moonroof)	97.5cf
Headroom front/rear	no moonroof 39.8/37.7"	no moonroof 39.8/37.7"
Legroom front/rear	43.5/34.5"	43.5/34.5"
Cargo volume	rear seats up rear seats down 51.9	rear seats up- 21.5cf rear seats down- 50.24cf
Weight	Premium CVT transmission 3,142lbs	3440-3484

top 2015 CARGO AREA DIMENSIONS AND MEASUREMENTS hand measured and subject to change and correction same as 2014, 2013
cargo measurements (not hybrid)	A width at lower gate opening 35" B cargo floor width behind wheel wells 53" C cargo floor width between wheel wells 42" D width of left rear seat 17" E width on top of wheel wells 49" F width in middle of rear gate opening 37" G cargo length to back of seat 31" H height of gate opening 29" I cargo length to console heater controls 94" J height center cargo floor to ceiling 29". Hybrid is 28" K cargo floor length to top of rear seat, not including headrests 55" L width of right rear seat 25"
Crosstrek hybrid floor-ceiling height measures 28". the std Crosstrek is 29"	Subaru Crosstrek Hybrid cargo tray with embossed "hybrid"
width rear seats folded flat door armrest to armrest 50". Load height 31" hand measured, subject to change, correction,shown with optional rear seatback protector	A 30.5" to top of bumper, B 32.5" to top of lower gate (lift-over height) hand measured, subject to change, correction
height of rear seat cushion, hand measured 27". With rear seats folded flat, load height is 31" hand measured, subject to change, correction	the driver's seat is manually height adjustable
driver seat front-back measurement from brake pedal to front of seat cushion 12.75"-21.75". Shown at 21.75" Hand measured, subject to change, correction	the drivers seat goes from 25"-26.5" height adjustment to top of seat bolster. Thats a bigger adjustment than it might seem. Hand measured, subject to change, correction. Desert Khaki color shown (yes it was raining)
Crosstrek steering wheel telescopes in/out 25"- 26.5" from brake pedal, and tilts up/down 17.5"-19" from floor Shown in the up position, and close to the dashboard Hand measured, subject to change, correction	Crosstrek steering wheel telescopes in/out 25"- 26.5" from brake pedal, and tilts up/down 17.5"-19" from floor. Shown in the down position, and pulled away from the dashboard Hand measured, subject to change, correction
There is a lot of front seat legroom. the front passenger seat front/back adjustment is from 21.5"-24.5". Shown at 24.5". Hand measured, subject to change, correction	Crosstrek carries a lot of gear including scuba diving tanks
2015 Subaru Crosstrek optional 1.25" trailer hitch measurements, hand measured, hitch to ground A- receiver to ground 11.25", B- tie down to ground 10"	blank for now

-

-

top 2015 Crosstrek Option Packages these are the factory installed major Option Packages accessory and upgrade option packages and individual options are below subject to change and correction
model (model code)	option package code	Option Package
2.0i, manual transmission (FRA)	#01	standard- no other Option Pkgs available
---
2.0i Premium, manual transmission (FRB)	#11	standard- no other Option Pkgs available
--
2.0i Premium, CVT transmission (FRC)	#12	standard
	#13	> Moonroof with sunshade MSRP $1000
	#14	> Eyesight safety system includes Active cruise control, Lane departure warning, Pre-collision warning and Pre-collision braking. Steering responsive fog lights > upgraded 7" HD LCD multi-touchscreen, rear view camera display, 6 speaker audio system with voice activated controls, AM/FM/HD radio, single CD player, XM (4 mos free), Bluetooth wireless audio streaming, Subaru Starlink smartphone app, Aha music app, Pandora, Mirrorlink, dual USB ports, 3.5mm aux jack, itunes tagging, cell phone Bluetooth with contact download, text message download (iphone, android). MSRP $1295
	#15	Details announced Jan 7, 2015 new package for 2015 Special Edition, only 1000 made new color for 2015 Sunrise Yellow, with black cloth > Keyless access/Pushbutton start. Instructions: To start the car, tap the start button once when pressing the brake pedal. For radio or accessory power only, tap with your foot off the brake, 1 tap for radio, 2nd tap for all power, tap a 3rd time to turn off > Power moonroof with shade > Leather srapped steering wheel and shift handle > Exterior mirrors with integrated turn signals > Black inner surround headlights > upgraded 7" HD LCD multi-touchscreen, rear view camera display, 6 speaker audio system with voice activated controls, AM/FM/HD radio, single CD player, XM (4 mos free), Bluetooth wireless audio streaming, Subaru Starlink smartphone app, Aha music app, Pandora radio, Mirrorlink, dual USB ports, 3.5mm aux jack, itunes tagging, cell phone Bluetooth with contact download, text message download (iphone, android). MSRP $1995
--
2.0i Limited, CVT (FRD)	#21	standard
	#22	> Moonroof with sunshade, > Keyless Access/Pushbutton Start with pin code access > Navigation/GPS with XM navtraffic and nav weather (subscription req) MSRP $2000
	#23	>Eyesight safety system includes Active cruise control, Lane departure warning, Pre-collision warning and Pre-collision braking. Steering responsive fog lights > Moonroof with sunshade, > Keyless Access/Pushbutton Start with pin code access. Instructions: To start the car, tap the start button once when pressing the brake pedal. For radio or accessory power only, tap with your foot off the brake, 1 tap for radio, 2nd tap for all power, tap a 3rd time to turn off > Navigation/GPS with XM navtraffic and nav weather, (subscription req) MSRP $2795
--
2.0i Hybrid, CVT (FRH)	#01	standard- no other Option Pkgs available
--
2.0i Hybrid Touring, CVT (FRI)	#31	standard- no other Option Pkgs available

top

2015 XV CROSSTREK PRICES

Prices announced 11/19/14

Destination is increased $25 to $850 in most states, to Ak its $1000, and can vary in the independent distributor states CT, HI, MA, ME, NJ, NY, RI, and VT

Note: all prices here are MSRP suggested list price. Your actual purchase price might be higher or lower depending on your dealers mark-up or discounts.

subject to change, correction

model and price

add for option packages...
for full description see above

#01- standard
#11- standard
#12- standard
#13- Moonroof $1000
#14- Eyesight, upgraded 7" audio $1,295

#15- Special Edition, sunrise yellow, black cloth. Only 1000. 7" audio upgrade, moonroof , Keyless access/pushbutton start, Moonroof, turn signal mirrors, Leather steering whl/shift handle announced 1/7/15. Available March, 2015
#21- standard
#22- Moonroof, Navigation, Keyless Access/Pushbutton Start $2000
#23- Eyesight, Moonroof, Navigation, Keyless Access/Pushbutton Start $2795
#31- standard

model and transmission

model code

MSRP

dest

Total MSRP

pkg #01
incl

pkg #11
incl

Pkg #12
incl

Pkg #13
$1000

Pkg #14
$1,295

Pkg #15
$1995

Pkg #21
incl

Pkg #22
$2000

Pkg #23
$2,795

Pkg #31
incl

Crosstrek 2.0i, manual transmission

FRA

$21,595

$850

$22,445

$22,445

Crosstrek 2.0i Premium, manual trans

FRB

$22,295

$850

$23,145

$23,145

Crosstrek 2.0i Premium, CVT

FRC

$23,295

$850

$24,145

$24,145

$25,145

$25,440

$26,140

Crosstrek 2.0i Limited, CVT

FRD

$24,795

$850

$25,645

$25,645

$27,645

$28,440

Crosstrek Hybrid, CVT

FRH

$25,995

$850

$26,845

$26,845

Crosstrek Hybrid Touring, CVT

FRI

$29,295

$850

$30,145

$30,145

top 2015 Crosstrek Specifications this information is subject to frequent updating, change, correction. tips are welcomed.
-
model	2.0i	Premium					Limited			Hybrid, Hybrid Touring
model code, package #	FRA manual, #01	FRB manual, #01	FRC, CVT #12	FRC CVT #13	FRC, CVT, #14	FRC, CVT, #15	FRD, CVT, #21	FRD, CVT, #22	FRD, CVT, #23	FRH, CVT, #01	FRI, CVT, #31
engine	2.0L 4 cylinder 1995cc 4 cylinder engine code FB20 Horizontally Opposed Boxer engine DOHC with timing chain (not a belt) 16 valves Direct ignition Sequential multi-port fuel injection, common rail Dual Active Value Control System DAVCS Bore x Stroke 3.31" x 3.54" Compression 10.5:1 Redline- 6600 RPM Underhood noise/sound insulation Hood prop to hold hood open									2.0L cylinder, 1995cc 4 cylinder, engine code FB20 modified with low friction components Horizontally Opposed Boxer engine DOHC with timing chain (not a belt) 16 valves Direct ignition Sequential multi-port fuel injection, common rail Dual Active Value Control System DAVCS Bore x Stroke 3.31" x 3.54" compression 10.8;1 Underhood noise/sound insulation Hood prop to hold hood open Start/Stop technology 13.4hp battery powered, permanent magnet 10kW motor for low speed driving 48lt-ft torque Note: Subaru calls this a Parallel Hybrid- it uses both gas and battery power
Horsepower/Torque	148 @ 6,200 rpm / 145 @ 4,200 rpm									combined 160hp 26200rpm, 163lb-ft torque @ 2000 rpm 13.4hp battery powered engine with 48lt-ft torque for low speed driving
Hybrid battery	Hybrid and Hybrid Touring only- not on 2.0i, Premium, or Limited models The battery is a 13.5kw 100.8v sealed NiMH (nickel-metal hydride) battery pack in the cargo area. It consists of 21 low voltage NiMH battery modules connected in a series. Its cooled by a fan, the vent is located by the left rear door Weight: 54 lbs There are also two 12v batteries in the engine compartment. The driver (left) side battery is the normal battery. The right (passenger) side battery is the auto stop-start battery.
Transmission manual 5 speed	Available on 2.0i and Premium #11 only, not available on any other models 5 speed manual with incline start assist Gears: 1st 3.545, 2nd 1.888, 3rd 1.296, 4th 0.972,5th 0.780, final drive 4.44:1
Transmission CVT automatic with Paddle Shifters with 6 gear-like settings CVT stands for Continuously Variable Transmission. Lineartronic is Subaru's name for their CVT	no CVT available	no CVT available	Standard on Premium and Limited Subaru Lineartronic CVT with 6 setting paddle shifters Final drive ratio 3.70:1							Subaru Lineartronic CVT 6 setting paddle shifters. The 13.4hp electric motor and mechanical electric dual drive transmission pump are integrated inside and toward the rear of the transmission housing
Keyless access, pushbutton start (proximity key) Instructions: To start the car, tap the start button once when pressing the brake pedal. For radio or accessory power only, tap with your foot off the brake, 1 tap for radio, 2nd tap for all power, tap a 3rd time to turn off	--	--	--	--	--	S, pkg 15	--	S	S	S
Fuel economy	regular gas, 87 octane 5 speed manual: City/Hwy/Comb: 23/30/26 CVT: City/Hwy/Comb: 25/33/28 ECO gauge which compares instant economy to trip odometer economy since last reset									city/highway combined 29/33/ 31MPG 13.7 gallon gas tank
Engine start/stop technology, hybrid only	Hybrid models only The engine shuts off when the car is in Drive and the car stops with driver's foot on the brake. Releasing the brake starts EV (electric vehicle) mode, and stepping on the gas pedal will instantly restart the gas engine. If the air conditioning is on, the engine might stay on. There are two 12v batteries in the engine compartment. The right (passenger) side battery is the auto stop-start battery. The driver (left) side battery is the normal battery.
Active grill shutter, hybrids only	Hybrid models only The Active front grill shutter are flaps behind the front of the lower part of the front grill that open to improve engine cooling and close to improve aerodynamics and fuel economy. The shutters, or flaps, close when starting a cold engine for faster warm-up and are also closed above 25mph to improve aerodynamics and fuel economy except in high temperature conditions when extra cooling is needed due to acceleration or a/c needs. After warm-up, the grill shutter stays open for stop-go low speed driving up to 25mph.
All Wheel Drive	all models have full time, all wheel, all speed, All Wheel Drive with VDC (vehicle dynamics control) electronic stability control with TCS (traction control system). Manual transmission models (Premium only) have "Continuous" all wheel drive with 50/50 front/back power split, mechanically controlled. CVT models (Premium and Limited) use "Active" all wheel drive with electronically controlled front/back power split. Mostly front wheel drive under normal driving conditions.
Emissions	PZEV									AT-PZEV
PZEV	What is PZEV, a brief summary Partial Zero Emission Vehicle The EPA says a PZEV is clean running gas engine car based on emissions testing for carbon-containing compounds, oxides of nitrogen, particulate matter, and other tailpipe nastiness. 1. A charcoal canister catches unburned gas left in the engine when it's turned off so it doesn't just evaporate. 2. Fuel injectors that close tighter when they're not in use. 3. A finer mesh in the catalytic converter, as well as optimized placement of its precious metal. 4. The engine's electronic brain is tuned to run the hot at start up to help the catalytic converter heat up so it can start doing its job faster.
model reminder	2.0i manual	Prm manual	Prm #12	Prm #13	Prm #14	Prm #15	Limited #21	Limited #22	Limited #23	Hybrid #01	Hybrid Touring #31
Tune-up specs	Idle speed, CVT and manual- 650rpm +/-50 Spark plugs, platinum tipped, NGK SILZKAR7B11 Ignition timing, CVT and manual- 16* +/- 10 Firing order 1-3-2-4 Oil and oil filter capacity 5.3qts Oil- 0w-20 synthetic oil is required Engine Super Coolant- manual trans 7.9 qts, CVT 8.2 qts									Idle speed, CVT and manual- 650rpm +/-50 Spark plugs, platinum tipped, NGK SILZKAR7B11 Ignition timing, CVT and manual- 16* +/- 10 Firing order 1-3-2-4 Oil and oil filter capacity 5.3qts Oil- 0w-20 synthetic oil is required Engine Super Coolant- manual trans 7.9 qts, CVT 8.2 qts
Brake hardware	all models Front: 11.6 vented disc Rear: 10.8" solid disc parking brake- drum in rear disc
Brake systems	Standard on all models 4 wheel, 4 channel anti-lock, power assisted Electronic brake force distribution EBD Brake Override System (BOS) when gas and brake pedal are both pressed, the brake overrides and the car stops Brake Assist: when the brake pedal is pressed quickly, the system increases brake pressure for faster emergency stopping
Co-x drag	0.35									0.33
Suspension	4 wheel independent Front: MacPherson Strut with stabilizer bar Rear: Double Wishbone with 16mm stabilizer bar									Sport tuned, 4 wheel independent, Font: MacPherson strut with stabilizer bar Rear: double wishbone with 18mm stabilizer bar
model reminder	2.0i	Prm manual	Prm #12	Prem #13	Prm #14	Prm #15	Ltd #21	Ltd #22	Ltd #23	Hybrid	Hybrid Touring
Steering	new for 2015 2.0, Premium and Limited models: quick ratio power steering Electric power assisted rack and pinion steering, Turns, lock-to-lock 2.8 (2014 was was 3.1) turning circle: curb to curb 34.8ft; wall to wall 37.7ft									electric power assist rack and pinion quick ratio 14.0:1 steering wheel lock-to-lock: 2.8 turning circle, curb to curb 34.8ft
Wheel	17x7" alloy, machined gray									17x7" aerodynamic design alloy
Tire	225/55 R17 95H, Yokohama Geolander G95 low rolling resistance all season									225/55 R17 all season, Yokohama Geolander G95 low rolling resistance
Spare tire- 2.0i, Premium, Limited	temporary duty spare tire under cargo floor									na
Spare tire- Hybrid and Hybrid Touring only	There's no spare tire in the Hybrids. The hybrid battery pack replaces the spare tire compartment. A tire repair kit is standard. It's under the driver's seat and includes a can of puncture sealant and a 12v inflation pump. Note: use of the tire sealant will damage and require replacement of the Tire Pressure Monitor. Call roadside service instead. The tire sealant has a shelf life of around 5 years Use of the tire sealant will clog the TMPS and require its replacement
Towing	Towing a trailer behind a Crosstrek the optional Subaru hitch is a 1.25" max trailer weight with trailer brakes 1500lbs, max trailer weight without trailer brakes 1000lbs. max trailer weight when towing on long uphill grades or when the outside temp is 104* or higher- 750lbs 200lb tongue weight Towing a Crosstrek behind a tow truck or motorhome: manual transmission- all wheels either on or off the ground. CVT- all wheels off the ground on a flatbed or dollies									towing a trailer or boat etc with the hybrid is not recommended and a trailer hitch is not available from Subaru. The Hybrid must be towed with all wheels off the ground on a flatbed or dollies
model reminder	manual #01	manual #11	CVT #12	CVT #13	CVT #14	CVT #15	CVT #21	CVT #22	CVT #23	FRH	FRI
	2.0i	Premium					Limited			Hybrid	Hybrid Touring

top

2015 Crosstrek features
S standard, -- not available

PACKAGE REMINDER
#01- standard #11- standard #12- standard #13- Moonroof #14- Eyesight, upgraded 7" audio	#15- Premium Special Edition, only 1000 made- CVT. 7" audio, keyless access/pushbutton start, moonroof, leather steering wheel and shift lever, turn signal mirrors, black shift surround. All Sunrise yellow. black cloth #21- standard #22- Moonroof, Navigation, Keyless Access/Pushbutton Start #23- Eyesight, Moonroof, Navigation, Keyless Access/Pushbutton Start #31- standard

subject to change and updating. comments, corrections welcomed

model

2.0i base

Premium

Limited

Hybrid

Hybrid Touring

package #

Pkg #01

pkg #01

Pkg #12

Pkg #13

Pkg #14

Pkg #15

Pkg #21

Pkg #22

Pkg #23

Pkg #01

Pkg #31

Cloth interior

Leather trimmed interior

Floor mats, carpeted

Power windows

Power Locks

Power outside mirrors, unpainted black

Power outside mirrors, large size, painted body colored, heated (All Weather Pkg)

Power outside mirrors, large size, painted body colored, heated (All Weather Pkg) with integrated turn signals

Cruise control with steering wheel controls

S- Eyesight active cruise control

Air conditioning, manual controls, 4 speed fan

Air conditioning, automatic climate control, 7 speed fan,

S, silver knobs

All Weather Package with high/low heated front seats, heated outside mirrors, defrosting lower front windshield to de-ice wipers

Cabin air filter, replace yearly

Height adjustable drivers seat (manual adjustment, no power seat is available)

S, heated

Steering wheel- tilt/telescoping, with illuminated audio, cruise, and cell phone bluetooth controls
CVT models have paddle shifters

S, vinyl wrapped

S, leather wrapped

S, vinyl wrapped

S, leather wrapped, silver stitching

Center console with 2 cupholders, two 12v power outlets; USB connection, 3,5mm aux jack

S, 2 USBs

Center console sliding lid armrest

Dash gauges- off white numbers with red needles, analog tach, analog speedometer, eco gauge, dual trip odometers, fuel gauge

Dash gauges-off white numbers and needles, analog tach, analog speedometer, eco gauge, dual trip odometers, fuel gauge, digital speedometer in the center LCD display

Dash gauges- electrolumenescent cool blue dials with off white numbers and red needles, analog tach, analog speedometer, eco gauge, dual trip odometers, fuel gauge
Note: Hybrid info is in the upper center console LCD display

Wipers- variable speed front, 2 speed rear

Rear defroster

model reminder

2.0i

Prm man.

Prm #12

Prm #13

Prm #14

Prm #15

Ltd #21

Ltd #22

Ltd #23

Hybrid

Touring

Remote keyless entry, 3 keys

Keyless access with illuminated pushbutton start, 2 key fobs
Instructions: To start the car, tap the start button once when pressing the brake pedal. For radio or accessory power only, tap with your foot off the brake, 1 tap for radio, 2nd tap for all power, tap a 3rd time to turn off

Immobilizer key, ignition disabling security system

Illuminated ignition key ring or pushbutton start button

Cup holders. 6: 2 in center console, 1 bottle holder in each door.

Rear seat fold down armrest with 2 cupholders

Cargo area: cargo cover, cargo tray, cargo hooks (4)

Headlights- auto on/off with key in ignition cylinder, or on with pushbutton start ignition on

Headlights- auto on/off with key in ignition cylinder with Auto dusk to dawn setting, or with pushbutton start with ignition on

Fog lights

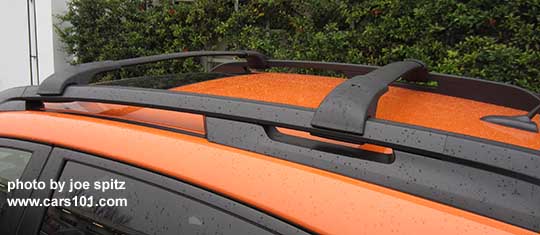

Roof rack rails (cross bars are optional and not included)

Dark tinted windows. Note- there is no tinted upper windshield band though one can easily be added aftermarket

Rear view back-up camera, new for 2015- standard on all models

12v power outlets

2 in center console

3: 2 in center console, 1 in cargo area

Outside door handles

body colored

body colored with chrome strip

Luggage cargo area retractable cover

Cargo tray

Moonroof, power tilt and slide, with manual sunshade

Bluetooth: for handsfree cell phone, and for wireless audio streaming. With steering wheel controls

new for 2015 Rear spoiler, body colored with new trailing black edge

new for 2015 small front bumper underspoiler

Underhood sound insulation

package

2.0i

Prm man,

Prm #12

Prm #13

Prm #14

Prm #15

Ltd #21

Ltd #22

Ltd #23

Hybrid

Hyb Touring

STEREO - AUDIO - "INFOTAINMENT"
information always subject to change, correction
-

PACKAGE REMINDER
#01- standard #11- standard #12- standard #13- Moonroof #14- Eyesight, upgraded 7" audio	#15- Premium Special Edition, only 1000 made- CVT. 7" audio, keyless access/pushbutton start, moonroof, leather steering wheel and shift lever, turn signal mirrors, black shift surround. All Sunrise yellow. black cloth #21- standard #22- Moonroof, Navigation, Keyless Access/Pushbutton Start #23- Eyesight, Moonroof, Navigation, Keyless Access/Pushbutton Start #31- standard

2.0i model

new for 2015
6.2" HD LCD touchscreen, rear view camera display, 4 speaker audio with AM/FM/HD radio, single CD player, Bluetooth wireless audio streaming, Subaru Starlink smartphone app with weather, news, calendar, music and Stitcher cloud apps, Aha music app, Pandora radio, Mirrorlink, single USB port, 3.5mm aux jack, itunes tagging, cell phone Bluetooth with contact download, text message download (iphone, android).

Premium

new for 2015
6.2" HD LCD touchscreen, rear view camera display, 6 speaker audio with AM/FM/HD radio, single CD player, Bluetooth wireless audio streaming, Subaru Starlink smartphone app with weather, news, calendar, music and Stitcher cloud apps, Aha music app, Pandora radio, Mirrorlink single USB port, 3.5mm aux jack, itunes tagging, cell phone Bluetooth with contact download, text message download (iphone, android).

Optional with Packages #14 and #15 (#15 is the Special Edition Package, only 1000 made, all Sunrise Yellow))
upgraded 7" HD LCD multi-touchscreen, rear view camera display, 6 speaker audio system with voice activated controls, AM/FM/HD radio, single CD player, XM (4 mos free), Bluetooth wireless audio streaming, Subaru Starlink smartphone app with weather, news, calendar, music and Stitcher cloud apps, Aha music app, Pandora radio, Mirrorlink, dual USB ports, 3.5mm aux jack, itunes tagging, cell phone Bluetooth with contact download, text message download (iphone, android).

Limited

new for 2015
7" HD LCD multi-touchscreen, rear view camera display, 6 speaker audio system with voice activated controls, AM/FM/HD radio, single CD player, XM (4 mos free), Bluetooth wireless audio streaming, Subaru Starlink smartphone app with weather, news, calendar, music and Stitcher cloud apps, Aha music app, Pandora radio, Mirrorlink dual USB ports, 3.5mm aux jack, itunes tagging, cell phone Bluetooth with contact download, text message download (iphone, android).

Optional navigation/GPS

Hybrid

new for 2015
(same as Premium) 6.2" HD LCD touchscreen, rear view camera display, 6 speaker audio with AM/FM/HD radio, single CD player, Bluetooth wireless audio streaming, Subaru Starlink smartphone app with weather, news, calendar, music and Stitcher cloud apps, Aha music app, Pandora radio, Mirrorlink, single USB port, 3.5mm aux jack, itunes tagging, cell phone Bluetooth with contact download, text message download (iphone, android).

Hybrid Touring

new for 2015
7" HD LCD multi-touchscreen, Navigation/GPS, XM navtraffic and weather (subscription req), rear view camera display, 6 speaker audio system with voice activated controls, AM/FM/HD radio, single CD player, XM (4 mos free), Bluetooth wireless audio streaming, Subaru Starlink smartphone app with weather, news, calendar, music and Stitcher cloud apps, Aha music app, Pandora radio, Mirrorlink, dual USB ports, 3.5mm aux jack, itunes tagging, cell phone Bluetooth with contact download, text message download (iphone, android).

package #

#01

#11

#12

#13

#14

#15

#21

#22

#23

#01

#31

model

2.0i base

Premium

Limited

Hybrid

Hybrid Touring

top 2015 XV Crosstrek Models Standard Features Note: this early information is incomplete, and subject to updating, change, and correction. Tips are welcomed

2015 XV Crosstrek 2.0i this is an all new model for 2015 model code: manual transmission FRA no CVT transmission available new quick ratio electric power steering 148-hp 2.0-liter 4-cylinder 5 speed manual transmission with incline start assist Optional CVT with paddle shifters, 6 settings All-Wheel Drive with electronic stability and traction control 8.7 inches of ground clearance 16mm rear stabilizer bar All Weather Package: dual mode hi/lo heated front seats, heated outside mirrors, front wiper de-icers Safety: 5 seatbelts and 5 headrests Child seat LATCH system TPMS- tire pressure monitoring system Airbags (7) dual front dual front side dual front and rear side curtain Driver knee Rollover sensor Brakes: Power assisted 4 wheel anti-lock disc brakes, front vented, solid rear with brake pad return springs EBD electronic brake force distribution for controlled stopping Brake assist for faster emergency brake response Brake override- stops car when the brake and gas pedals are pressed at the same time Break-away safety pedals. EDR- Event Data Recorder- in the event of an impact, the EDR will freeze data including how various systems were operating, for example if seatbelts were buckled, if the gas or brake pedals were pressed, and vehicle speed. No personal data is stored. Security and Keys 3 keys supplied, 2 with integrated keyless remote lock/unlock, with car finder and panic mode. Immobilizer chipped key, programmed to the car Ignition disabling security system if one of the immobilizer keys is not used.	2.0i base model continued.... Fog lights Wheel arch fender flares Roof rails (crossbars are optional) Dark tinted windows (no windshield upper tint band though that can be added aftermarket) 17-inch dark gray alloy wheels with 225/55R17 all season tires Wipers- front 4 variable speeds, plus low and high, with wiper de-icer (All Weather Pkg) Wipers- rear, Rear defroster- Cloth upholstery Carpeted floor mats (4) Height adjustable driver seat, manual, heated, 65/35 split flat-folding rear seats Power windows Power locks Power outside mirrors, unpainted black, large for easy visibility, with break-away hinges Steering wheel: tilt and telescoping with illuminated audio and stereo controls. Vinyl. Air Conditioning, manual controls Headlights: Auto on-off with ignition key insertion/removal Underhood insulation- all models Cargo area tie-down hooks (4) Inner door handles- unpainted black Cupholders: 6 total - 2 in the center console, 1 in each door 2 Overhead sun visors with mirrors (not lighted mirrors) 2 map lights in the overhead center console Trip Computer with Outside temperature. average MPG, instant MPG, elapsed time since the car was started, average vehicle speed, DTE distance to empty. Dash gauges-analog tach, analog speedometer, eco gauge, dual trip odometers Stereo: new for 2015 6.2" HD LCD touchscreen, rear view camera display, 4 speaker audio with AM/FM/HD radio, single CD player, Bluetooth wireless audio streaming, Subaru Starlink, Aha music app, Pandora radio, Mirrorlink, single USB port, 3.5mm aux jack, itunes tagging, cell phone Bluetooth with contact download, text message download (iphone, android). Major Option Package none
top 2015 XV Crosstrek Premium and Limited model features information subject to change, correction
2.0i Premium model codes: FRB manual transmission FRC CVT transmission Premium adds over 2.0i base model... All Weather Package with dual mode heated front seat, defrosting outside mirrors, and front windshield wiper de-icers Cargo area tray Illuminated glovebox Illuminated ignition key ring Inner door handles- chrome Body colored outside mirrors Center console sliding lid armrest Cargo area retractable luggage cover Stereo- new for 2015 adds 2 more speakers to 6 total 6.2" HD LCD touchscreen, rear view camera display, 6 speaker audio with AM/FM/HD radio, single CD player, Bluetooth wireless audio streaming, Subaru Starlink, Aha music app, Pandora radio, Mirrorlink, single USB port, 3.5mm aux jack, itunes tagging, cell phone Bluetooth with contact download, text message download (iphone, android). Major Option Packages manual transmission - none CVT Pkg #13 moonroof with sunshade Pkg #14 Eyesight with steering responsive fog lights, and upgraded audio with 7" HD LCD multi-touch screen Pkg #15 Special Edition, new for 2015. Only 1000 made, available starting March 2015. Sunrise Yellow paint, black cloth. Keyless access/pushbutton start, 7" LCD audio system, Moonroof with sunshade, turn signal mirrors, leather steering whl and shift knob, gloss black shift surround, black headlight inner surround	2.0i Limited model code: FRD, CVT transmission Limited adds over the *Premium model....* new for 2015 Welcome Lighting new for 2015 Sound Insulation windshield Leather trimmed upholstery with Leather wrapped steering wheel and shift handle CVT with paddle shifters, 6 settings Rear seat armrest with dual cupholders Upgraded instrument panel with off-white gauges Rear view back-up camera, displays in stereo's LCD screen Automatic climate control air conditioning, 7 speed fan, black knobs Headlights: Auto on-off with ignition key insertion/removal, plus dusk-to-dawn auto on/off setting Dash gauges-analog tach, analog speedometer, eco gauge, dual trip odometers, digital speedometer in the center LCD display Welcome Lighting- interior/exterior lights illuminate when you use the remote to unlock the doors or pull the door handle (keyless access) Stereo: new for 2015 7" HD LCD multi-touchscreen, rear view camera display, 6 speaker audio system with voice activated controls, AM/FM/HD radio, single CD player, XM (4 mos free), Bluetooth wireless audio streaming, Subaru Starlink, Aha music app, Pandora radio, Mirrorlink, dual USB ports, 3.5mm aux jack, itunes tagging, cell phone Bluetooth with contact download, text message download (iphone, android). Major Option Packages: #22 Moonroof, Navigation, Keyless access/Pushbutton start #23 Eyesight system, Moonroof, Navigation, Keyless access/Pushbutton start
2015 Crosstrek Hybrid and Hybrid Touring information always subject to change, correction, updating.
second year for the Hybrids Hybrid (model code FRH) This is a 'mild hybrid', meaning that it uses both the 2.0L gas engine and the 10kW battery powered motor. The electric motor is for low speed, up to 25mph, and short distance. The gas engine and electric motor can power the car independently or combined together in "parallel" new for 2015 Front bumper small underspoiler new design Hybrid roof spoiler, body colored with black trailing edge new for 2015 Keyless pushbutton start now includes new for 2015 pin code access new for 2015 Welcome Lighting- interior/exterior lights illuminate when you use the remote to unlock the doors or pull the door handle (keyless access) 148-hp 2.0-liter 4-cylinder with 13.4HP electric motor Engine cover CVT transmission with Paddle Shifters (6 speeds) Start/Stop technology Sport tuned suspension with larger 18mm rear stabilizer bar Active front grill shutter- flaps behind the front of the lower part of the front grill open to improve engine cooling, and close to improve aerodynamics and thus fuel economy. The shutters, or flaps, close when starting a cold engine for faster warm-up. They're also closed above 25mph to improve aerodynamics and fuel economy except in high temperature conditions when extra cooling is needed due to acceleration or a/c needs. After warm-up, the grill shutter stays open for stop-go low speed driving up to 25mph. Power steering- quick ratio Turn signals in the outside mirrors Keyless access, push button start Clear taillight lens with LED lights Climate control, 7 speed fan, with silver knobs Spare tire- none. A tire inflator kit is standard (note- use of the kit's tire sealant will clog and require replacement of the TMPS sensor) Upgraded instrument panel with center LCD display Pedestrian alert system. a sound alerts pedestrians a car is coming when the hybrid is running on quiet battery power under 15mph (no gas engine running). The All-Wheel Drive with electronic stability and traction control 8.7 inches of ground clearance All Weather Package: dual mode hi/lo heated front seats, heated outside mirrors, front wiper de-icers Safety: 5 seatbelts and 5 headrests Child seat LATCH system TPMS- tire pressure monitoring system Airbags (7) dual front dual front side dual front and rear side curtain Driver knee Rollover sensor Security and Keys Keyless access with pushbutton start and new for 2015 pin code access Engine disabling immobilizer system with alarm Steering wheel: leather wrapped tilt and telescoping with illuminated audio and stereo controls Steering wheel: silver stitching Air Conditioning: automatic climate control Headlights: Auto on-off with ignition key insertion/removal	Hybrid continued Brakes: new brake regeneration system Power assisted 4 wheel anti-lock disc brakes, front vented disc, solid rear disc with brake pad return springs EBD electronic brake force distribution for controlled stopping Brake assist for faster emergency brake response Brake override- stops car when the brake and gas pedals are pressed at the same time Break-away safety pedals. EDR- Event Data Recorder- in the event of an impact, the EDR will freeze data including how various systems were operating, for example if seatbelts were buckled, if the gas or brake pedals were pressed, and vehicle speed. No personal data is stored. Fog lights Chrome door handles Wheel arch fender flares Clear taillight lens with LED lights Roof rails (crossbars are optional) Dark tinted windows (no windshield upper tint band though that can be added aftermarket) Wheels: aerodynamic design 17" alloys Tires: low rolling resistance 225/55R17 all season tires Wipers- front 4 variable speeds, plus low and high, with wiper de-icer (All Weather Pkg) Wipers- rear, with washer Rear defroster Cloth upholstery Carpeted floor mats (4) Height adjustable driver seat, manual, heated, 65/35 split flat-folding rear seats Power windows, with auto up/down driver's window Power locks Power outside mirrors, body colored, with integrated turn signals, and break-away hinge Cupholders: 8- 2 in center console, 2 in rear seat armrest, 1 bottle holder in each door 2 Overhead sun visors with mirrors (not lighted mirrors) 2 map lights in the overhead center console 12v outlets- 3- 2 in front console, 1 in cargo area Dash gauges- electroluminescent dials/needles, cool blue dials, analog tach, analog speedometer, eco gauge, dual trip odometers Note: Hybrid info is in the upper center console LCD display Trip Computer with Outside temperature. average MPG, instant MPG, elapsed time since the car was started, average vehicle speed, DTE distance to empty. Cargo tray Cargo area tie-down hooks (4) Cargo area luggage cover Sub-floor storage tray Stereo- new for 2015 6.2" HD LCD touchscreen, rear view camera display, 6 speaker audio with AM/FM/HD radio, single CD player, Bluetooth wireless audio streaming, Subaru Starlink, Aha music app, Pandora radio, Mirrorlink, single USB port, 3.5mm aux jack, itunes tagging, cell phone Bluetooth with contact download, text message download (iphone, android). Major Option Packages: none
2015 Crosstrek Hybrid Touring information always subject to change, correction, updating
second year for the Hybrids model code FRI everything the Hybrid has, plus.... Leather trimmed interior Power moonroof with sunshade new for 2015 7" HD LCD multi-touchscreen, Navigation/GPS, XM navtraffic and weather (subscription req), rear view camera display, 6 speaker audio system with voice activated controls, AM/FM/HD radio, single CD player, XM (4 mos free), Bluetooth wireless audio streaming, Subaru Starlink smartphone app, Aha music app, Pandora radio, Mirrorlink, dual USB ports, 3.5mm aux jack, itunes tagging, cell phone Bluetooth with contact download, text message download (iphone, android). Major Option Packages none

top

WHAT IS HD RADIO
Digital radio broadcast signal for improved clarity
The ‘HD’ in ‘HD Radio’ is part of iBiquity Digital’s brand name for its digital AM and FM radio technology.
It does not mean either 'hybrid digital' or 'high definition'.
HD Radio broadcasting is free, there are no fees.
You can get digital AM and FM stations, including HD2 and HD3 multicast channels.
HD is your favorite local AM and FM stations broadcasting digitally, producing improved clean sound.
Radio station subchannels give you more selection
The service includes iTunes Tagging. iTunes Tagging lets you capture information about a song on the radio and store it on your iPod by pushing the "Tag" button on the HD Radio receiver. When your iPod is connected to iTunes, a list of tagged songs will appear which can be purchased.
HD radio website, check stations etc

SUBARU STARLINK
see photo above
Starlink is a free smartphone Subaru app for Android and iPhone.
It uses the phone's data plan.
Weather reports, The location for the weather is selected and changed on the smart phone (starlink > weather > config) with up to six cities selected.
News (user selected from a international list that includes CNN, USA Today, MSNBC, Yahoo news, Le Monde, El Mundo etc)
Calendar, syncs with Google calendar,
iHeart radio,
Music streaming.
Stitcher app- new May 2015

Starlink update May 2015 Subaru Starlink now includes Stitcher. Stitcher includes news, podcasts and articles on current events, science, technology, sports, culture, music etc.
Starlink will automatically update onto your Starlink app if its on your phone already, or when you next use the app in your car.
To use Stitcher and select the programs you want to listen to, you need to go the stitcher.com website and log in with your facebook or google account or create an email account, and then choose your programs.

Pandora an online radio station with ads, or paid without ads. Go to Pandora.com to create your account. For Android and iPhone. iPhone requires a USB cable

Aha audio-smartphone integration for Android and Apple phones
Download the Aha iOS or Android app to your iphone or android device. You can organize and access content from the web in personalized, on-demand stations and send it to the audio system. Android is wireless, iOS uses a USB cable.
-

top

2015 CROSSTREK OPTIONS AND UPGRADES
A available, -- not available, S standard

Note: prices are factory installed MSRP. Your price might vary according to dealer discounts or mark-up.
Dealer installed prices may be higher due to part and labor costs. Always contact your local dealer

PACKAGE REMINDER
#01- standard #11- standard #12- standard #13- Moonroof #14- Eyesight, upgraded 7" audio	#15 Special Edition, Sunrise Yellow. #21- standard #22- Moonroof, Navigation, Keyless Access/Pushbutton Start #23- Eyesight, Moonroof, Navigation, Keyless Access/Pushbutton Start #31- standard

subject to change, correction, updating

---

OPTION PACKAGES - OPTION PACKAGES
scroll down for individual options

2.0i

Premium

Limited

Hybrid

manual, Pkg #01

manual, Pkg #11

Pkg #12

Pkg #13

Pkg #14

Pkg #15

Pkg #21

Pkg #22

Pkg #23

Hybrid #11

Touring #31

model code

FRA

FRB

FRC

FRD

FRI

FRH

All Weather Package- standard on all models. Includes dual model hi/lo heated front seats, heated outside mirrors, front windshield wiper de-icers

Popular Package #1 (CAA). Includes auto dimming rear view mirror with compass, rear bumper cover, splash guards, rubber all weather floor mats (set of 4), rear seatback protector. $589
Note: not available on Eyesight models

Popular Package #1A (CAB). Includes auto dimming rear view mirror with compass, rear bumper cover, splash guards, rubber all weather floor mats (set of 4), rear seatback protector. $584
Note: Eyesight models only

Popular Package #1B (CAC). Includes auto dimming rear view mirror with compass, rear bumper cover, splash guards, rubber all weather floor mats (set of 4), rear seatback protector and cargo tray. $661
Note: only available on the 2.0i because the cargo tray is standard on all other models models

Popular Package #2 (CAD). Includes auto dimming rear view mirror with compass and homelink garage door opener, rear bumper cover, splash guards, rubber all weather floor mats (set of 4), rear seatback protector. $673
Note: not available on Eyesight models

Popular Package #2A (CAE). Includes auto dimming rear view mirror with compass and homelink garage door opener, rear bumper cover, splash guards, rubber all weather floor mats (set of 4), rear seatback protector. $658
Note: Eyesight models only

Kicker audio upgrade package #4 (IYV). Includes Kicker 10" powered subwoofer in the cargo area, upgraded door speakers, tweeters, 'powered by Kicker' window sticker. $1,017 - $328 package discount = $689 after package discount

EXTERIOR OPTIONS - INDIVIDUAL OPTIONS

2.0i
manual trans

Premium, manual trans

Premium #12

Premium #13

Premium #14

Premium #15

Limited #21

Limited #22

Limited #23

Hybrid

Hybrid Touring

Roof rack cross bars. Aero cross bars. $249. 150lbs capacity. Roof rails are standard on all Crosstreks

Roof rack cross bars. HD round cross bars. $397.
Roof rails are standard on all Crosstreks

Body side moldings, body colored. Helps minimize door dings. $262

Rear bumper cover. protects the top of the rear rear bumper from scuffs. $95

Splash guards, unpainted black. Small mud flaps $152

Sport mesh grill. Black mesh with body colored trim $333

Rear spoiler, body colored. $350

Moonroof air deflector. Requires moonroof. $122

Trailer hitch, 1.25", wired, includes insert. The Crosstrek is rated for 1500lbs towing with trailer brakes. $537

Wheel locks. $52

Hood protector dealer installed only $99.95 plus installation
not available with eyesight

Window rain drip molding visors, dealer installed only.
$119.95 plus installation

INTERIOR OPTIONS - INDIVIDUAL OPTIONS

2.0i
manual trans

Premium, manual trans

Premium #12

Premium #13

Premium #14

Premium #15

Limited #21

Limited #22

Limited #23

Hybrid

Hybrid Touring

Remote engine start- $511. CVT only. Start the car so the inside is warm or cool when you get it. Shuts off when a door is opened so it can't be stolen

Remote engine start- $475. CVT with keyless access/pushbutton start only. Start the car so the inside is warm or cool when you get it. Shuts off when a door is opened so it can't be stolen

Interior illumination kit.subtle footwell lighting, either red or blue. $198

Cargo area tonneau luggage retractable cover $166

Center console sliding armrest. The top slides forward to use as an armrest $165

Center console tray $30. a small shelf for your phone etc, with coin slots. Fits inside the center console storage under the armrest

110V, 100w Power outlet. $ 347 Convenient, fast charging of cell and laptops. Car has to be running or key turned to accessory power

Security Perimeter alarm upgrade $196. Adds an impact shock sensor to the standard ignition disabling alarm

Auto dimming rear view mirror with compass $195

Auto dimming rear view mirror with compass. Eyesight models only. $190

Auto dimming rear view mirror with compass and homelink garage door opener $284

Auto dimming rear view mirror with compass and homelink garage door opener. Eyesight models only $264

Rear seat seatback protectors $75
Note: not available factory/port installed with the 10" subwoofer

Rubber all weather floor mats, set of 4, $72
(carpeted mats are standard)

Cargo net, by gate $52

Cargo net, behind the rear seat $59
Note: not available factory/port installed with the 10" subwoofer

Cargo net, side, 2 small side nets, $79
Note: not available factory/port installed with the 10" subwoofer

Shift knob, leather, manual transmission $102

Shift knob, leather, CVT $122.

Metal pedals- manual transmission gas, brake, and clutch $196

Metal pedals- CVT transmission gas and brake, $170

STEREO UPGRADES - STEREO UPGRADES

2.0i
manual trans

Premium, manual trans

Premium #12

Premium #13

Premium #14

Premium #15

Limited #21

Limited #22

Limited #23

Hybrid

Hybrid Touring

Kicker 10" powered subwoofer in the cargo area. $550. big base sound

Tweeters- two $147

Upgraded speakers $316

top Crosstrek interior seat material photos
close-up of the black cloth showing part of the seat bolster and seat cushion	close-up of the Crosstrek's warm ivory cloth, showing part of the seat bolster and seat cushion
off black leather	the driver's seat is height adjustable with a manual pump-type handle. No power seat or adjustable limbar support is available on any Crosstrek
	2015 Subaru Crosstrek Premium black cloth drivers seat. Sunrise Yellow Special Edition model shown
drivers seat, Limited with gray leather shown	driver's seat, beige interior with ivory cloth

top 2015 Crosstrek Colors its very hard to get accurate colors and they change depending on the light, so always check the color in person subject to change and correction
new for 2015, Sunrise Yellow, on Premium CVT Pkg #15. Only 1000 made	Quartz Blue Pearl	Tangerine Orange Pearl	Desert Khaki, (beige)	Venetian Red Pearl
Ice Silver Metallic	Dark Gray Metallic	new for 2015 Crystal White Pearl	Crystal Black Silica new for 2015- available with black or ivory interior	Plasma Green, Hybrids only

2015 Crosstrek Colors - Availability By Model

NEW FOR 2015 Crosstrek

Crystal Black Silica is now available with black cloth or leather in addition to the ivory cloth or leather
Crystal White Pearl now available with black cloth or leather in addition to the ivory cloth or leather
Black is now available on the Hybrids. Black wasn't available on the 2014 Hybrids.
all new color Sunrise Yellow available only on the Premium CVT Special Edition Pkg #15

INTERIORS ARE
gray interior with black cloth or black leather
beige interior with ivory cloth or ivory leather

color / model

Crosstrek 2.0i
manual trans (FRA)

Crosstrek Premium,
manual trans. (FRB)

Crosstrek Premium,
CVT trans, (FRC)

Crosstrek Limited,
CVT trans. (FRD)

Hybrid, CVT
(FRH)

Hybrid Touring
(FRI)

Quartz Blue Pearl (QBP, J8U)

black cloth

ivory cloth

ivory leather

ivory cloth

ivory leather

Plasma Green (PGN, J9U)

black cloth

black leather

Tangerine Orange Pearl (TOP, G2U)

black cloth

black leather

Desert Khaki (DKH, H6Q)

black cloth

black leather

Dark Gray Metallic (DGM, 61K)

black cloth

black leather

Ice Silver Metallic (ISM, G1U)

black cloth

black leather

black cloth

black leather

Venetian Red Pearl (VR1, H2Q)

ivory cloth

ivory leather

new for 2015 Venetian Red Pearl (VRP, H2Q)

black cloth

Crystal White Pearl (WHC, K1X)

ivory cloth

ivory leather

ivory cloth

ivory leather

new for 2015 Crystal White Pearl (WH3, K1X)

black cloth

black leather

Crystal Black Silica (CBS, D4S)

ivory cloth

ivory leather

new for 2015 Crystal Black Silica (CB3, D4S)

black cloth

black leather

black cloth

black leather

new for 2015 Sunrise Yellow (SYL, C2Z), Premium Special Edition Pkg #15. Only 1000 made

black cloth
Pkg #15 only

top

CROSSTREK PARTS & ACCESSORIES
these are available from your local dealer's parts department
prices are suggested MSRP not including installation

subject to change, correction

front hood protector, $99.95, not available with eyesight
flexible strut tower brace $449
leather shift knob- manual trans, $89.95
leather shift knob, CVT, $109.95 (standard on Limiteds and Hybrids)
metal pedals, manual trans $159.95
metal pedals, CVT, $139.95
engine block heater -$132.95
car cover - $129.98
battery warmer - $39.95
wheel locks - $29.95
ash tray - $27.95
cigarette lighter element $39.95

side window rain drip moldings - $119.95
crossbars- aero, $199.95
crossbars, HD round, 48" wide, $375.95
mounting clamps- $25.
ski attachment, 6 pair, $160. req crossbars and mounting clamps
bike attachment, roof mounted, single bike $170. req crossbars and mounting clamps
bike attachment, fork mounted, single bike $179.95. req front fork $24.95, crossbars, and mounting clamps
bike attachment, hitch mounted, two bike, $274. req 1.25" hitch
cargo basket, heavy duty $369 includes mounting clamps. req crossbars
kayak carrier $150, req crossbars and mounting clamps
roof cargo carrier, $369. req crossbars and mounting clamps
roof cargo carrier, extended $459. requires roof rack crossbars and mounting clamp

top
Ordering a car.
What if the dealer doesn't have what I want?

The supply of Crosstreks is tight and just like with all Imprezas there are more buyers than cars.
Dealers get a limited number of cars each month.
They have an Incoming report and you can put your name on one of the incoming cars.
As a result, many incoming cars will be sold before they arrive.
That means a factory order might be the way to get the exact car and features you want.
Factory orders will be filled from your dealer's normal allocation of Crosstreks,
When first ordered, the ETA (Estimated Time of Arrival) will probably be a 'month of...' that is around 3-4 months out from the order date.
The order will then be filled as available but it will probably be in the 2-3 month window.
Your dealer can also try to locate or find a suitable car for you at another dealer who is willing to swap Crosstreks.
Be patient, the dealer will want you get your car as quickly as possible.

all information, photos, formatting by Joe Spitz who is solely responsible for all content
this fully independent website is not authorized, approved, supported or sponsored by Subaru or any dealer
thank you for stopping by

2015 SUBARU XV CROSSTREK RESEARCH PAGE all 2015 models: 2.0i, Premium, Special Edition, Limited, Hybrid, Hybrid Touring

2015 SUBARU XV CROSSTREK RESEARCH PAGE
all 2015 models: 2.0i, Premium, Special Edition, Limited, Hybrid, Hybrid Touring
