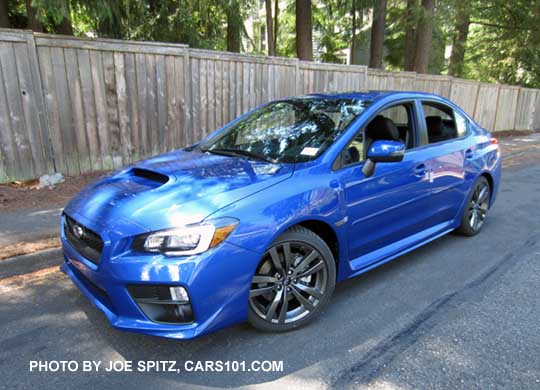

 2016 Subaru WRX Limited, WR Blue color shown, with optional side moldings |
 2016 Subaru WRX STI Series.HyperBlue 2016 Subaru WRX STI Series.HyperBlue. Only 700 Series.HyperBlue models will be made, all with black 18" BBS alloys, tall spoiler. |
 2016 WRX front grill |

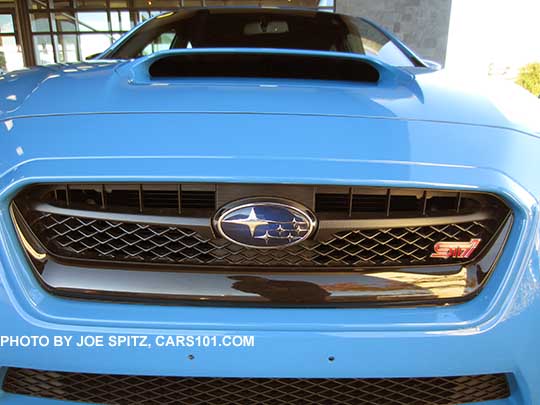

 2016 WRX STI front grill has an STI logo |
 2016 Subaru WRX STI Series.HyperBlue front grill. Only 700 Series.HyperBlue will be made. |
|
 Black inner headlight surround on 2016 WRX Limited, STI, and STI Limited. Lapis Blue STI shown with standard fog lights |
 Black inner headlight surround on 2016 WRX Limited, STI, and STI Limited. STI Limited shown with LED |

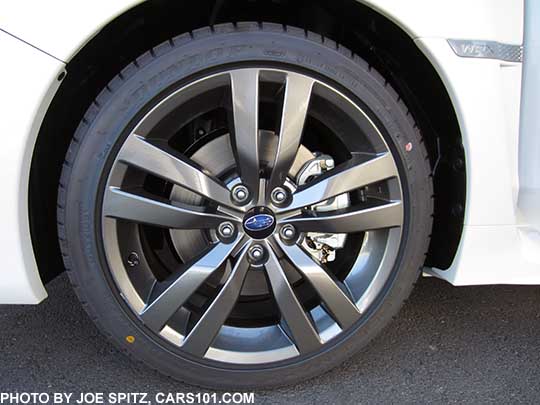

 2016 Subaru WRX 18" gray 5 split spoke alloy wheel |
 closeup of the center cap on a 2016 Subaru WRX 18" gray 5 split spoke alloy wheel |

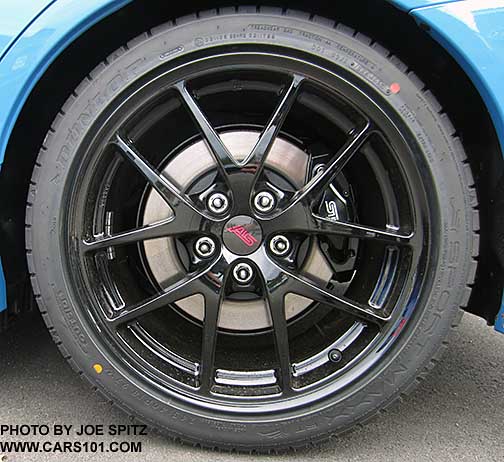

 optional 18" black 15 spoke STI alloy wheel, part of the optional 2016 WRX Sport Package |
 optional 18" 15 spoke black STI alloy wheel, part of the optional 2016 WRX Sport Package, on a Lapis Blue WRX |

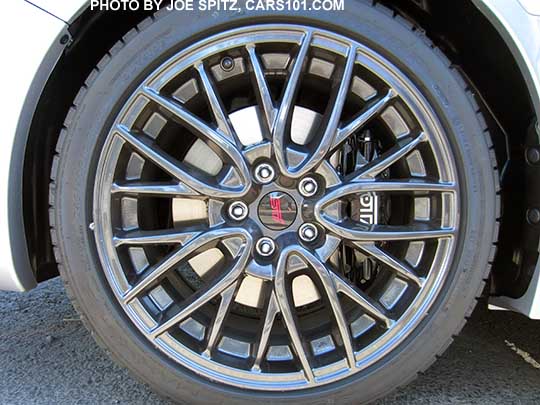

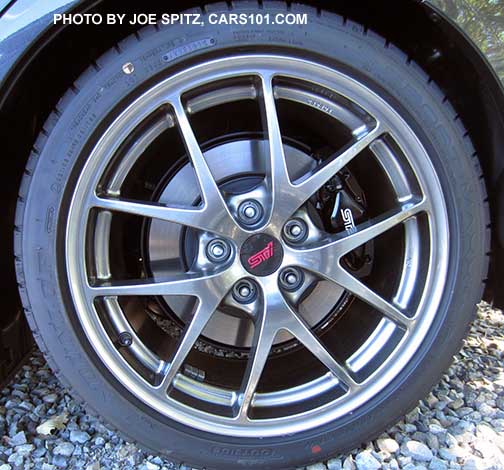

 2016 Subaru WRX STI 18" dark gray multi-spoke alloy wheel |
 2016 Subaru STI Limited 18" silver luster BBS alloy wheel |
 2016 STI Series.HyperBlue 18inch black BBS alloy wheel |
 2016 Subaru WRX STI Series.HyperBlue black STI fender logo and 18" BBS black STI alloy wheels |

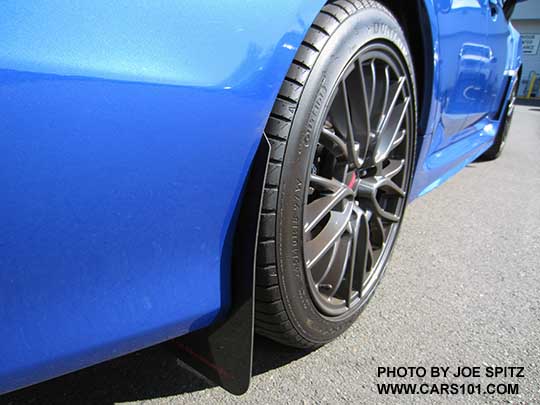

 2016 WRX and STI optional rear aero splash guard. Right rear, WR Blue shown |
 optional 2016 STI body colored rear aero splash guard. Left side, black shown. |

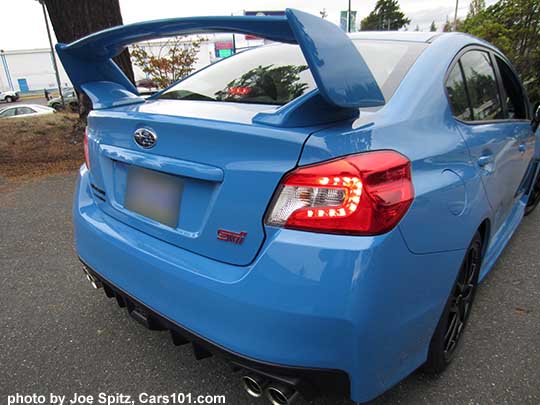

 2016 WRX and STI LED brakes light. STI Series.HyperBlue shown |

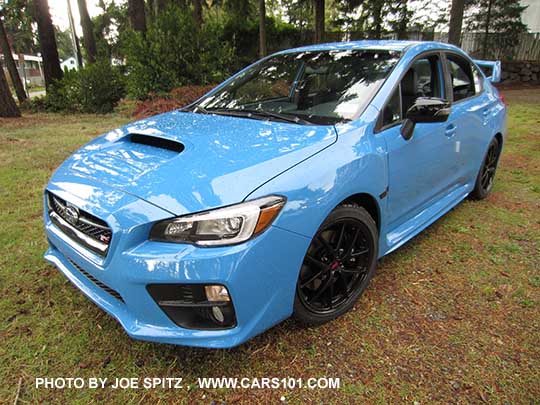

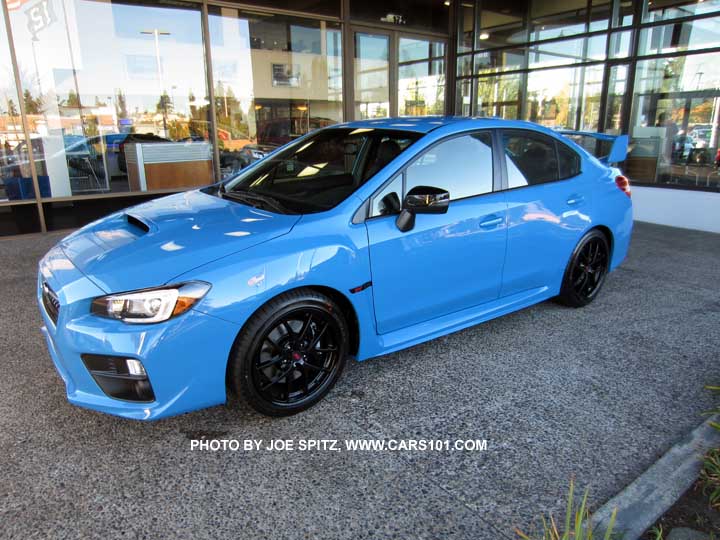

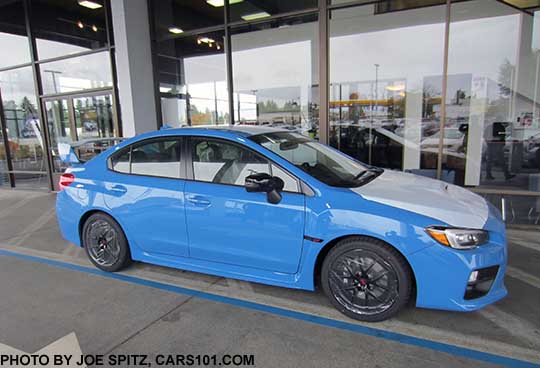

 2016 WRX STI Series.HyperBlue |
 2016 STI Series.Hyperblue just off the truck, still wrapped with white shipping plastic. Only 700 Series.HyperBlue will be made |

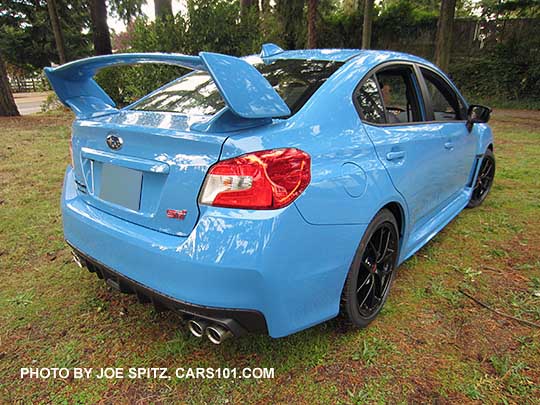

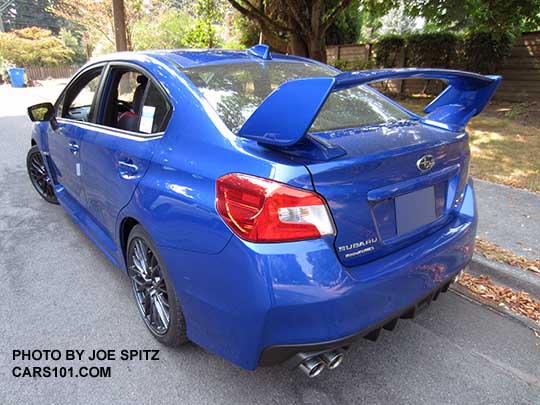

 2016 Subaru WRX STI Series.HyperBlue with standard tall rear spoiler, black BBS 18" STI wheels |
 2016 Subaru WRX STI Series.HyperBlue headlight, foglight. Only 700 Series.HyperBlue models will be made, all Hyperblue color, with BBS black 18" STI wheels, tall rear spoiler, black outside mirrors, black STI side logo... |

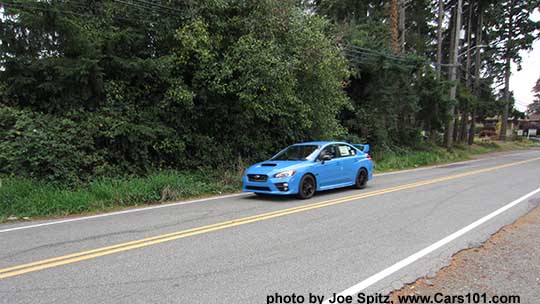

 2016 Subaru WRX STI Series.HyperBlue |
 2016 WRX Premium ice silver sedan with silver front headlight surrounds, fog lights, 5 split-spoke alloys |
 2016 WRX small rear trunk lip spoiler, dark gray color shown |
 close-up of the new for 2016 Pure Red color WRX STI Limited with small trunk lip spoiler |
 2016 WRX with optional 18" black STI alloy wheels, part of the very uncommon WRX Sport Package. Lapis Blue color shown |
 2016 WRX Limited, crystal white, trunk lip spoiler, rear lip spoiler, 18" 5 split-spoke gray alloys. Shown with optional body side moldings and roof mounted vortex generator |
 side view 2016 Subaru WRX Limited, 18" gray split-spoke alloys crystal black color shown |
 2016 new Pure Red STI Limited with new small trunk lip spoiler |
 side view 2016 Subaru WRX Limited, Lapis Blue color shown |
 2016 Subaru WRX Limited, WR Blue color shown, with optional side moldings |
 2016 Subaru WRX Limited, small trunk lip spoiler, WRBlue color shown, with optional side moldings |
 Lapis Blue 2016 Subaru STI with standard tall wing spoiler |
 2016 Subaru WRX STI Limited with new for 2016 small rear trunk lip spoiler. Lapis Blue color |

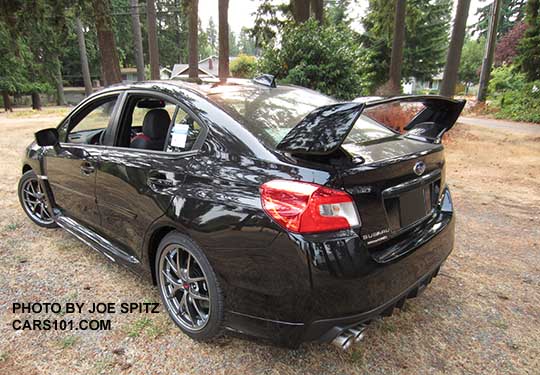

 2016 Subaru STI Limited, 18" BBS alloys, crystal black, tall rear wing spoiler,optional side moldings and rear aero splash guards |
 2016 WRX STI with standard black inner headlight surrounds, spoiler, 18" gray multi-spoke alloys. Ice silver shown |
 2016 Subaru Impreza STI rear view, WR Blue shown |
 2016 crystal white STI Limited, 18" BBS alloys, tall rear spoiler, |

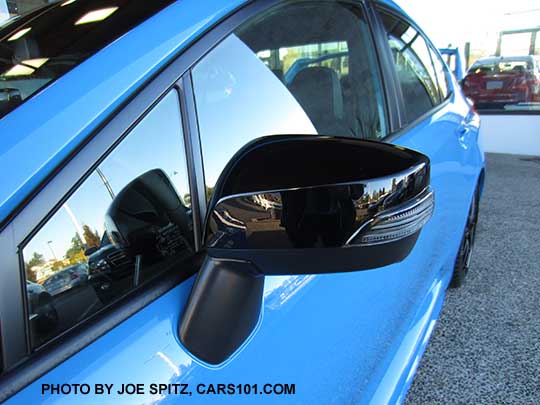

 2016 Subaru STI Series.HyperBlue gloss black outside mirror. Only 700 Series hyperBlues will be made |
|
 2016 WRX outside mirror, Ice Silver |
 2016 Pure Red STI outside mirror with standard integrated mirrors |

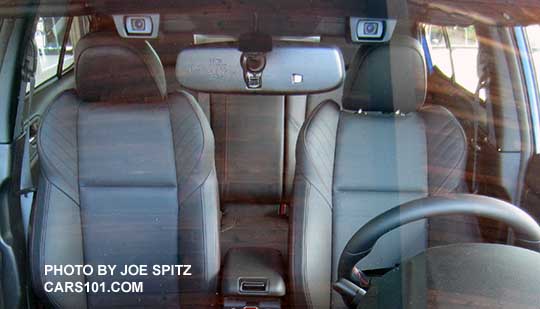

 2016 Subaru WRX with
Eyesight- looking toward Eyesight's two forward facing cameras on both
asides of the rear view mirror, from the front of the car
|

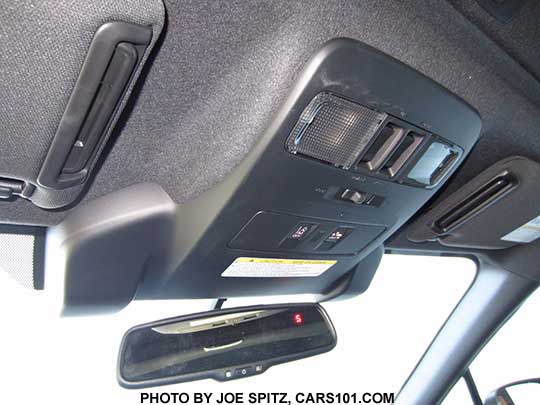

 2016 WRX CVT overhead console with optional Eyesight, as seen from the driver's seat. With Eyesight on/off and moonroof open/close buttons, and dual map lights with door open/lights on switch. Also showing optional auto dimming rear view mirror with compass (no homelink) |
 2016 Subaru WRX - looking through the windshield down into the lens of an Eyesight camera. Don't clean or wipe the camera lens, they are very sensitive. |
|

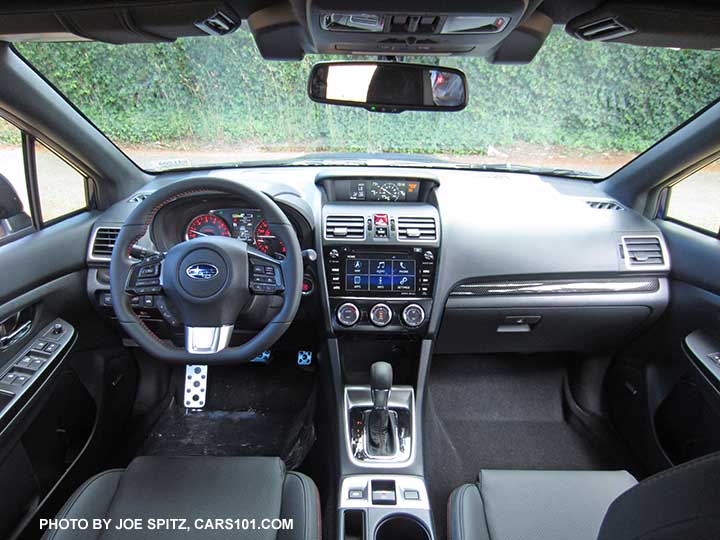

 2016 WRX Premium interior- notice the 6.2" audio screen with physical buttons |
|

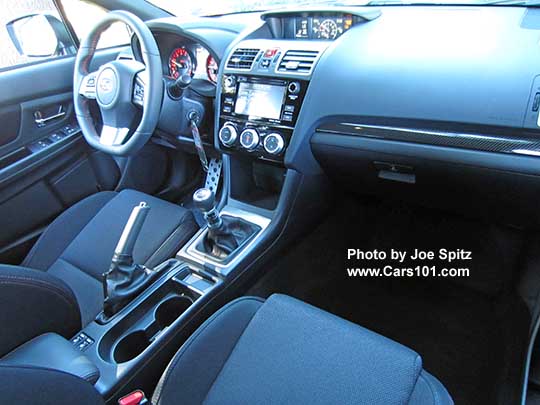

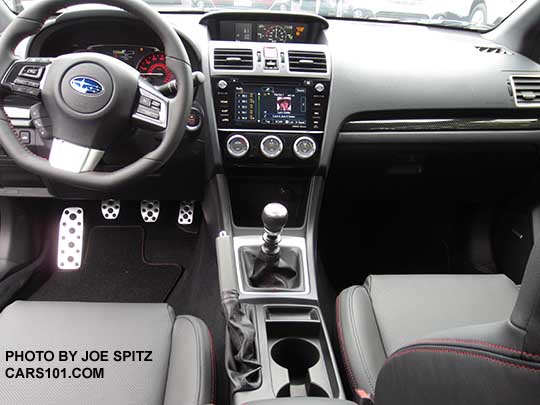

 2016 WRX Limited interior dash console manual transmission. Plastic black carbon fiber trim |
 view from the passenger side of the 2016 Subaru WRX Limited center console with CVT automatic |

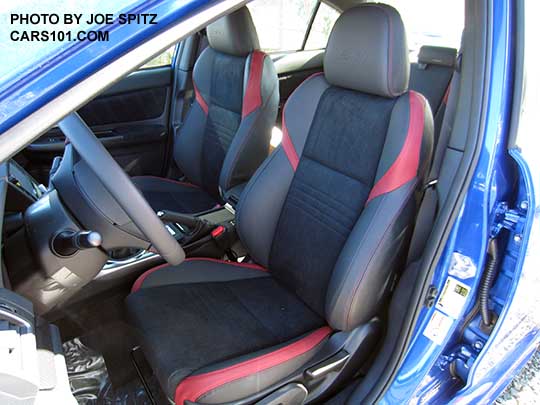

 2016 STI with standard black alcantara seating surfaces with black and red trimmed bolsters |

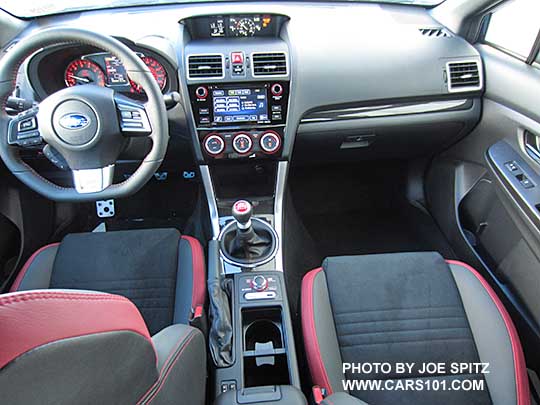

 2016 Subaru STI console and dashboard, with black alcantara material, 6.2" audio system with physical buttons |

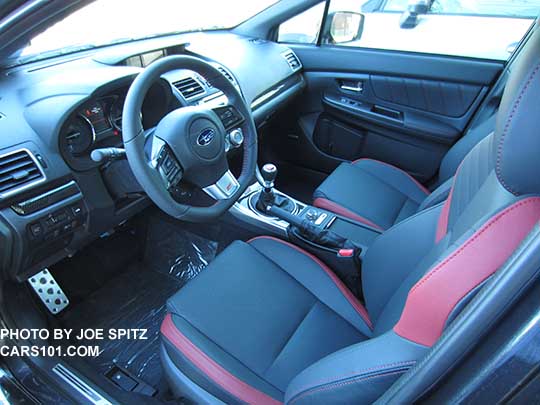

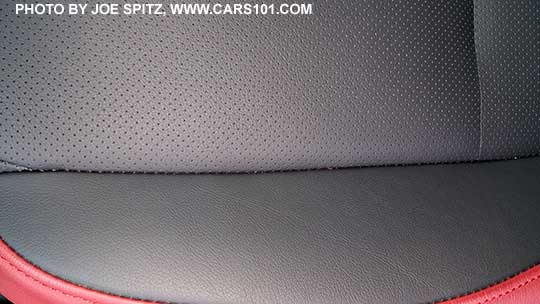

 2016 Subaru STI Limited interior, black leather seating surfaces with red trimmed bolsters, center console cup holder cover (shown closed) |

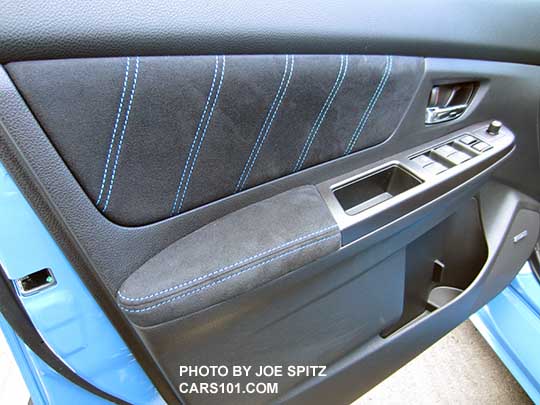

 2016 STI Series.HyperBlue door panel with alcantara material and hyperblue stitching. Only 700 Series.HyperBlue will be made |

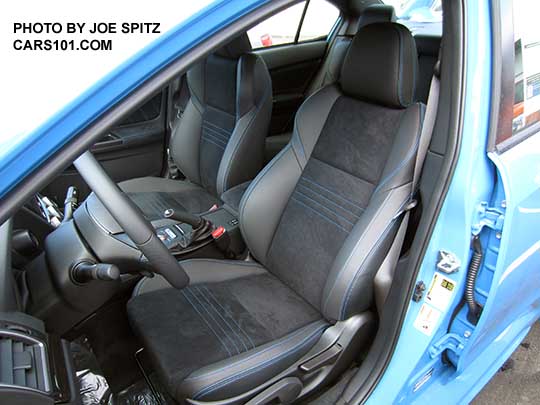

 2016 STI Series.HyperBlue interior- black alcantara seating surfaces, black leather hyperblue stitching. Only 700 Series.HyperBlue will be made |

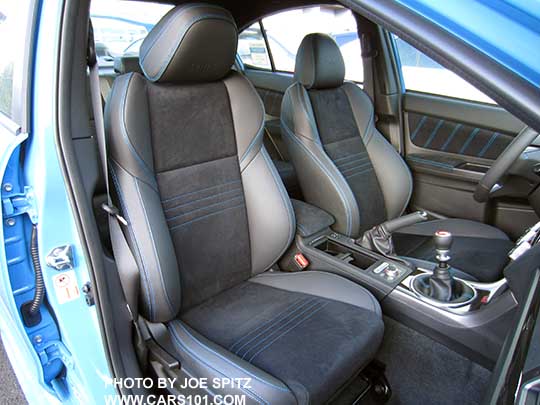

 2016 Subaru WRX STI Series.Hyperblue front seats. Only 700 Series.HyperBlue will be made |
 2016 WRX and STI standard driver controls by driver's left knee, with trunk release, dash light adjustment, VDC off |
 2016 WRX and STI driver controls by driver's left knee, with blind spot and rear cross traffic alert off button, trunk release, VDC off, dash light adjustment |
 2016 WRX Limited with CVT and Eyesight driver controls by driver's left knee, with (optional) blind spot and rear cross traffic alert off button, dash light adjustment, trunk release, SRF steering responsive fog lights off (WRX Limited with Eyesight only), VDC off buttons |
|
 2016 Subaru WRX and STI heated outside mirror with blind spot detection, optional on WRX Limited, standard on STI Limited. |
 2016 Subaru WRX and STI heated outside passenger mirror with blind spot detection, optional on WRX Limited, standard on STI limited |
 2016 WRX and STI blind spot detection off symbol in the center LCD between the gauges. WRX shown |
 WRX Eyesight Lane Keep Assist 'on' symbol on the gauge cluster, see yellow circle |
 STI center LCD display with DCCD display. STI only. The white arrow points at the Blind Spot Detection off light Blind Spot is standard on all STI Limiteds |
 2016 Subaru STI center console SI Drive and DCCD controller. Limited with perforated leather seats shown. |
 2016 WRX and STI sunvisors showing dual illuminated vanity mirrors. |
|

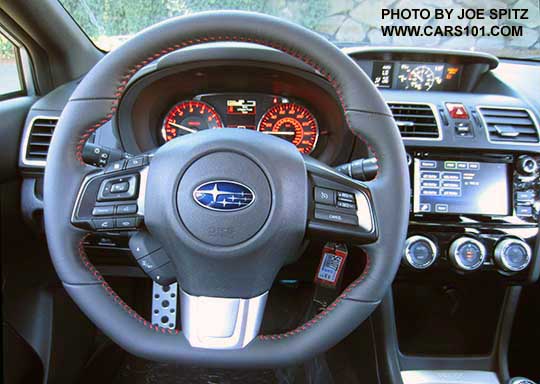

 2016 WRX Premium steering wheel, leather wrapped. Notice the 6.2" audio screen with physical buttons |

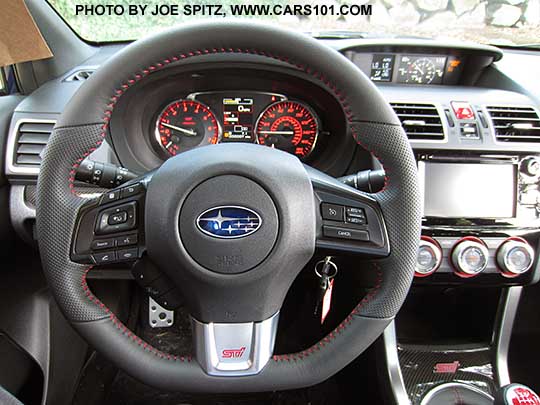

 2016 STI leather wrapped steering wheel has red stitching and dimpled hand grips and STI logo. Notice the 6.2" audio, so this is an STI |

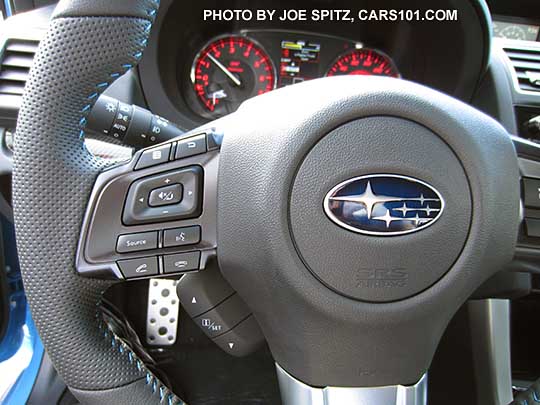

 2016 Subaru WRX STI Series.HyperBlue leather wrapped, 'D' shaped, steering wheel with dimpled hand grips and HyperBlue stitching |
 closeup of the HyperBlue stitching on the 2016 WRX STI Series.Hyperblue steering wheel. Notice the dimpled hand grips, on STIs only |
ALL 2016 AUDIO SYSTEMS ARE A HUGE IMPROVEMENT OVER 2015 MODELS WRX and STI 6.2" audio infotainment system showing home screen. The 6.2" system has matte black physical buttons. WRX single zone climate control shown here many more audio systems photos |

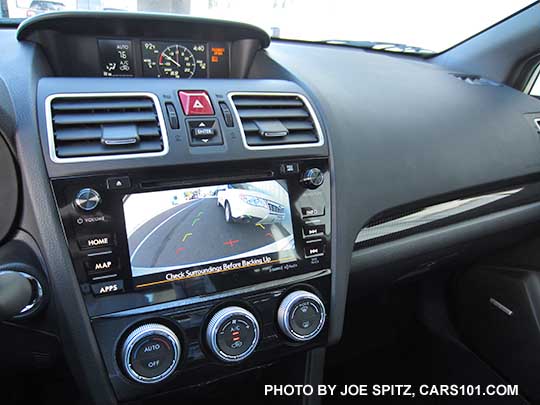

 2016 Subaru WRX and STI have rear view back up camera that you can actually see. This is the 7" audio, navigation, infotainment display screen. WRX shown with single zone climate control. many more audio systems photos |

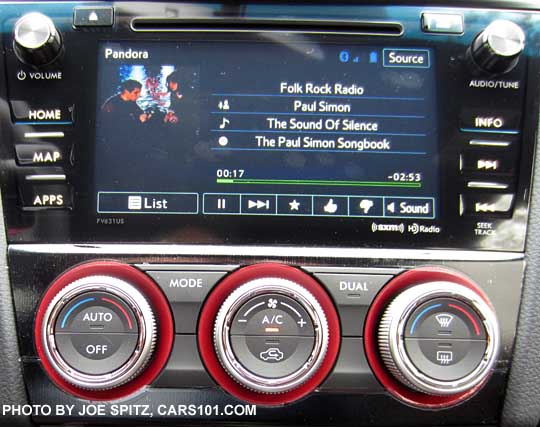

 THE BIG UPGRADE FOR 2016 WRX AND STI MODELS.... 2016 WRX and STI 7" audio showing the Pandora app screen at folk rock radio. STI model shown with dual temperaqture zones and red lit knobs. zones many more audio systems photos |
 2016 WRX and STI 6.2" LCD audio system, with matte black physical buttons, at the music tuning/graphic equalizer screen. STI shown with dual temperature settings. this is the big upgrade for 2016.... many more audio systems photos |
 2016 WRX and STI keys, 2 with remote lock/unlock, 1 valet key. All 3 are chipped and programmed |
 2016 WRX and STI ignition cylinder, red illuminated ring |
 This is the new design keyless fob for 2016 Optional on 2016 Subaru WRX Limited and STI (standard on STI Limited) two pushbutton start keyless access proximity key fobs |
 kelyelss access/pushbutton start button, standard on STI Limited and STI Series.HyperBlue. Optional on 2016 Subaru WRX Limited and STI |
 2016 WRX Limited CVT optional remote engine start key fob and remote start instructions This is the new design keyless key fob for 2016, replaces the square key fob |
|

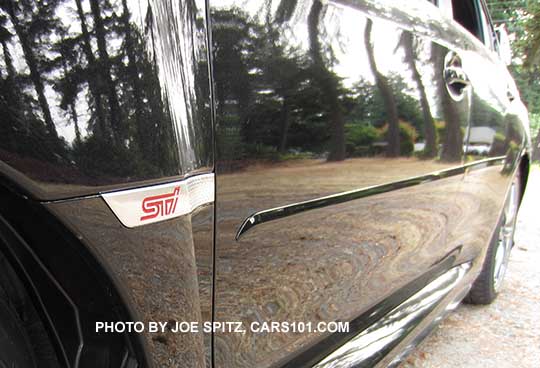

 2016 WRX and STI optional body colored body side molding, black STI shown |

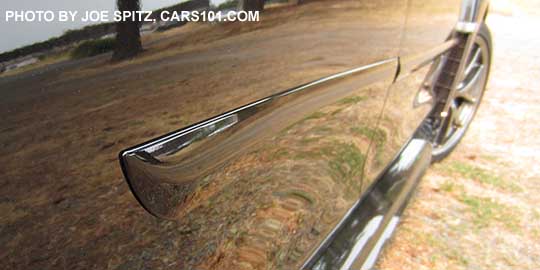

 closeup of the 2016 WRX and STI optional body colored body side molding, black STI shown |
 closeup of the 2016 Subaru WRX and STI optional catback performance exhaust. WRX shown. |
 optional wheel locks are a good idea. See the black circled lug nut, it needs the matching socket to remove it |
 optional 2016 WRX embossed metal door sill plates. Driver's door shown, WR Blue Limited (note the power seat) car shown |
 2016 WRX with clutch, brake, gas and footrest metal pedals. Shown on a limited (note leather power seat) with the standard carpeted floors mat and optional metal WRX front door sill plate. White car shown. |
 2016 WRX, STI body colored body side moldings, WR World Rally Blue WRX, drivers side shown, from rear |
 2016 Subaru WRX and STI optional black Duracon shift knob. STI shown |
 new for 2016 WRX, STI optional 100w power outlet (see white arrow) is moved to the front center console storage. WRX CVT with pushbutton start shown |
 WRX, STI optional 100w power outlet has been moved to the front center console storage |
 2016 WRX STI with aftermarket Rally Armour brand splash guards, Rear shown |

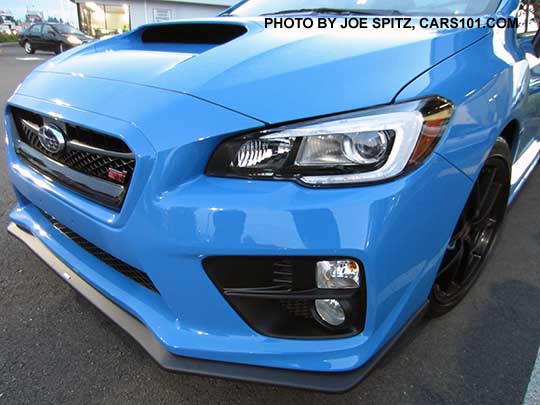

 2016 WRX and STI with optional front underspoiler. Dealer installed. STI Series.Hyperblue shown. |
 Subaru Vortex Generator of a 2016 WRX, crystal white shown |
 very cool 2016 WRX STI optional Vortex Generator. Shown on STI Series.HyperBlue. |
|
RECOMMENDED
MAINTENANCE 2016 WRX and STI subject to change, correction, updating |
|
|
Synthetic 5w-30
Synthetic Oil is required for all turbo engines. Subaru brand oil is available and recommended New Car 1000 mile break-in period keep RPMs under 4000, vary speeds, avoid hard starts/stops Oil Service requires Synthetic 5w-30 oil 1st oil/filter service- replace oil and filter by 6,000 miles or 6 months. Subsequent oil services required at least every 6,000 miles or 6 months. With hard, severe, short trip, cold weather driving replace oil and filter every 3mos/3000 miles from the owner's manual Some engine oil will be consumed while driving. Under the following conditions, oil consumption can be increased and thus require refilling between maintenance intervals: > When the engine is new and within the break-in period > When the engine oil is of lower quality > When the incorrect oil viscosity is used > When engine braking is employed > When the engine is operated at high engine speeds > When the engine is operated under heavy loads > When towing a trailer > When the engine idles for long periods of time > When the vehicle is operated in stop and go and/or heavy traffic situations > When the vehicle is used under severe thermal conditions > When the vehicle accelerates and decelerates frequently > Under these or similar conditions, you should check your oil at least every 2nd fuel fill-up and change your engine oil more frequently. If your oil consumption rate is greater than 1 quart every 1,200 miles or 1 liter every 2,000 kilometers, contact your Subaru dealer who may perform a test under controlled conditions. 6,000 mile/6 months - oil/filter service and tire rotation 12,000 miles/12 months- minor service: inspect all fluids and engine air filter, replace oil/filter, rotate tires, replace cabin air filter 18,000 miles/18 months - oil/filter service and tire rotation 24,000 miles/24 months- minor service: inspect all fluids and engine air filter, replace oil/filter, rotate tires, replace cabin air filter 30,000 miles/30 months- repeat 12,000 mile service, plus replace brake fluid. Inspect all hoses, belts, brakes pads, and fluids including CVT fluid 36,000 miles/36 months - oil/filter service and tire rotation 42,000 miles/42 months - oil/filter service and tire rotation, replace cabin air filter 48,000 miles/48 months - minor service: inspect all fluids and engine air filter, replace oil/filter, rotate tires 54,000 miles/54 months - oil/filter service and tire rotation 60,000 miles/60 months- repeat 30,000 miles service plus spark plug replacement 72,000 miles/72 months- oil/filter service, rotate tires, replace fuel filter 90,000 miles/90 months: repeat 30,000 mile service. 96,000 miles/96 months- STI only replace the timing belt. The WRX has a timing chain that doesn't need to be replaced Coolant- Subaru Super Coolant. The first replacement is 11 years or 137,000 miles. click for the
full 2016 maintenance schedule
| . |
|
-----
M |
|
| top
do not cover wear or damage due to competitive driving subject to change, correction Bumper-to-bumper: 3 year/36,000
mile
full
warranty, towing page |
|
 2 child seats in the back seat of a new 2016 and 2015 Subaru WRX |
 2016 and 2015 WRX and STI Child Seat LATCH- lower anchors shown, see white arrows |
 2016 WRX and STI rear parcel shelf with LATCH system upper tether and Harman Kardon speaker |
 2016 and 2015 WRX and STI Child Seat LATCH- upper tethers shown |
 2016 and 2015 WRX child seat LATCH upper tether in use |
|
|
subject to change, correction |
|
new for 2016 Eyesight Driver Assist Technology- optional on WRX Limited CVT only new for 2016 Rear Vision Detection System, including Blind Spot Detection and Rear Cross Traffic Alert. Optional on WRX Limited and WRX Limited CVT with optional Eyesight only Airbags Driver's knee airbag (new on the 2015 model) Front Airbags, dual front airbags Side Airbags: front driver and passenger side airbags Curtain Airbags: front and rear side curtain Side Curtain Airbags, front and rear driver and passenger Impact sensing fuel cutoff Front headrests- new tilt and height adjustable VDC (vehicle dynamics control) stability control, with TCS (traction control system) with off button Brakes: anti-lock disc brakes Brake Override (BOS) step on both the brake and gas pedals, and the car stops (new on 2015 model) Collapsible Foot Pedals: reduce risk to feet in accidents Brakes: 4 wheel disc Brakes: EBD, electronic brake force distribution varies front/rear brake power Brakes: low-wear indicators on disc brakes Brake Assist: boosts the brake power when the driver cannot depress the brake pedal strongly Tire Pressure Monitoring System (TPMS). |
3 point lap and shoulder belts with Height Adjustable outboard shoulder harness for all (5) occupants. Internal Trunk Release, sedan, emergency inside-trunk release LATCH Child seat Tethers and Uniform Mounting Clips Childproof rear door locks and windows. Daytime running lights Crumple zones: front and rear Drop-down motor mounts Reinforced door beams: Dual front, single rear A Pillar beam 5-mph impact-absorbing bumper
Note the WRX and STI have
summer tires
|
| Rear Vision Detection System, including Blind Spot Detection and Rear Cross Traffic Alert. all new, all features are new for 2016. Standard on STI Limited WRX Limited manual with Option Pkg #22 WRX Limited CVT with Option Package #23 This is the first time it has been available on a WRX The Subaru Rear Vision Detection System (SRVD) includes Lane Change Assist (warns of vehicles approaching in the next lane), Rear Cross Traffic Alert (warns of vehicles approaching when you're backing out of a parking spot) and Blind Spot Detection (BSD) The Subaru Rear Vehicle Detection (SRVD) system uses two radar units, each mounted underneath the sheet metal immediately below the rear taillights. To help avoid damage, the radar units are purposely mounted above the typical bumper impact line. The radar units send out signals to detect vehicles behind and to each side of the Subaru vehicle, especially those vehicles that might not be visible in the rearview mirrors. Lane Change Assist (LCA), at speeds over 6mph, it looks for vehicles farther back in an adjacent lane – about 220 feet behind the Subaru vehicle. If the vehicle detected is approaching quickly – at a speed that could bring it alongside the Subaru vehicle within a few seconds – Lane Change Assist will illuminate a warning icon in the exterior mirror on that side. If the driver signals a lane change, the warning icon in the mirror will flash rapidly. Blind Spot Detection (BSD) is standard on Limiteds, optional on Premiums. At speeds over 6mph, it will illuminate a warning icon in the exterior mirror when it detects a vehicle alongside and behind the Subaru vehicle in an area of about 22 feet x 11 feet. If the driver signals a lane change to that side, the warning icon in the mirror will flash. Rear Cross Traffic Alert (RCTA) uses the same radars and sensors to help detect vehicles that cannot be seen by the driver as they approach from either side. This is especially helpful when reversing from between two larger vehicles. The driver is alerted by a flashing icon in the appropriate exterior mirror, a flashing icon in the rear vision camera display, as well as an audible alert |
|
| Eyesight Driver Assist Technology all new, all features are new for 2016. Optional on the 2016 WRX Limited CVT with Option Package #23 This is the first time it has been available on a WRX. Its the 3rd generation Eyesight (note- 1st gen Eyesight was never offered in the US). Its only available with the CVT transmission Eyesight includes: all new for Subaru Lane Keep Assist- uses the electric power steering to help keep the car from drifting out of the lane on the highway, over app 40mph. Using turn signals or turning the steering wheel etc overrides this function all new for WRX Eyesight models have a new, redesigned center console with an electric parking brake Active cruise control, Lane departure warning Lane Keep Assist- all new for 2016 Pre-collision warning and Pre-collision braking. Steering responsive fog lights > Eyesight models have an electric parking brake > Steering responsive fog lights uses steering wheel position to briefly turn on the left or right fog light to illuminate a corner when the vehicle is turned. Headlights have to be turned on and fog lights off for the system to work. > Active Cruise Control combines the benefits of cruise control with active monitoring of the road ahead. It issues warnings and activates automatic braking when needed. Adaptive Cruise Control can regulate vehicle speed in order to keep a safe following distance from the vehicle ahead. It does not replace conventional cruise control, which can still be used when desired. > Pre-Collision Braking (brake and engine function) can recognize an impending collision, alert the driver and automatically apply the brakes to help avoid a collision or minimize the impact when a collision is inevitable. > Pre-Collision Brake Assist (brake function, from app 7-100 mile per hour)) - If Eyesight recognizes an impending collision and the driver is applying the brakes but not with enough force, Pre-Collision Brake Assist automatically applies up to full braking pressure in order to try to shorten braking distances. > Pre-Collision Throttle Management (engine function) is designed to help prevent drivers from accelerating into a stopped vehicle or other obstacle in front of them. It warns the driver and reduces engine power until he or she applies the brakes to avoid an impact. > Lead Vehicle Start Alert (beep function) is a helpful EyeSight feature that alerts the driver when his or her vehicle remains stopped after a vehicle in front has started to move away, going at least app 10ft > Lane Departure Warning (beep function, over app 30mph) alerts drivers when they unintentionally move out of their travel lane. It takes no corrective vehicle action other than issuing visual and audible warnings. Works over app 30mph > Lane Keep Assist (steering function) is a new addition to Subaru Eyesight. It uses the electric power steering to help keep the car from drifting out of the lane on the highway. Using turn signals or deliberately turning the steering wheel overrides this function. If you drive on freeways above app 40-90 miles per hour and the vehcile is about to depart from the lane, the system assists the steering operation by turning it in a direction that will prevent the lane departure. Driver control of the steering wheel, brakes, turn signals and gas pedal will override this steering function. > Lane Sway Warning (beep function, over app 38mph) acts in a similar way, detecting unusual back and forth vehicle movement within the lane of travel. Lane Sway Warning operates at speeds over app 38 mph. Eyesight cars have three windshield washer squirters, with the middle one to clean in front of the cameras. The camera’s field of view is about 35 degrees horizontally from the center of the windshield. The camera’s field of vision extends up to about 360 feet in front of the vehicle, but objects very close to the vehicle may not be detected EyeSight works to recognize obstacles up to about a 30-mph (or less) speed differential. Essentially, EyeSight needs time to recognize an object or potential obstacle. If the speed difference between the EyeSight vehicle and the object is greater than up to 30 mph, the object will likely not be detected. Note- do not touch or try to clean the EyeSight camera lenses. It is imperative that extra precaution be used when cleaning the inside of the windshield, because over-spray from cleaners may impair or even damage the cameras’ lenses, which is not a warranty issue |
|
|
2016 WRX and STI DIMENSIONS same as 2015. subject to change, correction, updating |
||
| MEASUREMENT |
WRX |
STI |
| overall length |
180.9" |
180.9" |
| overall width |
70.7 |
70.7' |
| overall width with mirrors folded out |
78.9' |
79.5 including turn signals |
| overall height |
58.1' |
58.1" |
| wheelbase |
104.3 |
104.3" |
| track front/rear |
60.2/60.6 |
60.2/60.6" |
| ground clearance, at exhaust pipe |
4.9" |
4.9" |
| angle of approach |
13.5* |
13.5* |
| angle of departure | WRX 16.1* Premium, Limited 16.2* |
16.2* |
| Interior Headroom front/rear
- with moonroof |
37.2"/37.1" |
37.2/37.1" |
| Interior Headroom front/rear - without moonroof | 39.8/37.1" |
39.8/37.1" |
| Interior shoulder room front/rear |
55.6/54.2" |
55.6/54.2" |
| Interior Legroom front/rear | 43.3/35.4" |
43.3/35.4" |
| Cargo trunk volume, rear seats up |
12cf seats up | 12cf seats up |
| Passenger volume, without moonroof |
96.9 cf |
96.9cf |
| Passenger volume, with moonroof |
93.1cf |
93.1cf |
| coefficient of drag |
0.32 |
0.32 |
2016 Subaru WRX and STI trunk and pass-through measurements and dimensions hand measured Same as 2015 model. Subject to change and correction  golf clubs fit in the trunk of the 2016 and 2015 WRX and STI with room to spare - |
|
 |
hand measured A- width at bottom of trunk opening 31 1/2" B- length from back corner to front corner by seat 61" C- width floor between wheel wells 42 1/2" D- trunk opening from lower corner to upper corner 42" E- width from inner hinge cover to inner hinge cover 39" F- width at top of trunk opening 44" G- from lower corner to inner hinge cover 39" |
 |
hand measured A- floor length to front center console 103' B- left rear seat width 16 3/4 C- right rear seat width 25 1/2 D- pass through opening lower corner to upper corner 44 1/2" E-cargo height floor to ceiling in center of floor 17 1/2" (note- the trunk springs and rear center shoulder harness impact height) F- width top of pass through opening 44" |
 |
PASS-THROUGH hand measured A- width pass-through opening at floor 44" B- width pass-through lower corner to upper corner 44 1/2 C-width or pass-through opening at top 42" D- height of pass-through opening 15 1/2" F- width rear door armrest to door armrest 50 1/2" |
|
2016 WRX and STI Model Option Packages Factory installed Major Model Option Packages see below for accessory option package and individual accessories all info subject to change, updating |
|||
| MODEL |
model code |
package number |
OPTION PACKAGE |
| WRX, manual trans |
GUN |
#01 |
standard |
| --- |
|||
| WRX Premium, manual |
GUO |
#11 |
standard |
| #12 |
new for 2016 > Starlink 7.0" high resolution touchscreen LCD audio and navigation/gps system (new 3 years free map updates), voice activated controls, AM/FM/HD single CD, SiriusXM (free for 4 mos), Harman Kardon 440w amp, 9 h/k speakers including subwoofer speaker, handsfree cell phone Bluetooth with call history and phone number download, dual USB ports, Aux jack, Bluetooth audio streaming, text messaging, itunes tagging, Pandora, iHeart radio and Aha apps, 3 years free XM Nav/traffic and Travel Link with weather, sports, stock market, and fuel station finder. Smartphone required and not all functions work with all phones. Rear view back-up camera displays in the screen MSRP $2100 |
||
| ---- | |||
| WRX Premium CVT, Sport Lineartronic CVT |
GUP |
#11 |
standard. with SI Drive with Paddle Shifters with 6 and 8 speeds depending on SI Drive setting |
| ---- | |||
| WRX Limited, manual |
GUQ |
#21 |
standard |
| #22 |
> Keyless access, pushbutton start with new for 2016 pin code access and new oval keyfob > all new for 2016 Subaru Rear Vehicle Detection system with Blind Spot Detection, Rear Cross Traffic alert, and turn signals in the outside mirrors > new for 2016 Starlink 7.0" high resolution touchscreen LCD audio and navigation/gps system (new 3 years free map updates), voice activated controls, AM/FM/HD single CD, SiriusXM (free for 4 mos), Harman Kardon 440w amp, 9 h/k speakers including subwoofer speaker, handsfree cell phone Bluetooth with call history and phone number download, dual USB ports, Aux jack, Bluetooth audio streaming, text messaging, itunes tagging, Pandora, iHeart radio and Aha apps, 3 years free XM Nav/traffic and Travel Link with weather, sports, stock market, and fuel station finder.. Smartphone required and not all functions work with all phones. Rear view back-up camera displays in the screen MSRP $3100 |
||
| - - - - | |||
| WRX Limited CVT, Sport Lineartronic CVT |
GUR |
#21 |
standard with SI Drive with Paddle Shifters with 6 and 8 speeds depending on SI Drive setting |
| #23 |
> Keyless access, pushbutton start with new for 2016 model pin code access, and new oval keyfob > all new for 2016 Subaru Rear Vehicle Detection system with Blind Spot Detection, Rear Cross Traffic alert, and turn signals in the outside mirrors all new for 2016 Eyesight with redesigned center console with a new for WRX electric parking brake, active cruise control, steering responsive fog lights, Lane departure warning, new feature for Subaru Eyesight Lane Keep Assist which uses the electric power steering to keep the vehicle in lane at highway speeds, Pre-collision braking, > all new for 2016 Starlink 7.0" high resolution touchscreen LCD audio and navigation/gps system (new 3 years free map updates), voice activated controls, AM/FM/HD single CD, SiriusXM (free for 4 mos), Harman Kardon 440w amp, 9 h/k speakers including subwoofer speaker, handsfree cell phone Bluetooth with call history and phone number download, dual USB ports, Aux jack, Bluetooth audio streaming, text messaging, itunes tagging, Pandora, iHeart radio and Aha apps, 3 years free SiriusXM Nav/traffic and Travel Link with weather, sports, stock market, and fuel station finder. Smartphone required, not all functions work with all phones Rear view back-up camera displays in the screen. MSRP $4,095 |
||
| - - - - |
|||
| STI, with tall rear trunk spoiler. | GUS |
#02 |
standard |
| #03 |
> Keyless access, pushbutton start with new for 2016 pin code access > new for 2016 Starlink 7.0" high resolution touchscreen LCD audio and navigation/gps system (new 3 years free map updates), voice activated controls, AM/FM/HD single CD, SiriusXM (free for 4 mos), Harman Kardon 440w amp, 9 h/k speakers including subwoofer speaker, handsfree cell phone Bluetooth with call history and phone number download, dual USB ports, Aux jack, Bluetooth audio streaming, text messaging, itunes tagging, Pandora, iHeart radio and Aha apps, 3 years free SiriusXM Nav/traffic and Travel Link with weather, sports, stock market, and fuel station finder.. Smartphone required and not all functions work with all phones. Rear view back-up camera displays in the screen MSRP $2600 |
||
| --- |
|||
| STI Series.HyperBlue with tall rear trunk spoiler. new package |
GUT |
#04 |
new package and color, production limited to 700 models, all Hyper Blue color Prices announced 8/27/15 Includes Alcantara seating surfaces with leather bolsters and hyperblue stitching, leather wrapped steering wheel and shift boot with hyperblue stitching. 18" Black BBS alloy wheels, black badges with red STI lettering, black painted outside mirrors, Welcome lighting, 7" audio system with 9 Harman/Kardon speakers with 440w equivalent amp, Navigation system, Pushbutton start/keyless access with new oval keyfob, and pin Code Access. Starlink 7.0" high resolution touchscreen LCD audio and navigation/gps system (new 3 years free map updates), voice activated controls, AM/FM/HD single CD, SiriusXM (free for 4 mos), Harman Kardon 440w equivalent amp, 9 h/k speakers including subwoofer speaker, handsfree cell phone Bluetooth with call history and phone number download, dual USB ports, Aux jack, Bluetooth audio streaming, text messaging, itunes tagging, Pandora, iHeart radio and Aha apps, 3 years free SiriusXM Nav/traffic and Travel Link with weather, sports, stock market, and fuel station finder., not all functions work with all phones Rear view back-up camera displays in the screen . available starting October 2015. Only 700 available. MSRP $4300 |
| - - - - | |||
| STI Limited with tall rear trunk spoiler | GUV |
#21 |
standard note: new for 2016 all STIs have Subaru Rear Vehicle Detection system with Blind Spot Detection, Rear Cross Traffic alert, and turn signals in the outside mirrors |
| - - - - |
|||
| new model for 2016 STI Limited with low profile rear trunk spoiler |
GUW | #21 |
standard note: new for 2016 all STIs have Subaru Rear Vehicle Detection system with Blind Spot Detection, Rear Cross Traffic alert, and turn signals in the outside mirrors |
|
2016 WRX and STI prices MSRP suggested list prices Please contact your dealer for local prices in your area If you're in the greater Seattle-NW area please call me at 206 769-7821 NOTES, NEWS, UPDATES 3/24/16 2016 WRX orders ending tomorrow 3/25. That's not much advance warning! 2017 model orders should be available early May. No changes for 2017 models have been announced. STI Series.HyperBlue announced 8/27/15 Factory orders available starting 4/24/15. Cars expected late May-June Prices announced 4/23/15 Destination remains at $795, same as the 2015s. Alaska + $145 to $945
-
subject to change and updating
|
|||||||||||||||||||||
| car |
price |
. |
model option packages with total MSRP including option package |
||||||||||||||||||
| model |
code |
base msrp |
dest |
total MSRP |
. |
#01 incl |
#02 incl | #04 incl |
#03 $2600 |
#11 incl |
#12 $2,100 |
#21 incl |
#22 $3,100 |
#23 $4,095 |
blank |
||||||
| WRX, manual |
GUN |
$26,595 |
$795 |
$27,390 |
. |
$27,390 |
- | - |
- |
- |
- |
- |
- |
- |
- |
||||||
| WRX Premium, manual |
GUO |
$28,895 |
$795 | $29,690 |
. |
- |
- | - |
- |
$29,690 |
$31,790 |
- |
- |
- |
- |
||||||
| WRX Premium, CVT |
GUP |
$30,095 |
$795 | $30,890 |
. |
- |
- | - |
- |
$30,890 |
- |
- |
- |
- |
- |
||||||
| WRX Limited, manual |
GUQ |
$30,395 |
$795 | $31,190 |
. |
- |
- | - |
- |
- |
- |
$31,190 |
$34,290 |
- |
- |
||||||
| WRX Limited, CVT |
GUR |
$31,595 |
$795 | $32,390 |
. |
- |
- | -- |
- |
- |
- |
$32,390 |
- |
$36,485 |
- |
||||||
| STI, tall spoiler |
GUS |
$34,695 |
$795 | $35,490 |
. |
- |
$35,490 | - |
$38,090 |
- |
- |
- |
- |
- |
- |
||||||
| STI Series.HyperBlue tall spoiler, only 700 will be made |
GUT |
$38,995 |
$795 |
$39,790 |
. |
- |
- |
$39.790 |
- |
- |
- |
- |
- |
- |
- |
||||||
| STI Limited- tall spoiler |
GUV |
$39,995 |
$795 | $40,790 |
. |
- |
- | - |
- |
- |
- |
$40,790 |
- |
- |
- |
||||||
| STI Limited- low profile spoiler new for 2016 |
GUW |
$39,995 |
$795 | $40,790 |
. |
- |
- | - |
- |
- |
- |
$40,790 |
- |
- |
- |
||||||
|
2016 WRX and STI specifications and details table -
subject to change, correction, updating |
||||||||||||
| model |
WRX |
STI |
||||||||||
| WRX |
WRX Premium |
WRX Premium CVT |
WRX Limited |
WRX Limited CVT |
STI |
STI Series.HyperBlue |
STI Limited |
|||||
| model code with option code |
GUN#01 |
GUO #11, #12 |
GUP #11 |
GUQ #21, #22 |
GUR #21, #23 |
GUS #02, #03 |
GUT #04 only 700 made |
GUU tall spoiler, GUW low spoiler |
||||
| Engine |
2nd year for this engine 2.0L 4 cylinder, 1,998 cc DOHC, Boxer engine twin scroll turbo, intercooled Turbo is water cooled, the bearing is oiled aluminum block and head gasoline direct fuel injection (GDI) direct ignition by Subaru bore x stroke 3.39" x 3.39" (86mmx86mm) compression 10.6:1 Max boost 15.9psi Redline 6600rpm, Speedometer to 180mph timing chain (no replacement required) firing order 1-3-2-4 idle speed 700 +/-100 ignition timing BTDC 10* +/-10* spark plugs- NGK ILKAR8H6 battery 12v, 48ah, CCA 390a fuel, Premium 91 octane oil- 5w-30 synthetic, 5.4 US qts emissions: Tier II Bin 5/Lev II Lev |
2.5L, 2457cc, 4 cylinder, DOHC, Boxer engine turbocharged, intercooled Turbo is water cooled, the bearing is oiled aluminum block with integral cast iron cylinder liners, 5 main bearings, semi-closed deck design aluminum heads, 16 valves with Dual Active Valve Control System variable valve timing bore x stroke 3.92" x 3.11", 99.5x79mm compression 8.2:1 Max boost14.7psi Direct ignition timing belt (replace at 96,000 miles/96mos) Redline 6600rpm Speedometer tp 180mph firing order 1-3-2.4 idle speed 700 +/- 100 ignition timing 15* +/-10* spark plugs NGK SILFR6A iridium tipped battery 12v, 48ah, CCA 390a fuel, Premium 93 octane oil- 5w-30 synthetic, emissions: Tier II Bin 5/Lev II Lev |
||||||||||
| Horsepower, Torque |
268hp at 5600rpm, 258ft-lb at 2000-5200rpm |
305hp at 6000rpm, 290ft-lb torque at 4000rpm |
||||||||||
| All Wheel Drive |
S |
S |
S |
S |
S |
S, with DCCD |
S, with DCCD |
S, with DCCD |
||||
| All Wheel Drive, manual trans models- Continuous all wheel drive |
Continuous AWD with 50/50 front back power split. viscous center differential controls the front/rear power split, with up to 100% to the non-slipping wheels | not available |
||||||||||
| All Wheel Drive, Sport CVT models only- VTD variable toque distribution all wheel drive. . |
VTD
(Variable Torque Distribution) AWD on Premium and Limited with CVT is a
performance oriented, rear biased, variable 45/55 front/rear power
split |
not available
|
||||||||||
| All Wheel Drive, DCCD system- manual transmission | not available | Mechanical
center differential, with an electronically controlled limited slip
center differential with 41/59 front/rear power split when the DCCD is
auto mode. DCCD manual mode, the 6 driver selectable settings are from 41/59 front/rear to 50/50 at the top Lock position. DCCD 3 auto modes- auto, 'auto' mode for rear bias and best all around driving '+' mode for slippery, gravel or snow driving. '-' mode for more rear bias dry road, high speed driving. |
||||||||||
| VDC vehicle dynamics control with 2 off settings, TCS traction control with Torque Vectoring |
S |
S |
S |
S |
S |
S, multi mode |
S, multi mode | S, multi mode |
||||
| Transmission 6 speed manual |
S |
S |
na |
S |
na |
na |
||||||
| Transmission 6 speed
manual with Si Drive and DCCD driver controlled center differential
front/rear power split, and front and rear limited slip |
na |
na |
na |
na |
na |
S close ratio |
S close ratio |
S close ratio, |
||||
| Transmission, manual gear ratios, hydraulic clutch |
1st 3.454, 2nd 1.947, 3rd 1.296, 4th 0.972, 5th 0.780, 6th 0.666. final 4.111 |
1st 3.636, 2nd 2.235, 3rd 1.521, 4th 1.137, 5th 0.971, 6th 0.756, final 3.900 |
||||||||||
| Incline start assist- manual transmission only. Holds the vehicle from rolling down a hill for app 1.5 to 2 seconds |
S |
S |
-- |
S |
-- |
S - to turn off (STI only), press and holding the VDC off button, then press it again |
||||||
| model reminder |
WRX |
WRX Premium |
WRX Premium CVT |
WRX Limited |
WRX Limited CVT |
STI |
STI Series.HyperBlue |
STI Limited |
||||
| Transmission, CVT- Lineartronic Sport CVT (continuously variable transmission), with Si Drive and Paddle Shifters with 6 and 8 speed settings |
na |
na |
S forward 3.505-0.5444 |
na |
S forward 3.505-0.5444 |
na |
na |
na |
||||
| Si Drive with 3 drive modes (I, S, S#) with steering wheel controls |
na |
na |
S |
na |
S |
S |
S |
S |
||||
| CVT Si drive "gear" setting ratios- Si Drive with 3 driver selectable drive modes I intelligent mode for best economy, 6 CVT settings, S sport mode for more power, 6 CVT settings S# sport sharp mode for best performance, 8 CVT settings |
I, S modes, 6 CVT settings 1st 3.505, 2nd 2.238, 3rd 1,641, 4th 1.194, 5tyh 0.880, 6th 0.611. Final drive 3.90 S# mode, 8 CVT settings 1st 3.505, 2nd 2.405, 3rd 1.855, 4th 1.544, 5th 1.258, 6th 1.032, 7th 0.856, 8th 0.716. Final drive 3,90 |
na |
na |
na |
||||||||
| Dashboard Instrument panel gauges- 2 main round gauges with bright trim rings, with a center digital info display between them. Gauges have red numbering, white needles, on a black background. Tachometer redline at 6600 RPM Speedometer- to 180mph Fuel gauge Engine coolant temp gauge Eco fuel economy +/- bar |
WRX:
center display with digital speedometer, gear indicator, main odometer
and two resettable trip odometers, Si drive setting (CVT only), Eyesight
setting/warning (if equipped), |
STI:
center display with DCCD settings, Si Drive setting, digital
speedometer, gear indicator, main odometer, two resettable trip
odometers, REV alarm indicator |
||||||||||
| Suspension | 4 wheel independent front: McPherson type struts, aluminum lower L arms, stabilizer Rear: double wishbone, stabilizer Note: Premium and Limited have inverted front struts for improved handling and response |
High performance STI sport tuned 4 wheel independent, front: inverted McPherson type struts, forged aluminum lower A arms, 24mm stabilizer Rear: double wishbone, stabilizer, stiffener bar, 20mm stabilizer bar |
||||||||||
| Fuel economy city/highway/combined 15.9 gallon capacity with low fuel warning light |
20/27/23 |
18/24/21 |
20/27/23 | 18/24/21 |
17/23/19 |
|||||||

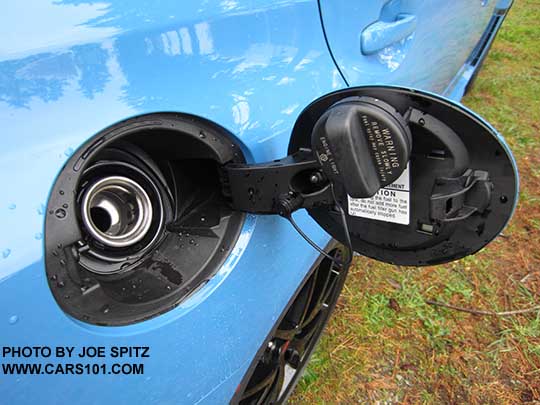

| Fuel type |
Premium fuel recommended 91 octane |
Premium fuel required 91 octane required, 93 octane recommended if available |
||||||||||
| Steering: quick ratio rack and pinion |
electric power assisted, vehicle speed and torque sensitive (EPAS) | hydraulic power assisted | ||||||||||
| Steering ratio, quick ratio |
14.3:1 |
14.4:1 |
14.4:1 | 14.4:1 | 14.4:1 | 13.0:1 |
13.0:1 |
13.0:1 |
||||
| Steering turning circle, curb to curb steering wheel turns lock-to-lock |
35.4 2.8 turns |
36.0 2.7 turns |
36.0 2.7 turns |
36.0 2.7 turns |
36.0 2.7 turns |
36.0 2.5 turns |
36.0 2.5 turns |
36.0 2.5 turns |
||||
| Turning radius, minimum |
17.7' |
18.4' |
||||||||||
| Brakes |
anti lock, 4 wheel 4 channel BOS- brake override system (when gas, brake pedals are pressed, the car stops) EBD- electronic brake force distribution front: Dual piston calipers rear: single piston calipers Front disc, vented, 12.4", Rear disc, solid, 11.3" |
Brembo brake system, black calipers with STI logo, 4 wheel/4 channel Super-Sport anti lock brake system, BOS- brake override system (when gas and brake pedals are pressed, the car stops) EBD- electronic brake force distribution front: 4 piston calipers, fixed position rear: dual piston calipers, fixed position, heavy duty rotors Front: vented disc 13.0", Rear: vented disc 12.4". |
||||||||||
| new for WRX, STI Blind spot detection with rear cross traffic alert radar system, turn signals in outside mirrors |
-- |
-- |
-- |
O, pkg #22 |
O, pkg #23 |
-- |
-- |
S |
||||
| new for WRX, STI Eyesight- 2 forward facing cameras by the rear view mirror with Lane keep assist, Active cruise control, Pre-collision braking, Lane departure warning, Steering responsive fog lights |
-- |
-- |
-- |
-- |
O pkg #23 |
-- |
-- |
-- |
||||
| Wheels all offset 55 (2.17), P.C.D 114.3 (4.50) |
17x8j dark gray finish alloy |
18" wheels are new for Premium, Limited 18x8.5j dark gray finish alloy |
8x8.5" 5 split spoke dark gray finish alloy | 8x8.5" black BBS forged 18x8.5", alloys |
Silver BBS forged 18x8.5", high luster finish alloys |
|||||||
| Tires with TPMS- tire pressure monitoring system. The TPMS sensors are not self registering and must be registered each time the tire is removed from the wheel |
235/45 R17 94W Dunlop SP Sport Maxx RT summer performance tire | 245/40 R18 94W Dunlop SP Sport Maxx RT summer performance tire | 245/40R18 97W Dunlop SP Sport Maxx RT summer perf. | |||||||||
| TPMS, tire pressure monitoring system | S |
|||||||||||
| tire chains |
due
to a lack of clearance tire chains cannot be used. It's recommended to
get a set of 4 winter, snow, or studded tires for cold or wet weather
traction. The use of traction devices that do not go on the inside wall
of the front tires, such as spider spikes, might be acceptable. |
|||||||||||
| Spare tire |
17x4 temporary duty |
|||||||||||
| model reminder |
WRX |
Premium |
Premium CVT |
WRX Limited |
WRX Limited CVT |
STI |
Series.HyperBlue |
STI Limited |
||||
| Headlights |
halogen projector low beam, halogen multi-reflector high beam on/off with key in/out of ignition cylinder daytime running lights silver inner surround |
LED low beam with automatic aiming multi-reflector halogen high beam auto dusk to dawn on/off on/off with key in/out of ignition cylinder daytime running lights black inner surround |
LED low beam with automatic aiming, halogen multi-reflector high beam, auto dusk to dawn on/off, on/off with key in/out of ignition cylinder, daytime running lights, black inner surround, |
|||||||||
| Tail and brake lights |
S LED |
|||||||||||
| Fog lights Note: Eyesight models have with steering responsive fog lights that turn on to illuminate a corner when turning |
O |
S |
S |
S |
S |
S |
S |
S |
||||
| Welcome Lighting- head and tail lights turn on for 30 seconds when the
doors are unlocked with the remote. Can be set to 60 or 90 seconds |
-- |
-- |
-- |
S |
S |
-- |
S |
S |
||||
| EDR- event data recorder | this
vehicle has an EDR, which in crash or near crash conditions such as air
bag deployment or hitting something, records various car functions
related to safety and other similar functions for a short period of time
(30 seconds or less). Speed, seatbelt use, steering wheel, gas pedal,
and brake pedal position etc are noted. Special equipment is needed to
read the EDR. No personal information such as age, name, gender, crash
location is recorded. |
|||||||||||
| Hood |
aluminum, with 2 gas struts supports, and undercover insulator |
|||||||||||
| Curb weight, pounds (GVWR, all models 4409 lbs) |
3269 |
3302-3349 | 3450 | 3338-3375 | 3468-3519 |
3386-3419 |
3439-3455 |
|||||
| model |
WRX |
WRX Prm |
WRX Prm CVT |
WRX Limited |
WRX Ltd CVT |
STI |
STI Series.HyperBlue |
STI Limited |
||||
|
2016 WRX AND STI MODEL BY MODEL STANDARD FEATURES SNAPSHOT scroll down for Features Chart subject to change, correction, updating |
|
|
2016 WRX 4 DOOR SEDAN STANDARD FEATURES model code: GUN, manual transmission
New on this model- trunk spoiler new on 2016 standard model Illuminated vanity mirrors New for 2016- one touch turn signals. tap up or down for 3 flashes New for 2016- upgraded audio system- 6.2" LCD high resolution touchscreen infotainment system Mechanical Engine: 2.0L DOHC direct injection 4 cylinder intercooled, turbo Power: 268hp @5600rpm, 258lb-ft torque @ 2000-52000rpm Transmission: 6 speed manual, or optional Sport Lineartronic CVT with SI Drive and Paddle Shifters on Premium and Limited models only All Wheel Drive Multi-mode VDC and TCS (vehicle dynamics control, traction control system) Electric power assisted steering (EPAS), quick ratio Electronic throttle control Immobilizer key with ignition disabling alarm Suspension- sport tuned 17" alloy wheels, 15 spoke 235/45 R17 94W summer performance tires Exhaust- quad outlets with stainless tips Safety Rear view back-up camera- displays in the audio systems high resolution screen Impact sensing fuel cutoff Driver's knee airbag Height and tilt adjusting front headrests Driver and passenger front airbags Diver and passenger front side pelvis/torso airbags (previously called side airbags) Front and rear side curtain airbags Incline start assist- minimize roll-back when starting on a hill Anti-lock disc brakes- 4 wheel, 4 channel Brake assist- maximizes brake pressure Brake override- brake pedal overrides gas pedal when both are pressed EBD- electronic brake force distribution Safety pedal system (break-away pedals) Daytime running lights (DRL) Whiplash protection front seats TPMS- tire pressure monitoring system Headrests- 2 front, 3 rear LATCH system for child seats Lighting DRL- day time running lights Headlight- auto on/off with ignition key in/out LED taillights and brake lights Dual overhead map lights Overhead dome light Illuminated ignition key ring Illuminated front console storage |
WRX, continued Interior and Convenience Electroluminescent instrument panel with color LCD multi-function display LCD multi-function display with turbo boost gauge, MPG displays etc 2015 Eco fuel economy gauge Rear view back-up camera displays in audio screen Performance design front bucket seats Keys, 3 supplied- 2 with Remote keyless entry, 1 valet key. All chipped immobilizer anti-theft system Carpeted floor mats with WRX logo Illuminated vanity mirrors Power windows, illuminated switches Power driver's window- auto up/down Power locks Power mirrors, body colored, foldable break-away Cruise control, steering wheel controls Driver's seat- height adjustable Cupholders: 2 in front console, 2 in rear of center console, 1 in each of the doors Climate control heat and air conditioning Cabin air filter, HVAC air filtration system, behind the glovebox. Replace filter yearly new for 2016 One touch turn signals. tap up or down for 3 flashes Inside door handles- chrome Steering wheel- flat bottom 'D' shaped leather wrapped with red stitching Steering wheel- audio and bluetooth controls Steering wheel- tilt and telescope Shift handle- leather wrapped Passenger seat seatback map pocket 12v power outlets, 2. Rear seat backs- 60/40 split folding Alloy gas/brake/clutch pedal covers, incl footrest Exterior new for 2016 Trunk spoiler Headlights- chrome inner surround bezel Body colored outside door handles and outside mirrors Rear bumper diffuser, Functional front fender side scoops Hood scoop Front bumper underspoiler Rear bumper underspoiler Rocker spoiler Stereo new for 2016 6.2" high resolution single-touch touch screen, nice clear rear view back-up camera display, 6 speakers, AM/FM/HD radio, SiriusXM satellite radio (4 mos incl), single CD, Starlink smartphone integration (by Clarion) with Pandora, Aha (by h/k), iHeart radio, with single USB port, aux plug, Bluetooth steering wheel controls, wireless audio streaming, steering wheel with bluetooth, audio, one dash and one center console 12v power outlets. Downloads up to 1000 phone contacts. Rear view camera displays in this screen option packages none |
2016 Premium adds over the WRX (above) GUO manual transmission GUP high torque CVT transmission with SI Drive, Paddle Shifters all the features of the WRX plus New for 2016 upgraded audio system- 6.2" LCD touchscreen infotainment system new for 2016 Inverted front struts for improved handling on Premium and Limited new for 2016 18" gray finish alloy wheels with 245/40 R18 97W summer performance tires Fog Lights Power moonroof with shade Inverted front struts for improved handling 18" gray finish alloy wheels with 245/40 R18 97W summer performance tires All Weather Package- heated front seats (high/low), defrosting outside mirrors and front wiper de-icers Optional CVT transmission with Paddle Shifters and SI Drive engine management, and shift knob is leather wrapped, with red stitching Audio new for 2016 same as WRX model above. new for 2016 6.2" high resolution single-touch touch screen, nice clear rear view back-up camera display, 6 speakers, AM/FM/HD radio, SiriusXM satellite radio (4 mos included) single CD, Starlink smartphone integration (by Clarion) with Pandora, Aha (by h/k), iHeart radio, with single USB port, aux plug, Bluetooth steering wheel controls, wireless audio streaming, steering wheel with bluetooth, audio, one dash and one center console 12v power outlets. Downloads up to 1000 phone contacts Note: the optional 7" audio system is a significant and worthwhile upgrade over the standard 6.2" system option packages GUO manual transmission new for 2016 #12- 7" high resolution touch screen audio infotainment system- Starlink apps, navigation, harman/kardon audio, CVT transmission, model code GUP none |
2016 Limited adds over the Premium model codes: GUQ manual transmission, GUR high torque CVT transmission with SI drive, Paddle Shifters NEW FOR 2016 New for 2016 upgraded audio system- 6.2" LCD touchscreen infotainment system new for 2016 Inverted front struts for improved handling on Premium and Limited new for 2016 18" gray finish alloy wheels with 245/40 R18 97W summer performance tires new for 2016 optional Eyesight and Blind spot detection/rear cross traffic alert systems all the features of the WRX Premium, plus 8 way power driver's seat Leather trimmed upholstery Inverted front struts for improved handling Headlights- dusk-to-dawn Auto on/off setting Headlights: black inner surround, replaces silver surround. Driver's seat seatback map pocket (in addition to the passenger side pocket) 18" gray finish alloy wheels with 245/40 R18 97W summer performance tires Welcome Lighting. exterior head and tail lights briefly on when doors unlocked with the remote Headlights- LED low beam (new on WRX or Impreza), multi-reflector halogen high beam, automatic low beam aiming Audio: new for 2016 same as WRX Premium models. 6.2" high resolution single-touch touch screen, nice clear rear view back-up camera display, 6 speakers, AM/FM/HD radio, SiriusXM satellite radio (4 mos included) single CD, Starlink smartphone integration (by Clarion) with Pandora, Aha (by h/k), iHeart radio, with single USB port, aux plug, Bluetooth steering wheel controls, wireless audio streaming, steering wheel with bluetooth, audio, one dash and one center console 12v power outlets. Downloads up to 1000 phone contacts Note: the optional 7" audio system is a significant and worthwhile upgrade over the standard 6.2" system option packages manual transmission model code GUQ new for 2016 #22 Keyless access and start, Navigation/GPS, Starlink, H/K audio, Blind spot detection with rear cross traffic alert CVT transmission, model code GUR new for 2016 #23 Keyless access and start, 7" Navigation/GPS, Starlink, H/K audio, Eyesight, and Blind spot detection/rear cross traffic alert systems |
| - |
|
|
2016 STI 4 door sedan standard features model code GUS new for 2016 New for 2016 upgraded audio system- 6.2" LCD touchscreen infotainment system New for 2016 Chrome accented dash vents New for 2016 Chrome accented window switches New for 2016 One touch lane change turn signals- tap the turn signal stalk up/down for 3 quick blinks New for 2016 upgraded audio system- 6.2" LCD high resolution touchscreen infotainment system Engine: 2.5L DOHC high boost 4 cylinder, intercooled, turbo Power: 305hp @ 6000rom, 290 lb-ft torque @ 4000rpm Transmission: 6 speed manual, close ratio, with ST Drive engine management All Wheel Drive, with multi-mode VDC (vehicle dynamics control) and TCS (traction control), plus Multi-mode DCCD (driver controlled center differential) Limited slip front and rear differentials Steering- power assisted quick ratio Suspension- STI high performance sport tuned 18x8.5" alloy wheels, dark gray, new design for 2015 245/40 R18 97W summer performance tires exhaust- dual exhaust with 4 stainless tips Safety rear view back-up camera impact sensing fuel cutoff driver's knee airbag height and tilt adjusting front headrests (with embossed STI logo) Turn signals integrated in the outside mirrors (heated mirrors) Driver and passenger front airbags Diver and passenger front side pelvis/torso airbags (previously called side airbags) Front and rear side curtain airbags Incline start assist- minimize roll-back when starting on a hill Brakes- Super Sport Anti-lock brakes 4 wheel, 4 channel, with a lateral sensor at each wheel to fine tune braking Brakes- Brembo 4 wheel vented discs, Brembo heavy duty rotors, 4 piston front, 2 piston rear calipers Brake assist- maximizes brake pressure Incline assist. STI incline assist can be disengaged Brake override- brake pedal overrides gas pedal when both are pressed EBD- electronic brake force distribution Safety pedal system (break-away pedals) Daytime running lights (DRL) Whiplash protection front seats TPMS- tire pressure monitoring system Headrests- 2 front, 3 rear LATCH system for child seats Lighting Headlights- LED low beam with automatic height adjustment, multi-reflector halogen high beam Black headlight inner surround DRL- day time running lights Headlight- auto on/off with ignition key in/out Fog Lights Dual overhead map lights Overhead dome light Illuminated ignition key ring Illuminated front console storage Interior accent lighting (footwell LEDs) |
STI, continued Interior and Convenience Upholstery- black Alcantara with red and black leather bolsters, red stitching Front bucket seats, performance design Electroluminescent instrument panel with color LCD display Multi-function trip computer display Eco fuel economy gauge Rear view back-up camera, displays in audio screen Illuminated vanity mirrors All Weather Package- heated front seats (high/low), defrosting outside mirrors and front wiper de-icers Key- Remote keyless entry with immobilizer anti-theft system Carpeted floor mats with WRX logo Power windows, illuminated switches Power driver's window- auto up/down Power locks Power mirrors, body colored, foldable break-away, with integrated turn signals Cruise control Driver's seat- height adjustable Cupholders: 2 in front console, 2 in rear of center console, 1 in each of the doors Climate control heat and air conditioning Cabin air filter, air filtration system. Replace filter yearly Inside door handles- chrome Steering wheel- 'D' shaped flat bottom, leather wrapped, red stitching, and dimpled hand grips Steering wheel- audio and bluetooth controls Steering wheel- tilt and telescope Shift handle- leather wrapped Passenger seat seatback map pocket 12v power outlet REV alarm Chrome accented dash vents Chrome accented window switches Rear seat backs- 60/40 split folding Alloy gas/brake/clutch pedal covers, incl footrest Exterior Rear spoiler, tall design Headlights- black inner surround bezel Body colored outside door handles and outside mirrors Rear bumper diffuser, Functional front fender side scoops Hood scoop Front bumper underspoiler Rear bumper underspoiler Rocker spoiler Windshield- dark tinted upper band (not on WRX models) Stereo new for 2016 6.2" high resolution single-touch touch screen, nice clear rear view back-up camera display, 6 speakers, AM/FM/HD radio, SiriusXM satellite radio (4 mos incl), single CD, Starlink smartphone integration (by Clarion) with Pandora, Aha (by h/k), iHeart radio, with single USB port, aux plug, Bluetooth steering wheel controls, wireless audio streaming, steering wheel with bluetooth, audio, one dash and one center console 12v power outlets. Downloads up to 1000 phone contacts. Rear view camera displays in this screen Note: the optional 7" audio system is a significant and worthwhile upgrade over the standard 6.2" system option packages #03- new for 2016 7" high resolution LCD audio/infotainment with navigation, Keyless access and start, H/K audio |
|
STI Series.HyperBlue
adds over the STI new package and color, production limited to 700 models, all HyperBlue color model code GUT Includes Alcantara seating surfaces with leather bolsters and hyperblue stitching, Leather wrapped steering wheel and shift boot with hyperblue stitching. Carpeted floor mats with hyperblue stitching and pink STI logo Black 18x8.5" BBS forged alloys Black fender badges with red STI lettering, Gloss Black painted outside mirrors with integrated turn signals Welcome lighting, Pushbutton start/keyless access with Pin Code access Starlink 7.0" high resolution touchscreen LCD audio and Navigation/gps system (new 3 years free map updates), voice activated controls, AM/FM/HD single CD, SiriusXM (free for 4 mos), Harman Kardon 440w amp, 9 h/k speakers including subwoofer speaker, handsfree cell phone Bluetooth with call history and phone number download, dual USB ports, Aux jack, Bluetooth audio streaming, text messaging, itunes tagging, Pandora, iHeart radio and Aha apps, 3 years free SiriusXM Nav/traffic and Travel Link with weather, sports, stock market, and fuel station finder.. Smartphone required, not all functions work with all phones Rear view back-up camera displays in the screen. available starting October 2015 no option packages |
STI Limited adds over the STI
model codes GUU- tall spoiler new for 2016 GUV- low profile rear spoiler. This is only the 2nd time a low spoiler STI has been offered. The first was the 2007 Limited edition, only 700 of those were made STI Limited adds over STI... all new for 2016- Low profile rear spoiler is available instead of the tall spoiler at the same price! all new for 2016 Keyless access, pushbutton start with new for 2016 model pin code access and new oval keyfob all new for 2016 Subaru Rear Vehicle Detection System: Blind Spot Detection, Lane change Assist, and Rear Cross Traffic alert all new for 2016 Starlink 7.0" high resolution touchscreen LCD audio/infotainment navigation system. Silver 18x8.5" BBS alloys Power moonroof with sunshade Headlights- dusk to dawn auto setting Upholstery: black leather trimmed with red accents 8 way power driver's seat- new on WRX or Impreza Driver's seat seatback map pocket, in addition to the passenger side pocket Keyless access, pushbutton start with new for 2016 model pin code access Welcome Lighting (exterior head and tail lights briefly on when doors unlocked with the remote) Subaru Rear Vehicle Detection System: Blind Spot Detection, Lane change Assist, and Rear Cross Traffic alert Audio new for 2016 Starlink 7.0" high resolution touchscreen LCD audio and Navigation/gps system (new 3 years free map updates), voice activated controls, AM/FM/HD single CD, SiriusXM (free for 4 mos), Harman Kardon 440w amp, 9 h/k speakers including subwoofer speaker, handsfree cell phone Bluetooth with call history and phone number download, dual USB ports, Aux jack, Bluetooth audio streaming, text messaging, itunes tagging, Pandora, iHeart radio and Aha apps, 3 years free SiriusXM Nav/traffic and Travel Link with weather, sports, stock market, and fuel station finder.. Smartphone required, not all functions work with all phones. Rear view back-up camera displays in the screen. option package none |
|
2016 WRX AND STI STANDARD FEATURES CHART scroll up for model by model Snapshot - S standard, O optional, -- not available
all info subject to change, correction, updating |
||||||||||||
| model |
WRX |
STI |
||||||||||
| WRX |
WRX Premium |
WRX Premium CVT |
WRX Limited |
WRX Limited CVT |
STI |
STI Series.HyperBlue |
STI Limited |
|||||
| model code with option codes |
GUN #01 |
GUO #11, #12 |
GUP #11 |
GUQ #21, #22 |
GUR #21, #23 |
GUS #02, #03 |
GUT #04 only 700 made |
GUV tall spoiler #21
GUW low spoiler #21
|
||||
| Interior material |

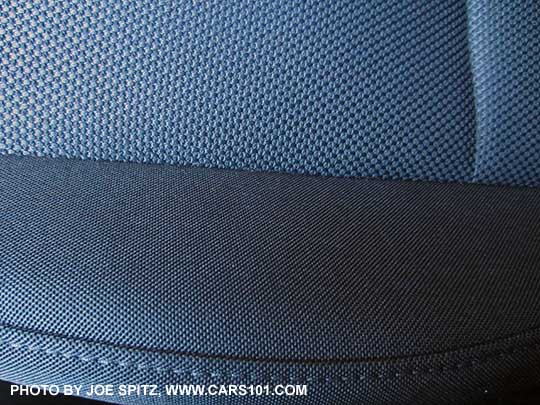

cloth, red stitching |
cloth, red stitching |
cloth, red stitching |

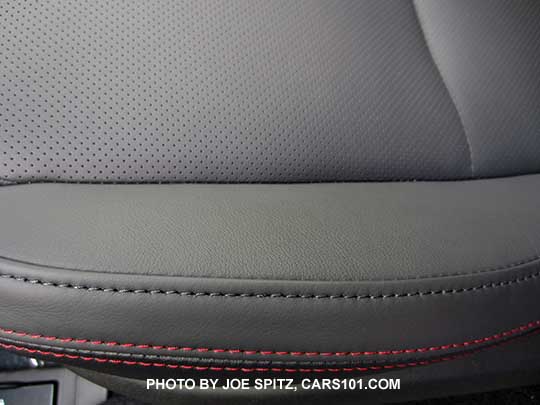

leather trimmed |
leather trimmed |
black alcantara, red and black leather bolsters | black alcantara, blue stitching, black leather bolsters | leather trimmed |
||||
| All Weather Package Heated front seats, defrosting outside mirrors, front wiper deicer |
-- |
S |
S |
S |
S |
S | S |
S |
||||
| new for 2016 WRX, STI Subaru
Rear Vision Detection System, with Blind Spot Detection, Lane
Change Assist, Rear Cross Traffic Alert, and turn signal mirrors on the
WRX (standard on the STI) |
-- |
-- |
-- |
O Pkg #22 |
O Pkg #23 |
-- | -- |
S |
||||
| new for 2016 WRX,
Eyesight driver assist technology. CVT
only.
2 forward facing cameras by the rear view mirror will help stop you
from running into an object, warns when wandering out of your lane,
steering responsive fog lights, active cruise control. new for WRX new center console with electric parking brake. The electric brake is needed for the Eyesight system to work new for Subaru is Lane Keep Assist which uses the electric power steering to help keep the vehicle in a lane on the highway, at highway speeds. |
-- |
-- |
-- |
-- |
O Pkg #23 |
-- | -- |
-- |
||||
| Fog lights |
O |
S |
S |
S |
S |
S | S |
S |
||||
| Steering Responsive Fog
Lights. When the headlights are on and fog lights are off, the left or
right fog light will turn of when the steering wheel is turned. Requires
Eyesight |
-- |
-- |
-- |
-- |
requires O eyesight pkg #23 |
-- | -- |
-- |
||||
| Head lights |
halogen projector low beam and muli-reflector high beam | LED low beam with auto aiming, halogen high beam WRX Limited and STI Limited have Welcome Lighting |
||||||||||
| Welcome and departure lighting: for safety it turns the lights on as you approach using the remote, lights on as you depart |
-- |
-- |
-- |
S |
S |
-- | S |
S |
||||
| Turn Signals- new for 2016 One Touch. Tap stalk up/down for 3 quick lane change or turn signal flashes |
S |
S |
S |
S |
S |
S | S |
S |
||||
| Rear Spoiler |
new for 2016 small type (2015- no spoiler) |

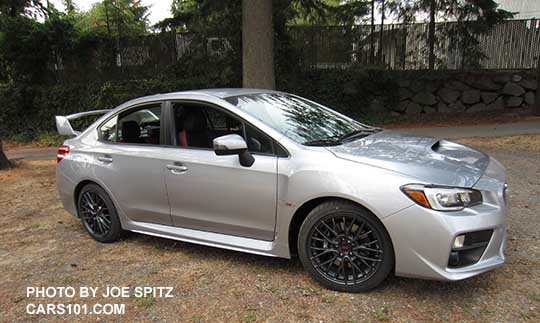

S, small type | tall spoiler | tall spoiler |
new for 2016
available with either low profile or tall rear spoiler |
|||||||
| model reminder with model code, model packages |
WRX, GUN #01 |
WRX Prm, GUO #11, #12 |
WRX Prm CVT, GUP #11 |
WRX Ltd, GUQ, #21, #22 |
WRX Ltd CVT, GUR #21, #23 |
STI, GUS #02, #03 |
STI
Series.HyperBlue
GUT #04 |
STI Limited, GUV, GUW |
||||
| Outside door handles, body colored |
S |
S |
S |
S |
S |
S | S |
S |
||||
| Power windows, illuminated switches, driver's window auto up/down. new for 2016 chrome tipped switches |
S |
S |
S |
S |
S |
S | S |
S |
||||
| Power locks, remote entry |
S |
S |
S |
S |
S |
S | S |
S |
||||
| Power mirrors, break-away, body colored Note: STI Series.Hyperblue has gloss black painted mirrors |
S |
S, heated |
S, heated | S, heated | S, heated | S, heated, with integrated turn signals | S, gloss black, heated, with integrated turn signals | S, heated, with integrated turn signals | ||||
| Turn signals integrated in the outside mirrors |
-- |
-- |
-- |
O pkg #22 |
O pkg #23 |
S | S |
S |
||||
| Cruise control |
S |
S |
S |
S |
S Pkg #23 has Active cruise control |
S | S |
S |
||||
| Air conditioning, automatic Climate Control |
S, single temperature setting |
S, dual front zones temperature settings |
||||||||||
| Cabin air hvac filter, behind glovebox, replace yearly |
S |
S |
S |
S |
S |
S | S |
S |
||||
| All Weather Package: heated front seats, defrosting outside mirrors, front wiper de-icers |
na |
S |
S |
S |
S |
S | S |
S |
||||
| Drivers seat. height adjustment |
manual |
manual |
manual |
8 way power |
8 way power |
manual | S |
8 way power |
||||
| Sunvisor vanity mirrors, illuminated |
new for 2016 S |
S |
S |
S |
S |
S |
S |
S |
||||
| 12v power outlets- 1 in front, 1 in center console |
S |
S |
S |
S |
S |
S | S |
S |
||||
| Steering Wheel, D shaped flat bottom, tilt and telescoping, leather wrapped with audio, bluetooth and cruise control buttons Note: WRX is smooth leather. STI has dimpled hand grips. |
S red stitching |
S red stitching |
S red stitching |
S red stitching |
S red stitching |
S, red stitching, dimpled hand grips | S, hyperblue stitching, dimpled hand grips | S, red stitching, dimpled hand grips |
||||
| Keys: standard keys. 3 supplied, 2 with remote Immobilizer system with ignition disabling alarm, Illuminated ignition key ring |
S |
S |
S |
S |
S | S | -- |
-- |
||||
| Keys: keyless access, pushbutton start, pin code access. two redesigned for 2016 oval key fobs supplied (previous fobs were square). Immobilizer system with ignition disabling alarm, Illuminated pushbutton start button | -- |
-- |
-- |
O |
O |
O | new for 2016 S |
new for 2016 S |
||||
| model reminder |
WRX |
WRX Premium |
WRX Premium CVT |
WRX Limited |
WRX Limited CVT |
STI | STI Series.HyperBlue |
STI Limited |
||||
| Rear view back-up camera, displays in the new for 2016 6.2" or 7" high resolution LCD audio screen |
S |
S |
S |
S |
S |
S | S |
S |
||||
| Moonroof, power, tilts up for venting, drops down and slides back to open, with sunshade |
-- |
S |
S |
S |
S |
-- | -- |
S |
||||
| Illuminated STI logo in center console |
-- |
-- |
-- |
-- |
-- |
S | S |
S |
||||
| Shift knob |
leather wrapped |
leather wrapped |
leather wrapped with red stitching |
leather wrapped |
leather wrapped with red stitching |
leather wrapped red stitching | leather wrapped, blue stitching |
leather wrapped red stitching |
||||
| Cup holders |
2 in center console, 2 in rear of center console, 1 bottle holder in each door |
2 in center console with removable holder and retractable cover, 2 in rear of center console, 1 bottle holder in each door |
||||||||||
| Map pockets on back of front seats |
passenger |
passenger |
passenger |
passenger, driver |
passenger, driver |
passenger | passenger |
passenger and driver |
||||
| Multi-function vehicle information display, 4.3", color, in upper console |
includes turbo boost gauge/accelerator position
screen,
clock, outside temperature readout, rear view back-up camera display, stereo/bluetooth information
(except navigation models), various fuel economy gauges and displays,
elapsed time display, heat or ac temperature setting and fan speed,
driver-set maintenance reminders, driver-set triple gauge cluster, |
|||||||||||
| Gauges |
tachometer
(redline 7400 rpms), speedometer to 180mph, fuel gauge, coolant gauge,
eco MPG reminder, CVT gear and SI Drive indicator (CVT only). The multi-function trip computer display in the upper console has other screen gauges including a turbo boost gauge |
tachometer,
speedometer, fuel gauge, coolant gauge, eco MPG reminder, upshift
indicator, SI drive indicator, driver setable Rev alarm, DCCD position indicator. The multi-function trip computer display in the upper console has other gauges including a turbo boost gauge |
||||||||||
| Audio/Infotainment systems see A and B in the 2 next rows below. NOTE- A and B are only used by me for this chart |
Standard- A |
Standard- A Optional- B, manual |
Standard- A |
Standard- A Optional- B |
Standard- A Optional- B |
Standard- A Optional- B | Standard B |
Standard- B |
||||
|
Audio/Infotainment system- A
this the major upgrade for 2016 models Audio/infotainment. Standard on WRX, WRX Premium, WRX Limited, STI |
NEW FOR 2016 WRX and STI Starlink 6.2" high resolution single-touch LCD touch screen, nice clear rear view back-up camera display, 6 speakers, AM/FM/HD radio, SiriusXM Satellite radio (4 mos incl) single CD, Starlink smartphone integration (by Clarion) with Pandora, Aha (by h/k), iHeart radio, nd Stitcher apps, with single USB port, aux plug, Bluetooth steering wheel controls, wireless audio streaming, steering wheel with bluetooth, audio, one dash and one center console 12v power outlets. Downloads up to 1000 phone contacts. Rear view camera displays in the screen NOTE: the standard 6.2" audio system is ok, but the optional 7" audio navigation system is a significant and worthwhile upgrade |
|||||||||||
|
Audio/Infotainment system- B
this the major upgrade for 2016 models Audio/infotainment with navigation/gps with Harman/Kardon amp and speakers Standard on STI Limited and new model Series.HyperBlue Optional on WRX Premium manual, WRX Limited, and STI |
NEW FOR 2016 WRX and STI
Starlink 7.0" high resolution touch screen LCD audio, Navigation/gps, voice activated controls, nice clear rear view back-up camera display, AM/FM/HD single CD, SiriusXM (free for 4 mos), Harman Kardon (h/k) 440w amp, 9 h/k speakers including subwoofer speaker, handsfree cell phone Bluetooth with call history and phone number download, dual USB ports, Aux jack, Bluetooth audio streaming, text messaging, itunes tagging, Pandora, iHeart radio, Stitcher, and Aha apps, 3 years free SiriusXM Nav/traffic and Travel Link with weather, sports, stock market, and fuel station finder. Smartphone required, not all functions work with all phones Rear view back-up camera displays in the screen. |
|||||||||||
| model all info subject to change, correction |
WRX GUN |
WRX Prm GUO |
WRX Prm CVT GUP |
WRX Limited GUQ |
WRX Limited CVT GUR |
STI GUS | STI Series.HyperBlue GUT |
STI Limited GUV, GUW |
||||
 The Subaru Starlink app symbol on your iphone or Android |
 accessing the Apps on a 6.2" audio system -  Starlink opened on a 7" audio system |
 the Starlink app opened, select the function to set up |
 selecting the cities for the Starlink weather app |
|
2016 WRX and STI ACCESSORY OPTION PACKAGES scroll down for individual accessories and options A available, S standard, na not available these are factory installed accessory option packages. Most are simply a grouping of accessory options for marketing and convenience purposes, with no package discount unless indicated. -
all information subject to change, correction, updating |
||||||||||||
| option |
WRX |
WRX Premium |
WRX Premium CVT |
WRX Limited |
WRX Limited CVT |
STI |
STI Series.HyperBlue |
STI Limited |
||||
| model code, option package |
GUN |
GUO #11, #12 |
GUP #11 |
GUQ #21, #22 |
GUR #21, #23 |
GUS #02, #02 |
GUT #04 |
GUV- tall spoiler, GUW- low spoiler #21 |
||||
| Popular Package #1
(IZD) - auto dimming rear view mirror with compass and Homelink, center
armrest extension, cargo trunk tray, rear bumper applique, wheel locks
$748 |
A |
A |
A |
A |
A na Pkg #23 |
A |
A |
A |
||||
| Popular Package #2 (IZE) - auto dimming rear view mirror with compass and Homelink, center armrest extension, cargo trunk tray, wheel locks, carbon fiber trunk trim $877 | A |
A |
A |
A |
A na Pkg #23 |
A |
A |
A |
||||
| Popular Package #3 (IZH)
auto dimming rear view mirror with compass and Homelink, center
armrest extension, cargo trunk tray, rear bumper applique, carbon-fiber trunk trim, wheel locks $972 |
A |
A |
A |
A |
A na Pkg #23 |
A |
A |
A |
||||
| Popular Package #4 (IZP), Eyesight pkgs only,
auto dimming rear view mirror with compass and Homelink, center
armrest extension, cargo trunk tray, rear bumper applique, carbon-fiber trunk trim, wheel locks $976 |
na |
na |
na |
na |
A Pkg #23 only na Pkg #21 |
na |
na |
na |
||||
| Popular Package #5 (IZH)
Eyesight Pkgs only, auto dimming rear view mirror with compass, center
armrest extension, cargo trunk tray, rear bumper applique, carbon-fiber trunk trim, wheel locks $849 |
na |
na |
na |
na |
A Pkg #23 only na Pkg #21 |
na |
na |
na |
||||
| (WRX) Sport Performance
Pkg 1A, also called the Short Throw Shifter Package (IZF)- short throw shifter, leather and aluminum shift knob $598. WRX manual only |
A |
A |
na |
A |
na | na |
na |
na |
||||
| (STI) Sport Performance Pkg 1B, also Short Throw Shifter Package (I9K)- STI short throw shifter, leather and aluminum shift knob $658, STI only | na |
na |
na |
na |
na |
A |
A |
A |
||||
| WRX Sport Package
(IZG) - STI 17" black alloy wheels, STI performance exhaust, STI WRX short throw shifter, STI leather and aluminum shift knob. $3447 - $548 pkg discount = $2899, WRX manual only . Note: The wheels are shipped to and installed by the selling dealer, and the buyer does not get the original take-off wheels, they stay with the dealer. Note- after working on or around the catback exhaust, to prevent staining from grease, oil, even fingerprints, wipe the exhaust pipes with windex or similar detergent/water |
A |
na |
na |
na |
na |
na |
na |
na |
||||
| WRX Sport Package
(IZS) - 15 spoke STI 18" black alloy wheels, STI performance exhaust, STI WRX short throw shifter, STI leather and aluminum shift knob. $3647 - $648 pkg discount = $2999, WRX manual only. Note: The wheels are shipped to and installed by the selling dealer, and the buyer does not get the original take-off wheels, they stay with the dealer. Note- after working on or around the catback exhaust, to prevent staining from grease, oil, even fingerprints, wipe the exhaust pipes with windex or similar detergent/water |
na |
A |
na |
A |
na |
na |
na |
na |
||||
| Kicker audio upgrade
package #1 (IYS) - 10" powered subwoofer, 2 upgraded tweeters, 4
upgraded speakers, Kicker decal new price effective 6/16/15 $1,130 - $328 discount = $802 na with Nav and Harman Kardon audio packages |
A |
A Pkg #11 na Pkg #12 |
A |
A Pkg #21 na Pkg #22 |
A Pkg #21 na Pkg #23 |
A Pkg #02 na Pkg #03 |
na |
na |
||||
| model reminder |
WRX GUN #01 |
WRX Premium GUO #11, #12 |
WRX Premium CVT GUP #11 |
WRX Limited GUQ #21, #22 |
WRX Limited CVT GUR #21, #23 |
STI GUS #02, #03 |
STI Series.HyperBlue, GUT #04 |
STI Limited GUV #21, GUW #21 | ||||
|
2016 WRX and STI
INDIVIDUAL ACCESSORY OPTIONS scroll up for accessory option packages A available, S standard, NA not available Factory installed individual options with MSRP prices. Your price might vary with dealer discounts or markup. Options installed by the dealer may have a higher price due to parts and labor costs -
subject to updating, correction. Tips, comments welcomed |
||||||||||||
| - -- - - |
||||||||||||
| OPTION, (option code), MSRP installed price EXTERIOR OPTIONS |
WRX sedan |
STI sedan |
||||||||||
| WRX |
WRX Premium |
WRX Premium CVT |
WRX Limited |
WRX Limited CVT |
STI |
STI Series.HyperBlue |
STI Limited |
|||||
| code GUN #01 |
code GUO #11, #12 |
code GUP #11 |
code GUQ #21, #22 |
code GUR #21, #23 |
code GUS #02, #03 |
code GUT #04 |
code GUV tall spoiler GUW low spoiler |
|||||
| Vortex Generator, mounts on the rear of the roof. $104 |
A |
A |
A |
A |
A |
A |
A |
A |
||||
| new for 2016 Rear aero splash guards, body colored for the 2 rear wheels $176 Note: currently only available for crystal black, dark gray, or ice silver cars. Other colors expected starting in August. |
A |
A |
A |
A |
A |
A |
? |
A |
||||
| Trunk spoiler, body colored |
new for 2016 S small lip spoiler |
S small lip spoiler |
S small lip spoiler |
S small lip spoiler |
S small lip spoiler |
S, tall type |
S tall type |
S, either tall or new for 2016 low type |
||||
| Body side moldings, body colored $262 |
A |
A |
A |
A |
A |
A |
S |
A |
||||
| Fog lights (09Y), $391 |
A |
S |
S |
S |
S |
S |
S |
S |
||||
| Hood protector not available on the 2015 or 2016 |
NA | NA | NA | NA | NA | NA | NA | NA | ||||
| Perimeter alarm shock sensor upgrade (RGC) $196 |
A |
A |
A |
A |
A |
A |
A |
A |
||||
| Rear bumper applique (PCS), $95 |
A |
A |
A |
A |
A |
A |
S |
A |
||||
| Alloy wheel locks (H8B), $76 |
A |
A |
A |
A |
A |
A |
S |
A |
||||
| SPT carbon fiber trunk trim (040) $224 | A |
A |
A |
A |
A |
A |
S |
A |
||||
| INTERIOR OPTIONS |
WRX |
WRX Premium |
WRX Premium CVT |
WRX Limited |
WRX Limited CVT |
STI |
STI series.HyperBlue |
STI Limited |
||||
| Remote engine start (03R), $477 requires CVT and Pushbutton start. very short range. redesigned oval key fob for 2016 | NA | NA | A Pkg #22 only |
NA | A Pkg #23 only |
NA |
NA |
NA | ||||
| Door
sill metal plates (03S), WRX logo on front doors, small plates rear
doors $156. Note: STIs have standard front door sill plates, rears
are not available |
A |
A |
A |
A |
A |
S front door sills only |
S front door sills only |
S front door sills only |
||||
| Auto dimming rear view mirror w/ compass (KCC), $210 na with Eyesight |
A |
A |
A |
A |
A Pkg #21 na Pkg #23 |
A |
A |
A |
||||
| Auto dimming rear view mirror w/ compass (O8Q), $215, Eyesight only |
NA | NA | NA |
NA |
A Pkg #23 |
NA |
NA |
NA |
||||
| Auto dimming rear view mirror w/ compass and Homelink garage door opener (KCD) $338 na with Eyesight |
A |
A |
A |
A |
A Pkg #21 na Pkg #23 |
A |
A |
A |
||||
| Auto dimming rear view mirror w/ compass and Homelink garage door opener (O8P) $342, Eyesight only |
NA |
NA |
NA |
NA |
A Pkg #23 na Pkg #21 |
NA |
NA | NA |
||||
| Cargo tray, trunk floor liner (MCD) $81 |
A |
A |
A |
A |
A |
A |
A |
A |
||||
| 120v 100w Power outlet (04C), $336. Note: new for 2016 the outlet has been moved to the front center console storage bin from the back of the center console. See photo above |
A |
A |
A |
A |
A |
A |
A |
A |
||||
| Cargo net, trunk rear (04B) $78 |
A |
A |
A |
A |
A |
A |
A |
A |
||||
| Center armrest extension (K8H), $156 |
A |
A |
A |
A |
A |
A |
A |
A |
||||
| Rubber all weather floor mats (BCA) $81 |
A |
A |
A |
A |
A |
A |
A |
A |
||||
| Footwell illumination, a faint blue (NEB) or red (NEC) LED light in the front driver and passenger footwells, $199 |
A |
A |
A |
A |
A |
S |
A |
S |
||||
| model reminder with model code and option pkgs |
WRX GUN #01 |
WRX Premium GUO #11, #12 |
WRX Premium CVT GUP #11 |
WRX Limited GUQ #21, #22 |
WRX Limited CVT GUR #21, #23 |
STI GUS #02, #03 |
STI Series HyperBlue, GUT |
STI Limited GUV, GUW |
||||
STEREO options (option code) with factory installed MSRP |
STEREO |
|||||||||||
| Subwoofer, 10" powered subwoofer by Kicker (DCN) $661 new price effective 6/17/15. na with Harman Kardon (h/k) audio packages |
A |
A na pkg #12 |
A |
A na pkg #22 |
A na pkg #23 |
A na pkg #03 |
NA (h/k audio is std) |
NA (h/k audio is std) |
||||
| Tweeters (DCF), $147 na with Harman Kardon (h/k) audio packages |
A |
A na pkg #12 |
A |
A na pkg #22 |
A na pkg #23 |
A na pkg #03 |
NA (h/k audio is std) |
NA (h/k audio is std) |
||||
| Upgraded speakers, 4, (DCG), $318 na with Harman Kardon (h/k) audio packages |
A |
A na pkg #12 |
A |
A na pkg #22 |
A na pkg #22 |
A na pkg #03 |
NA (h/k audio is std) |
NA (h/k audio is std) |
||||
PERFORMANCE Options (option code), factory installed MSRP |
PERFORMANCE Options |
|||||||||||
| STI duracon shift knob (J8B) $93, manual only |
A |
A |
NA | A |
NA |
A |
A |
A |
||||
| STI leather & aluminum shift knob (J8A) $184, manual only |
A |
A |
NA |
A |
NA | A |
A |
A |
||||
| WRX performance exhaust (03P) $1162 Note- after working on the catback exhaust, to prevent staining from grease, oil, even fingerprints, wipe the exhaust pipes with windex or similar detergent/water |
A |
A |
A |
A |
A |
NA |
NA | NA |
||||
| STI performance exhaust (03O) $1151 Note- after working on the catback exhaust, to prevent staining from grease, oil, even fingerprints wipe the exhaust pipes with Windex or similar detergent/water |
NA | NA |
NA | NA |
NA |
A |
A |
A |
||||
| WRX short throw shifter (04I) $414, manual only |
A |
A |
NA | A |
NA |
NA | NA | NA |
||||
| STI short throw shifter (T8G) $474 manual only |
NA |
NA |
NA |
NA |
NA |
A |
A |
A |
||||
| model reminder (model code, option pkg) |
WRX GUN #01 |
WRX Premium GUO #11, #12 |
Premium CVT GUP #11 |
Limited GUQ #21, #22 |
WRX Limited CVT GUR #21, #23 |
STI GUS #02, #03 |
STI Series.HyperBlue GUT #04 |
STI Limited GUV, GUW, #21 |
||||
INTERIOR |
|
 WRX carbon black checkered cloth |
 close-up of the 2016 WRX Limited perforated leather, black bolsters with red stitching |
2016 STI black alcantara seating surfaces with black and red leather side bolsters |
closeup of the 2016 Subaru STI Limited carbon black perforated leather, red trimmed bolsters |
 closeup of the 2016 WRX STI Series.HyperBlue black alcantara seating surface with leather bolsters and hyperblue stitching |
 2016 Subaru WRX STI Series.HyperBlue alcantara seating surface, leather bolster, hyperBlue stitching. Passenger seat shown. |
| top
2016 WRX and STI COLOR SAMPLES
its very hard to get accurate color photos- always check the color in person |
|||
 WR Blue Pearl |
 Crystal Black Silica |
 Dark Gray metallic |
 new on WRX, STI Lapis Blue Pearl |
 Ice Silver Metallic |
 all new color Pure Red |
 Crystal White Pearl |
 all new color Hyper Blue available on limited production STI and BRZ Series.HyperBlue |
2016 WRX and STI COLORS
subject to change, correction, updating |
|||||||||
| MODEL (model code) |
WR Blue Pearl (BLU, K7X) |
Crystal Black Silica (CBS, D4S) |
Dark Gray Metallic (DGM, 61K) |
NEW Lapis Blue Pearl (LBP, G1U) |
Ice Silver Metallic (ISM, G1U) |
NEW Pure Red (PRD, M7Y) |
Crystal White Pearl (WHC. K1X) |
Hyper Blue
(HYB) |
|
| WRX (gun) |
CBCC |
CBCC |
CBCC | CBCC | CBCC | CBCC | CBCC | -- |
|
| WRX Premium (guo) |
CBCC | CBCC | CBCC | CBCC | CBCC | CBCC | CBCC | -- |
|
| WRX Premium CVT (gup) |
CBCC | CBCC | CBCC | CBCC | CBCC | CBCC | CBCC | -- |
|
| WRX Limited (guq) |
CBL | CBL | CBL | CBL | CBL | CBL | CBL | -- |
|
| WRX Limited CVT (gur) |
CBL | CBL | CBL | CBL | CBL | CBL | CBL | -- |
|
| STI (gus) |
BA | BA | BA | BA | BA | BA | BA | -- |
|
| NEW STI Series.HyperBlue only 700 made |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
BA, blue stitching |
|
| STI Limited, tall rear spoiler (guv) |
CBL | CBL | CBL | CBL | CBL | CBL | CBL | -- |
|
| STI Limited, low profile rear spoiler (guw) |
CBL |
CBL |
CBL |
CBL |
CBL |
CBL |
CBL | -- |
|
