On this page, 2017 Crosstrek model-by-model features and details, prices, mechanical specs, colors, options, and upgrades, photos and more
are you looking for the 2016 Crosstrek or the 2017 Impreza?
-
2016 Subaru Crosstrek Limited, Quartz Blue color
2016 Subaru Crosstrek Limited, Quartz Blue color. 2017 photos will be here later once the cars arrive

-
News, Updates, About the 2017 Crosstrek  I Maintenance & Warranty  I  Safety, Eyesight, Blind Spot Detection  I  Dimensions, Cargo Measurements  I  Option Packages I
Prices  I  Specifications  I Standard Features chart  I  Features by model  I Options, Accessories, Upgrades  I Interiors I  Body Colorsmisc. accessoriesordering a car

scroll down for 2017 photos or click for many more
Exterior Photo Page ::  Interior Photo Page :: Options and Upgrades Photo Page

*****************************************************

Buying a Crosstrek in the Seattle area or Greater Northwest?
I have good prices. Joe Spitz, internet sales selling Subarus in the Puget Sound area since 1996 Contact

-
Thank you for visiting. If you like this site, please tell friends about it.  You are here- http://www.cars101.com/subaru/crosstrek/crosstrek2017.html,  v  12.29.16

always subject to change, correction.  comments, corrections, welcomed. All photographs, text, formatting © joe spitz :: unauthorized reproduction prohibited
Cars101.com Homepage, Contact Joe Spitz Sitemap

-

Please read - this independent, unofficial, unauthorized Subaru research site is happily created and maintained by Joe Spitz. It is designed to help you learn about Subarus. It is not sponsored, authorized,  supported, paid for or approved by Subaru or any dealer and is not connected to, affiliated with, or supported by any dealer. Always contact your local dealer. Inspect any car prior to purchasing.
all information is always subject to change, correction, updating.
*************************************************************************************************************
-
2017 photos
more coming soon so check back often

-

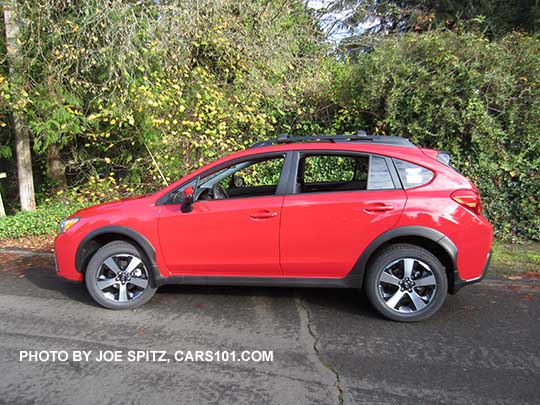

2017 Subaru Crosstrek Premium Special Edition, pure red color
2017 Subaru Crosstrek Premium pkg #15 Special Edition. Pure Red color. Optional crossbars.The Special Edition has the large type black trailing edge spoiler and aero design alloys.
Both the spoiler and the alloys were on the discontinued 2014-2016 Crosstrek Hybrids.

updated 11/23/16- production of Pkg #15 has ended. Reportedly only 2000 were made

-
2016 Subaru Crosstrek with new for 2016 Hyperblue color and new for 2016 optional black STI rear spoiler. Also showing optional rear bumper cover.
2016 Subaru Crosstrek with new for 2016 Hyperblue color and new for 2016 optional black STI rear spoiler
. Also showing the optional rear bumper cover
-

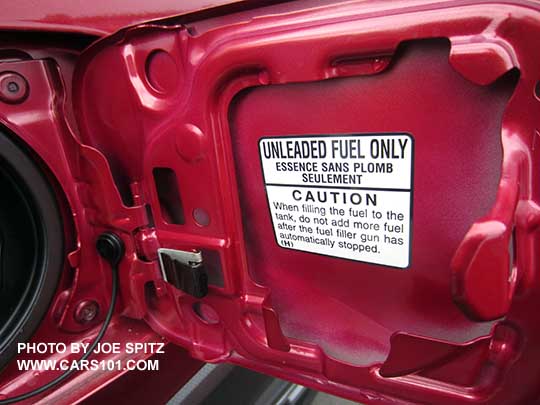

2017 Subaru Crosstrek runs on regular unleaded gas. Fuel door shown
2017 Subaru Crosstrek runs on regular unleaded gas. Fuel door shown

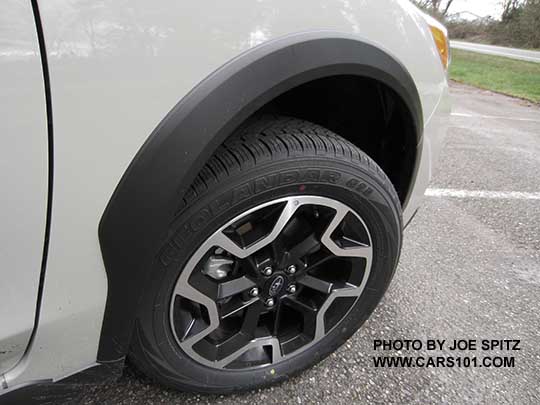

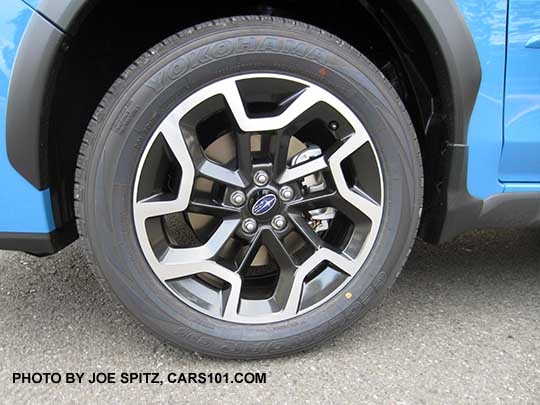

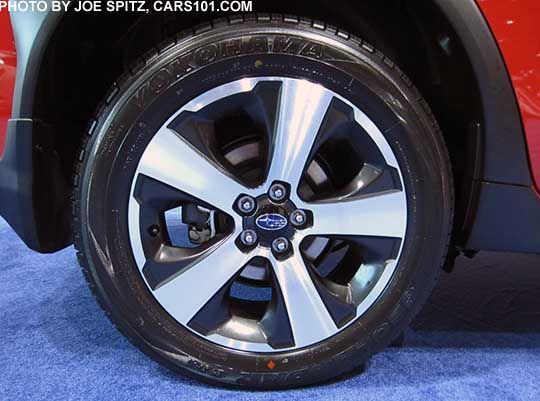

2017 Subaru Crosstrek 17" alloy wheel, machined silver and black
2017 Subaru Crosstrek 17" alloy wheel, machined silver and black. Same wheel as the 2016 model. Hyperblue car shown
2017 Subaru Crosstrek Premium Special Edition 17" aero design alloy wheel, machined silver and black. This is the wheel used on the 2014-2016 Crosstrek Hybrid
2017 Subaru Crosstrek Premium Special Edition 17" aero design alloy wheel, machined silver and black. This is the wheel used on the 2014-2016 Crosstrek Hybrid

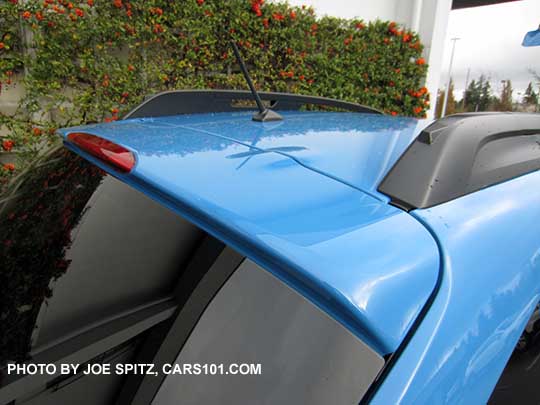

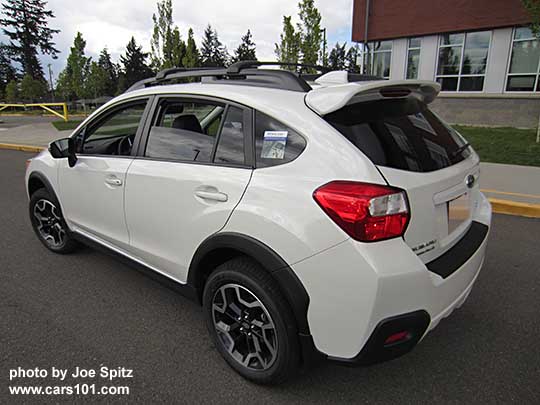

2017 Subaru Crosstrek standard body colored rear spoiler
2017 Subaru Crosstrek standard sized, body colored rear spoiler

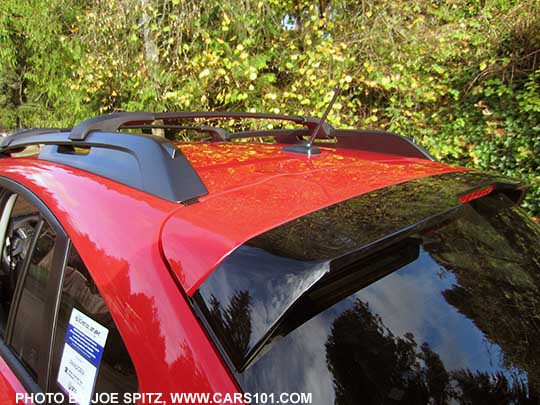

2017 Crosstrek Premium Special Edition rear spoiler with trailing rear edge, slightly larger than other Crosstreks. Pure red shown
2017 Crosstrek Premium Special Edition standard large rear spoiler with trailing rear edge, it's slightly larger than other Crosstreks. Pure red shown
  This spoiler with the black edge was on the discontinued Crosstrek Hybrid

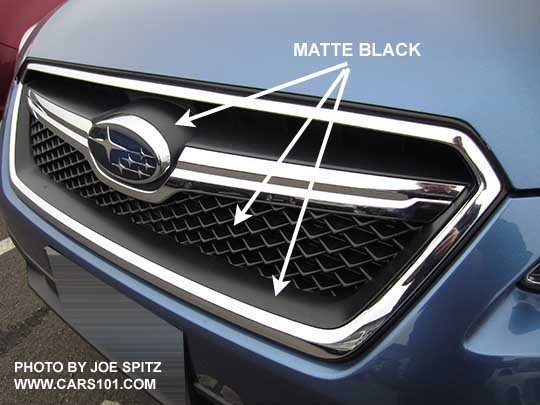

closeup of the matte black front grill frame  on all 2017 Crosstreks except Special Edition
closeup of the matte black front grill frame  on all 2017 Crosstreks except Special Edition

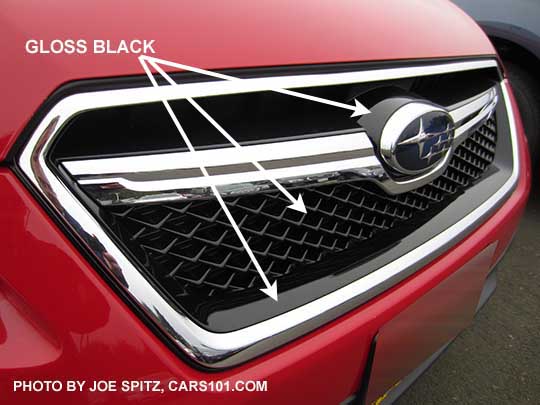

closeup of the gloss black front grill frame  on the 2017 Crosstreks Special Edition model.
closeup of the gloss black front grill frame  on the 2017 Crosstreks Special Edition model.

2017 Crosstrek right side silver rear Crosstrek and PZEV logo, quartz blue car shown
2017 Crosstrek right side silver rear Crosstrek and PZEV logo, quartz blue car shown
2017 Crosstrek Premium Special Edition black rear logo, shown on the Crystal black car
2017 Crosstrek Premium Pkg #15 Special Edition black rear logo, shown on the Crystal black car
updated 11/23/16- production of Pkg #15 has ended. Reportedly only 2000 were made
2017 Subaru Crosstrek Premium Special Edition black logos
2017 Subaru Crosstrek Premium Pkg #15 Special Edition black rear logos, shown on a Pure red car
updated 11/23/16- production of Pkg #15 has ended. Reportedly only 2000 were made

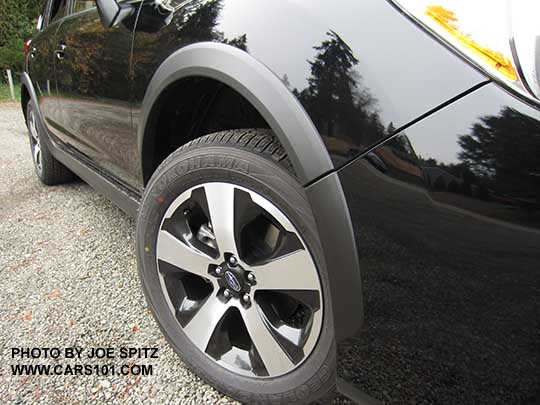

closeup of the wheel arch molding on all Subaru Crosstreks.  Premium Special Edition, crystal black color shown
closeup of the wheel arch molding on all Subaru Crosstreks.  Premium Special Edition, crystal black color shown
-
click for more  Exterior Photo Page ::  Interior Photo Page :: Options and Upgrades Photo Page



2017 Subaru Crosstrek Premium Special Edition, pure red color
2017 Subaru Crosstrek Premium Special Edition, pure red color

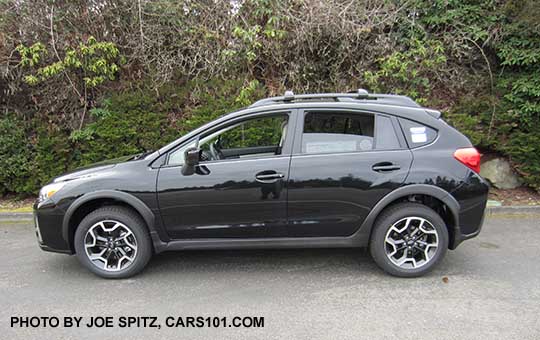

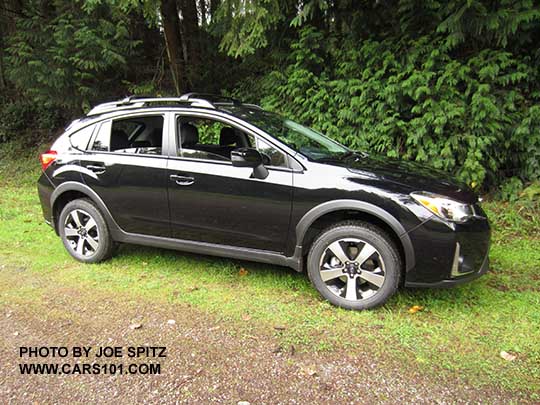

2017 Subaru Crosstrek,  Premium Special Edition, crystal black color shown
2017 Subaru Crosstrek,  Premium Special Edition, crystal black color shown

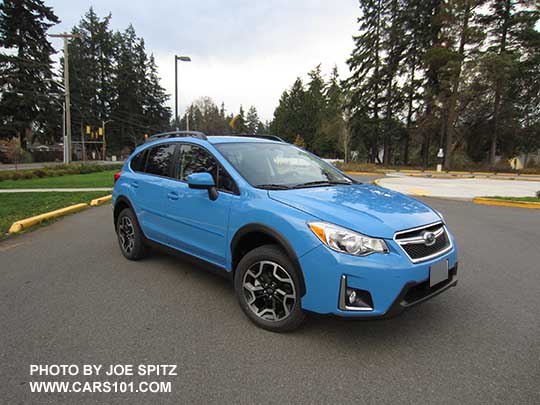

2017 Crosstrek Premium, hyperblue color shown
2017 Crosstrek Premium, hyperblue color shown
















click for more  Exterior Photo Page ::  Interior Photo Page :: Options and Upgrades Photo Page
 -

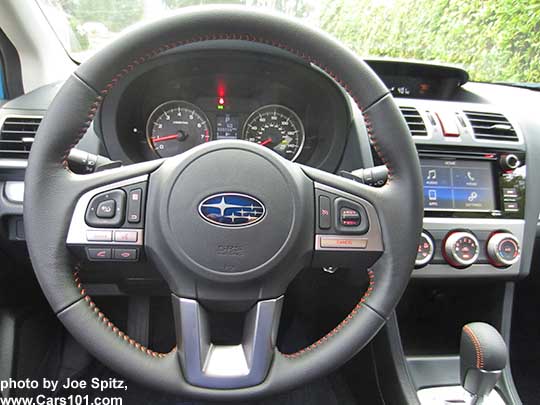

2017 Subaru Crosstrek Premium steering wheel- leather wrapped, orange stitching,
2017 Subaru Crosstrek Premium steering wheel- leather wrapped, orange stitching.

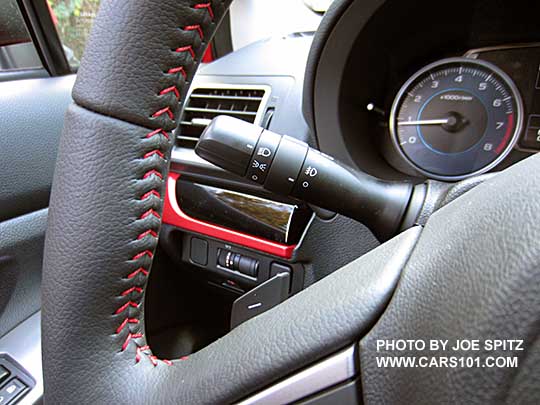

closeup of the 2017 Crosstrek Premium Special Edition gray leather wrapped steering wheel with red stitching.
closeup of the 2017 Crosstrek Premium Special Edition gray leather wrapped steering wheel with red stitching. Notice the red and black dash trim, and the '-' down gear paddle shifter

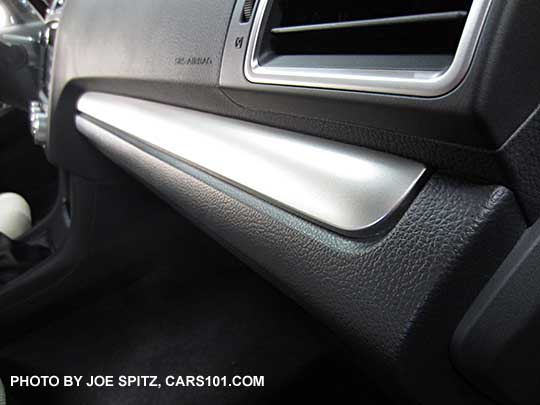

2017 Crosstrek 2.0i and Premium silver dash trim
2017 Crosstrek 2.0i and Premium silver dash trim

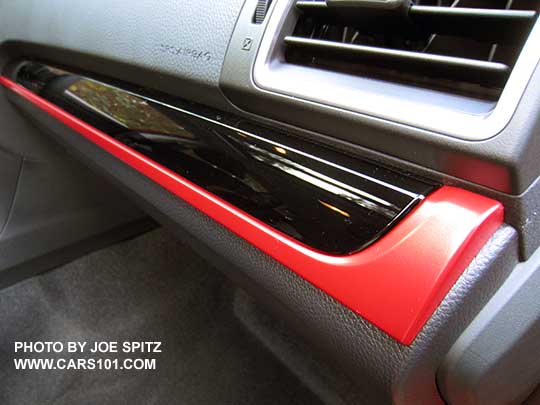

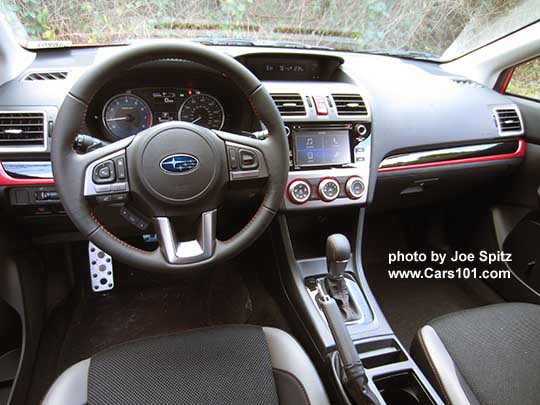

2017 Crosstrek Premium Special Edition red and gloss black dash trim
2017 Crosstrek Premium Pkg #15 Special Edition red and gloss black dash trim.

updated 11/23/16- production of Pkg #15 has ended. Reportedly only 2000 were made

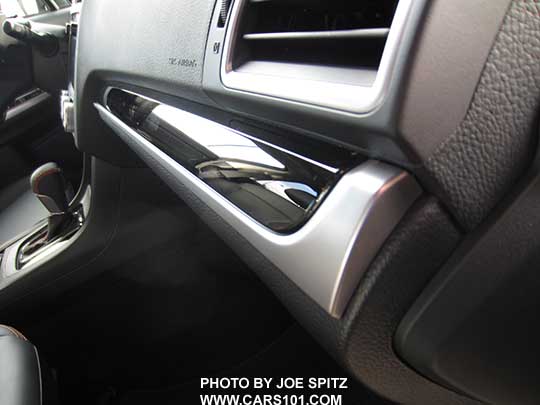

2017 Crosstrek Limited gloss black and silver dash trim
2017 Crosstrek Limited gloss black and silver dash trim

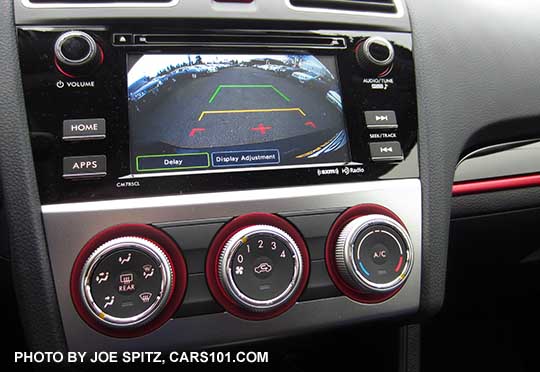

2017 Crosstrek Premium rear view camera. Special Edition shown with red/black dash trim
2017 Crosstrek Premium rear view camera. Special Edition shown with red/black dash trim

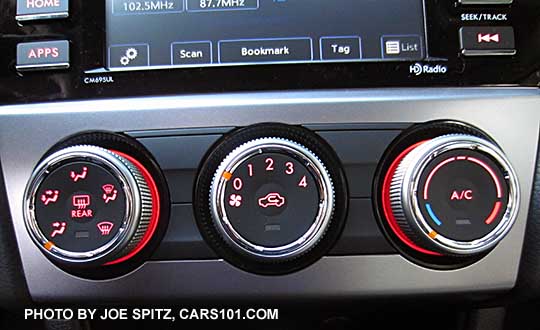

2017 Crosstrek 2.0i and Premium heater and ac controls with 4 speed fan
2017 Crosstrek 2.0i and Premium heater and ac manual controls with 4 speed fan

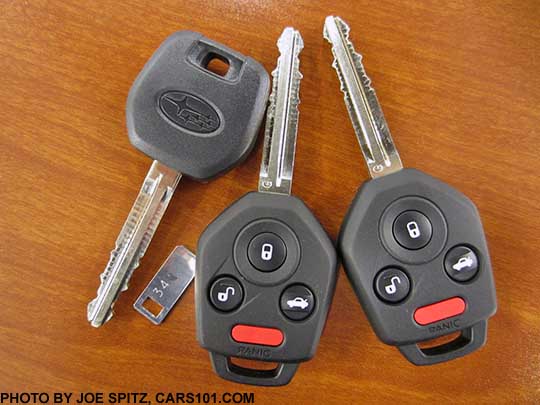

2017 Subaru Crosstrek 3 ignition keys, 2 with remote lock/unlock
2017 Subaru Crosstrek 3 ignition keys, 2 with remote lock/unlock

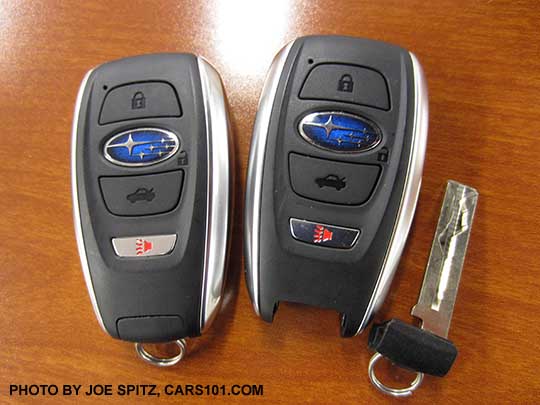

2017 Crosstrek Limited optional pushbutton start, keyless access key fobs
2017 Crosstrek Limited optional pushbutton start, keyless access key fobs

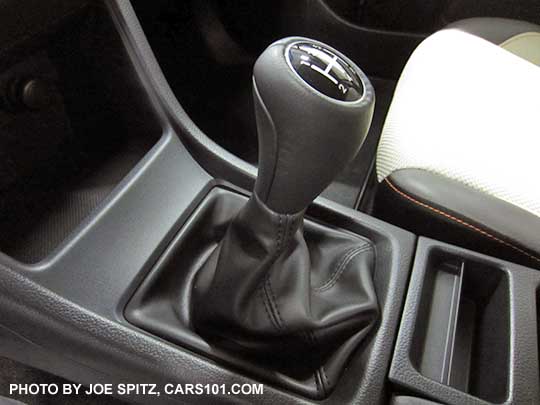

2017 Crosstrek manual transmission shift knob with black leatherette shift boot
2017 Crosstrek manual transmission shift knob with black leatherette shift boot

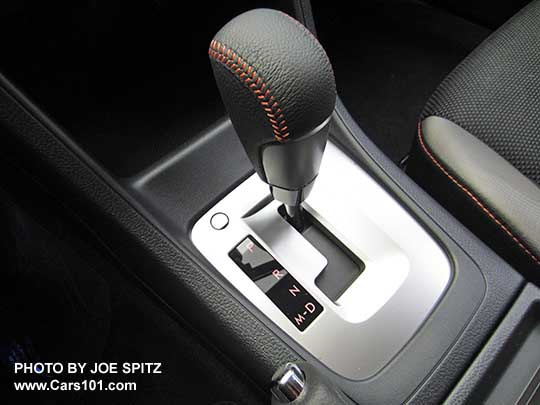

2017 Crosstrek Premium leather wrapped CVT shift knob with orange stitching, and silver shift plate
2017 Crosstrek Premium leather wrapped CVT shift knob with orange stitching, and silver shift plate

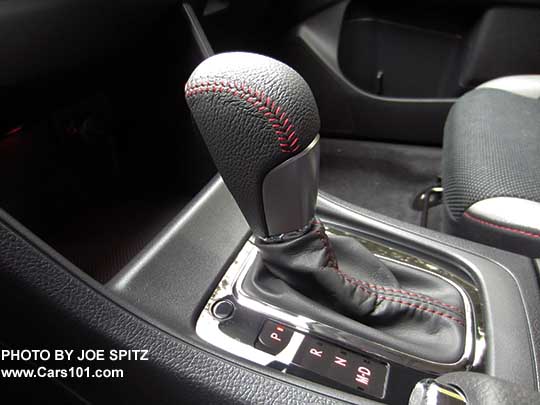

2017 Crosstrek Premium Special Edition leather wrapped CVT shift knob with red stitching, and gloss back shift plate.
2017 Crosstrek Premium Special Edition leather wrapped CVT shift knob with red stitching, and gloss back shift plate.

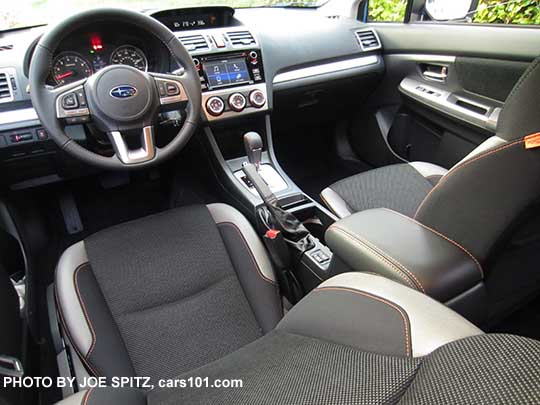

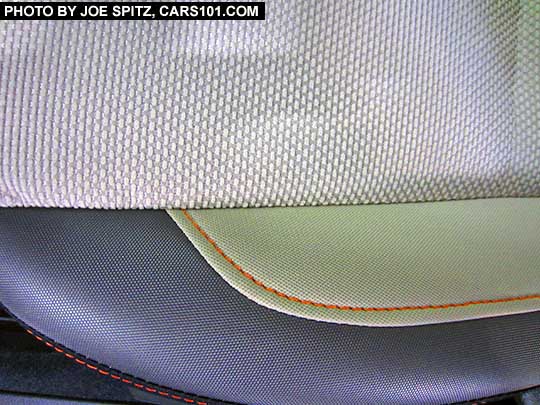

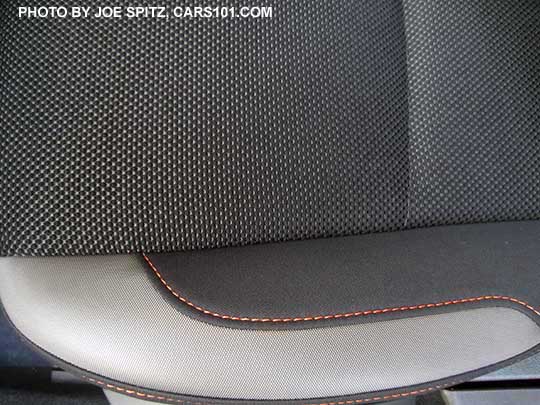

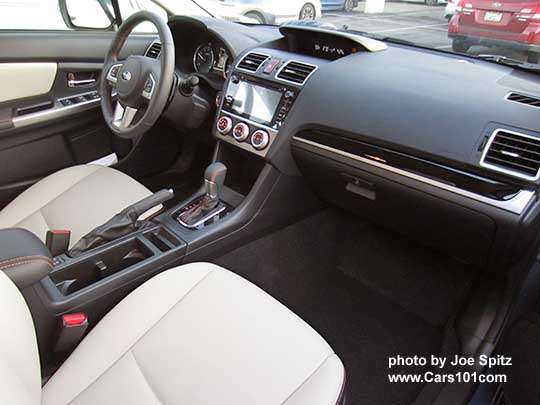

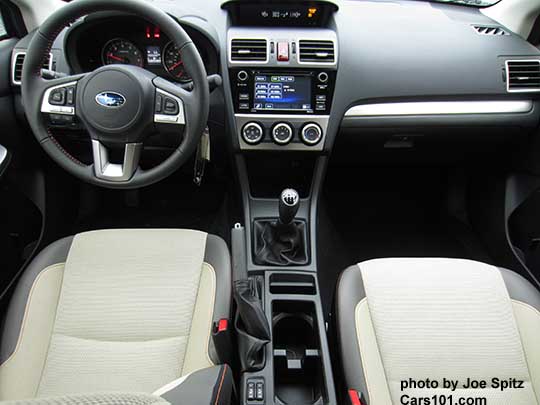

2017 Crosstrek Premium, manual transmission, warm ivory cloth, orange stitching, silver dash trim, 6.2" audio with physical buttons
2017 Crosstrek Premium, manual transmission, warm ivory cloth, orange stitching, silver dash trim, 6.2" audio with physical buttons

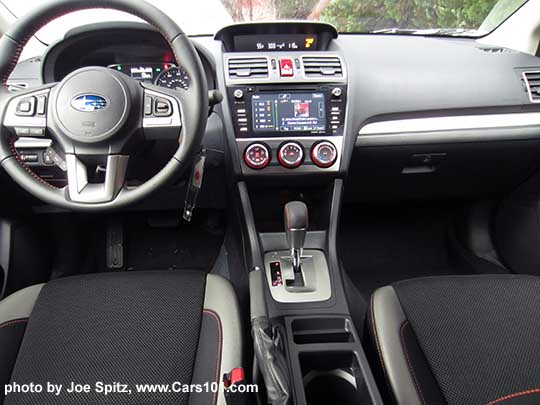

2017 Subaru Crosstrek Premium gray cloth seats, silver dash trim and CVT shift surround, leather wrapped steering wheel
2017 Subaru Crosstrek Premium gray cloth seats, silver dash trim and CVT shift surround, leather wrapped steering wheel, orange stitching
2017 Crosstrek Premium Special Edition gray cloth interior with red/black dash trim. Pure red car shown.
2017 Crosstrek Premium Special Edition gray cloth interior with red/black dash trim

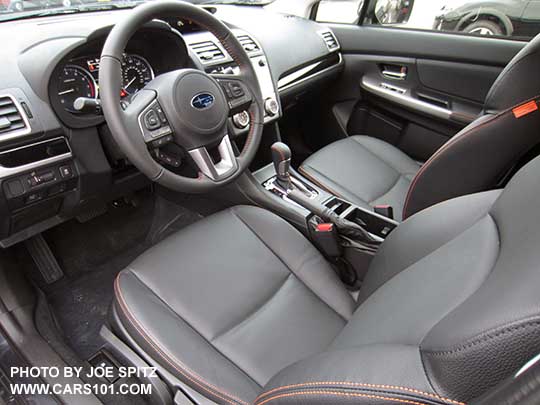

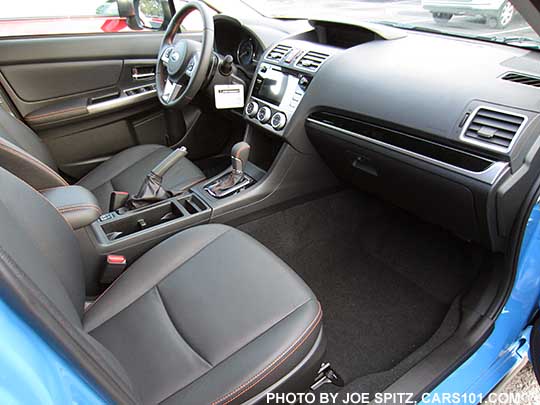

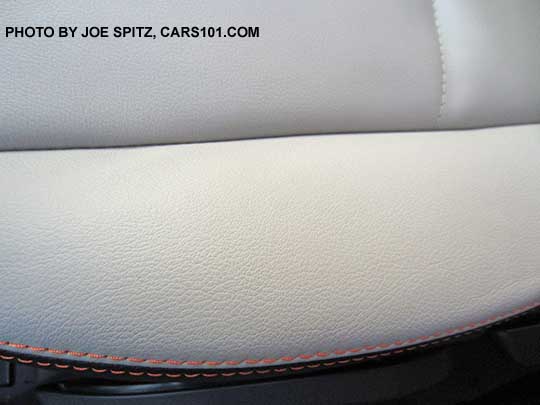

2017 Crosstrek Limited interior, gray leather with orange stitching, gloss black shift plate and dash trim
2017 Crosstrek Limited interior, gray leather with orange stitching, gloss black shift plate and dash trim
2017 Crosstrek Limited with gloss black dash trim and shift plate, 7" audio screen.  Warm ivory leather shown
2017 Crosstrek Limited with gloss black dash trim and shift plate, 7" audio screen.  Warm ivory leather shown



click for more  Exterior Photo Page ::  Interior Photo Page :: Options and Upgrades Photo Page


  top

NEWS, UPDATES AND WHAT'S NEW FOR THE 2017 SUBARU CROSSTREK

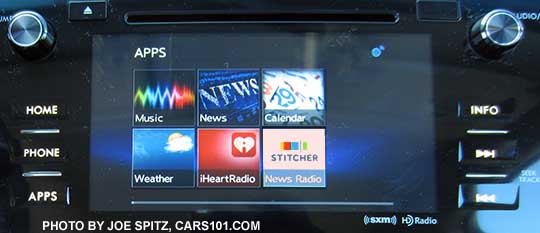

Important note: The Mirrorlink app on this car might be incompatible with the version of Mirrorlink that's standard on many Samsung Notes and Ss, HTC, and Sony Xperian cell phones, and your phone could freeze (black screen) when you plug it in to a USB port. For more info, Google problems with Mirrorlink


11/23/16 Crosstrek Premium with Option Pkg #15 Special Edition production has ended.

Subaru confirms that the production of the pure red or crystal black Premium Pkg #15 Special Edition has ended and no more will be produced. They are available at dealers.
Reportedly it was only 2000 cars total of the red and black colors. Last year it was 1500, all pure red. This is only the Premium Pkg #15 Special Edition, all other Crosstreks continue.


10/8/16 2017 Crosstrek brochures now arriving at dealers. 25 pages

Note: the brochure doesn't include the Premium Option Package #15 Special Edition (a limited production model) available in Pure Red or Crystal black with metal gas and brake pedal covers, rear spoiler, gloss black front grill, gray and silver 5 spoke alloy wheels, black rear badging, Moonroof, Pushbutton Start, Blind Spot Detection/Cross traffic alert, Front footwell and front console storage bin Red LED lighting, Turn signal outside mirrors, 6.2" audio system with 6 speakers, bluetooth, Sirius/XM etc (its the standard Premium audio system)


9/22/17 2017 Crosstrek specs, features and prices announced.
Orders available today 9/22/17
Deliveries expected late October
No changes for the 2017 models except a few minor features added to the Premium Package #15 Special Edition
(a limited production model)
Hybrid models have been dropped (they were dropped mid 2016 model)

MSRP prices increased $100 on all models.
Destination increased $25 from $850 to $875 (to ak $1025)
The total price increase is $125.
The Premium Package #15 Special Edition is available again as a limited production model, and is available in either Pure Red or Crystal Black with black cloth

2017 Crosstrek models
The Hybrid has been dropped.
2.0i  manual transmission,  model code HRA Package #01
2.0i Premium manual transmission, model code HRB, Package #11
2.0i Premium  CVT, model code HRC with Package #12, Package #13 moonroof, Package #14 EyeSight, Blind Spot/Rear Cross Traffic Alert, 7.0" Multimedia Plus, Package #15 Special Edition
2.0i Limited CVT, model code HRD Package #21,  Package #22  Moonroof,  Navigation System , Keyless Access with Push-Button Start, model code HRD, Package #23  Moonroof + Navigation System + Keyless Access with Push-Button Start, EyeSight, model code HRD Package #23


2017 Crosstrek colors
HyperBlue, Crystal Black, Dark Gray, Khaki, Ice Silver, Quartz Blue, Venetian red, Crystal white, Pure red

NEW for 2017

Premium Special Edition
(a limited production model, reportedly only 2000 will be made) is available in Black in addition to Pure Red and adds rear spoiler, metal gas and brake pedals, black rear badging, redesigned 5 spoke 17" gray and silver alloy wheels

STILL MISSING, DISAPPOINTING

Important note: The Mirrorlink app on this car might be incompatible with the version of Mirrorlink that's standard on many Samsung Notes and Ss, HTC, and Sony Xperian cell phones, and your phone could freeze (black screen) when you plug it in to a USB port. For more info, Google problems with Mirrorlink

No Power driver's seat on any Crosstrek!  The Crosstrek Limited is MSRP $26090, and doesn't have a power seat on the Limited models That's disappointing.
How about adding a heated steering wheel to the 17 Limited. Nope, didn't happen. No heated steering wheel.
I was thinking Subaru would at least put Blind Spot Detection on the Premium models. Didn't happen.

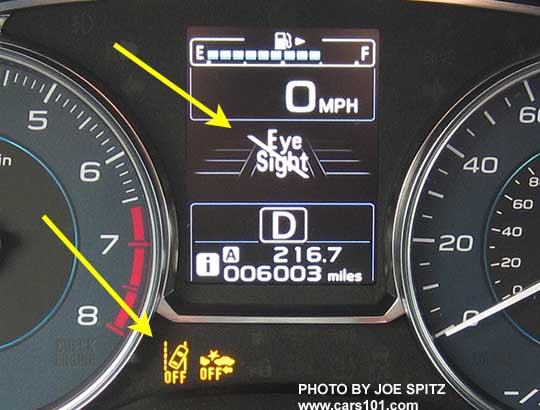

Crosstrek's Eyesight does not include the Lane Keep Assist and Reverse Auto Brake features found on Outback and Forester
There is no good cell phone holder to hold the phone upright. Some people use the cupholder.



9/7/16 2016 model Impreza and Crosstrek factory orders shut off.
No advance warning and the actual cut-off was probably on 9/1


-

top
Recommended Maintenance on the 2017 Crosstrek

replace the hvac cabin air filter behind the glovebox every year or so.  here's a  dirty 12 month old filter next to a new one
Replace the hvac cabin air filter behind the glovebox every year or so.
Here's a  dirty 12 month old filter next to a new clean one

.
subject to change, correction.  corrections welcomed.

Break-in period for the first 1000 miles
Don't race the engine, keep RPMs under 4,000 for the most part and vary the speeds with normal city and highway driving.
The first oil change is required at 6000 miles or 6 months. Its recommended to check it every few months

Always....
Always let a cold engine briefly idle as the oil circulates.
Avoid hard acceleration on a cold engine.
Check the oil between changes

Oil- 0w-20 synthetic oil is required (5.3 qts)
Spark plug-  NGK SILZKAR7B11

Note  1st oil and all subsequent oil change required at or by every 6,000 miles or 6 months.
Its a good idea to check the oil between changes.
6 months or 6000 miles is the minimum oil change interval required.
Under severe, hard, very cold or very hot weather driving, change it more frequently.

Oil and filter change:  every 6 months or 6,000 miles
Cabin air filter every 12mos/12,000 miles
Tire rotations: every 6-10,000 miles. Equal tread required at all corners. Tires, wheels FAQ
Timing chain all Outbacks have a timing chain - no replacement needed

6,000 miles/6 mos
oil and filter change, rotate tires
12,000 miles/12 mos inspection, tire rotation, cabin air filter,
18,000 miles/18 mos oil and filter change, rotate tires
24,000 miles/24 mos  inspection, oil and filter change, rotate tires, cabin air filter
30,000 mile replace engine air filters, brake fluid, and gear fluid as needed,
oil and filter change, rotate tires
36,000 miles/36 mos oil and filter change, rotate tires, cabin air filter
42,000 miles/42 mos  oil and filter change, rotate tires, cabin air filter
48,000 miles/48 mos oil and filter change, rotate tires, cabin air filter
60,000 miles/60 mos repeat 30,000 service, replace spark plugs/wires
90,000 miles/90 mos service with complete fluid, filter change. Inspect all hoses, belts
120,000 miles/120 mos repeat 30,000 service, replace spark plugs
137,500 miles replace Super Coolant Radiator Fluid. The 1st replacement is 11 years, 137,500 miles, or 220,000Km. The 2nd replacement is 6yrs, 75,000 miles

CVT Transmission: Life Time CVT oil should not need to be replaced unless driven under hard conditions, towing etc-change every 24,855 miles. Note- there is no CVT oil dipstick.
Radiator fluid is Super Coolant, with 11 year, 137,500 mile replacement schedule.

click for the full 2017 maintenance schedule
-
.
WARRANTY
.
top

Bumper-to-bumper: 3 years/36,000 miles
Roadside assistance: 3 years/36,000 miles - call Cross Country Motor Club, 800-261-2155
Service adjustment (may be performed one time), 3year/36,000
Wear Item Warranty, 3year/36,000 mile, brake pads, clutch disc lining, wiper blades, remote battery.
Powertrain: 5 years/ 60,000 miles
Corrosion: 5 years/100,000 miles. 70% of the body is double sided galvanized steel
Wear and adjustment: 12 months/12,000 miles

The warranty does not cover wear or damage due to abusive driving

800-261-2155
impreza roadside assistance phone number on drivers window
the roadside assistance phone number is on drivers window, also on 2 wallet cards included with the owners manual.
Call 800 261.2155. Good for 36months, 36000 miles.
-

top
2017 Crosstrek Safety Features
same as 2016

-

Ratings

-
Crosstreks have
standard equipment includes...

AWD all wheel drive, full time, all wheel, all speed
VDC vehicle dynamics control,  electronic stability control
TCS traction control system, all wheel all speed
Rollover Sensors
Airbags: Driver's knee airbag
Airbags: Front airbags
Airbags: Side airbags front
Airbags: Side Curtain Airbags, front and rear
Front passenger airbag-  All 2013 Crosstreks, BRZs, and 2013/2012 Imprezas models use a front passenger seat Occupant Detection System called Electrostatic Capacitance Sensor ODS.
When anyone is seated or when anything is placed on the front passenger seat, there is a change to that capacitance value. This change in capacitance value is what the Electrostatic Capacitance Sensor ODS uses to determine whether the front passenger seat airbag (SRS) will be ON or OFF. When water or anything with high moisture content is spilled on the front passenger seat cushion, the airbag is designed to remain OFF until the seat cushion is dry. This will also be the case if the passenger has moisture on their clothing, such as rain-soaked pants or rain gear. In each of these situations, the airbag status may remain OFF even if a passenger is seated. Everything that is placed on the seat will affect a change in capacitance value. Plastic, metals and other substances, even if at a heavy weight, will not change the OFF status of an airbag. A false electrical charge, for example, those caused by laptops that are processing data, cellphones that are on or even an electric device connected to a car charger can cause the airbag status to switch to ON


EDR, Event Data Recorder information.
 In the event of an impact, the EDR will freeze data including how various systems were operating, for example if seatbelts were buckled, if the gas or brake pedals were pressed, and vehicle speed. No personal data is stored. To read data, special equipment is required. In addition to the vehicle manufacturer (Subaru), other parties such as law enforcement that have the equipment can read the information if they have access to the vehicle or EDR.  Existing laws generally provide that information in an EDR is confidential and is the property of the owner of the motor vehicle. Information is accessed through the airbag system using a Subaru service computer.


all Crosstreks have, con't


>  Whiplash protection front seats
> Tire Pressure Monitoring System (TPMS) on all models
> Headrests- front headrests are both tilt and height adjustable
> Steering wheel tilt and telescoping function to get a comfortable position
> Headlights are Auto-off with ignition key removal, warning chime with lights back on.
> Collapsible foot pedals to reduce risk to feet in accidents
> Brake assist increases the brake power when the driver initiates hard emergency pressure on the pedal. Brake assist generates the brake power according to the speed at which the driver depresses the brake pedal. Brakes: anti-lock 4 wheel disc brakes with EBD electronic brake force distribution, Brake assists for maximum brake pressure, and brake pad release return springs to prolong pad life.
Brakes: Brake Override System, if gas and brake pedals are pressed at the same time, the brakes stop the car
Brakes: brake return springs, helps eliminate some brake wear
Brakes: EBD, electronic brake force distribution varies front/rear brake power
Brakes: low-wear indicators on disc brakes (rear drums on 2.5i)
3 point lap and shoulder belts with Height Adjustable outboard shoulder harness for all (5) occupants.
Internal Trunk Release, sedan, emergency inside-trunk release
LATCH Child seat Tethers and Uniform Mounting Clips
Childproof rear door locks and windows.
Daytime running lights
Crumple zones: front and rear
Drop-down motor mounts
Reinforced door beams: Dual front, single rear
A Pillar reinforcing beam
Oversize outside mirrors to minimize blindspots

Hybrid only...Pedestrian alert system. a sound alerts pedestrians a car is coming when the hybrid is running on quiet battery power under 15mph (no gas engine running)


 Subaru's Mobile-It-Ease program helps modify vehicles for special needs drivers. More info here

-
-
EYESIGHT

included on
Premium with Option Package #14
and
Limited with Option Package #23


EYESIGHT
Optional on Premium with Option Package #14, and Limited with Option Package #23

This is the 3rd year for Eyesight.
It was new on the 2015 Crosstrek


Its the 3rd generation Eyesight (note- 1st gen Eyesight was never offered in the US).

It includes
Steering responsive fog lights
Active cruise control,
Lane departure warning,
Pre-collision warning and
Pre-collision braking.

(Note: 2017 Crosstrek Eyesight does not include the Lane Keep Assist and Reverse Automatic Brake features found on Outback and Forester)


> Steering responsive fog lights uses steering wheel position to briefly turn on the left or right fog light to illuminate a corner when the steering wheel is turned. Headlights in 'auto' setting and fog lights off for the system to work.

> Active Cruise Control combines the benefits of cruise control with active monitoring of the road ahead. It issues warnings and activates automatic braking when needed. Adaptive Cruise Control can regulate vehicle speed in order to keep a safe following distance from the vehicle ahead. It does not replace conventional cruise control, which can still be used when desired.
> Pre-Collision Braking can recognize an impending collision, alert the driver and automatically apply the brakes to help avoid a collision or minimize the impact when a collision is inevitable.
> Pre-Collision Brake Assist-  If Eyesight recognizes an impending collision and the driver is applying the brakes but not with enough force, Pre-Collision Brake Assist automatically applies up to full braking pressure in order to try to shorten braking distances.
> Pre-Collision Throttle Management is designed to help prevent drivers from accelerating into a stopped vehicle or other obstacle in front of them. It warns the driver and reduces engine power until he or she applies the brakes to avoid an impact.
> Lead Vehicle Start Alert is a helpful EyeSight feature that alerts the driver when his or her vehicle remains stopped after a vehicle in front has started to move away.
> Lane Departure Warning alerts drivers when they unintentionally move out of their travel lane. It takes no corrective vehicle action other than issuing visual and audible warnings. Works over app 30mph
> Lane Sway Warning acts in a similar way, detecting unusual back and forth vehicle movement within the lane of travel. Lane Departure Warning works at all speeds, while Lane Sway Warning only operates at speeds over 38 mph.

Eyesight cars have three windshield washer squirters, with the middle one to clean in front of the cameras.
The camera’s field of view is about 35 degrees horizontally from the center of the windshield.
The camera’s field of vision extends up to about 360 feet in front of the vehicle, but objects very close to the vehicle may not be detected
EyeSight works to recognize obstacles up to about a 30-mph (or less) speed differential. Essentially, EyeSight needs time to recognize an object or potential obstacle. If the speed difference between the EyeSight vehicle and the object is greater than up to 30 mph, the object will likely not be detected.

Note
- do not touch or try to clean the EyeSight camera lenses. It is imperative that extra precaution be used when cleaning the inside of the windshield, because over-spray from cleaners may impair or even damage the cameras’ lenses, which is not a warranty issue

TOP
-
Blind Spot Detection and Rear Vehicle Detection System

standard on Limiteds
incl on Premium with Option Package #14, #15

Blind Spot Detection and Rear Vehicle Detection System (rear cross traffic alert)
was new on the 2016 model

standard on all Limiteds
included on Premium with Option Pkg #14 (eyesight, blind spot detection) and Option Pkg #15 Special Edition

**************************************************************

package includes
> Blind Spot Detection (BSD) (detects a vehicle alongside and slightly to the rear of you),
> Lane Change Assist (warns of vehicles approaching in the next lane),
> Rear Cross Traffic Alert (warns of vehicles approaching when you're backing out of a parking spot).

The Subaru Rear Vehicle Detection (SRVD) system uses two radar units, each mounted underneath the sheet metal immediately below the rear taillights. To help avoid damage, the radar units are purposely mounted above the typical bumper impact line.

The radar units send out signals to detect vehicles behind and to each side of the Subaru vehicle, especially those vehicles that might not be visible in the rearview mirrors.

Lane Change Assist (LCA) looks for vehicles farther back in an adjacent lane – about 220 feet behind the Subaru vehicle. If the vehicle detected is approaching quickly – at a speed that could bring it alongside the Subaru vehicle within a few seconds – Lane Change Assist will illuminate a warning icon in the exterior mirror on that side. If the driver signals a lane change, the warning icon in the mirror will flash rapidly.

Blind Spot Detection (BSD) is
standard on Limiteds, optional on Premiums. It will illuminate a warning icon in the exterior mirror when it detects a vehicle alongside and behind the Subaru vehicle in an area of about 22 feet x 11 feet. If the driver signals a lane change to that side, the warning icon in the mirror will flash.

Rear Cross Traffic Alert (RCTA) uses the same radars and sensors to help detect vehicles that cannot be seen by the driver as they approach from either side. This is especially helpful when reversing from between two larger vehicles. The driver is alerted by a flashing icon in the appropriate exterior mirror as well as an audible alert


-

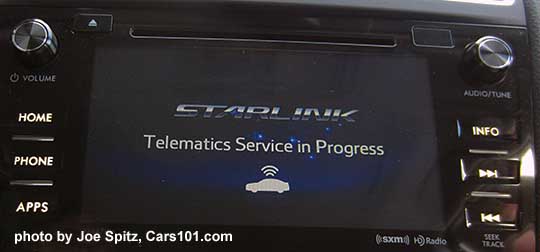

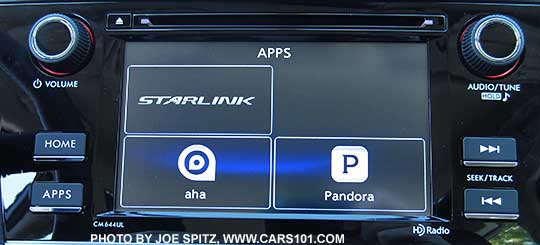

Subaru Starlink connected safety and convenience services

Standard on Limited
included on Premium with Option Package #14 (Eyesight) and Package #15 Special Edition


SUBARU STARLINK Connected Safety and Convenience Services
was new on 2016 models

SUBARU STARLINK Connected Safety and Convenience Services

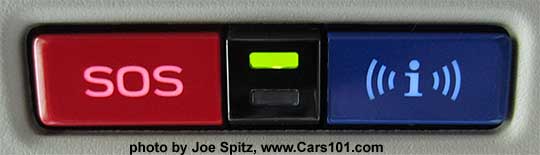

helps in an accident, if you're locked out, lost, car is stolen, broken down, or with emergency services and mechanical issues and notification.

In an emergency, you don't have to fumble looking for a phone, dialing a number, or even know where you are.
Just reach up and tap the button!

Note- this system does NOT work if the car's battery is dead, there's no backup battery for it so in the event of a dead battery or an accident where the battery is dislodged, have your cellphone handy because the Starlink won't work.
There is a backup emergency battery for sending an emergency signal after an accident or airbag deployment

AT&T provides the connection, Sirius/XM provides the telematics
click for more information on this page

there are 2 packages

> Safety Plus
with SOS emergency accident assistance, enhanced roadside assistance, automatic collision notification, maintenance notification, and diagnostic alerts-  1st year Safety Plus free

> Safety Plus and Security Plus adds stolen vehicle recovery, alarm notifications, remote lock/unlock, remote horn/lights function, remote vehicle finder

includes roof mounted fin antenna

dealer/salesperson will activate at time of vehicle purchase


-
. top
DIMENSIONS
2017 CROSSTREK
same as 2016
subject to change, correction. corrections and tips welcomed.


Dimension
2017 Crosstrek
Length
175.2
Wheelbase
103.7
Width  70.1", 78.9" with mirrors folded out
Height  63.6" including roof rails
Ground clearance, at exhaust pipe
8.7"
angle to approach
18*
angle of departure
28*
ramp breakover
20.2*
Track front/rear  60"/60"
Interior volume 97.5cf,  (94.0 with moonroof)
Headroom front/rear
no moonroof 39.8/37.7"
Legroom front/rear 43.5/34.5"
Cargo volume rear seats up
rear seats down 51.9
Weight 2.0i and Premium manual transmission - 3,109 lbs
Premium CVT  3,186-3219 lbs
Limited CVT  3208-3241 lbs

-
  top
2017 CARGO AREA DIMENSIONS AND MEASUREMENTS
hand measured and subject to change and correction
same as 2016, 2015, 2014, 2013

new photos soon

subaru xv crosstrek cargo area measurements and dimensions
cargo measurements (not hybrid)




A width at lower gate opening 35"
B cargo floor width behind wheel wells 53"
C cargo floor width between wheel wells 42"
D width of left rear seat 17"
E width on top of wheel wells 49"
F width in middle of rear gate opening 37"
G cargo length to back of seat 31"
H height of gate opening 29"
I  cargo length to console heater controls 94"
J height center cargo floor to ceiling 29". Hybrid is 28"
K cargo floor length to top of rear seat, not including headrests 55"
L width of right rear seat 25"



crosstrek hybrid cargo area floor-ceiling height measures 28". the std Crosstrek is 29"
Crosstrek hybrid floor-ceiling height measures 28". the std Crosstrek is 29"
subaru crosstrek hybrid cargo tray with embossed "hybrid"
Subaru Crosstrek Hybrid cargo tray with embossed "hybrid"
subaru xv crosstrek rear seat folded flat
width rear seats folded flat door armrest to armrest 50". Load height 31"
hand measured, subject to change, correction,shown with optional rear seatback protector
subaru xv crosstrek measurements
A 30.5" to top of bumper, B 32.5" to top of lower gate (lift-over height)
hand measured, subject to change, correction

subaru crosstrek rear door measurement
height of rear seat cushion, hand measured 27". With rear seats folded flat, load height is 31"
hand measured, subject to change, correction
crosstrek front seat is manually height adjustable
the driver's seat is manually height adjustable
crosstrek driver seat front to back measurement
driver seat front-back measurement from brake pedal to front of seat cushion 12.75"-21.75". Shown at 21.75"
Hand measured, subject to change, correction
xv crosstrek front seat height measurements, photo by jope spitz, cars101.com
the drivers seat goes from 25"-26.5" height adjustment to top of seat bolster. Thats a bigger adjustment than it might seem.
Hand measured, subject to change, correction. Desert Khaki color shown (yes it was raining)
crosstrek steering adjustments: telescopes in/out and tilts up/down. photo by joe spitz, cars101.com
Crosstrek steering wheel telescopes in/out 25"- 26.5" from brake pedal,  and tilts up/down 17.5"-19" from floor
Shown in the up position, and close to the dashboard
Hand measured, subject to change, correction

crosstrek steering wheel tilts up/down and telescopes in/out. photo by joe spitz, cars101.com
Crosstrek steering wheel telescopes in/out 25"- 26.5" from brake pedal,  and tilts up/down 17.5"-19" from floor. Shown in the down position, and pulled away from the dashboard
Hand measured, subject to change, correction

subaru xv crosstrek front passenger moved forward and backward. shown backward. photo by j spitz, cars101.com
There is a lot of front seat legroom. the front passenger seat front/back adjustment is from 21.5"-24.5". Shown at 24.5".
Hand measured, subject to change, correction
2013 subaru crosstrek with scuba diving tanks in the cargo area
Crosstrek carries a lot of gear including scuba diving tanks
2015 Subaru Crosstrek optional 1.25" trailer hitch  measurements- hitch to ground
2015 Subaru Crosstrek optional 1.25" trailer hitch measurements, hand measured,  hitch to ground

A- receiver to ground 11.25", B- tie down to ground 10"


blank for now
-

-
  top
2017 Crosstrek Option Packages

these are the factory installed major Option Packages
accessory and upgrade option packages and individual options are below


subject to change and correction
model (model code)
option
package code
Option Package

2.0i, manual transmission (HRA)

pkg #01
standard- no other Option Pkgs available
---

2.0i Premium, manual transmission (HRB)

pkg #11
standard- no other Option Pkgs available
--
2.0i Premium, CVT transmission (HRC)
pkg #12

standard

pkg #13 > Moonroof with sunshade

MSRP $1000
pkg #14
> Blind Spot Detection with Rear Cross Traffic Alert
> Subaru Starlink Safety Plus and Security Plus connectivity, 1st year free Safety Plus
> Eyesight safety system
Eyesight includes

Steering responsive fog lights
Active cruise control,
Lane departure warning,
Pre-collision warning and
Pre-collision braking.

> upgraded 7" HD LCD multi-touchscreen, rear view camera display, 6 speaker audio system with voice activated controls, AM/FM/HD radio, single CD player, XM (4 mos free), Bluetooth wireless audio streaming, Subaru Starlink smartphone app with weather, news, Stitcher app, Aha music app, Pandora, Mirrorlink, dual USB ports, 3.5mm aux jack, itunes tagging,  cell phone Bluetooth with contact download, text message download (iphone, android).
Roof mounted fin antenna

MSRP $1995
Pkg #15 Special Edition (SE)

update 11/23/16 Crosstrek Premium with Option Pkg #15 Special Edition production has ended.
Subaru confirms that the production of the pure red or crystal black Premium Pkg #15 Special Edition has ended and no more will be produced. They are available at dealers.
Reportedly it was only 2000 cars total of the red and black colors. Last year it was 1500, all pure red. This is only the Premium Pkg #15 Special Edition, all other Crosstreks continue.


either Pure Red or Chrystal Black color

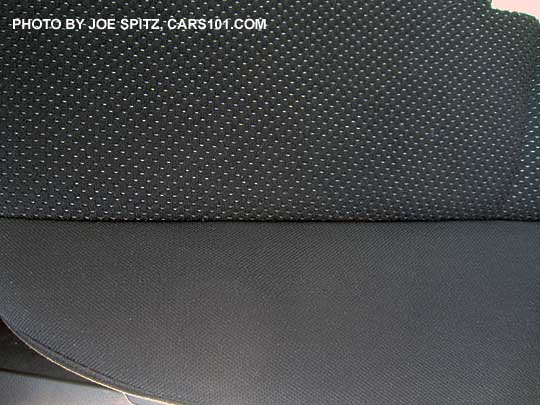

Black cloth interior with red stitching on the shift knob, door panels, and steering wheel.
Black dash trim with red accents
Includes
new for 2017 metal gas and brake pedal covers, large rear spoiler with black trailing edge, gloss black front grill, gray and silver 5 spoke aero design alloy wheels, black rear badging

Moonroof,
Pushbutton Start,
Blind Spot Detection/Cross traffic alert,
Front footwell and front console storage bin Red LED lighting,
Turn signal outside mirrors,
6.2" audio system with 6 speakers, bluetooth, Sirius/XM etc (its the standard Premium audio system)


MSRP $2,300
--
2.0i Limited, CVT (HRD)

Note:
Blind Spot Detection with Rear Cross Traffic Alert is standard on this model
pkg #21
standard
pkg #22
> Moonroof with sunshade,
> Keyless Access/Pushbutton Start with pin code access
> Navigation/GPS with 3 free annual map updates and 3 years free SiriusXM Nav Traffic and Travel Link (

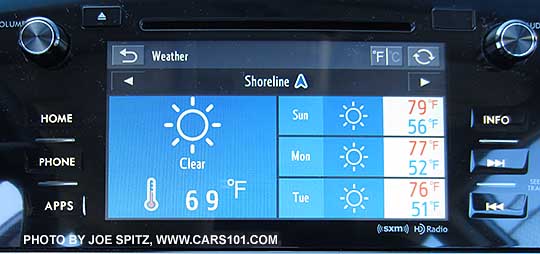

Travel Link is weather, gas station locator, stock report, and sports reports)

MSRP $2100
pkg #23 >Eyesight safety system
Eyesight includes

Steering responsive fog lights
Active cruise control,
Lane departure warning,
Pre-collision warning
Pre-collision braking.

> Moonroof with sunshade,
> Keyless Access/Pushbutton Start with pin code access.
Instructions: To start the car, tap the start button once when pressing the brake pedal. For radio or accessory power only, tap with your foot off the brake, 1 tap for radio, 2nd tap for all power, tap a 3rd time to turn off
> Navigation/GPS with XM navtraffic and nav weather with 3 free annual map updates and 3 years free XM NavTraffic and Travel link (Travel Link is weather, gas station locator, stock report, and sports reports).

MSRP $2895

Navigation map updates: 2012 and newer models with navigation can get map updates. 2016 and 2017 navigation models can get the 3 years of free updates when available at www.SubaruMapUpdates.com
-
  top
2017 CROSSTREK PRICES
.
Prices announced 9/22/16

Destination
 raised $25 to$875
To Ak its $1025, and can vary in the independent distributor states CT, HI, MA, ME, NJ, NY, RI, and VT
Note: all prices here are MSRP suggested list price. Your actual purchase price might be higher or lower depending on your dealers mark-up or discounts.
-
OPTION PACKAGE REMINDER
#01- standard
#11- standard
#12- standard
#13- Moonroof $1000
#14- Eyesight, Blind Spot Detection, Rear  Cross Traffic Alert, upgraded 7" audio $1,995
#15- Special Edition $2300 (production has ended, reportedly only 2000 total)
#21- standard
#22- Moonroof, Navigation, Keyless Access/Pushbutton Start, $2100
#23- Eyesight, Moonroof, Navigation, Keyless Access/Pushbutton Start, $2895
#31- standard
-
subject to change, correction

model and price

.

add for Option Packages...
for description see above
-
model and transmission
model code
MSRP
dest
Total MSRP
.
pkg #01
incl
pkg #11
incl
Pkg #12
incl
Pkg #13
$1000
Pkg #14
$1,995
Pkg #15
$2,300
Pkg #21
incl
Pkg #22
$2100
Pkg #23
$2,895
blank
Crosstrek 2.0i, manual transmission
HRA
$21,695
$875
$22,570
.
$22,570
--
--
--
--
--
--
--
--
--
Crosstrek 2.0i Premium, manual trans
HRB
$22,495
$875 $23,370
.
--
$23,370
--
--
--
--
--
--
--
--
Crosstrek 2.0i Premium, CVT
HRC
$23,495
$875 $24,370
.
--
--
$24,370
$25,370
$26,365
$26,670
-
--
--
--
Crosstrek 2.0i Limited, CVT
HRD
$25,195
$875 $26,070
.
--
--
--
--
--
--
$25,945 $28,170
$28,965
--
-

-

2017 Crosstrek, Impreza, Forester, Legacy
Price Comparison Chart


prices are MSRP including destination. Other packages with eyesight are available.
Contact your local dealer for their actual selling prices


subject to change, correction

model
transmission
base model
Premium
Premium with Eyesight
Limited
Limited with Eyesight
performance model
Impreza 5 door
manual
$19,715
--
--
--
--
Sport- $23,315
CVT
$20,715
$22,515
pkg #13,  $23,910
$25,415
pkg #33,  $27,910 Sport- $24115
Crosstrek
manual
$22,570
$23,370
--
--
--
--
CVT
--
$24,370
$26,365
$26,070
$28,965
--
Forester manual
$23,470
$26,370
--
--
--

CVT
$24,470 (add $600 for roof rails and alloys, pkg #02)
$26,870
pkg #14, $28,565
$30,070
pkg #23 $33,015
XT Premium- $30,170
XT Touring- $35,170
---
Impreza sedan
manual
$19,215
--
--
--
--
Sport $22,815
CVT
$20,215
$22,015
pkg #13,  $23,410
$24,915
pkg #33, $27,410
Sport- $23,615
2.5 Legacy sedan
CVT
$22,815
$24,815
pkg #14, $26,310
$29,660
pkg #24, $31,665
Sport- $26,815


-
top
2017 Crosstrek Specifications

this information is subject to frequent updating, change, correction.
tips are welcomed.

-
model
2.0i

2.0i Premium

2.0i Limited
blank
model code
package #
HRA
manual, #01
HRB
manual, #01
HRC,
CVT #12
HRC
CVT #13
HRC,
CVT, #14
HRC,
 CVT #15
HRD,
CVT, #21
HRD,
CVT, #22
HRD,
CVT, #23
blank
Engine

2.0L 4 cylinder 1995cc (121.7ci) 4 cylinder engine code FB20
Horizontally Opposed Boxer engine
DOHC with timing chain (not a belt)
16 valves
Dual active valve control system (DAVCS) with variable intake and exhaust
Direct ignition
Sequential multi-port fuel injection, common rail
Bore x Stroke 3.31" x 3.54" (84.0x90.0mm)
Compression 10.5:1
Redline- 6600 RPM
Underhood noise/sound insulation
Hood prop to hold hood open
-
Horsepower/Torque
148 hp @ 6,200 rpm / 145 lb ft torque @ 4,200 rpm
-
Transmission
manual 5 speed
Available on 2.0i and Premium #11 only, not available on any other models
5 speed manual with incline start assist Gears: 1st 3.545, 2nd 1.888, 3rd 1.296, 4th 0.972,5th 0.780, final drive 4.44:1

-
Transmission
CVT automatic
with Paddle Shifters with 6 gear-like settings
CVT stands for Continuously Variable Transmission.
Lineartronic is Subaru's name for their CVT
no CVT available
no CVT available Standard on Premium and Limited
Subaru Lineartronic CVT with 6 "gear" setting paddle shifters range 3.581-0.570
Final drive ratio 3.70:1

-
Keyless access, pushbutton start (proximity key)
Instructions: To start the car, tap the start button once when pressing the brake pedal. For radio or accessory power only, tap with your foot off the brake, 1 tap for radio, 2nd tap for all power, tap a 3rd time to turn off
--
--
--
--
--
S
--
S
S
-
Fuel economy

regular gas, 87 octane
5 speed manual: City/Hwy/Comb: 23/31/ 26
CVT: City/Hwy/Comb: 26/34/ 29
15.9 U.S gallon gas tank

ECO gauge which compares instant economy to trip odometer economy since last reset
-
All Wheel Drive


all models have full time, all wheel, all speed, All Wheel Drive with VDC (vehicle dynamics control) electronic stability control
with TCS (traction control system).

Manual transmission models (Premium only) have "Continuous" all wheel drive with 50/50 front/back power split, mechanically controlled.
CVT models (Premium and Limited)  use "Active" all wheel drive with electronically controlled front/back power split. Mostly front wheel drive under normal driving conditions.
Emissions
PZEV
-
PZEV
What is PZEV, a brief summary  Partial Zero Emission Vehicle
The EPA says a PZEV is clean running gas engine car based on emissions testing for carbon-containing compounds, oxides of nitrogen, particulate matter, and other tailpipe nastiness.
1. A charcoal canister catches unburned gas left in the engine when it's turned off so it doesn't just evaporate.
2. Fuel injectors that close tighter when they're not in use.
3. A finer mesh in the catalytic converter, as well as optimized placement of its precious metal.
4.  The engine's electronic brain is tuned to run the hot at start up to help the catalytic converter heat up so it can start doing its job faster.
model reminder
2.0i manual
Prm manual
Prm #12
Prm #13
Prm #14
Prm #15
Limited #21
Limited #22
Limited #23
blank
Tune-up specs
Idle speed, CVT and manual-  650rpm +/-100
Spark plugs, iridium tipped,  NGK SILZKAR7B11
Ignition timing,  manual 12* +/- 10, CVT 16* +/- 10
Firing order 1-3-2-4
Oil and oil filter capacity 5.1qts
Oil- 0w-20 synthetic oil is required
Engine Super Coolant- manual trans 8.5US qts, CVT 8.9 qts
Battery 390 cca
-
Brake hardware
all models
Front: 11.6 vented disc
Rear: 10.8" solid disc
parking brake- mechanical drum in rear disc

Brake systems
Standard on all models
4 wheel, 4 channel anti-lock, power assisted
Electronic brake force distribution EBD
Brake Override System (BOS) when gas and brake pedal are both pressed, the brake overrides and the car stops
Brake Assist: when the brake pedal is pressed quickly, the system increases brake pressure for faster emergency stopping
Co-x drag
0.35
-
Suspension
4 wheel independent
Front: MacPherson Strut with stabilizer bar
Rear: Double Wishbone with stabilizer bar

-
model reminder
2.0i
Prm manual
Prm #12
Prem #13
Prm #14
Prm #15
Ltd #21
Ltd #22
Ltd #23
blank
Steering
Quick ratio electric power steering
Electric power assisted rack and pinion steering,
Turns, lock-to-lock 2.8
turning circle: curb to curb 34.8ft; wall to wall 37.7ft

-
Wheels
all models except Premium Special Edition Pkg 17x7" alloy, machined gray
Premium Package #15 Special Edition- 17x7" 5 spoke machined aero design gray and silver alloys (also on 2014-2016 Crosstrek Hybrids)
inset 48mm (1.89"), PCD 100mm (3.94")
TPMS- sensors must be registered, they are not self registering.
Single warning light for all wheels, not a wheel specific dash light dash
-
Tires
225/55 R17 95H, Yokohama Geolander G95 low rolling resistance all season

tire pressure: manual trans f/r 32psi/30psi
tire pressure: CVT f/r 33/32

-
Spare tire- 2.0i, Premium, Limited

temporary duty spare tire under cargo floor

-
Towing
Towing a trailer behind a Crosstrek
the optional Subaru factory hitch is a 1.25"
max trailer weight with electric trailer brakes 1500 lbs,
max trailer weight without trailer brakes 1000 lbs.
max trailer weight when towing on long uphill grades or when the outside temp is 104* or higher- 750lbs
200 lb tongue weight

Towing a Crosstrek behind a tow truck or motorhome:
manual transmission- all wheels either on or off the ground.
CVT- all wheels off the ground on a flatbed or dollies

-
model reminder manual #01
manual #11
CVT #12
CVT #13 CVT #14CVT #15
CVT #21
CVT #22
CVT #23
blank
2.0i
Premium
Limited
blank
-

2017 Crosstrek features chart
S standard, -- not available

Option Package reminder
#01- standard
#11- standard
#12- standard
#13- Moonroof $1000
#14- Eyesight, Blind Spot Detection, Rear  Cross Traffic Alert, upgraded 7" audio $1,995
#15- Special Edition $2300 (limited production)
#21- standard
#22- Moonroof, Navigation, Keyless Access/Pushbutton Start $2100
#23- Eyesight, Moonroof, Navigation, Keyless Access/Pushbutton Start $2895
#31- standard

subject to change and updating. comments, corrections welcomed
model
2.0i base
Premium
Limited
blank
blank
package #
Pkg #01
pkg #01
Pkg #12
Pkg #13
Pkg #14
Pkg #15
Pkg #21
Pkg #22
Pkg #23
blank blank
Transmission
manual
manual
CVT with Paddle shifters
--
CVT with Paddle shifters
blank
Cloth interior with black stitching
Brushed silver dash trim
S
--
--
--
--
--
--
--
--
--
-
Cloth interior with orange stitching on seats, center console, steering wheel shift handle, door armrest
Brushed Silver dash trim
--
S
S
S
S
--
--
--
--
--
--
Cloth interior with Red stitching on seats, center console, steering wheel shift handle, door armrest.
Red and gloss Black dash trim with red accents.
--
--
--
--
--
S
--
--
--
--
--
Leather trimmed interior with orange stitching on seats, center console, steering wheel shift handle, door armrest.
Gloss Black dash trim.
--
--
--
--
--
--
S
S
S
-
-
Dash trim
silver
silver
silver
silver
silver
red and gloss black
gloss black
gloss black
gloss black
--
--
Floor mats, carpeted
S
S
S
S
S
S
S
S
S
-
-
Power windows
S
S
S
S
S
S
S
S
S
-
-
Power Locks
S
S
S
S
S
S
S
S
S
-
-
Power outside mirrors, unpainted black
S
--
--
--
--
S
--
--
--
-
-
Power outside mirrors, large size, painted body colored, heated (All Weather Pkg) --
S
S
S
S
--
--
--
--
-
-
Power outside mirrors, large size, painted body colored, heated (All Weather Pkg) with integrated turn signals
--
--
--
--
--
S
S
S
S
-
-
Cruise control with steering wheel controls
S
S
S
S
S- Eyesight active cruise control S
S
S- Eyesight active cruise control
S- Eyesight active cruise control
-
-
Air conditioning, manual controls, 4 speed fan, with cabin air filter (replace yearly)
S
S
S
S
S
S
--
--
--
-
-
Air conditioning, Automatic climate control, 7 speed fan, with cabin air filter (replace yearly)
--
--
--
--
--
--
S
S
S
-
-
Cabin air filter, replace yearly S
S
S
S
S
S
S
S
S
-
-
All Weather Package with high/low heated front seats, heated outside mirrors, defrosting lower front windshield to de-ice wipers --
S
S
S
S
S
S
S
S
-
-
Height adjustable drivers seat (manual adjustment, no power seat is available)
S
S, heated
S, heated S, heated S, heated S, heated
S, heated
S, heated S, heated -
-
model reminder
2.0i base
Prm #01
Prm #12
Prm #13
Prm #14
Pkg #15
Ltd #21
Ltd #22
Ltd #23
blank blank
Moonroof, power tilt and slide, with manual sunshade --
--
--
S
--
S
--
S
S
-
-
Rear spoiler, large type, body colored with black, extended rear edge --
--
--
--
--
S
--
--
--
-
-
Steering wheel- Tilt/telescoping, with illuminated audio, cruise, and cell phone bluetooth control
CVT models have Paddle Shifters
S, vinyl leather wrapped with orange stitching leather wrapped, RED stitching
leather wrapped with  orange stitching-
-
Shift knob, manual or CVT vinyl
leather wrapped with orange stitching
Red stitching
leather wrapped with orange stitching-
-
Center console with 2 cupholders, two 12v power outlets;  USB connection, 3,5mm aux jack
S
S
S
S
S
S
S,  2 USBs S, 2 USBs S, 2 USBs -
-
Center console sliding lid armrest
O
S
S
S
S
S
S
S
S
-
-
Dash gauges- off white numbers with red needles, analog tach, analog speedometer, eco gauge, dual trip odometers, fuel gauge
S
S
S
S
S
S
--
--
--
-
-
Dash gauges-off white numbers and needles, analog tach, analog speedometer, eco gauge, dual trip odometers, fuel gauge, digital speedometer in the center LCD display
--
--
--
--
--
S
S
S
S
-
-
Wipers- variable speed front, 2 speed rear
S
S
S
S
S
S
S
S
S
-
-
Rear defroster
S
S
S
S
S
S
S
S
S
-
-
model reminder
2.0i
Prm man.
Prm #12
Prm #13
Prm #14
Pkg #15
Ltd #21
Ltd #22
Ltd #23
blank blank
Remote keyless entry, 3 keys
S
S
S
S
S
--
S
--
--
--
--
Keyless access with illuminated pushbutton start, 2 key fobs
Instructions: To start the car, tap the start button once when pressing the brake pedal. For radio or accessory power only, tap with your foot off the brake, 1 tap for radio, 2nd tap for all power, tap a 3rd time to turn off
--
--
--
--
--
S
--
S
S
-
-
Immobilizer key, ignition disabling security system
S
S
S
S
S
S
S
S
S
-
-
Illuminated ignition key ring or pushbutton start button
--
S
S
S
S
S
S
S
S
-
-
Cup holders. 6: 2 in center console, 1 bottle holder in each door.
S
S
S
S
S
S
S
S
S
-
-
Rear seat fold down armrest with 2 cupholders
--
--
--
--
--
S
S
S
S
-
-
Cargo area: cargo cover, cargo tray, cargo hooks (4)
O
S
S
S
S
S
S
S
S
-
-
Headlights- auto on/off with key in ignition cylinder, or on with pushbutton start ignition on
S
S
S
S
S
S
S
S
S
-
-
Headlights- auto on/off with key in ignition cylinder with Auto dusk to dawn setting, or with pushbutton start with ignition on --
--
--
--
--
S
S
S
S
-
-
Fog lights
Note: Steering Responsive Fog Lights incl with optional Eyesight
--
S
S
S
S
S
S
S
S
-
-
Roof rack rails (crossbars are optional)
S
S
S
S
S
S
S
S
S
-
-
Dark tinted windows. Note- there is no tinted upper windshield band though one can easily be added aftermarket
S
S
S
S
S
S
S
S
S
-
-
Rear view back-up camera, displays in audio screen
S
S
S
S
S
S
S
S
S
-
-
12v power outlets
2 in center console 2 in center console
2 in center console 2 in center console 2 in center console 2 in center console 2 in center console 2 in center console 2 in center console -
-
Outside door handles
body colored
body colored
body colored body colored body colored body colored
body colored
body colored body colored -
-
Luggage cargo area retractable cover
O
S
S
S
S
S
S
S
S
-
-
Cargo tray
O
S
S
S
S
S
S
S

-
-
Bluetooth: for handsfree cell phone, and for wireless audio streaming. With steering wheel controls
S
S
S
S
S
S
S
S
S
-
-
Front bumper underspoiler (its very small)
--
--
--
--
--
--
--
--
--
-
-
Underhood sound insulation
--
S
S
S
S
S
S
S
S
-
-
package
2.0i
manual
Prm manual
Prm #12
Prm #13
Prm #14
Pkg #15
Ltd #21
Ltd #22
Ltd #23
blank blank

"INFOTAINMENT"
STEREO -  AUDIO -  STARLINK

Important note: The Mirrorlink app on this car might be incompatible with the version of Mirrorlink that's standard on many Samsung Notes and Ss, HTC, and Sony Xperian cell phones, and your phone could freeze (black screen) when you plug it in to a USB port. For more info, Google problems with Mirrorlink

information always subject to change, correction

Subaru Starlink Safety Plus and Security Plus connectivity,  with 1st year free of Safety Plus
(was new on 2016 models)
na
na
na
na
S
na
S
S
S
blank blank
2.0i model
6.2" HD LCD touchscreen, rear view camera display, 4 speaker audio with AM/FM/HD radio, single CD player, Bluetooth wireless audio streaming, Subaru Starlink  smartphone app with weather, news, music Stitcher apps, Aha music app, Pandora radio, Mirrorlink.  single USB port, 3.5mm aux jack, itunes tagging,  cell phone Bluetooth with contact download, text message download (iphone, android). Roof mounted Mast antenna

Premium
6.2" HD LCD touchscreen, rear view camera display, 6 speaker audio with AM/FM/HD radio, single CD player, Bluetooth wireless audio streaming, Subaru Starlink smartphone app with weather, news, music Stitcher apps, Aha music app, Pandora radio, Mirrorlink single USB port, 3.5mm aux jack, itunes tagging,  cell phone Bluetooth with contact download, text message download (iphone, android). Roof mounted Mast antenna

Optional with Package #14
> Subaru Starlink Safety Plus and Security Plus connectivity with 1 year free Safety Plus
> upgraded 7" HD LCD multi-touchscreen, rear view camera display, 6 speaker audio system with voice activated controls, AM/FM/HD radio, single CD player, XM (4 mos free), Bluetooth wireless audio streaming, Subaru Starlink  smartphone app with weather, news, music Stitcher apps, Aha music app, Pandora radio, Mirrorlink,  dual USB ports, 3.5mm aux jack, itunes tagging,  cell phone Bluetooth with contact download, text message download (iphone, android). Roof mounted fin antenna.

Limited
7" HD LCD multi-touchscreen,
> Subaru Starlink Safety Plus and Security Plus with 1 year free Safety Plus

> rear view camera display, 6 speaker audio system with voice activated controls, AM/FM/HD radio, single CD player, XM (4 mos free), Bluetooth wireless audio streaming, Subaru Starlink
smartphone app with weather, news, music Stitcher apps, Aha music app, Pandora radio, Mirrorlink,  dual USB ports, 3.5mm aux jack, itunes tagging,  cell phone Bluetooth with contact download, text message download (iphone, android).
Roof mounted fin antenna

Optional navigation/GPS with Package #22, #23

Navigation map updates: 2012 and newer models with navigation can get map updates. 2016 and 2017 navigation models can get the 3 years of free updates when available at www.SubaruMapUpdates.com

package #
#01
#11
#12
#13
#14
#15
#21
#22
#23
blank blank
model
2.0i base
Premium
Limited blankblank
-

2016 Crosstrek Models
Standard Features


Note: this early information is incomplete, and subject to updating, change, and correction. Tips are welcomed



2016 Crosstrek 2.0i

this manual transmission base model was first offered as a 2015 model.

model code
: manual transmission HRA
no CVT transmission available on this model

148-hp 2.0-liter 4-cylinder
5 speed manual transmission with incline start assist
Optional CVT with paddle shifters, 6 setting
s
All-Wheel Drive
with VDC electronic stability and traction control
8.7 inches of ground clearance
16mm rear stabilizer bar
Lower front grill air intake black surround with a little rise at the ends  (new on 2016 model)
17" black and silver alloy wheels on all models
All Weather Package: dual mode hi/lo heated front seats, heated outside mirrors, front wiper de-icers

 Safety:
5 seatbelts and 5 headrests
Child seat LATCH system
TPMS- tire pressure monitoring system

Airbags (7)
dual front
dual front side
dual front and rear side curtain
Driver knee
Rollover sensor


Brakes:
Power assisted
4 wheel anti-lock disc brakes, front vented, solid rear with brake pad return springs
EBD electronic brake force distribution for controlled stopping
Brake assist for faster emergency brake response

Brake override- stops car when the brake and gas pedals are pressed at the same time
Break-away safety pedals.
EDR- Event Data Recorder- in the event of an impact, the EDR will freeze data including how various systems were operating, for example if seatbelts were buckled, if the gas or brake pedals were pressed, and vehicle speed. No personal data is stored.

Security and Keys
3 keys supplied, 2 with integrated keyless remote lock/unlock, with car finder and panic mode.
Immobilizer chipped key, programmed to the car
Ignition disabling security system if one of the immobilizer keys is not used.


2.0i base model continued....

Fog lights
with chrome trim
Wheel arch fender flares

Roof rails (crossbars are optional)
Dark tinted windows (no windshield upper tint band though that can be added aftermarket)


17-inch dark gray alloy wheels with 225/55R17 all season tires
Wipers- front 4 variable speeds, plus low and high, with wiper de-icer  (All Weather Pkg)
Wipers- rear,
Rear defroster-
Cloth upholstery
Carpeted floor mats (4)
Height adjustable driver seat, manual, heated
,
65/35 split flat-folding rear seats
Power windows
Power locks
Power outside mirrors,
unpainted black, large for easy visibility, , with break-away hinge
Steering wheel: tilt and telescoping with illuminated audio and stereo controls. Vinyl.
Air Conditioning, manual controls
Quick ratio electric power steering

Chrome trimmed fog lights
Headlights: Auto on-off with ignition key insertion/removal
Underhood insulation- all models
Cargo area tie-down hooks (4)
Inner door handles- unpainted black

Illuminated front console storage

Cupholders: 6 total - 2 in the center console, 1 in each door
2 Overhead sun visors with mirrors (not lighted mirrors)
2 map lights in the overhead center console
Trip Computer with Outside temperature. average MPG, instant MPG, elapsed time since the car was started, average vehicle speed, DTE distance to empty.
Dash gauges-analog tach, analog speedometer, eco gauge, dual trip odometers


Stereo:
Subaru Starlink app now includes weather, calendar, Stitcher news/podcast app, and music player

6.2" HD LCD touchscreen
, rear view camera display, 4 speaker audio with AM/FM/HD radio, single CD player, Bluetooth wireless audio streaming, Subaru Starlink, Aha music app, Pandora radio, Weather reports, Stitcher app, News and Calendar, single USB port, 3.5mm aux jack, itunes tagging,  cell phone Bluetooth with contact download, text message download (iphone, android).
(note- this stereo was new on the 2015 model)

Major Option Package
none

2016 Crosstrek 2.0 Premium and 2.0 Limited model features

information subject to change, correction

2.0i Premium
model codes:
HRB manual transmission, Optional Package #11
HRC CVT transmission, Optional Packages #12, #13, #14

Premium adds over 2.0i base model...

All Weather Package with dual mode heated front seat, defrosting outside mirrors, and front windshield wiper de-icers

Cargo area tray

Illuminated glovebox
Chrome trimmed fog lights
Illuminated ignition key ring
Inner door handles- chrome
Cloth interior with orange stitching
Body colored outside mirrors
Center console sliding lid armrest
Cargo area retractable luggage cover
17" machines black and silver alloys (redesigned on the 16 model)
Leather wrapped steering wheel and shift knob (manual or CVT) with orange stitching
Cloth interior now with orange stitching on seats, center console, steering wheel, shift handle, door armrest

Stereo- (was new on the 2015 model)
adds 2 more speakers for 6 total speakers
6.2" HD LCD touchscreen, rear view camera display, 6 speaker audio with AM/FM/HD radio, single CD player, Bluetooth wireless audio streaming,
Subaru Starlink, Aha music app, Pandora radio, Mirrorlink,  single USB port, 3.5mm aux jack, itunes tagging,  cell phone Bluetooth with contact download, text message download (iphone, android).

Major Option Packages

manual transmission - none
CVT
Pkg #13 moonroof with sunshade
Pkg #14 Eyesight with steering responsive fog lights and,  Starlink Safety Plus and Security Plus connected services (1 year free Safety Plus), upgraded audio with 7" HD LCD multi-touch screen, and Blind Spot Detection and Cross Traffic Alert, roof mounted antenna

(the blind spot detection and Starlink Safety Plus was new on the 2016 model)

Pkg #15
Special Edition (SE)
updated 11/23/16- production of Pkg #15 has ended. Reportedly only 2000 were made
either Pure Red or Crystal Black color  (black is new for the 2017 SE)
Black Cloth interior with red stitching on the shift knob, leatherette door panels, and steering wheel.
Red and gloss black dash trim
CVT transmission
Includes
new for 2017 larger rear spoiler with black trailing edge, metal gas and brake pedals, black rear badging, redesigned 5 spoke 17" gray and silver aero design alloy wheels. The spoiler and alloys were on the Hybrid

also Moonroof, Pushbutton Start, Blind Spot Detection/Cross traffic alert, Red front footwell and front console storage LED lighting,  Turn signal outside mirrors,
The Special Edition has the standard 6.2" audio system



2.0i Limited

model code: HRD, CVT transmission, Optional Packages #21, #22, #23

Limited adds over the Premium model....

Leather trimmed interior,, orange stitching
CVT with paddle shifters, 6 settings
Rear seat armrest with dual cupholders

Silver with gloss black accent dash trim
Blind Spot Detection with Cross Traffic Alert
Upgraded instrument panel with off-white gauges

Sound Insulation windshield (was new on 2015 model)
Rear view back-up camera, displays in stereo's 6.2" LCD screen
Automatic climate control air conditioning, 7 speed fan, black knobs
Subaru Starlink Safety Plus and Security Plus connected services, 1 year free safety Plus
Orange stitching (previously black) on seats, center console, steering wheel, shift handle, armrest
Headlights: Auto on-off with ignition key insertion/removal, plus dusk-to-dawn auto on/off setting
Dash gauges-analog tach, analog speedometer, eco gauge, dual trip odometers, digital speedometer in the center LCD display
Welcome Lighting- interior/exterior lights illuminate when you use the remote to unlock the doors or pull the door handle (keyless access)

Stereo- (was new on the 2015 model)
7" HD LCD multi-touchscreen, rear view camera display, 6 speaker audio system with voice activated controls, AM/FM/HD radio, single CD player, SiriusXM radio (4 mos free), Bluetooth wireless audio streaming,
Subaru Starlink, Aha music app, Pandora radio,  weather app, news app, Stitcher app, calendar apps  dual USB ports, 3.5mm aux jack, itunes tagging,  cell phone Bluetooth with contact download, text message download (iphone, android).
new for 2016 roof mounted antenna

Major Option Packages:
Pkg #22  Moonroof, Keyless access/Pushbutton start, Navigation with
3 years free annual map update and 3 years free XM NavTraffic and Travel link (Travel Link is weather, gas station locator, stock report, and sports reports).
Pkg  #23 Eyesight system with steering responsive fog lights, Moonroof, Keyless access/Pushbutton start, Navigation with
3 years free annual map update and 3 years free XM NavTraffic and Travel link

 top

WHAT IS HD RADIO
Digital radio broadcast signal for improved clarity
The ‘HD’ in ‘HD Radio’ is part of iBiquity Digital’s brand name for its digital AM and FM radio technology.
It does not mean either 'hybrid digital' or 'high definition'.
HD Radio broadcasting is free, there are no fees.
You can get digital AM and FM stations, including HD2 and HD3 multicast channels.
HD is your favorite local AM and FM stations broadcasting digitally, producing improved clean sound.
Radio station subchannels give you more selection
The service includes iTunes Tagging. iTunes Tagging lets you capture information about a song on the radio and store it on your iPod by pushing the "Tag" button on the HD Radio receiver. When your iPod is connected to iTunes, a list of tagged songs will appear which can be purchased.
HD radio website, check stations etc


SUBARU STARLINK
There are 3 Starlinks

1. Starlink is the name Subaru uses for any 2016 audio system with Starlink app
2. Starlink app is for android and iphones with weather, news, music, calendar and Stitcher cloud apps, and Pandora and Aha radio apps
3. Starlink connected services- Safety Plus and Security Plus.


STARLINK CONNECTED SERVICES


Helps with notification in an emergency accident/collision, if you're locked out, lost, car is stolen, broken down, with emergency services, and with mechanical issues and notification.
There are 3 SiriusXM staffed call centers in the U.S. (in Texas and Utah)

AT&T provides the cellular service for emergency (red SOS button) and user requested roadside assistance (blue button) services via an integrated 4G phone connection. The phone has a lithium backup battery so it has power in the event of an accident. The red and blue buttons are in the overhead console. The car does need to be in an area with AT&T cell coverage for the connection to work (check coverage at http://att.com/maps/wireless-coverage.html).

Sirius/XM provides the telematics


Android and Apple phones use the Starlink app for infotainment, and then either the MySubaru app or online at MySubaru.com for connected vehicle services and account information.
So if you have an iphone or android, download both the Subaru Starlink and MySubaru apps


Dealer salesperson will sign you up at time of vehicle purchase for your free year,  or sign up later on mysubaru.com or by calling 855-753-2495
-
TOP



SUBARU STARLINK
Safety Plus and Security Plus  Connected Services

was new on 2016 models

In an emergency, you don't have to fumble looking for a phone, dialing a number,
or even know where you are. Just reach up and tap the button!
Crosstrek Limited, and Premium with option Package #14 and #15
your dealer/salesperson will activate your free year at time of vehicle purchase

access via Starlink app and/or the MySubaru.com app on android or apple phones, or MySubaru.com on a computer or tablet, or call (855) 753-2495


Starlink Safety Plus
(first year free)

Starlink Safety Plus and Security Plus
Emergency Assistance
Stolen Vehicle Recovery Service
Enhanced Roadside Assistance
Security Alarm Notifications
Automatic Collision Notification
Remote lock/Unlock
Monthly Vehicle Health Report
Remote Horn/Lights signaling
Diagnostic Alerts
Remote Vehicle Locator

Introductory Pricing
at time of purchase or for 180 days


your salesperson will activate your account at time of purchase

Starlink Safety Plus
Starlink Safety Plus and Security Plus
1 year is FREE!
1 year $49
2 years $99
2 years $149
3 years $149 3 years $249
Subaru Starlink connectivity call buttons are in the overhead console
Subaru Starlink connectivity call buttons are in the overhead console.
In an emergency, you don't have to fumble looking for a phone, dialing a number, or even know where you are. Just reach up and tap the button!

Note- this system does not work if the car's battery is dead. In the event of a dead battery or an accident where the battery is dislodged, there's no backup battery so have your cellphone handy because Starlink won't work.
-
Subaru Starlink Safety and Security Plus, shown activated on a 7" audio system
Subaru Starlink Safety and Security Plus, shown activated on a 7" audio system
-
Starlink is a free smartphone Subaru app for Android and iPhone.
see photos below
 It uses the phone's data plan.
Cloud functions are Weather reports, The location for the weather is selected and changed on the smart phone by going to to starlink > weather > config. Select up up to six cities.
News (user selected from a international list that includes CNN, USA Today, MSNBC, Yahoo news, Le Monde, El Mundo etc)
Calendar, syncs with Google calendar,
iHeart radio,
Music streaming.
Stitcher.com
> Stitcher includes news, podcasts and articles on current events, science, technology, sports, culture, music etc. To use Stitcher and select the programs you want to listen to, you need to go the stitcher.com website and log in with your facebook or google account or create an email account, and then choose your programs.
>
Pandora an online radio station with ads, or paid without ads. Go to Pandora.com to create your account. For Android and iPhone. iPhone requires a USB cable
> Aha Download the Aha app to your iphone or android device. You can organize and access content from the web in personalized, on-demand stations and send it to the audio system. Android is wireless, iOS uses a USB cable.
-

Subaru Starlink app on Android and iPhone
the free Subaru Starlink app on Android and iPhone
Subaru Starlink on the Subaru 6.2" audio system
accessing the Apps, on a 6.2" audio system
Subaru Starlink apps and tiles on the 7" audio system
Starlink opened on 7" audio system
Subaru Starlink weather app on Subarus 7" audio system
the weather app on a 7" audio. The cities for the weather apps are selected on the cell phone


-

top
2017 CROSSTREK OPTIONS AND UPGRADES
A available, -- not available, S standard


Note: prices are factory installed MSRP. Your price might vary according to dealer discounts or mark-up.
Dealer installed prices may be higher due to part and labor costs. Always contact your local dealer

#01- standard
#11- standard
#12- standard
#13- Moonroof $1000
#14- Eyesight, Blind Spot Detection, Rear  Cross Traffic Alert, upgraded 7" audio $1,995
#15- Special Edition $2300 (a limited production model)
#21- standard
#22- Moonroof, Navigation, Keyless Access/Pushbutton Start $2100
#23- Eyesight, Moonroof, Navigation, Keyless Access/Pushbutton Start $2895
#31- standard

subject to change, correction, updating
---
OPTION PACKAGES - OPTION PACKAGES
scroll down for individual options
2.0i
Premium
Limited
blank
manual, Pkg #01
 manual, Pkg #11
Pkg #12
Pkg #13
Pkg #14
Pkg #15
Pkg #21
Pkg #22
Pkg #23
blankblank
model code
HRA
HRB
HRC
HRC
HRC
HRC
HRD
HRD
HRD
blank blank
All Weather Package- Includes dual model hi/lo heated front seats, heated outside mirrors, and front windshield wiper de-icers
--
S
S
S
S
S
S
S
S
-
-
Popular Package #1 (CR3). Includes auto dimming rear view mirror with compass, rear bumper cover, splash guards, rubber all weather floor mats (set of 4), rear seatback protector. $649
--
A
A
A
A
A
A
A
A
-
-
Popular Package #1B (CR4). Includes auto dimming rear view mirror with compass, rear bumper cover, splash guards, rubber all weather floor mats (set of 4), rear seatback protector and cargo tray. $705
Note: only available on the 2.0i because the cargo tray is standard on all other models models
A
--
--
--
--
--
--
--
--
--
--
Popular Package #2 (CR5). Includes auto dimming rear view mirror with compass and homelink garage door opener, rear bumper cover, splash guards, rubber all weather floor mats (set of 4), rear seatback protector. $759
--
A
A
A
A
A
A
A
A
-
-
Crosstrek Sport Package (CR2). includes 17" STI black multi-spoke alloys, STI shift knob,  and body colored STI rear roof spoiler. $2,365 - $466 pkg discount =$1899
Note: the STI wheels will be shipped to and installed by the selling dealer. The take-off wheels belong to the dealer.
--
--
A
A
A
--
A
A
A
-
-
Kicker audio upgrade package #4 (IYV). Includes Kicker 10" powered subwoofer in the cargo area, 4 upgraded door speakers,  2 tweeters, 'powered by Kicker' window sticker. $1142 - $443 pkg discount = $699
A
A
A
A
A
A
A
A
A
--
--
EXTERIOR OPTIONS - INDIVIDUAL OPTIONS
2.0i
manual trans
Premium, manual trans
Premium #12
Premium #13
Premium #14
Premium
#15
Limited #21
Limited #22
Limited #23
blankblank
Sport Mesh Grill $336, black, honeycomb patterned
A
A
A
A
A
A
A
A
A
-
-
Roof rack cross bars. Aero cross bars. $201. 150lbs capacity. Roof rails are standard on all Crosstreks
A
A
A
A
A
A
A
A
A
-
-
Body side moldings, body colored. Helps minimize door dings. $265
A
A
A
A
A
A
A
A
A
-
-
Rear bumper cover. protects the top of the rear rear bumper from scuffs. $105
A
A
A
A
A
A
A
A
A
-
-
Splash guards, unpainted black. Small mud flaps $155
A
A
A
A
A
A
A
A
A
-
-
STI rear roof spoiler, black with STI logo $483
note: included with Crosstrek Sport Package above
A
A
A
A
A
--
A
A
A
-
-
Rear roof spoiler, body colored. $350
A
A
A
A
A
A
A
A
A
-
-
Trailer hitch, 1.25", includes insert and 4 pin connector for trailer lights. The Crosstrek is rated for 1500lbs towing with electric trailer brakes (not included). $542
A
A
A
A
A
A
A
A
A

-
Wheel locks. $78
A
A
A
A
A
A
A
A
A
-
-
Hood protector dealer installed only $99.95 plus installation
not available with eyesight
A
A
A
A
--
A
A
A
--
-
-
Window rain drip molding visors, dealer installed only.
A
A
A
A
A
A
A
A
A
-
-
INTERIOR OPTIONS - INDIVIDUAL OPTIONS
2.0i
manual trans
Premium, manual trans
Premium #12
Premium #13
Premium #14
Premium
#15
Limited #21
Limited #22
Limited #23
blankblank
Remote engine start- $519. CVT only. Start the car in advance so the interior is warm or cool when you get it. For security, the engine shuts off when a door is opened so it can't be stolen.
This system works very well and has excellent range
--
--
A
A
A
-
A
--
--
--
--
Remote engine start- $481. CVT with keyless access pushbutton start only. Start the car so the interior is warm or cool when you get it.  For security, the engine shuts off when a door is opened so it can't be stolen
Note: it does not work well... it has a very short, weak 20-30ft range
--
--
--
--
--
A --
A
A
-
-
Interior illumination kit. Subtle LED footwell lighting, either red or blue. $202
A
A
A
A
A
S- red
A
A
A
-
-
Cargo tray $81
A
S
S
S
S
S
S
S
S
-
-
Cargo area tonneau luggage retractable cover $164
A
S
S
S
S
S
S
S
S
-
-
Center console sliding armrest. The top slides forward to use as an armrest $167
2.0i- black stitching
Premium, Limited- orange stitching
Premium Special Edition- red stitching
A
S
S
S
S
S
S
S
S
-
-
Center console tray $30. a small shelf for your phone etc, with coin slots. Fits inside the center console storage under the armrest. A large size Samsung Note or iOS 6/7+ won't fit
A
A
A
A
A
A
A
A
A
-
-
120v, 100w Power outlet. $355 Convenient, fast charging of cell and laptops. Car has to be running or key turned to accessory power
A
A
A
A
A
A
A
A
A
-
-
Security Perimeter alarm upgrade $198. Adds an impact shock sensor to the standard ignition disabling alarm
A
A
A
A
A
A
A
A
A
-
-
Auto dimming rear view mirror with compass $232
A
A
A
A
A
A
A
A
A
-
-
Auto dimming rear view mirror with compass and homelink garage door opener $342
A
A
A
A
A
A
A
A
A
-
-
Rear seat seatback protector $76
Note: requires the cargo tray, and not available factory/port installed with the 10" subwoofer
A- req cargo tray
A
A
A
A
A
A
A
A
-
-
Rubber all weather floor mats, set of 4, $81
(carpeted mats are standard)
A
A
A
A
A
A
A
A
A
-
-
Cargo net, by gate $59
A
A
A
A
A
A
A
A
A
-
-
Cargo net, behind the rear seat $68
Note: not available factory/port installed with the 10" subwoofer
A
A
A
A
A
A
A
A
A
-
-
Cargo net, side, 2 small side nets, $82
Note: not available factory/port installed with the 10" subwoofer
A
A
A
A
A
A
A
A
A
-
-
Sun shade $76, folding silver shade blocks the sun when parked
A
A
A
A
A
A
A
A
A
-
-
Shift knob, leather, manual transmission $104
A
A
--
--
--
A
--
--
--
-
-
STI shift knob, leather/aluminum manual, $184
A
A
--
--
--
A
--
--
--
-
-
STI Shift knob, leather, CVT $193.
--
--
A
A
A
A
S
S
S
-
-
Shift knob, STI black duracon, manual only $93
A
A
--
--
--
--
--
--
--
-
-
Metal pedals- manual transmission gas, brake, and clutch $192
A
A
--
--
--
--
--
--
--
-
-
Metal pedals- CVT transmission gas and brake, $172
--
--
A
A
A
new S
A
A
A
-
-
STEREO UPGRADES - STEREO UPGRADES
2.0i
manual trans
Premium, manual trans
Premium #12
Premium #13
Premium #14
Premium
#15
Limited #21
Limited #22
Limited #23
blankblank
Kicker 10" powered subwoofer in the cargo area. $669. big base sound
A
A
A
A
A
A
A
A
A
-
-
Tweeters- two $148
A
A
A
A
A
A
A
A
A
-
-
Upgraded speakers $321
A
A
A
A
A
A
A
A
A
-
-
-
2017 INTERIORS

2016 Crosstrek 2.0 base model black cloth interior with black stitching
2016 Crosstrek 2.0 base model black cloth interior with black stitching. The 2.0 model is only available in a manual transmission

2017 Crosstrek Premium black cloth with gray bolsters and orange stitching
2017 Crosstrek Premium black cloth with gray bolsters and orange stitching

2017 Crosstrek Limited black leather with orange stitching
2017 Crosstrek Limited black leather with orange stitching


2017 Subaru Crosstrek Premium warm ivory cloth, orange stitching
2017 Subaru Crosstrek Premium warm ivory cloth, orange stitching
2017 Subaru Crosstrek Limited warm ivory leather, ivory stitching
2017 Subaru Crosstrek Limited warm ivory leather, ivory stitching
2016 Subaru Crosstrek Premium CVT with silver dash trim and shift surround, black cloth with orange stitching
2016 Subaru Crosstrek Premium CVT with silver dash trim and shift surround, new for 2016 black cloth with orange stitching
front dash view 2016 Subaru Cfront dash view 2016 Subaru Crosstrek Limited gloss black dash trim. Black leather shown
front dash view 2016 Subaru Crosstrek Limited with new for 2016 gloss black dash trim. Black leather shown
2016 Crosstrek Premium, ivory cloth,silver dash trim,  manual transmission
2016 Crosstrek Premium, new for 2016 ivory cloth,silver dash trim,  manual transmission
2016 Crosstrek Limited, ivory leather, gloss black dash trim and shift surround
2016 Crosstrek Limited, ivory leather, new for 2016 gloss black dash trim, and shift surround
-
2017 Crosstrek Colors
its very hard to get accurate colors and they change depending on the light, so always check the color in person

subject to change and correction
subaru ice silver metallic paint
Ice Silver Metallic
subaru quartz blue pearl color
Quartz Blue Pearl
Subaru color HyperBlue
HyperBlue
subaru desert khaki color
Desert Khaki
venetian red pearl
Venetian Red Pearl
crystal black silica subaru color
Crystal Black Silica
subaru                  forester dark gray metallic
Dark Gray Metallic
cystal white pearl subaru color
Crystal White Pearl
pure red subaru paint color
Pure Red, available on Premium Pkg #15 Special Edition only



blank
-



2017 Crosstrek Colors -  Availability By Model

2017 Crosstrek

new for 2017 Special Edition. now available in black as well as pure red

Interior
base model 2.0i only- black cloth with black stitching
black cloth or black leather with orange stitching
ivory cloth or ivory leather with orange stitching
Premium pkg #15,  Special Edition only- black cloth with red stitching


color / model
Crosstrek 2.0i
manual trans (HRA)
Crosstrek  Premium,
manual trans. (HRB)
Crosstrek Premium,
CVT trans, (HRC)
Crosstrek Premium CVT (HRC) Pkg #15 Special Edition Crosstrek Limited,
 CVT trans. (HRD)
blank
Quartz Blue Pearl (QBP, J8U)
black cloth, black stitching
ivory cloth, orange stitching
ivory cloth, orange stitching --
ivory leather, orange stitching -
HyperBlue Pearl (HYB, GM3Y)
black cloth, black stitching black cloth, orange stitching black cloth, orange stitching --
black leather, orange stitching -
Pure Red (PRD,  M7Y)
--
--
--
black cloth, red stitching --
-
Desert Khaki (DKH, H6Q)
black cloth, black stitching black cloth, orange stitching black cloth,orange stitching --
black leather, orange stitching -
Dark Gray Metallic (DGM, 61K)
black cloth, black stitching black cloth, orange stitching black cloth, orange stitching --
black leather, orange stitching -
Ice Silver Metallic (ISM, G1U)
black cloth, black stitching black cloth, orange stitching black cloth, orange stitching --
black leather, orange stitching -
Venetian Red Pearl (VR1, H2Q)
--
ivory cloth, orange stitching ivory cloth, orange stitching --
ivory leather, orange stitching -
Venetian Red Pearl (VRP, H2Q) black cloth, black stitching --
--
--
--
-
Crystal White Pearl (WHC, K1X)
--
ivory cloth, orange stitching ivory cloth, orange stitching --
ivory leather, orange stitching -
Crystal White Pearl (WH3, K1X) black cloth,black stitching black cloth,orange stitching black cloth, orange stitching --
black leather,orange stitching -
Crystal Black Silica (CBS, D4S)
--
ivory cloth, orange stitching ivory cloth, orange stitching --
ivory leather, orange stitching -
Crystal Black Silica (CB3, D4S) black cloth, black stitching black cloth,orange stitching black cloth, orange stitching black cloth, red stitching black leather, orange stitching -
-


  top
2017 CROSSTREK
MISCELLANEOUS PARTS & ACCESSORIES


  AVAILABLE FROM YOUR DEALER PARTS DEPT.
Prices are suggested MSRP not including installation. Call your dealer for availability and price

subject to change, correction
front hood protector, $99.95, not available with eyesight
flexible strut tower brace $449
leather shift knob- manual trans, $89.95
leather shift knob, CVT, $109.95 (standard on Limiteds and Hybrids)
metal pedals, manual trans $159.95
metal pedals, CVT, $139.95
engine block heater -$132.95
car cover - $129.98
battery warmer - $39.95
wheel locks - $29.95
ash tray - $27.95
cigarette lighter element $39.95
side window rain drip moldings - $119.95
c
rossbars- aero, $199.95
crossbars, HD round, 48" wide,  $375.95
mounting clamps- $25.
ski attachment, 6 pair, $160. req crossbars and mounting clamps
bike attachment, roof mounted, single bike $170. req crossbars and mounting clamps
bike attachment, fork mounted, single bike $179.95. req front fork $24.95, crossbars, and mounting clamps
bike attachment, hitch mounted, two bike, $274. req 1.25" hitch
cargo basket, heavy duty $369 includes mounting clamps. req crossbars
kayak carrier $150, req crossbars and mounting clamps
roof cargo carrier, $369. req crossbars and mounting clamps
roof cargo carrier, extended $459. requires roof rack crossbars and mounting clamp


-
  top
Ordering a car.
What if the dealer doesn't have what I want?


The supply of Crosstreks is tight and just like with all Imprezas there are more buyers than cars.
Dealers get a limited number of cars each month.
They have an Incoming report and you can put your name on one of the incoming cars.
As a result, many incoming cars will be sold before they arrive.
That means a factory order might be the way to get the exact car and features you want.
Factory orders will be filled from your dealer's normal allocation of Crosstreks,
When first ordered, the ETA (Estimated Time of Arrival) will probably be a 'month of...' that is around 3-4 months out from the order date.
The order will then be filled as available but it will probably be in the 2-3 month window.
Your dealer can also try to locate or find a suitable car for you at another dealer who is willing to swap Crosstreks.
Be patient, the dealer will want you get your car as quickly as possible.
-
all information, photos, formatting by Joe Spitz who is solely responsible for all content
this fully independent website is not authorized, approved, supported or sponsored by Subaru or any dealer
thank you for stopping by
