Research the 2016 BRZ
Premium, Limited, and Limited Series.HyperBlue.
Only 500 Series.HyperBlue will be made.
looking for the 2017 or the 2015 BRZ info page?
the 2016 Subaru BRZ Limited Series.HyperBlue. Only 500 made. Black 17" STI alloys, gloss black outside mirrors, rear spoiler, fog lights, HyperBlue interior stitching...
more exterior photos I interior photos
ON THIS PAGE
2016 BRZ news and updates I photos I prices I dimensions, cargo measurements I maintenance schedule I safety I specifications I standard features I
option packages and individual options, accessories & parts I interiors I colors I speed tests I
2016 BRZ news and updates I photos I prices I dimensions, cargo measurements I maintenance schedule I safety I specifications I standard features I
option packages and individual options, accessories & parts I interiors I colors I speed tests I
2016 BRZ photo pages exterior photos I interior photos including 2016 audio system photos I 2016 Monroney window price stickers
-Buying a BRZ in the greater Seattle/NW area? Please call me, Joe Spitz, selling Subarus in Seattle since 1996. Contact page
Thanks for visiting. If you
like the site, please tell friends about it. You are here http://www.cars101.com/subaru/brz/brz2016.html v 8.4.16
Info always subject to change
and correction. comments, corrections, suggestions welcomed. All photographs,
text, formatting © joe spitz :: unauthorized reproduction prohibited.
Please
read - this independent, unofficial, unauthorized
Subaru research site is happily created and maintained by Joe Spitz. It
is designed to help you learn about Subarus. It is not sponsored, authorized,
supported or approved by Subaru or any dealer and is not connected to,
affiliated with, or supported by a dealer. Always contact your local dealer.
Information always subject to change.
***************************************************************************
-
2.0L 4 cylinder
2.0L 4 cylinder
top
BRZ NEWS, UPDATES AND RUMORS
10/15 cars arriving
9/11 2016 BRZ ORDERS NOW ACCEPTED
8/27/15 2016 BRZ prices announced
Prices lowered $300 on Premium and Limited.
Cars expcetd starting October.
new all models get the 6.2" audio system with 8 speakers. Includes AM/FM/FMHD/CD, single USB, 3.5 aux jack, Bluetooth, cell phone connection with phonebook download (iPhone, Android), Starlink smartphone app with weather, sports reports, Stitcher, Pandora, Aha
new rear view back-up camera is standard on all models and displays in the radio screen
new Limited model gets new center console and lower door trim knee pads with red stitching, silver trimmed vents, door handle insert, and heater control panel sides,
new model (replaces 2014s Series.Blue), Limited Series.Hyper.Blue replaces 2015's Series.Blue model. Only 500 made. Features new Hyper.Blue color, 17" STI black alloys, black Alcantara with leather bolsters with Hyper.Blue BRZ logo and Hyper.Blue stitching on seats, steering wheels, door and center console knee pads, frameless rear view mirror, black badging, undercarriage floor and fuel tank undercover insulators
gone navigation is no longer standard and is no longer available even as an option.
Colors
new Pure Red replaces Lightning Red
new Hyper.Blue, available on Hyper.Blue model only
gone Lightning Red no longer available
7/1/15 Subaru to Offer Limited Edition Series.HyperBlue BRZ and WRX STI Models
Limited to 700 WRX STI & 500 BRZ
BRZ receives upgraded SUBARU STARLINK® Multimedia
Rear Vision Camera now standard on BRZ
Exclusive Hyper Blue exterior paint and interior trims
Cherry Hill, N.J. - Subaru of America, Inc. has announced the 2016 Series.HyperBlue limited edition available exclusively on BRZ and WRX STI models. As a follow up to the 2015 Series.Blue BRZ, the 2016 Series.HyperBlue cars feature exterior paint in Subaru’s exclusive Hyper Blue with matching interior trim. Production will be limited to 700 WRX STI and 500 BRZ cars for the United States. Vehicles will go on sale this Fall.
Series.Hyper.Blue WRX STI
Powered by the legendary 305-horsepower 2.5-liter turbocharged/intercooled BOXER engine, the WRX STI helped to pioneer the sport compact segment with a rally-bred drivetrain and Multi-Mode Driver Controlled Center Differential (DCCD) Symmetrical All-Wheel Drive. Standard handling technologies include Active Torque Vectoring, Multi-Mode Vehicle Dynamics Control and a Brembo® Performance Brake System with Super Sport ABS.
The Series.HyperBlue trim brings exclusive blue stitching to the standard Alcantara® seats, leather wrapped steering wheel, manual transmission shifter boot, console as well as carpeted floor mats with the traditional Cherry Red STI logo. Series.HyperBlue WRX STI wears 18-inch BBS® Black Alloy wheels and black badging with black painted exterior mirrors. SUBARU STARLINK 7.0” Multimedia Navigation System comes standard on this trim with 9 Harman/Kardon® speakers and 440-watt amplifier.
The WRX STI is equipped exclusively with a specially reinforced 6-speed manual transmission. A flat-bottom, leather-wrapped tilt/telescoping steering wheel integrates switches for audio and Bluetooth. The STI Design electroluminescent gauge panel integrates a 3.5-in. central LCD screen that displays various functions such as windshield washer fluid and the selected gear.
The Series.HyperBlue models come standard with Keyless Access with Push-Button Start and PIN Code Access. Standard Welcome Lighting automatically turns on interior illumination and exterior lights as the driver approaches or departs the car.
Series.HyperBlue BRZ
The Subaru BRZ marked a return to the fundamentals of sports car design, emphasizing low vehicle weight, an ultra-low center of gravity and precision steering. A 200-horsepower 2.0-liter BOXER engine powers all BRZ models.
For 2016, the BRZ receives the STARLINK 6.2” Multimedia System with a 6.2-in. single-touch gesture display, AM/FM stereo with HD Radio®, SiriusXM Satellite Radio, Radio Data Broadcast System, single-disc CD player, Bluetooth® hands-free phone connectivity and audio streaming, iPod® control, iTunes® Tagging, a USB port and an auxiliary input jack. Smartphone integration features Aha™ and Pandora®, along with STARLINK cloud applications iHeartRadio®, Stitcher, Calendar, Music Player, News and Weather. New for 2016, the BRZ receives standard rear vision camera.
The Series.HyperBlue BRZ cabin features an exclusive design scheme. The leather and Alcantara upholstery includes Hyper blue leather seat bolsters and head restraints. Blue stitching accents the seats and the blue and black leather-wrapped steering wheel, as well as the shift lever boot and leather-wrapped parking brake handle. The blue motif carries to the center console kneepads and door trim, accented by an embroidered silver BRZ logo on the front seatbacks. Carpeted floor mats also pick up the BRZ logo and blue stitching.
The exterior continues the Series.HyperBlue theme with 17-inch black alloy wheels, black glossy badging and painted black finish exterior mirrors. A frameless day/night rear-view mirror and simulated carbon fiber center dash panel add a high-tech look, and the finishing touch is an illuminated engine start / stop button.
Pricing on these models will be announced this Fall.
new for 2016: BRZ Series.HyperBlue. B is for boxer engine, R is for rear wheel drive, Z is zenith in
passion
-
ALL NEW FOR 2016 BRZ
6.2" touchscreen audio system with rear view backup camera.
more interior photos including the 2016 audio system
-
NEW ON ALL 2016 BRZ new 6.2" audio system (shown on
the FM screen), Limited and Series.HyperBlue shown with dual front zone automatic climate control with digital
display
more interior photos including the 2016 audio system
-
instrument panel with center tachometer, 7400rpm redline. Shown with speedometer in miles, and the green foglight symbol shows the foglights are on
-
new model for 2016 BRZ Limited Series.HyperBlue front seats- black alcantara with hyperblue stitching, logo
-
2016 BRZ photos MORE PHOTOS? exterior photos I interior photos |
|

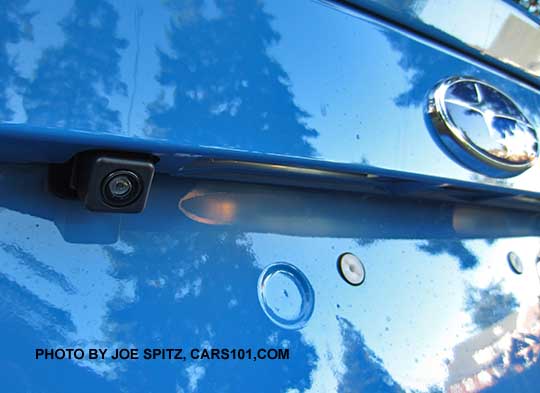

 new on all 2016 Subaru BRZ- rear view backup camera. Series.HyperBlue shown |
 2016 BRZ Limited and Series.HyperBlue ALL NEW FOR 2016 6.2" audio showing the rear view backup camera, dual zone automatic climate control with digital temperature display more interior photos including the 2016 audio system |
 2015 Subaru BRZ 17" alloy wheel |

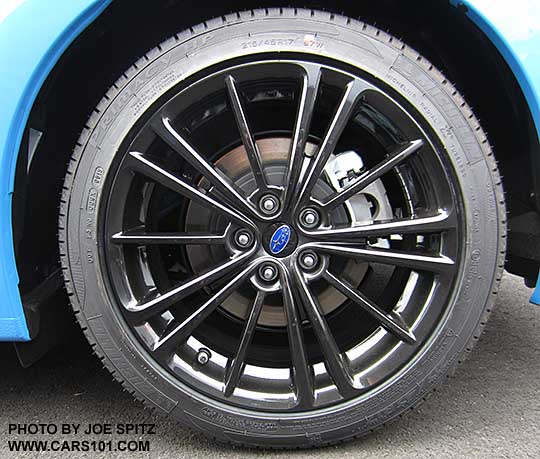

 2016 Subaru BRZ Series.HyperBlue has 17" black alloy wheel |
 2016 Subaru BRZ Premium and Limited leather wrapped steering wheel, red stitching. Limited shown |
 2016 BRZ Leather wrapped steering wheel with dimpled grips. Series.HyperBlue shown with blue stitching |

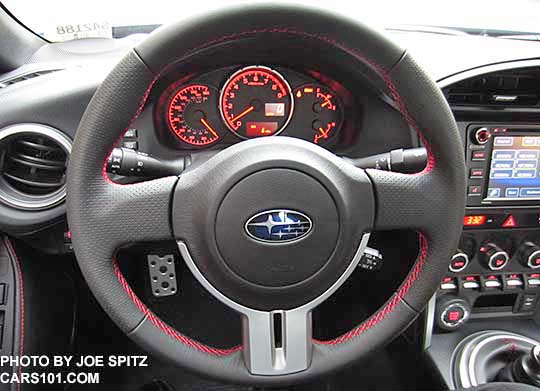

 closeup of the 2016 BRZ steering wheel, showing the stitching pattern, red thread shown |

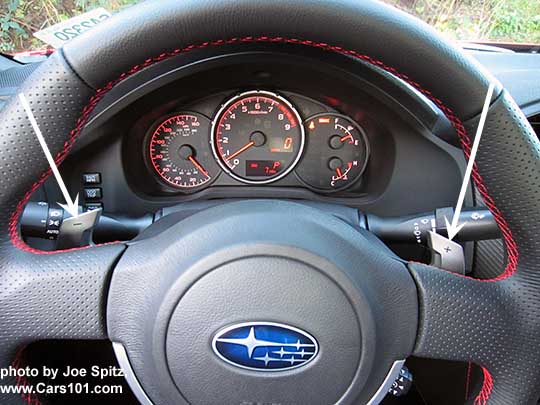

 2016 Subaru BRZ Limited steering wheel with automatic transmission Paddle Shifters- see the white arrows. Leather wrapped wheel, red stitching. |

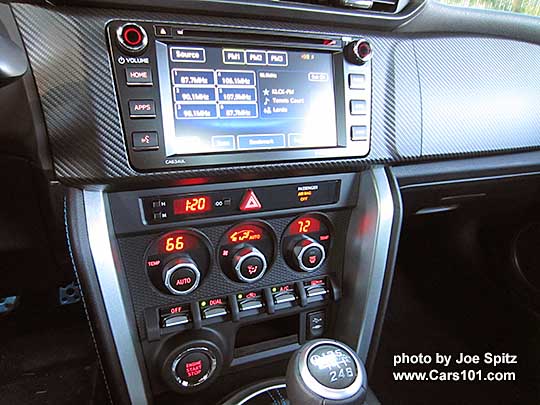

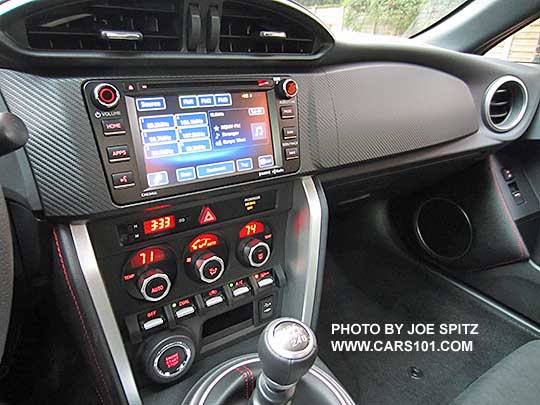

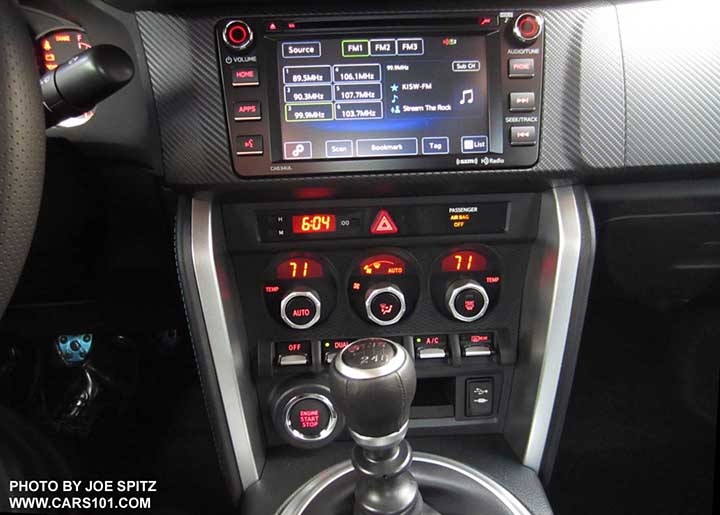

 2016 BRZ Limited and Series.Hyperblue console, a/c controls, 6.2" audio system, shift boot with red stitching |
|

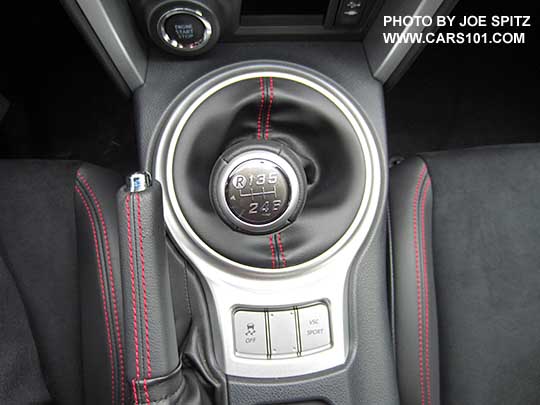

 2016 BRZ Premium and Limited manual transmission leather shift knob with red stitching. Limited shown |

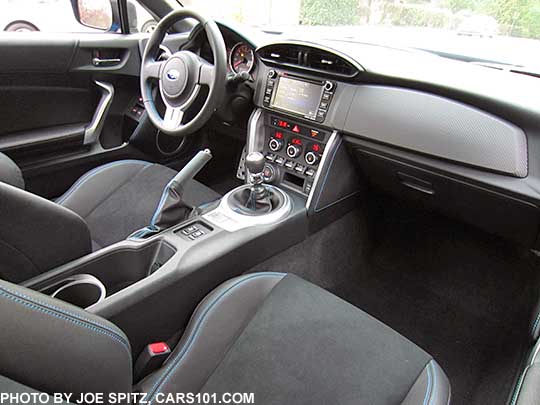

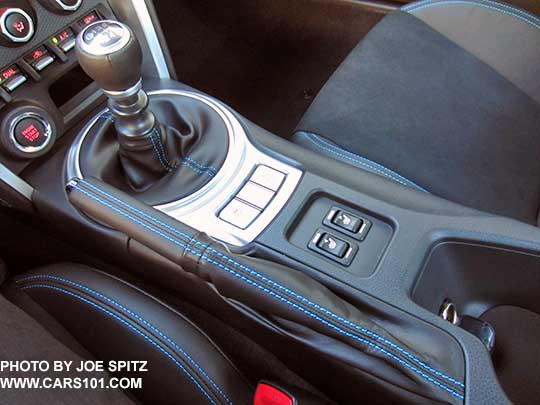

 2016 BRZ Limited and Series.HyperBlue center console, manual transmission, HyperBlue shown with blue stitching |
 2016 BRZ Limited and Series.HyperBlue front console with new 6.2" touchscreen audio system, plus dual zone automatic climate control, pushbutton start |

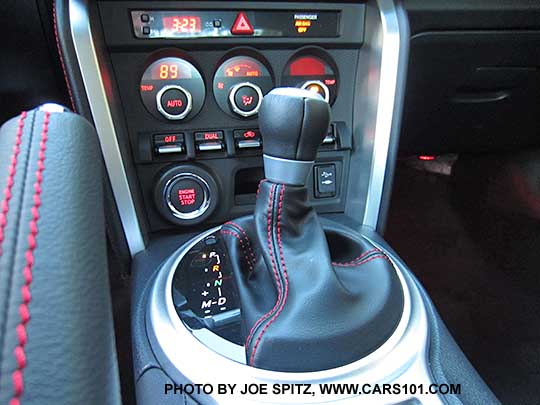

 2016 Subaru BRZ Limited automatic transmission shift knob and gloss black gear indicator |

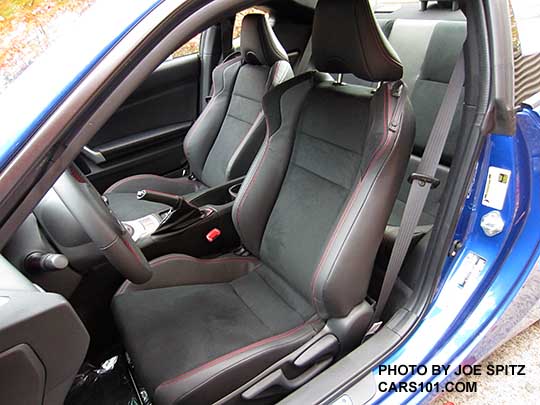

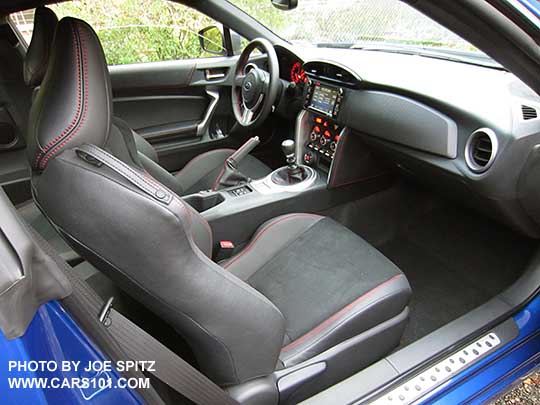

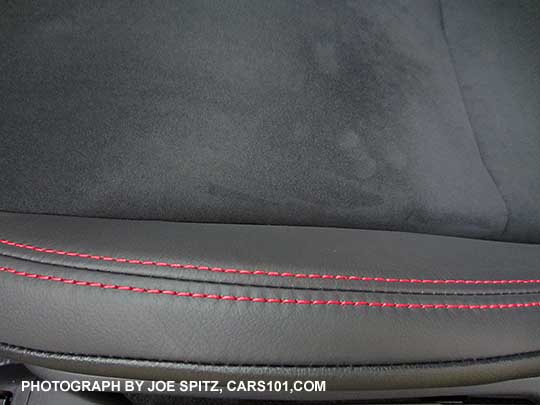

 2016 BRZ Limited front seats- black alcantara seat surface, leather bolsters, red stitching. WR Blue car shown |
 2016 BRZ Limited front seats, from passenger side |

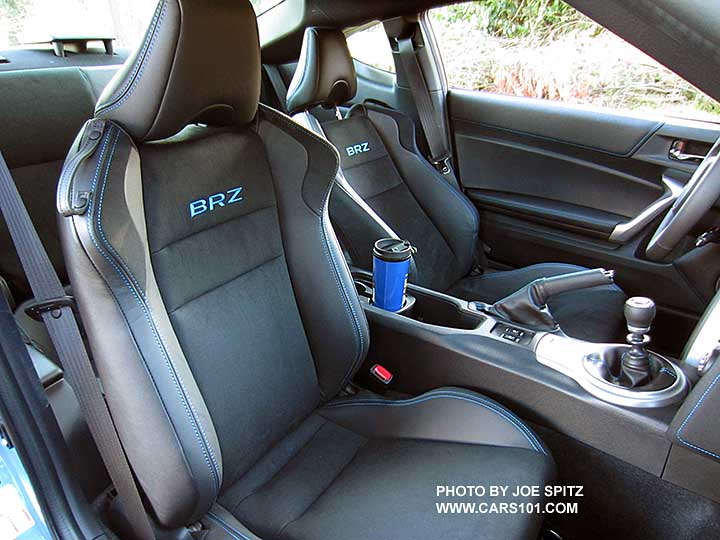

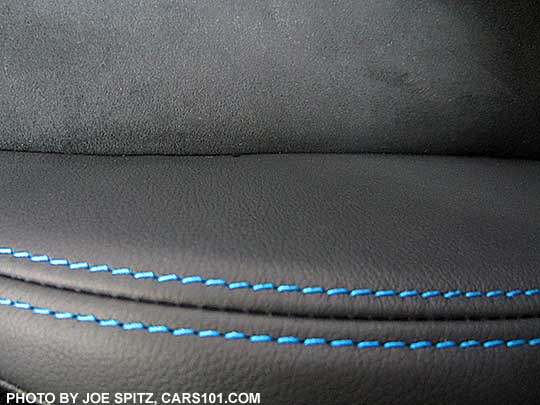

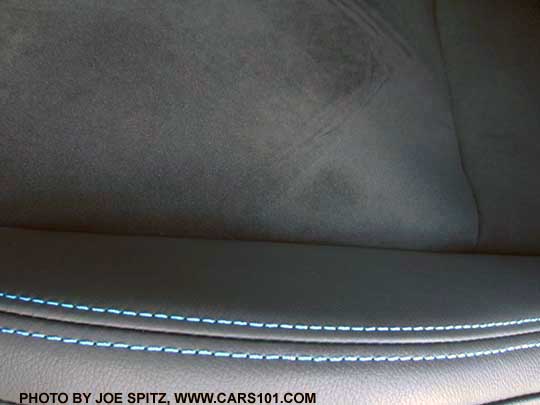

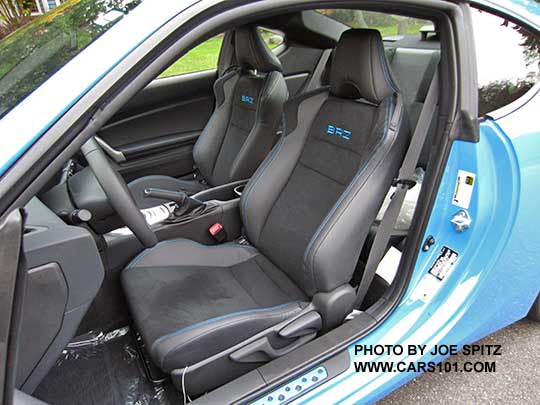

 2016 BRZ Series.HyperBlue front seats- black alcantara with hyperblue logo and stitching |
 2016 BRZ Series.HyperBlue dashboard with new 6.2" audio system |

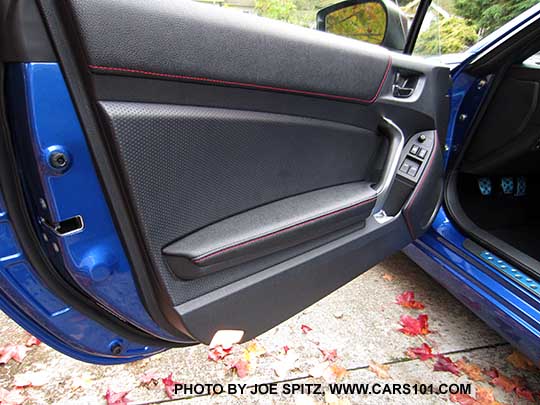

 2016 Subaru BRZ Limited drivers door panel, perforated leather trim, red stitching, courtesy lights. WRBlue car shown. Courtesy lights on Limited and HyperBlues only |
 closeup of the 2016 Subaru BRZ driver's door panel. Series.HyperBlue shown with perforated leather, hyperblue stitching |

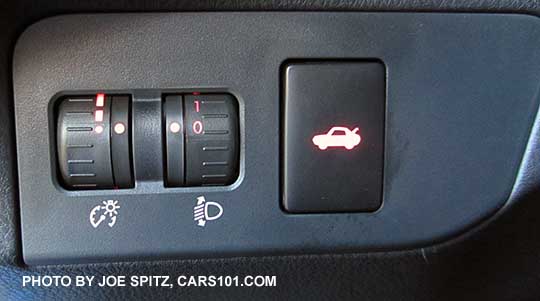

 2016 Subaru BRZ driver controls wotj dash light adjustment, headlight aiming dial, trunk opener |

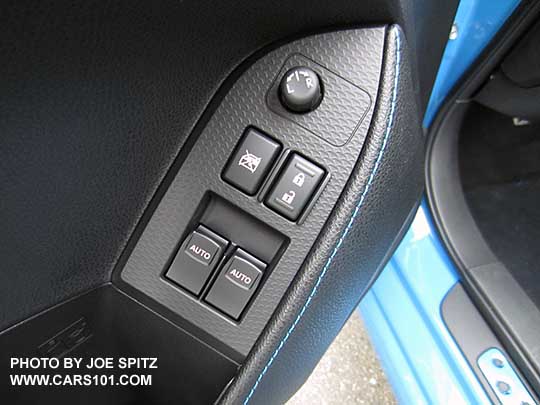

 2016 Subaru BRZ driver's door panel power window switches, mirror adjustment . Series.HyperBlue shown with blue stitching |

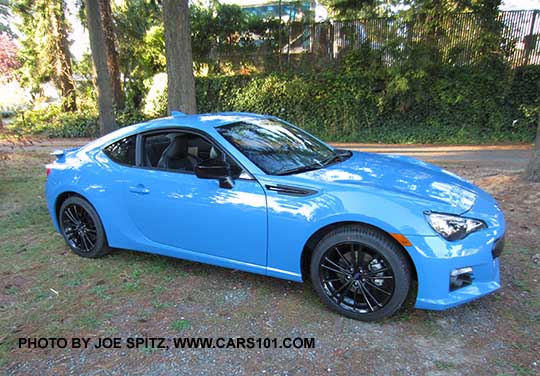

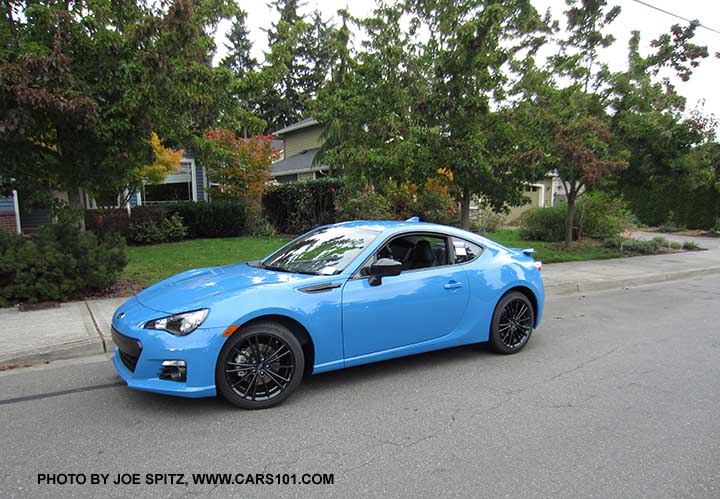

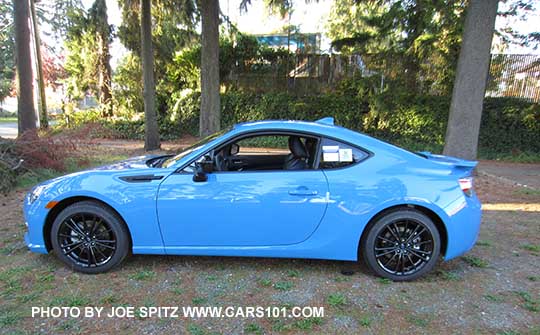

 NEW MODEL FOR 2016 Subaru BRZ Series.HyperBlue |
 NEW MODEL FOR 2016 Subaru BRZ Series.HyperBlue |

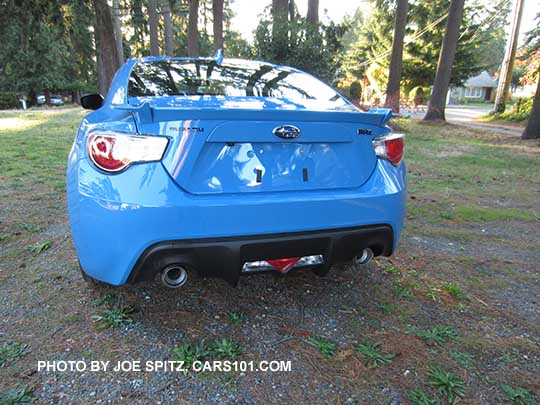

 NEW MODEL FOR 2016 Subaru BRZ Series.HyperBlue rear view with standard rear LED lights |

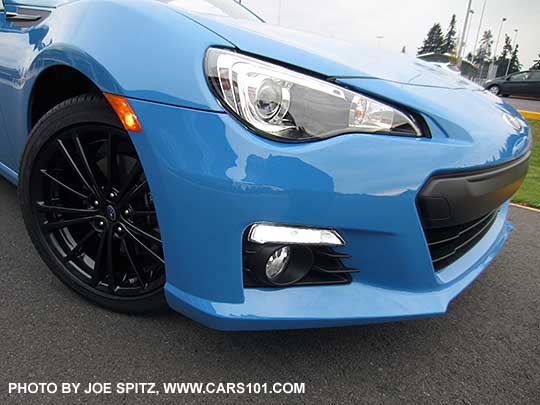

 BRZ front lights, Limited. NEW MODEL FOR 2016 Series.HyperBlue shown |

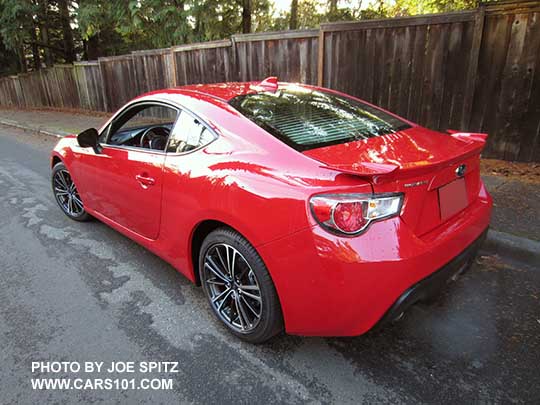

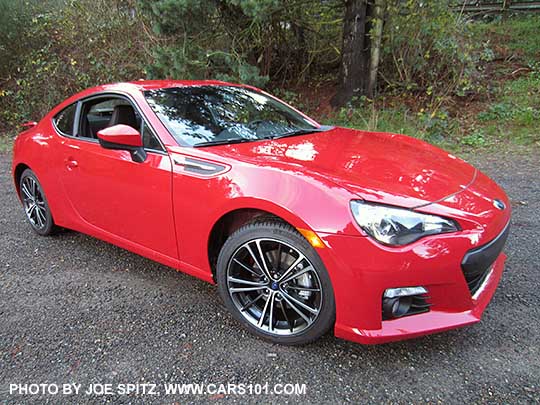

 2016 BRZ Limited, pure red color |
 2016 BRZ Limited, pure red color |

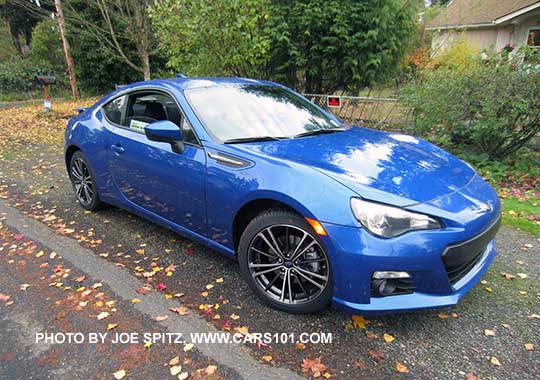

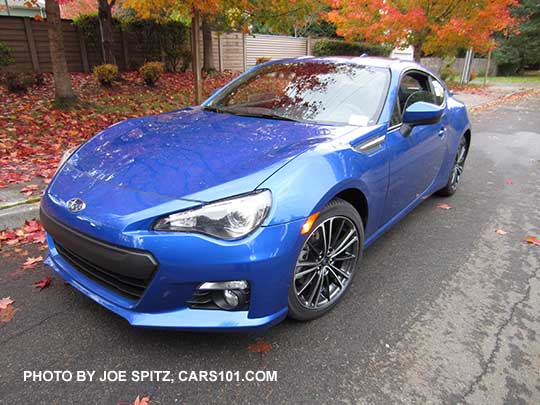

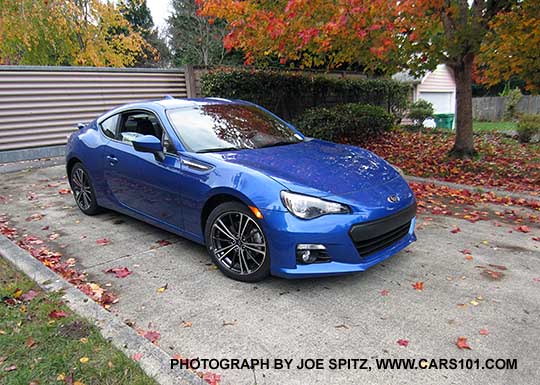

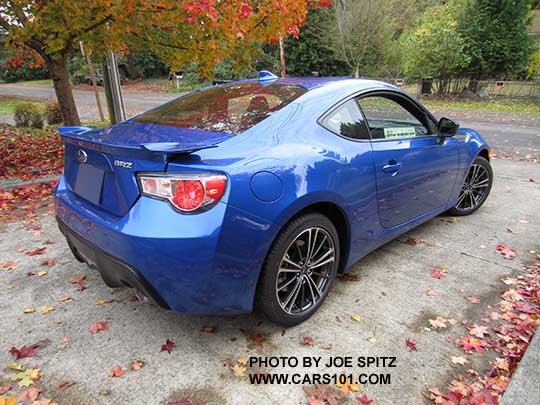

 2016 Subaru BRZ Limited, WR Blue color shown |
 2016 Subaru BRZ Limited, WR Blue color shown |
 2016 Subaru BRZ Limited, WR Blue color shown |
 2016 Subaru BRZ Limited, WR Blue color shown |
 side view 2015 Subaru BRZ, no rear spoiler. Ice silver shown |
 rear view 2015 Subaru BRZ, no rear spoiler. Ice silver shown |
 2015 BRZ Limited, ice silver color |
 rear view BRZ ice silver. Limited model with standard rear spoiler shown |
 front of 2015 new for 2015 ice silver BRZ Limited |
 side view 2015 BRZ Limited, new for 2015 ice silver color |
 2015 Subaru BRZ Premium, rear view, with exhaust. Premiums don't come with a standard rear spoiler. |
|
 2015 BRZ Premium- notice no rear spoiler |
 2015 Subaru Premium BRZ, black |
 side view 2015 BRZ Premium, black |
 2015 Subaru Premium BRZ front end. |
 2015 Premium Subaru BRZ rear trunk. No rear spoiler |
 close-up of the 2015 ice silver Subaru BRZ Limited rear spoiler, optional on Premium |

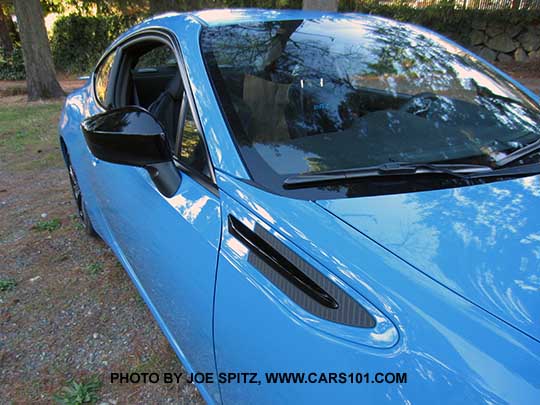

 2016 Subaru BRZ Limited Series.HyperBlue has black fender trim and black outside mirrors |
|
 2016 Subaru BRZ Limited passenger door panel, perforated leather trim, red stitching, courtesy lights (Limited and Hyperblue only only) WR Blue car shown. |

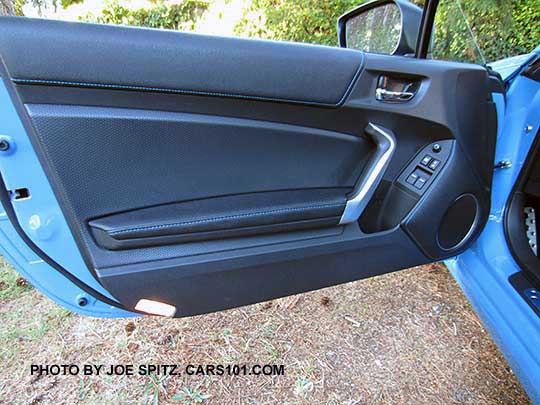

 2016 Subaru BRZ Series.Hyperblue driver's door panel, hyperblue stitching, perforated leather, with courtesy lights |

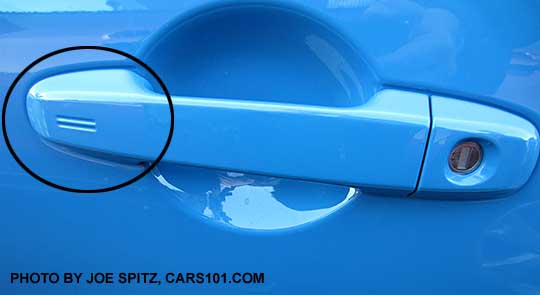

 2016 BRZ Limited and Series.HyperBlue door handle with keyless entry rub-to-lock hotspot shown circled. Hyperblue shown. |
 Subaru BRZ Limited passenger door handle with keyless access hotspot |
 |

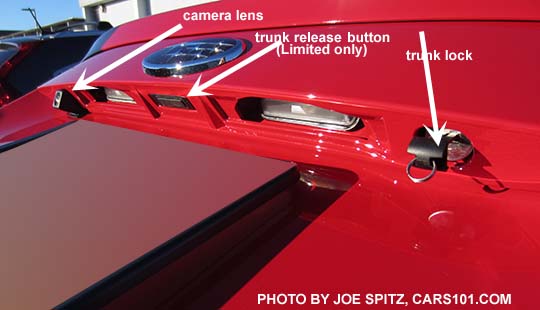

 2016 Subaru BRZ trunk key lock, rear view camera, and trunk release button (on Limited model only). Limited model, Pure red color shown. |

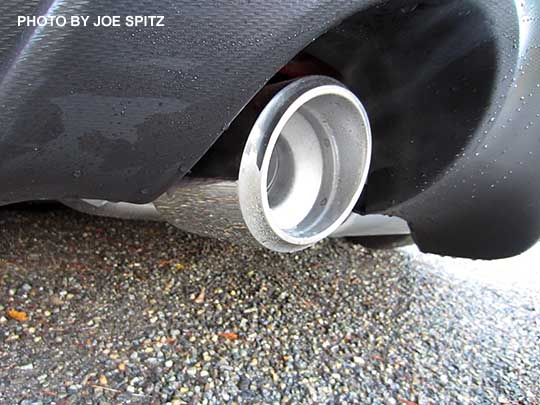

 2016 and 2015 BRZ exhaust tips |
 2015 and 2016 Subaru BRZ dual exhaust tips, left side shown |
-
more photos exterior photos I interior photos including 2016 audio system photos
-
more photos exterior photos I interior photos including 2016 audio system photos
-

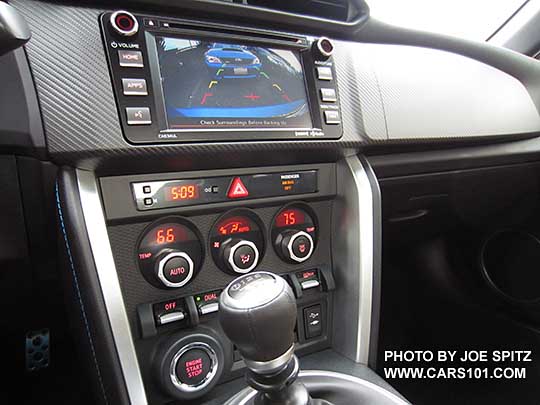

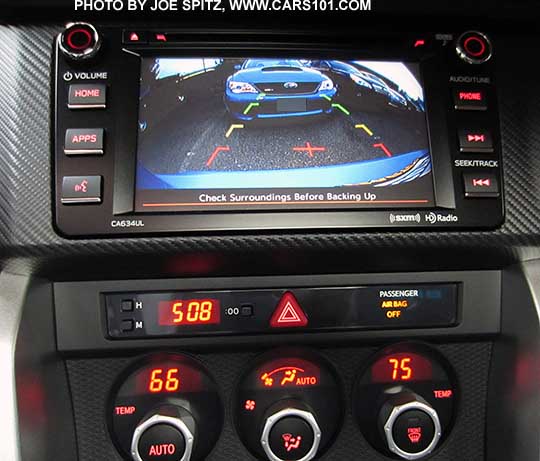

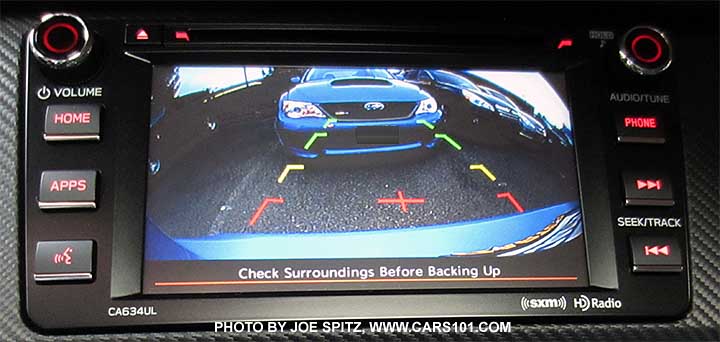

new rear view backup camera 2016 BRZ Limited and Series.HyperBlue 6.2" audio showing the rear view backup camera, dual zone automatic climate control with digital temperature display |
 new rear view backup camera 2016 BRZ Limited and Series.HyperBlue 6.2" audio showing the rear view backup camera, pushbutton start, dual front zone climate control |

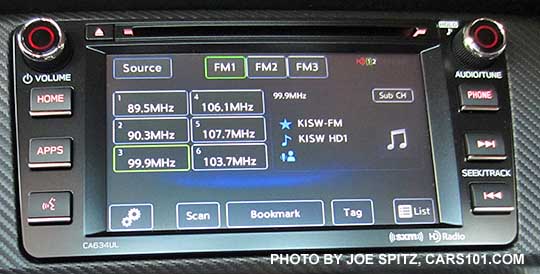

 new audio system for 2016 BRZ- 6.2" audio system. FM screen shown |

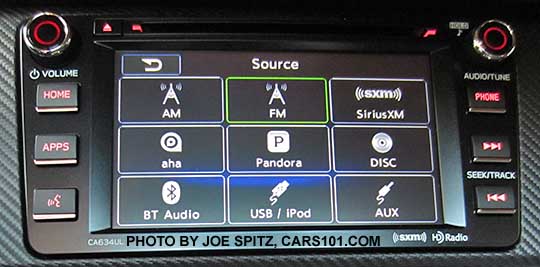

 new audio system for 2016 BRZ- 6.2" audio system. Music source screen shown |

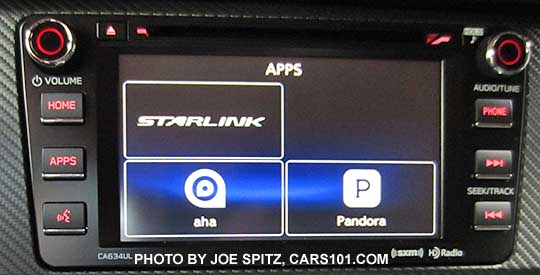

 new audio system for 2016 BRZ 6.2" audio system. Apps screen shwon with subaru starlink (weather, news, music, iheart radio), Pandora, Aha. for Android, iPhone |

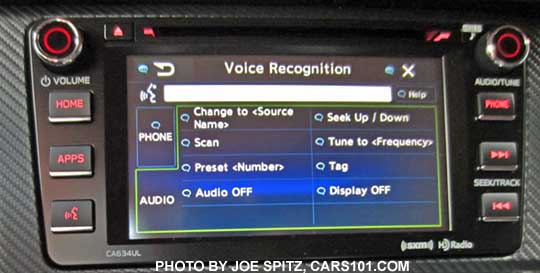

 new audio system for 2016 BRZ- 6.2" audio system's voice recognition screen shown |
-
-
|
2016 BRZ PRICES
MSRP, suggested list price. Your actual purchase price might vary, always contact your local dealers.
Notes: 2016 model Prices announced 8/27/15 $300 price decrease on Premium and Limited Cars expected starting October Destination remailed $795 for the 3rd year. Prices may vary in independent distributor regions, including states CT, HI, MA, ME, NH, NJ, NY, RI, VT Destination continues at $795 for the 3rd year. Destination to Ak is $945. May vary in CT, HI, MA, ME, NH, NJ, NY, RI, VT subject to change, correction
|
|||||||||||
| ... |
|||||||||||
| 2016 Model, Transmission |
model code |
option code |
MSRP |
destination |
Total MSRP |
||||||
| Premium, manual transmission |
GZA |
01 |
$25,395 |
$795 |
$26,190 |
||||||
| Limited, manual transmission |
GZE |
01 | $27,395 |
$795 |
$28,190 |
||||||
| Limited, automatic transmission |
GZF |
01 |
$28,495 |
$795 |
$29,290 |
||||||
| Limited Series Hyper.Blue, manual transmission 500 will be made |
GZS |
02 |
$27,690 |
$795 |
$28,485 |
||||||
|
same as 2015, 2014, 2013 models. subject to change, correction |
|
| Overall length | 166.7" |
| Width | 69.9" |
| Height | 50.6" at roof |
| Wheelbase | 101.2" |
| Weight | Manual- Premium 2762 lbs, Limited 2776 Automatic- Limited 2822 |
| Track front/rear | 59.8/60.6 |
| Turning radius |
35.4ft |
| Trunk cargo space |
rear seat up 6.9cf |
| Ground clearance |
4.9" |
|
cargo area measurements, hand measured
same as 2015, 2014, 2013 subject to change, correction |
|
 cargo area measurements, hand measured |
A: width at lower opening 26" B: floor width side-to-side inside opening 55" C: floor width side-to-side between wheel wells 42" D: maximum opening width 36" E: opening height 15.5" F: floor length to top of seat, folded down 53.5" G: floor length from opening to center console 88" H: floor length to back of seat when up 32" I: height from floor to top of trunk 15". minimum height by rear seat opening 13.5" |
 from the front seat looking into the trunk |
J floor length to top of seat, folded down 53.5" (same as F above) K floor length to back of seat when up 32" (same as H above) L width of rear seat opening 40.5" M height of rear seat opening 13.25" |
room for more than one set of clubs
|
 lots of luggage in the trunk. |
-
|
2016 Maintenance schedule subject to change, correction |
the full maintenance schedule > Break-in period: drive the car nicely for the first 1000 miles, with a mix of city and highway driving. Keep RPMs under 4000 except in an emergency, and avoid fast or high revving starts and hard sudden braking and stops. Don't use cruise control except for very short periods. You might notice a slight minor hot smell as the engine heats up for the first time or two. This is a common smell in a new machine as they get used the first time. > First oil and filter change required at 6000 miles or by 6 months using the required 0w-20 synthetic oil Oil changes required at least every 6000 miles or 6 months Rotate tires every 6000 miles or 6 months Engine coolant is Subaru long life coolant and should be checked, but the replacement interval is 11 years 0r 137,000 miles. Timing chain: no replacement schedule > 6, 000 miles or 6 months oil/filter change, rotate tires > 12,000 miles or 12 months: oil/filter change, rotate tires, replace cabin air filter. Check, inspect, and replace as needed- the rear differential gear oil, automatic transmission fluid, engine coolant, brake system, steering, suspension, clutch operation, engine coolant > 18,000 miles or 18 months oil/filter change, rotate tires > 24,000 miles or 24 months: oil/filter change, rotate tires, replace cabin air filter. Check, inspect, and replace as needed- the rear differential gear oil, automatic transmission fluid, engine coolant, brake system, steering, suspension, clutch operation, engine coolant > 30,000 miles or 30 months: oil/filter change, rotate tires, replace engine air filter, cabin air filter, brake fluid, and clutch fluid. Check, inspect, and replace as needed- belts, hoses, all gear and transmission fluids, brake and steering systems, suspension, clutch operation, engine coolant. > 36 ,000 miles or 36 months: oil/filter change, rotate tires > 42,000 miles or 42 months: repeat the 12000 mile or 12 month service above > 60,000 miles or 60 months: oil/filter change, rotate tires, replace spark plugs, replace automatic transmission fluid, engine air filter, replace cabin air filter, brake fluid, clutch fluid. Check, inspect, and replace as needed belts, hoses, all gear oils, engine coolant (top off if needed), brake, steering, suspension, clutch lines, fluids, and operation. > 66,000 miles or 66 months: oil/fliter change, rotate tires > 72,000 miles or 72 months- repeat the 12000 mile service above > 90,000 miles or 90 months: oil/filter change, rotate tires, replace engine air filter, cabin air filter, brake fluid, and clutch fluid. Check, inspect, and replace as needed- belts, hoses, all gear and transmission fluids, brake and steering systems, suspension, clutch operation, engine coolant > 120,000 miles or 120 months: repeat 60,000 mile service > 137,000 miles or 132 months (11 years)- replace engine coolant |
-
|
SAFETY Emergency roadside assistance standard for 3 years, 36000 miles. call 800-261-2155
subject to change, correction, updatingSubaru's Mobile-It-Ease program helps modify vehicles for special needs drivers. More info here  Subaru BRZ has 2 sets (4 total) child seat LATCH lower anchors, see white arrows, and two upper tethers, not shown |
|
2016 BRZ standard safety equipment includes... new for 2016 rear view back-up camera. It dispalys in the 6.2" audio system VDC vehicle dynamics control, electronic stability control TCS traction control system, all wheel all speed Airbags: Driver's knee airbag Airbags: Front airbags Airbags: Side airbags front Airbags: Side Curtain Airbags, front and rear Front passenger airbag- uses a Front passenger seat Occupant Detection System called Electrostatic Capacitance Sensor ODS. When anyone is seated or when anything is placed on the front passenger seat, there is a change to that capacitance value. This change in capacitance value is what the Electrostatic Capacitance Sensor ODS uses to determine whether the front passenger seat airbag (SRS) will be ON or OFF. When water or anything with high moisture content is spilled on the front passenger seat cushion, the airbag is designed to remain OFF until the seat cushion is dry. This will also be the case if the passenger has moisture on their clothing, such as rain-soaked pants or rain gear. In each of these situations, the airbag status may remain OFF even if a passenger is seated. Everything that is placed on the seat will affect a change in capacitance value. Plastic, metals and other substances, even if at a heavy weight, will not change the OFF status of an airbag. A false electrical charge, for example, those caused by laptops that are processing data, cellphones that are on or even an electric device connected to a car charger can cause the airbag status to switch to ON |
> Whiplash protection front seats
> Tire Pressure Monitoring System (TPMS) on all models > Headrests- front headrests are height adjustable > Steering wheel tilt and telescoping function to get a comfortable position > Headlights are Auto-off with ignition key removal, warning chime with lights back on > Brake assist increases the brake power when the driver initiates hard emergency pressure on the pedal. Brake assist generates the brake power according to the speed at which the driver depresses the brake pedal. Brakes: anti-lock 4 wheel disc brakes with EBD electronic brake force distribution, Brake assists for maximum brake pressure, and brake pad release return springs to prolong pad life. > Brakes- 4 wheel disc > Brake Override System, if gas and brake pedals are pressed at the same time, the brakes stop the car Brakes: brake return springs, helps eliminate some brake wear Brakes: EBD, electronic brake force distribution varies front/rear brake power 3 point lap and shoulder belts. Internal Trunk Release, sedan, emergency inside-trunk release LATCH Child seat Tethers and Uniform Mounting Clips Daytime running lights Crumple zones: front and rear Drop-down motor mounts Reinforced door beams: Dual front, single rear A Pillar reinforcing beam |
|
same as 2015, 2014, 2013 subject to change and updating. corrections and comments are welcomed Built by Subaru for both Subaru and Toyota/Scion in Gunma, Japan
|
|||
| model | Premium model code: manual GZA |
Limited model codes: manual GZE, automatic GZF | Series.HyperBlue mode code: GZS |

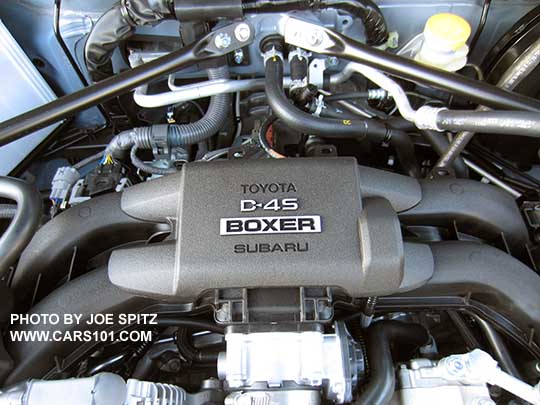

| Engine | FA20 2.0L 4
cylinder
(122cu, 1995cc) 16 valve, DOHC DAVCS dual active valve control system, variable valve timing D-4S port/direct injection Compression 12.5:1 Bore x stroke 3.4 in. x 3.4 in (86mm x 86mm) Oil: 0w-20 synthetic, 5.8qts Spark plugs: Iridium tipped Denso ZXE27HBR8 (gap 0.031 in) |
||
| Horsepower
Torque |
200hp@7000rpm
151 lb-ft@6400rpm. Redline is 7400 fuel cutoff |
||
| Manual Transmission | 6 speed close-ratio manual.gears: 1st 3.626, 2nd 2.188, 3rd 1.541, 4th 1.213, 5th 1.0, 6th 0.767 | ||
| Automatic transmission |
na |
optional: 6 speed automatic
with Paddle Shifters, and Sport or Winter modes. Final drive ratio: 4.10:1 Rev indicator and alarm - light and optional buzzer when exceeding a RPM that you determine |
na |
| Exhaust |
2 large stainless dual exhaust tips (was new on 2015 models) |
||
| Fuel Economy Premium 93 octane gas required 13.2 US gallon tank, (50 L, 11.0 Imp. gal) Use a maximum of 10% ethanol |
MPG city/highway, combined manual transmission 22/30, 25 automatic transmission 25/34, 28 |
||
| Rear wheel drive | S |
||
| Limited slip rear differential, Torsen (torque sensing). Both rear wheels are powered |
S |
||
| VSC and Traction TCS- vehicle stability control and traction control system (note- all other Subarus have VDC- Vehicle Dynamics Control) |
Standard, with 5 settings TCS 'Off" setting allows wheel spin when accelerating. it reactivates over 31mph unless the VSC is also off. VSC and TCS has 'Sport' and 'Off' settings. Sport allows some slipping before the VSC and TCS activates. Off shuts both VSC and TCS off for complete driver control. |
||
| Steering |
electric power assisted steering (epas) 13.13:1 lock-to lock 2.48 turns. turning circle 35.4 ft |
||
| Steering ratio |
13.12:1 |
||
| Wheels | 17x7J alloy, gray, 15 spoke | 17" black STI wheels |
|
| Tires note- tires chains cannot be used due to a lack of clearance |
Michelin Primacy HP 215/45RW 17" summer performance tires |
||
| Brakes | front 11.6:
vented disc with dual-piston floating calipers rear 11.4 vented disc with single-piston floating calipers | front 11.6
vented disc, with dual-piston, red finish, floating calipers rear 11.4 vented disc with with single-piston, red finish, floating calipers |
|
| Suspension | 4-wheel independent Front: MacPherson-type struts, lower L-arms, coil springs, stabilizer bar Rear: Double wishbone, coil springs, stabilizer bar Strut tower brace |
||
| EDR- Event Data Recorder |
The BRZ is
equipped with a EDR. In the event of an major accident, the EDR will
freeze around 30 seconds of information, including brake and gas pedal
positions, seatbelt use, speed, steering wheel direction etc. There is
no personal information (no name, location, age etc). Subaru has strict
rules regarding the use of this information and it cannot be released
without the owners express consent or if officially required by a court. |
||
-
|
subject to change and updating. corrections and comments are welcomed |
||||
| model | Premium |
Limited | Series.HyperBlue |
|
| model code |
manual GZA | manual GZE, automatic GZF | GZS |
|
| Manual 6 speed transmission |
S |
S |
S |
|
| Automatic 6 speed transmission with paddle shifters, normal, sport, snow modes |
na |
O | na |
|
| Black cloth with black cloth bolsters |
S, with red stitching |
-- |
-- |
|
| Black Alcantara with black leather bolsters |
-- |
S, with red stitching |
S, with HyperBlue stitching |
|
| Power windows, power-off delay so they work for 45 seconds after turning off |
S |
S | S |
|
| Power door locks |
S |
S | S |
|
| Power outside mirrors, body colored, break-away |
S |
S- heated | S |
|
| Rear defroster (no wiper) |
S |
S | S |
|
| Key- immobilizer system with chipped keys. 3 keys supplied- 2 have integrated lock/unlock, 1 valet key. All are chipped. Replacement battery for lock/unlock keys CR2016 | S, |
|||
| Proximity Key- remote lock/unlock with pushbutton start. Gray illuminated start button. 2 key fobs supplied. Immobilizer system. Fob replacement battery CR1632 To start the car, tap the start button once when pressing the brake pedal or clutch. For radio or accessory power only, tap with your foot off the brake or clutch, 1 tap for radio, 2nd tap for all power, tap a 3rd time to turn off |
-- |
S | S |
|
| Lights: Headlights- standard HID headlights power height aiming adjustment. Auto dusk-to-dawn setting. Daytime Running Lights. |
S | S | S |
|
| Fog lights | O |
S | S |
|
| Rear spoiler, body colored |
O | S | S |
|
| STI under spoilers- front, side, and rear quarter | available from dealer parts department, not factory installed |
|||
| Dash trim |
simulated carbon fiber, small pattern |
simulated carbon fiber, large pattern | ||
| Heated
front seats and defrosting outside mirrors (note: doesn't include wiper deicers and not called the All Weather Pkg) |
- |
S | S |
|
| Steering wheel- tilt and telescope, black leather wrapped | S, with red stitching |
S, with red stitching | S, black with hyperblue stitching |
|
| Air conditioning, manual control, 4 speed fan |
S |
-- | -- |
|
| Climate control, dual front zone automatic control, digital display, 7 speed fan | - | S- dual front zone | S- dual front zone |
|
| Cabin air filter |
S |
S | S |
|
| Cruise control | S | S | S |
|
| Instrument panel - speedometer, tachometer, fuel gauge, coolant temperature gauge, 2 resettable trip odometers |
S |
S | S |
|
| Digital display- outside temperature, instant and average fuel economy |
S |
S | S |
|
| Illuminated ignition key ring on steering column |
S |
-- | -- |
|
| Illuminated start/stop push button on dashboard |
-- |
S, gray button | S, gray button | |
| Cupholders, 4, 2 in center console, 1 in each door |
S |
S | S |
|
| Vanity mirrors, 2, one in each sun visor |
S, not illuminated |
S, illuminated | S, illuminated |
|
| Carpeted floor mats, embroidered |
S with red stitching, silver BRZ logo |
S with red stitching, silver BRZ logo | S with HyperBlue stitching, silver BRZ logo |
|
| Height adjustable driver seat, manual (not power) | S |
S | S |
|
| Door courtesy lights |
reflector, no lights |
S | S |
|
| 2 Power outlets, 12volt. 1 in center console, 1 in the glovebox |
S |
S | S |
|
| Trunk release with disable function in the left side of the trunk |
S |
S | S |
|
| Center console and
lower door knee pads, manual transmission simulated
leather |
-- |
S all with red stitching |
S, all with hyperblue stitching. Includes upper door soft touch urethane trim with hyperblue stitching |
|
| Stereo new for 2016 this is the only audio system offered on the 2016 BRZ. Navigation is no longer available. The only audio option available is the Kicker 10" trunk mounted 100w subwoofer, see options below |
6.2" single touch, high resolution, touch-screen audio system with 8 speakers. Standard rear view back-up camera displays in this screen, with adjustments for brightness, contrast etc. Includes AM/FM/FMHD/CD, SiriusXM (4 mos free), FM RBDS (radio broadcast data system) with station details. Single USB, 3.5 aux jack, Bluetooth audio streaming, cell phone Bluetooth with phone book download (iPhone, Android), Subaru Starlink smartphone (ios, android) app with weather, sports reports, Stitcher, Pandora, Aha. iTunes tagging. Roof mounted antenna. | |||
| standard features |
Premium |
Limited | Series.Blue |
|
| - 2016 BRZ STANDARD FEATURES subject to change and correction. tips and comments welcomed |
|
| -- | |
2016 PREMIUM BRZ BRZ model code: manual transmission GZA |
|
|
-
Engine: 2.0L DOHC 4 cylinder, 200hp, Rear wheel drive with Torsen Limited slip 6 speed close ratio manual transmission. new for 2016 all new 6.2" audio system replaces 2015, 2014, and 2013 model's Navigation system. Navigation is not longer available, even as an option, on the 2016 models new for 2016 Rear view back-up camera is standard on all models. It displays in the 6.2" audio screen. This is the first back-up camera in a BRZ. new for 2016 red stitching and silver BRZ logo on the carpeted floor mats Safety Brakes: 4 wheel disc, anti-lock, with EBD, brake assist, and brake override Airbags: driver and passenger front, front side, and front side pelvis/torso Tire Pressure monitoring system Safety pedal system (designed to give in the event of an accident) Whiplash protection front seats Front headrests- height adjustable Child seat: rear LATCH system Daytime running lights, LED (DRL) Front wipers- variable speeds Front crumple zones Lights: HID low beam/high beam, power aiming adjustment, Daytime running lights. Features Power windows Power locks Driver's window one-touch auto up/down Power mirrors, body colored, break-away Cruise control Remote lock/unlock Engine immobilizer chipped key anti-theft system Illuminated ignition key ring Air conditioning and heated controls: manual controls, 4 speed fan Cabin air filtration system |
- Interior Outside door handles- body colored Inside door handles- chrome Outside mirrors- body colored Front fender garnish- body colored with black insert Dash panel and audio trim is simulated carbon fiber with a small pattern (new on 2015s) Cloth interior with red stitching Drivers seat, manual height adjustment Rear seats fold flat, one piece Carpeted floor mats, with red stitching and silver BRZ logo Tilt and Telescoping steering wheel with Blue center logo (2013 model logo was black) Leather wrapped steering wheel with red stitching Leather wrapped shift knob Dual vanity mirrors (not illuminated) Door sill plates with aluminum alloy insert Foot pedals- aluminum alloy, incl foot rest Cupholders 4- 2 removable cupholders in the center console, 1 in each door 12v power outlets- 1 in center console, 1 in glove box Trip computer with instant, average fuel economy, outside temperature Map pocket on front passenger seat back Passenger seat slides forward for rear seat access Dome light 2 map lights Stereo new and on all 2016 models note: navigation (standard on all previous BRZs) is no longer available, even as an option, on 2016 models. The only audio option is the Kicker 10" trunk mounted 100w subwoofer, MSRP $651 6.2" single touch, high resolution, touch-screen audio system with 8 speakers. Standard rear view back-up camera displays in this screen, with adjustments for brightness, contrast etc. Includes AM/FM/FMHD/CD, SiruiusXM (4 mos free), FM RBDS (radio broadcast data system) with station details. Single USB, 3.5 aux jack, Bluetooth audio streaming, cell phone Bluetooth with phone book download (iPhone, Android), Subaru Starlink smartphone app (android, apple) with weather, sports reports, Stitcher, Pandora, Aha. iTunes tagging. Roof mounted antenna. |
| LIMITED MODEL ADDS TO PREMIUM Limited model codes: manual transmission GZE; automatic GZF |
SERIES.HYPERBLUE ADDS TO LIMITED model code GZS |
The Limited model has everything the Premium has, plus..... new on 2016 Limited center console and door padded Knee Pads with red stitching new on 2016 Limited bright silver finish vents, heater control side panel, door handle inserts Fog lights Heated front seats Heated outside mirrors Security alarm system Front door courtesy lights Vanity mirrors- illuminated Trunk spoiler- body colored Keyless access door and pushbutton start Illuminated keyless start/stop push button Leather trimmed with Alcantara seating surfaces Center console and door padded Knee Pads with red stitching Bright silver finish vent trim, heater control side panel, door handle inserts Air conditioning and heated controls: automatic climate control with temperatures from Lo-61 to 89-Hi, dual front zones, digital display, 7 speed fan, rear defroster button turns on the outside mirror heaters. Stereo new and on all 2016 models note: navigation (standard on all previous BRZs) is no longer available, even as an option, on 2016 models. The only audio option is the Kicker 10" trunk mounted 100w subwoofer, MSRP $651 6.2" single touch, high resolution, touch-screen audio system with 8 speakers. Standard rear view back-up camera displays in this screen, with adjustments for brightness, contrast etc. Includes AM/FM/FMHD/CD, SiruiusXM (4 mos free), FM RBDS (radio broadcast data system) with station details. Single USB, 3.5 aux jack, Bluetooth audio streaming, cell phone Bluetooth with phone book download (iPhone, Android), Subaru Starlink smartphone app (for android, apple) with weather, sports reports, Stitcher, Pandora, Aha. iTunes tagging. Roof mounted antenna. |
new model for 2016 replaces the 2015 Series.Blue model Only 500 will be made. all HyperBlue color The Series.Blue has everything the Limited has, plus..... Mirrors- gloss black Black BRZ and Subaru badging 17" STI brand black alloy wheels Frameless day-night rear view mirror Undercarriage- Floor undercover insulator Undercarriage- Fuel tank undercover insulator Hyperblue BRZ logo embroidered on the front seat Floor mats with silver BRZ logo and hyperblue stitching Shift lever boot- simulated leather with hyperblue stitching Parking brake handle- leather wrapped with hyperblue stitching Steering wheel- black leather wrapped,with hyperblue stitching Front fender trim- hyperblue with black insert and gloss black trim Seats- Alcantara seating surfaces, black leather bolsters, with hyperblue stitching Door trim- soft touch urethane upper with hyperblue stitching, and lower knee pad with hyperblue stitching center console Dash panel and audio trim, simulated carbon fiber, large pattern (Premium and limited have small pattern simulated carbon fiber) Stereo new and on all 2016 models note: navigation (standard on all previous BRZs) is no longer available, even as an option, on 2016 models. The only audio option is the Kicker 10" trunk mounted 100w subwoofer, MSRP $651 6.2" single touch, high resolution, touch-screen audio system with 8 speakers. Standard rear view back-up camera displays in this screen, with adjustments for brightness, contrast etc. Includes AM/FM/FMHD/CD, SiruiusXM (4 mos free), FM RBDS (radio broadcast data system) with station details. Single USB, 3.5 aux jack, Bluetooth audio streaming, cell phone Bluetooth with phone book download (iPhone, Android), Subaru Starlink smartphone app (android, apple) with weather, sports reports, Stitcher, Pandora, Aha. iTunes tagging. Roof mounted antenna. |
top
WHAT IS HD RADIO
Digital radio broadcast signal for improved clarity
The ‘HD’ in ‘HD Radio’ is part of iBiquity Digital’s brand name for its digital AM and FM radio technology.
It does not mean either 'hybrid digital' or 'high definition'.
HD Radio broadcasting is free, there are no fees.
You can get digital AM and FM stations, including HD2 and HD3 multicast channels.
HD is your favorite local AM and FM stations broadcasting digitally, producing improved clean sound.
Radio station subchannels give you more selection
The service includes iTunes Tagging. iTunes Tagging lets you capture information about a song on the radio and store it on your iPod by pushing the "Tag" button on the HD Radio receiver. When your iPod is connected to iTunes, a list of tagged songs will appear which can be purchased.
HD radio website, check stations etc
Starlink is a free Subaru smartphone app for Android and iPhone.
It uses your cell phone's data plan.
Cloud functions include
> Weather reports, The location for the weather is selected and changed on the smart phone by going to to starlink > weather > config. Select up up to six cities.
> News (user selected from a international list that includes CNN, USA Today, MSNBC, Yahoo news, Le Monde, El Mundo etc)
> Calendar, syncs with Google calendar,
> iHeart radio,
> Music streaming.
> Stitcher.com. Stitcher includes news, podcasts and articles on current events, science, technology, sports, culture, music etc. To use Stitcher and select the programs you want to listen to, you need to go the stitcher.com website and log in with your facebook or google account or create an email account, and then choose your programs.
> Pandora is an online radio station with ads, or paid without ads. Go to Pandora.com to create your account. For Android and iPhone. iPhone requires a USB cable
> Aha radio app. Aha is by Harman Kardon. Download the Aha app to your iphone or android device (but not Blackberry or Windows, though that can change) and it channels content to your navigation system. You access and organize all your content from the web into personalized, live, on-demand stations. If your smartphone is with you, so is all of your favorite programming.
iPhone Aha is via USB. Android Aha works with via bluetooth. http://www.aharadio.com/what-is-aha
-
-
|
Note: prices are MSRP suggested list price. Your actual purchase price might be higher or lower depending on your dealers mark-up or discounts. subject to change and updating. corrections and comments are welcomed |
|||
| OPTION PACKAGES prices are MSRP suggested list installed price. Your actual purchase price might be higher or lower depending on your dealer's mark-up or discounts. subject to change and updating. |
Premium model code: manual GZA |
Limited code: manual trans GZE, automatic trans GZF | Series.HyperBlue model code GZS |
| Popular Package 1 (code B1A). Includes Auto dimming mirror/compass/Homelink, Rear bumper applique, Wheel locks. $458 |
O |
O | -- |
| Popular Package 2 (code B1C). Includes Auto dimming mirror/compass/Homelink, Interior Illumination kit RED LED, Chrome fender trim, Cargo tray Wheel locks. $789 | O |
O | -- |
| Popular Package 3 (code B1D), Includes Auto dimming mirror/compass/Homelink, Interior Illumination kit BLUE LED, Chrome fender trim, Cargo tray Wheel locks. $789 | O |
O | -- |
| Popular Package 4 (code B1E). Includes Auto dimming mirror/compass/Homelink, Rear bumper applique, Cargo tray, Chrome fender trim, Wheel locks $654 | O |
O |
-- |
| Popular Package 5 (code B1F). Includes Auto dimming mirror/compass/Homelink, Rear bumper applique, Chrome fender trim, Wheel locks. $582 | O |
O | -- |
| Popular Pkg 6 (code B2N). Rear bumper applique, chrome fender trim, cargo tray, wheels locks $367 | O |
O |
-- |
| Popular Pkg 6a (code B2P). Rear bumper applique, interior illumination BLUE LED, cargo tray, sunshade, wheels locks $549 | O |
O |
O |
| INDIVIDUAL OPTIONS prices are MSRP suggested list installed price. Your actual purchase price might be higher or lower depending on your dealer's mark-up or discounts. subject to change and updating |
Premium |
Limited | Series.Blue |
| Automatic 6 speed transmission with paddle shifters |
-- |
O | -- |
| Fog lights (code QEM) $397 |
O | S | S |
| Interior illumination footwell LEDs, red code NEA or blue code NEE. $230 |
O |
O | O |
| Stereo: 10" powered Kicker subwoofer, trunk mounted 100w amp (DEA) $651 | O |
O | O |
| Rear bumper diffuser/underskirt (code QEX) $811 | O | O | O |
| Chrome fender trim (code QER) $124 |
O | O | -- |
| new for 2016 Black fender trim (code 0B2) $124 |
O |
O |
S |
| Wheel locks (code H8B) $76 | O | O | O |
| Chrome fuel door cover (code QES) $104 | O | O | O |
| Trunk cargo tray (code MEA) $72- Note na with subwoofer |
O |
O | O |
| Rear bumper applique paint protector (code QEV) $95 | O | O | O |
| Auto dimming rear view mirror with compass (code KEA) $212 | O |
O | -- |
| Auto dimming rear view mirror with compass and Homelink garage door opener (code KEB) $287 | O |
O | -- |
| Rear spoiler, body colored $582 | O | S | S |
| Sunshade, windshield sunshade. $76 |
O |
O |
O |
|
ACCESSORIES accessories are parts that are available from your dealer. Prices here are Subaru MSRP without installation. Contact your local parts dept for their price with or without installation. subject to change and updating |
Premium |
Limited | Series.HyperBlue |
| STI under spoiler, front $399.99, E2410CA000 |
O |
O |
S |
| STI under spoiler, sides $499.99, E2610CA000 |
O |
O |
S |
| STI under spoiler, rear sides $335, E5610CA000 |
O |
O |
S |
| STI brand black alloy wheels, set of 4, 17", with center caps $1652.96 |
O |
O |
S |
| Kicker 10" powered subwoofer $599.95, H630SCA000 |
O |
O |
O |
| Engine block heater - dealer only, $149.95. A091SCA000 |
O |
O | O |
| Chrome fender trim $99 (also available port installed), E7110CA000 | O |
O | O |
| Rear decklid spoiler, pre-painted -$499. |
O |
S | S |
| Rear underskirt/diffuser $749 (also available port installed). 35610CA000 |
O |
O | O |
| Battery warmer - dealer only, $54.95, J601SCA000 |
O | O | O |
| Smoking accessories: ash tray, $19.95; requires ashtray holder/sleeve $12.95; cigarette lighter $69 (needs to be installed, replaces 12v outlet). dealer only | O | O | O |
| SPT battery tie down- dealer only, gray or blue - $45 |
O | O | O |
| SPT Oil filler cap - dealer only, gray or blue, $45 |
O |
O | O |
| Wheel locks $29.95 (also available port installed) |
O |
O | O |
| Car cover, $139, M001SCA000 |
O |
O | O |
| Severe weather companion (emergency kit) flashlight, blanket, first aid etc $44.50, dealer only |
O |
O | O |
| BRZ logo License plate- polished stainless $34.95; Matte Black $31.95 |
O |
O | O |
| BRZ logo key fob, carbon fiber $19.95. SOA342L148 |
O |
O | O |
| Sunshade, front windshield sunshade $74.95. SOA3991500 |
O |
O |
O |
top
start colors and interiors
-
 2016 Subaru BRZ Premium black cloth seat material |
 2016 BRZ Limited black alcantara seat surface, leather bolsters, red stitching |
 2016 BRZ Series.HyperBlue seat material- black alcantara with leather bolsters and hyperblue stitching |
 2016 BRZ Series.HyperBlue black alcantara seat surfaces, leather bolsters, with hyperblue stitching |
-
 2016 Subaru BRZ Premium cloth front seats Premium cloth interior |
2016 BRZ Limited front seats- black alcantara seat surface, leather bolsters, red stitching. WR Blue car shown |
2016 BRZ Series.HyperBlue front seats- black alcantara with hyperblue logo and stitching |
|
2016 BRZ COLOR SAMPLES its hard to get accurate colors subject to change, correction |
|||
 |
 Ice Silver Metallic |
 new for 2016 pure red |  new color for 2016 HyperBlue |
 Crystal White Pearl |
 dark gray metallic |
 crystal black silica | blank |
top
-
2016 BRZ COLORS Notes subject to change and correction
|
|||||||
| model |
WR Blue Pearl |
new for 2016 Pure Red |
Crystal Black Silica |
Ice Silver Metallic |
Dark Gray Metallic |
Crystal White Pearl | new for 2016 HyperBlue |
| Premium, with black cloth |
A |
A |
A |
A |
A |
A | -- |
| Limited, with black alcantara, leather bolsters, red stitching |
A |
A |
A |
A |
A |
A | -- |
| Series.HyperBlue with alcantara, leather bolsters, blue stitching |
A |
-- |
-- |
-- |
-- |
-- | S |
2013 BRZ speed tests a few speed tests from various websites and car magazines |
|||||||||||||||||||||||||||||
|
0-30 mph- 2.7 seconds 0-45- 4.8 0-60- 7.3 0-60 with 1 foot of rollout- 7.0 0-75 10.4 1/4 mile- 153.3 at 91.1 MPH 0-30 mph, trac ON- 3.0 0-45 mph, trac ON- 5.2 0-60 mph, trac ON- 8.0 0-60, trac ON with 1 foot of rollout- 7.7 0-75 mph, trac ON - 11.1 1/4-mile, trac ON- 15.7 sec @ 90.5 mph Braking, 30-0 mph - 28ft 60-0 mph- 114ft Slalom, 6 x 100 - 69.1 MPH Slalom, 6 x 100 ft. ESC ON- 66.6 MPH Sound level @ idle- 44.3 dB @ Full throttle- 81.6 dB @ 70 mph cruise 69.0 dB Engine speed @ 70 mph- 3.050 RPM - |
|
- Car and Driver, June 2012 issue
0-30 2.3 seconds
0-40 3.3 0-50 4.7 0-60 6.3 0-70 8.2 0-90 13.2 0-100 16.4 0-110 21.2 0-120 26.6 5-60 8.0 quarter mile 14.9 seconds @ 95mph Braking 70-0 165ft Interior sound idling 42 dba full throttle 85 dba 70mph cruising 73dba | |||||||||||||||||||||||||||
The end
