| The Insurance
Institute for Highway Safety
is an independent, nonprofit, scientific and educational organization dedicated to reducing the losses — deaths, injuries, and property damage — from crashes on the nation's highways. Check out IIHS.org crash tests. 4/17/08 2009 Forester a Top Safety Pick: Front crash test, side crash test from IIHS 2008 Top Safety Pick award winners include
All information subject to change and correction. |
|
| Forester
4/17/08 09 Forester a Top Safety Pick: Front crash test, side crash testfrom IIHS 2003-2008
Forester IIHS tests top safety pick
Rear crash and headrest tests, all models |
Impreza
2008 Front offset crash test, top safety pick 2008 Side Impact crash test, top safety pick 2006-07 side impact crash test models with front seat-mounted combination head and torso airbags 2002-2007 Front offset crash test, models mfg. after Sep. 2001, results also apply to 2005-06 Saab 9-2X Rear crash and headrest tests, all models |
| Outback
Rear crash and headrest tests, all models |
Legacy
2005-2008
Front offset crash test, Top safety pick Overall evaluation: Good
2006-2008
Side Impact crash test, 2008 is a Top Safety pick
|
| Tribeca
2006-2008
Front offset crash test
|
Baja
Rear crash and headrest tests, all models |
|
crash test results from nhtsa.gov |
based on risk of head & chest injury |
based on risk of chest injury |
|
|||
| Driver | Passenger | Front Seat | Rear Seat | 2 wheel drive | 4 wheel drive | |
|---|---|---|---|---|---|---|
| 2008 Subaru Forester 4-DR. w/SAB | ||||||
| 2008 Subaru Impreza 4-DR w/SAB | ||||||
| 2008 Subaru Impreza 4-DR Wagon w/SAB | ||||||
| 2008 Subaru Legacy 4-DR. w/SAB | ||||||
| 2008 Subaru Outback 4-DR Wagon w/SAB | ||||||
| 2008 Subaru B9 Tribeca 4-DR. w/SAB | ||||||
|
crash test results from nhtsa.gov |
|
|||||
| Driver | Passenger | Front Seat | Rear Seat | 2 wheel drive | 4 wheel drive | |
|---|---|---|---|---|---|---|
| 2007 Subaru Outback 4-DR w/SAB |
|
|||||
| 2007 Subaru Outback 4-DR Wagon w/SAB | ||||||
| 2007 Subaru B9 Tribeca 4-DR. w/SAB | ||||||
| 2007 Subaru Forester 4-DR. w/SAB | ||||||
| 2007 Subaru Impreza 4-DR w/SAB | ||||||
| 2007 Subaru Impreza 4-DR Wagon w/SAB | ||||||
| 2007 Subaru Legacy 4-DR. w/SAB | ||||||
| 2007 Subaru Legacy 4-DR. Wagon w/SAB | Not rated | |||||
|
crash test results from nhtsa.gov |
|
|||||
| Driver | Passenger | Front Seat | Rear Seat | 2 wheel drive | 4 wheel drive | |
|---|---|---|---|---|---|---|
| 2006 Subaru Outback 4-DR Wagon w/SAB | ||||||
| 2006 Subaru B9 Tribeca 4-DR. w/SAB | ||||||
| 2006 Subaru Forester 4-DR. w/SAB | ||||||
| 2006 Subaru Impreza Wagon 4-DR. w/SAB | ||||||
| 2006 Subaru Impreza 4-DR w/SAB | ||||||
| 2006 Subaru Legacy 4-DR. w/SAB | Not rated | Not rated | Not rated | |||
| 2006 Subaru Baja 4-DR | Not rated | Not rated | Not rated | Not rated | Not rated | |
|
crash test results from nhtsa.gov |
|
|||||
| Driver | Passenger | Front Seat | Rear Seat | 2 wheel drive | 4 wheel drive | |
|---|---|---|---|---|---|---|
| 2005 Subaru Outback 4-DR Wagon w/SAB | ||||||
| 2005 Subaru Forester 4-DR. w/SAB | ||||||
| 2005 Subaru Impreza Wagon 4-DR | Not rated | |||||
| 2005 Subaru Legacy 4-DR. w/SAB | Not rated | Not rated | Not rated | |||
|
|
|
|||||
| Driver | Passenger | Front Seat | Rear Seat | 2 wheel drive | 4 wheel drive | |
|---|---|---|---|---|---|---|
| 2004 Subaru Forester 4-DR.w/SAB | ||||||
| 2004 Subaru Impreza Wagon 4-DR. | Not rated | |||||
| 2004 Subaru Legacy 4-DR. | ||||||
| 2004 Subaru Legacy 4-DR. Wagon | ||||||
| 2004 Subaru Outback 4-DR. Wagon | Not rated | Not rated | ||||
|
crash test results from nhtsa.gov |
|
|||||
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| 2003 Subaru Forester 4-DR. w/SAB |
|
|
|
|
|
|
| 2003 Subaru Impreza Wagon 4-DR. |
|
|
|
|
|
|
| 2003 Subaru Legacy 4-DR. |
|
|
|
|
|
|
| 2003 Subaru Legacy 4-DR. Wagon |
|
|
|
|
|
|
| 2003 Subaru Outback 4-DR. Wagon |
|
|
|
|
|
|
|
crash test results from nhtsa.gov |
|
|||||
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| 2002 Subaru Forester 4-DR. |
|
|
|
|
|
|
| 2002 Subaru Impreza Wagon 4-DR. |
|
|
|
|
|
|
| 2002 Subaru Legacy 4-DR. Wagon |
|
|
|
|
|
|
| 2002 Subaru Legacy 4-DR. |
|
|
|
|
|
|
| 2002 Subaru Outback 4-DR. Wagon |
|
|
|
|
|
|
|
crash test results from nhtsa.gov |
|
|||||
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| 2001 Subaru Forester 4-DR. |
|
|
|
|
|
|
| 2001 Subaru Legacy 4-DR |
|
|
|
|
|
|
| 2001 Subaru Legacy 4-DR.Wagon |
|
|
|
|
|
|
|
crash test results from nhtsa.gov |
|
|||||
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| 2000 Subaru Forester 4-DR. 4x4 |
|
|
|
|
|
|
| 2000 Subaru Legacy 4-DR. Wagon |
|
|
|
|
|
|
| 2000 Subaru Legacy 4-DR. |
|
|
|
|
|
|
|
crash test results from nhtsa.gov |
|
|||||
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| 1999 Subaru Forester 4-DR. 4x4 |
|
|
|
|
|
|
| 1999 Subaru Legacy 4-DR. |
|
|
|
|
|
|
|
crash test results from nhtsa.gov |
|
|||||
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| 1998 Subaru Legacy 4-DR. |
|
|
|
|
|
|
ACTIVE safety: helps prevent accidents:
All Wheel Drive:
Continuous AWD: Subaru manual transmissions
use Continuous AWD, normally 50/50 front-to-back power split and use a
mechanical viscous center differential to to vary the power split when
there is a loss of traction.
Active AWD: Subaru's automatic transmission
use Active AWD, mostly front wheel drive and uses traction sensing computer
input to electronically vary the front to rear power split via a hydraulic
multi-plate transfer clutch.
VTD AWD (variable torque distribution).
New in 2001, VTD transfers powers front to back electronically. The power
split is 45/55 front/rear and the rear bias is designed for a nicer, more
luxury car feel as opposed to the front bias of the Active AWD system.
Usually 45/55 front to back split but that varies according to wheel slippage.
In 2003 VTD AWD is used on Outback VDC, GT with Sport Shift automatic transmission
and Impreza WRX with automatic transmission
Anti-lock Brakes (ABS): A brake system that prevents wheel lockup in hard braking conditions so the driver can maintain control and not skid. Anti-lock brakes will 'pulse' when activated under firm brake pedal pressure because they are pumping the brakes at a very high rate.
PASSIVE safety
Daytime driving lights: front (only the front) lights are automatically on when the car is moving. These may be less bright than normal headlight beams.
SEAT BELTS
Automatic Locking Retractor (ALR):
pull the belt all the way out and it locks into place and ratchets back.
Easy for adjusting child seats.
Seat belt Pre-tensioners: automatically
tightens the seatbelt in the event of an accident reducing the force which
the occupant will hit the belt
ELR: Emergency Locking Retractor:
allows the seatbelt to move free until rapid deceleration is detected at
which time the belt locks.
AIRBAGS (SRS - Supplemental Restraint
System): A safety air bag inflates to prevent the driver from colliding
with the steering wheel or and the passenger with the front dashboard.
Designed to activate in moderate to severe front impacts. The bag deflates
within milliseconds. Must be used with seat belts. Most airbags after 1998
are de-powered and deploy with less force than earlier versions so people
who sit closer to them may experience less initial contact.
Newer front airbags deploy according driver's
position and distance form the steering wheel, the passenger side deplys
according to passenger weight
Side Air Bags: air bags that deploy in side impacts to cushion and prevent the occupant from hitting the interior. Subaru's side airbags are seat mounted. Used with seat belts.
Side Curtain Airbags airbags that run above the top of front and/or rear side windows and drop down to protect the occupant's head from hitting the window in a side impact.
Airbag danger: Try to sit app 10"
from the airbags. Folks are not hurt by airbags because of height, weight
or age. Usually they were too close to the air bag or were not properly
belted in and they were thrown forward toward the airbag as it came toward
them.
Avoid being too close. Adjust the
seat position. Need to sit close? Consider pedal extenders. Infants and
children under 12 should always sit in the back seat. Many newer cars detect
front occupant position or weight to determine how or if the bag deploys.
On-Off Switches: airbag on-off switches
are available only by petitioning for an airbag exception. Requires an
unsafe rear seat such as a supercab truck with sidefacing seats, or cars
with no back seat, or when someone with a medical condition requires them
to sit in the front passenger seat.
See links below for more information.
Tire pressure monitoring US Safety
regulations require all new 2008 and newer 4-wheeled vehicles weighing
10,000 lbs or less to have with a monitoring system detecting a 25% drop
in tire pressure.
TIre Pressure Monitoring Systems (TPMS)
measures tire pressure using a small sensor inside each wheel. When a tire
drops app 25% in pressure a warning light on the dashboard comes on. You
then need to check each tire to see which one is low. Cold weather will
cause a pressure drop because cold air is less dense than warm so the monitor
may come on in seasonally.
top
(see links below)
All information subject
to change and correction.

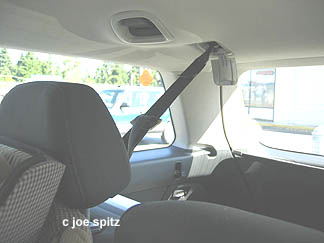

LATCH Child Seat System: (Lower
Anchors and Tether for CHildren): consists of lower child seat anchors
at the base of the rear seats and a tether attachment in the rear. This
allows a child seat to be firmly and securely anchored at the base and
top to minimize movement. Requires a newer seat (2002?) with the appropriate
attaching straps. Check your child seat for specifics.
Required on all vehicles and child
safety seats manufactured on or after September 1, 2002.
Cars, minivans, and light trucks will
be required to have anchor points between the vehicle's seat cushion and
the seat back in at least two rear seating positions, and a top
tether anchor (with the exception of convertibles).
Child safety seats will have a lower set of attachments that fasten to
the vehicle anchors. Most forward-facing child
safety seats will also have a top strap
(tether) that attaches to the top anchor in the vehicle. Together they
make up the LATCH system.
Why? LATCH bars
avoid seat belt incompatibility from different types of seat belt retractors,
different belt anchor locations (too far forward), plus
differing vehicle
belt routings that people found confusing.
Where are the
anchors: The anchor bars are in the crease of the rear seats. By law, the
vehicle LATCH bar spacing is standardized at 11 inches (280mm)
so that both
the flexible (webbing) and rigid (metal) type of LATCH attachments will
work in all vehicles.
How many seats?
Very few vehicles could fit three LATCH positions across a back seat. It
was decided that at least two are needed in back seats but
vehicle manufacturers
can optionally add more if they fit. In limited cases, it's possible to
use the inboard LATCH bars to put a seat in the center position, but
for this to be
safe, this method must be specifically allowed by the child restraint manufacturer
for that model restraint. There are limits as to how wide and
narrow is safe
for use by a child seat. Use the vehicle seat belts in the center rear
unless the child restraint model instructions specifically say the center
inboard bars
are ok.
Retrofit? Yes,
there may be a kit, contact your seat manufacturer to see if they make
a retrofit kit for your child seat. Do not use a kit from anothe
rcompany, the
design of the system and angles of attachment could be different enough
to cause crash loads that would break the system. Don't mix parts
from different
manufacturers no matter how similar they might look.
|
All information subject to change and correction. |
||
| Baby Trend, 800-328-7363, www.babytrend.com | Dorel, Cosco, Safety1st, Eddie Bauer, 800.544.1108, www.djgusa.com | IMMI, 900.465.579, www.safeguardseat.com |
| Britax, 888.427.4829, www.britaxusa.com | EvenFlo, 800.233.5921, www.evenflo.com | LaRoche, 978.632.8638, |
| Chicco USA, 877.424.4226, www.chiccousa.com | E-Z On, 800.543.4532, www.ezonpro.com | Nania, 877.912.1313, www.team-tex.com |
| Combi, 800.992.6624, www.combi-int.com | Fisher Price, 866.204.1665, www.fisher-price.com | orbit, 877.orb.baby, www.orbitbaby.com |
| Compass, 888.899.2229, www.compassbaby.com | Graco, 800.345.4109, www.gracobaby.com | Pegperego, 800.671.1701 www.pegperego.com |
| Recaro, 800.8RE.CARO, www.recaro-nao.com | Safe Traffic Systems, 847.329.8111, www.safetrafficsystems.com | Safety Engel, 888.743.3798, www.safetyangel.com |
| Sunshine Kids, 888.336.7909, www.sunshinekidsjp.com | Tripleplay Products, 800.829.1625, www.tripleplayproducts.com | |
My Links
page is a whole page of links
here are some safety related links
top
Airbag
National
Highway Transportation Safety Board for information on disabling the
airbag, how to appy etc
Airbags
and On/Off Switchs The Insurance Institute for Highway Safety information
about who is at risk and who is safer with them working.
Kids
& Airbags http://www.hwysafety.org/safety_facts/airbags/kids_airbags.htm
Air
Bag Safety - Oklahoma police website http://www.ou.edu/oupd/kidseat.htm
http://childsafetyalerts.com
Seatbelt.com
http://www.seatbelt.com/safety.html, about airbags on-off switches
Child safety
The Safety Restraint Coalition, Washington's
Child Passenger Safety Program, http://www.800bucklup.org/
Car
seat safety: How to choose and use a car seat (Ages 2 to 4) http://www.parentcenter.com/refcap/39413.html
Child
Seat Mfrs child seat companies http://www.nhtsa.dot.gov/people/injury/childps/csr2001/csrhtml/csManufacturers.html
Check
your child seat for LATCH, recalls etc http://www.seatcheck.org/ call
866-seatcheck
Child
seats, from NHTSA.gov
Child
seat ratings, from NHTSA.gov
Child
seat inspections in the Seattle area http://www.nhtsa.dot.gov/People/Injury/Childps/CPSFitting/FindFitting.cfm
Boost
America, educational site http://www.boostamerica.org/index.htm
Child
Safety by Parent's Helper, http://www.childsafety.com/
Seatbelt.com
http://www.seatbelt.com/air_bags.html
National
Safety Belt Coalition, Why Child Safety Seats?
top
All information subject
to change and correction.
Crash Tests Results, front- side impacts,
roll-over etc
National
Highway Safety crash test results (star ratings) http://www.nhtsa.dot.gov/ncap/ncap.cfm?search=yes&vehdesc=search
highwaysafety.org
http://www.highwaysafety.org/default.htm
11/18/07 Crash test: 2008
Impreza gets top pick front, side, and rear tests and optional electronic
stability control from IIHS, Insurance Institute for Highway Safety, more
10/21/07 Crash test, 08 Impreza
gets Good in the frontal offset crash test from IIHS. 'Dummy movement was
well
controlled. After the dummy moved forward into the airbag, it rebounded
into the seat without its head coming close to any stiff structure
that could cause injury. Injury measures — Measures taken from the dummy
indicate a low risk of any significant injuries in a crash of this
severity..' more
May 16, 2007 The 2008 Tribeca gets
5 Star crash rating from NHTSA.gov on front and rear driver and passenger
crash tests, plus a 'no-tip' inb the rollover test! see
the full
report
June 1, 2007 New child seat
safety law in Washington State. Effective June 1, 2007 children
will have to stay in the safety seats until they are at least 8 years old
and 4 feet, 9 inches tall. The new law also requires children to use booster
seats until they are 16 years old if a vehicle's seat belt does not properly
fit the child. Also children younger than 13 should ride in the back seat
whenever possible, they're allowed to ride in the front only if the vehicle
has no lap-and-shoulder belts in the back seat. Read
the law
2/15/2007 Crash test results Safety
crash test Legacy and Outback: NHTSA the National Highway Traffic Safety
Administration announced that 24 2007 passenger vehicles, including
the Subaru Legacy and Outback, received five stars in front and side crash
tests, the highest government rating under the agency’s New Car Assessment
Program. the
full report
11/20/2006 Tribeca, Forester
XT Sports, Legacy GT sedan with Navigation are on the list of only
13 cars that earned the top rating from Insurance Institute for Highway
Safety (www.IIHS.org).
"The Institute rates vehicles good, acceptable,
marginal, or poor based on performance in high-speed front and side crash
tests plus evaluations of seat/head restraints for protection against neck
injuries in rear impacts. The first requirement for a vehicle to become
a TOP SAFETY PICK is to earn good ratings in all three Institute tests.
A new requirement for 2007 is that the winning vehicles must offer ESC
Ielectronic stability control). This addition is based on Institute research
indicating that ESC significantly reduces crash risk, especially the risk
of fatal single-vehicle crashes, by helping drivers maintain control of
their vehicles during emergency maneuvers."
Only 13 2007 models earned the top rating.
They are Large car: Audi A6 manufactured in Dec. 2006 and later; Midsize
cars: Audi A4, Saab 9-3, Subaru Legacy equipped with optional electronic
stability control; Minivans: Hyundai Entourage, Kia Sedona Luxury SUV:
Mercedes M class, Volvo XC90; Midsize SUV: Acura RDX, Honda Pilot, Subaru
B9 Tribeca; Small SUV:Honda CR-V, Subaru Forester equipped with optional
electronic stability control.
ALSO-RANS Rear protection isn't good.
These vehicles earned good ratings in front and side crash tests. They
have electronic stability control, standard or optional. They would
have won 2007 TOP SAFETY PICK awards if their seat/head restraints also
had earned good ratings. Instead rear crash protection is rated acceptable,
marginal, or poor (Honda reports that the seat/head restraints in the only
Civic model with electronic stability control wouldn’t be rated good).
Acceptable rear protection: Audi A3, BMW
3-series 4dr, Lexus IS 250/350; Marginal rear protection: Acura TL, Honda
Odyssey, Lexus ES 350, Lexus GS 350, Toyota Camry, Toyota FJ Cruiser, Toyota
Prius, Toyota RAV4; Poor rear protection:Honda Accord 4dr, Infiniti M35,
Nissan Quest, Toyota Avalon, Toyota Sienna"
6/27/2006 Subaru Forester
has ranked highest in independent Used Car Safety Ratings (UCSR) announced
in Australia. The 2006 UCSR studied more than 1.7 million crashes
of 305 different vehicle models over a 17-year period. For the first
time in the study’s history, a ‘standout’ car was identified, with Subaru’s
Forester (1997-2002) rating as top performer. The UCSR is the world’s largest
study of vehicle crashes and is conducted by the Monash University Accident
Research Centre and supported by the RACV, the Transport Accident Commission
(TAC), and VicRoads, as well as other state and federal road authorities
and motoring clubs from Australia and New Zealand. from car.co.nz
March 2006 Subaru Impreza
is a 'gold standard among small cars' and a Top
Safety Pick from IIHS.org
Jan 9, 2006 Forester rated good
protection against whiplash injuries in rear-end crashes by iihs.org.
Only 6 of 44 tested earned the good rating, including Ford Freestyle, Volvo
XC, Honda Pilot, Jeep Grand Cherokee, Land Rover LR3
December 5, 2005 Crash test results:
2006
Legacy is a 'Top Safety Pick' Gold Award winner from Insurance Institiute
for Highway Safety. iihs.org. 'Top Safety Pick' winners reflect an elite
fraction of the car market.
November 20,2005 Crash test results
2006
Legacy is a
double 'best pick' in both front and side Crash Tests
from
the IIHS.org
Sept 12, 2005 Crash
Test Results the Tribeca get 5 stars from nhtsa.gov
2000
Subaru Legacy Institute for Highway Safety crash test results
1995-99
Subaru Legacy Institute for Highway Safety crash test results
1999-2000
Subaru Forester Institute for Highway Safety crash test results
Crash-Test
Results, http://www.crashtest.com
Recalls
http://www.alldata.com/recalls/index.html
