Subaru Navigation
Photos of the Subaru Navigation on 2012, 2011 and 2010 Legacy and Outback

Photographs, screenshots, and use of the Navigation system for the 2012, 2011 and 2010 Outback and Legacy.

All info subject to change, correction, updating. Looking for the Navigation system used in 2006, 2007, 2008, 2009 Legacy, Outback, Tribeca, Impreza and Forester


the opening screen with Subaru and logo
***

Please read- this unofficial independent Subaru research site by Joe Spitz is designed to help you learn about Subarus. It is not sponsored, authorized,  supported or approved by Subaru or any dealer and is not connected to or affiliated with, any dealer. Always contact your local dealer. Inspect any vehicle prior to purchasing. Information subject to change, correction, updating..

contact - homepage - sitemap
all text, photos © joe spitz. unauthorized reproduction prohibited. you are here: http://www.cars101.com/subaru/nav3.html  v  4.24.12

notes, updates

2012 seems to have the same functions as 2011 ansd 2010 as far as I can tell.
2011 seems to have the same functions as 2010 as far as I can tell.

You can program at least 5 phones to work with the Navigation system.
Only one phone can be active at a time and you have to switch the phone in the system if you want it to work. It isn't hard to do.
note that this Navigation does not cover Hawaii, Alaska

Disc updates when available are only from Kenwood, not from the Subaru dealer.  Look for the Subaru link at  http://store.kenwoodusa.com

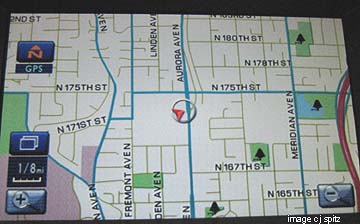

2011 Navigation screen shot
2011 version

Disc updates when available are only from Kenwood directly, look for the Subaru link at  http://store.kenwoodusa.com


2010 version

Disc updates when available are from Kenwood directly, look for the Subaru link at  http://store.kenwoodusa.com/

Made by Kenwood. Subaru part number 86271AJ60A- subj to change
Navigation screen OFF-
Navigation off- tap the opening 'agree' button, then tap the right audio button. This is what you see. The start it again, tap any Nav button
Outback and legacy
the navigation system, showing the single CD disc slot but not the hidden map disc slot

To access the map disc, gently pop off the blue plastic
cover from the bottom, your fingernail works well
Legacy and Outback Navigation
the navigation system with the map disc slot uncovered. To access the map disc, gently pop off the blue plastic slot cover from the bottom, your fingernail works fine

back up camera is standard. The green lines are app 11 feet aways

the back up camera is just to the left of the license plate

back-up camera is standard with Navigation

 good screen resolution

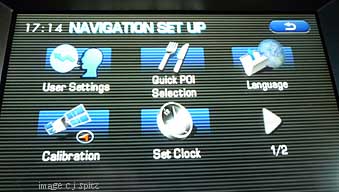

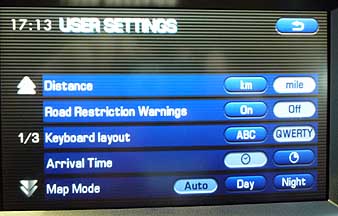

navigation set up screen

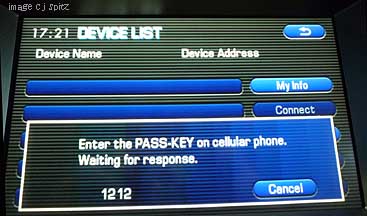

register your phone- make Bluetooth active on the phone

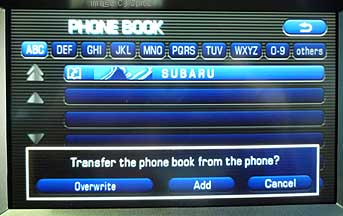

you can add your phone's contacts

more than one phone registered (system will take up to 5)? its easy to switch but only one phonecan be active at a time

at least 5 phones can be registered but only one can be active

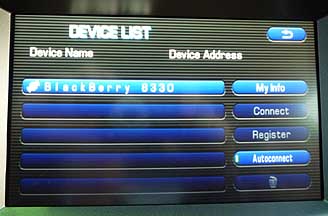

list of phones

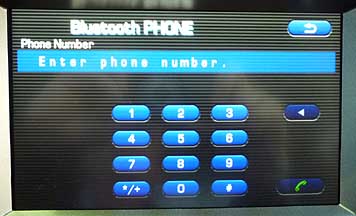

dial. a phone has to registered to make a call

List function (lower right of screen) is a improved point of interest function and no longer alphabet dependent!.

change your location so your can find Points Of Interest, correct time zone etc for the clock etc

calendar and calculator functions are in the 'Info' screen

points of interest

Bluetooth setup screen

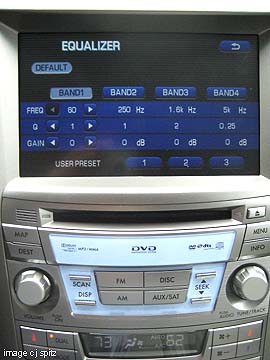

audio setup screen is more than a few simple bass or treble adjustments. It can be pretty complicated

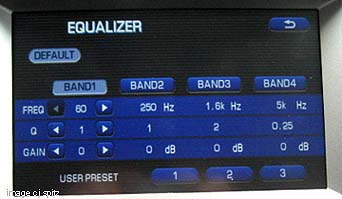

audio setup screen- a lot of choices (frequency, gain?) and options, some are very hard to figure out.



audio setup screen

phone setup screen

phone setup screen

a phone speed dial screen

more soon..

this is an unofficial page by Joe Spitz who is soley responsible for all content. This site is not authorized, paid for or sponsored by SoA or any dealership.
Content subject to change, correction.

Thanks for visiting,
Joe
